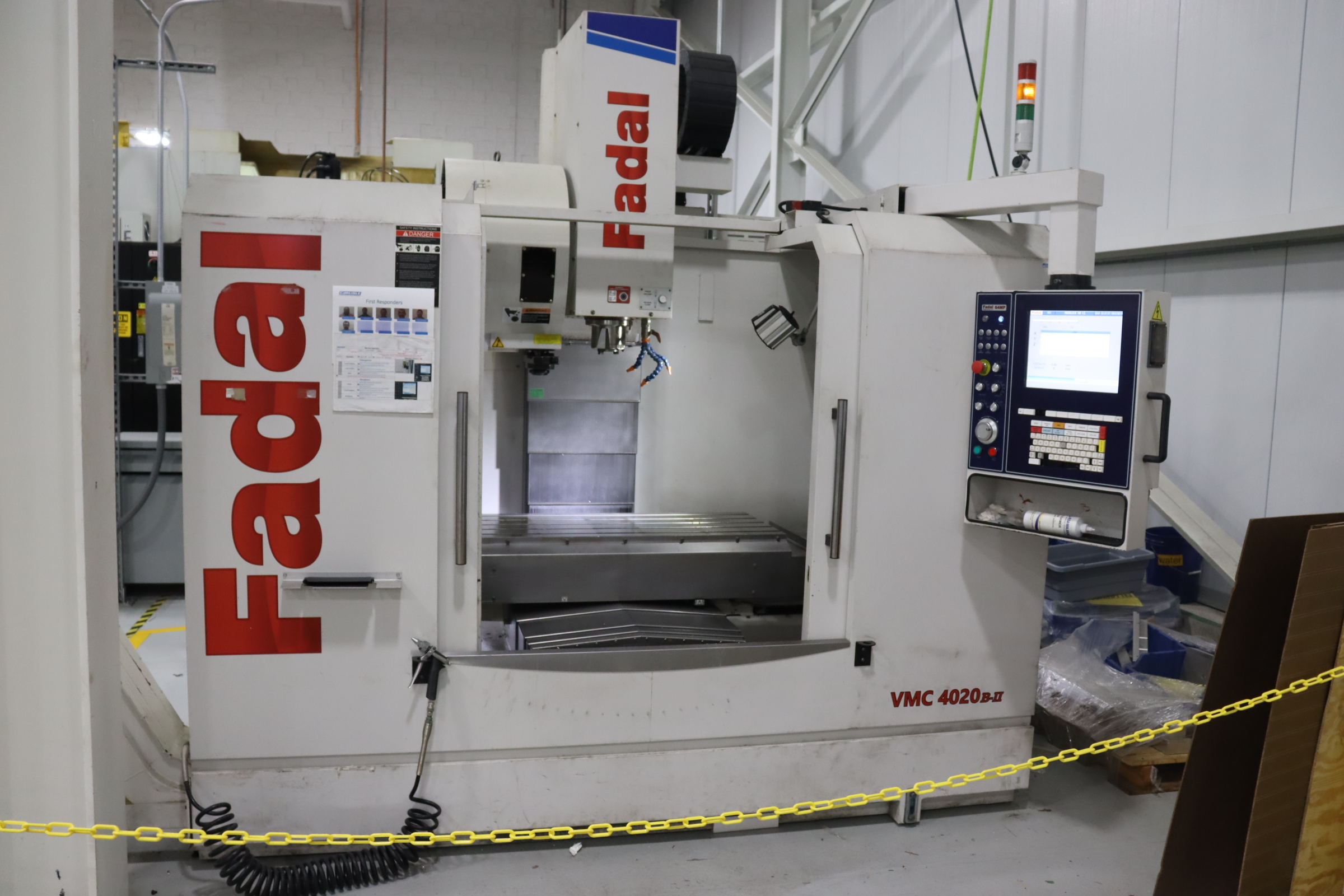

Fadal 4020 B-II 2017

machine specification

• X-AXIS TRAVEL
• 40"

• Y-AXIS TRAVEL
• 20"

• Z-AXIS TRAVEL
• 20"

• TABLE SIZE
• 47.25" x 19.7"

• MAX WEIGHT ON TABLE
• 1,320 lbs.

• FLOOR TO TABLE SURFACE
• 34"

• SPINDLE NOSE TO TABLE
• 4.7" to 25.1" / 4.7" to 35"*

• SPINDLE CENTER TO COLUMN
• 21.25"

• SPINDLE POWER
• 15HP

• SPINDLE TAPER
• CAT-40

• SPINDLE SPEED
• 10,000 RPM

• REPEATABILITY
• JIS B6338 (in.) 0.0001

• RAPID RATE (X/Y/Z)
• 1,000 IPM

• MAX TOOL DIAMETER
• 4.9"

machine equipped with

• FADAL 64MP CONTROL
• BOX WAY CONSTRUCTION
• 24 POSITION SIDE MOUNT ATC
• SPINDLE CHILLER
• SPINDLE ORIENTATION
• LED WORKLAMP
• RIGID TAPPING
