Chevalier FVL-1600VTC-C 2015

MACHINE SPECIFICATIONS

• Max Swing Diameter:

  78.7"

• Max Cutting Diameter:

  78.7"

• Max Turning Height:

  51.6"

• Max Torque:

  19,030 Nm

• Max Table Load:

  22,000 lbs

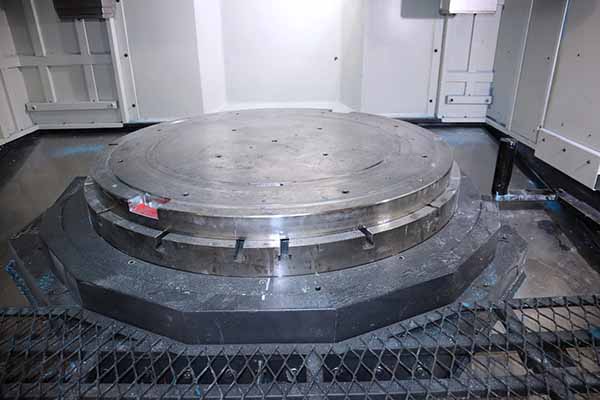

• Table Diameter:

  63.0"

• Maximum Table Speed:

  250 RPM

• Height of Table top from bed bottom:

  35.6"

• Spindle Speed:

  25 ~ 2,500 RPM

• Spindle Taper:

  CAT 50

• Spindle Motor:

  20 HP

• Milling Spindle Motor:

  60 HP

• Distance from Spindle Nose to Table:

  60.2"

• X Travel:

  -33.1" , + 45.7"

• Z Travel:

  35.4"

• W-Travel:

  31.5"

• C axis index:

  0.001

• X/Z-Axis Rapid Rates:

  393 IPM

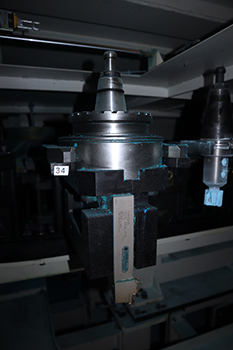

• ATC Capacity:

  48 Tools

• Machine Dimensions (L x W x H):

  284.3" x 248.0" x 226.4"

• Machine Weight:

  70,500 LBS
