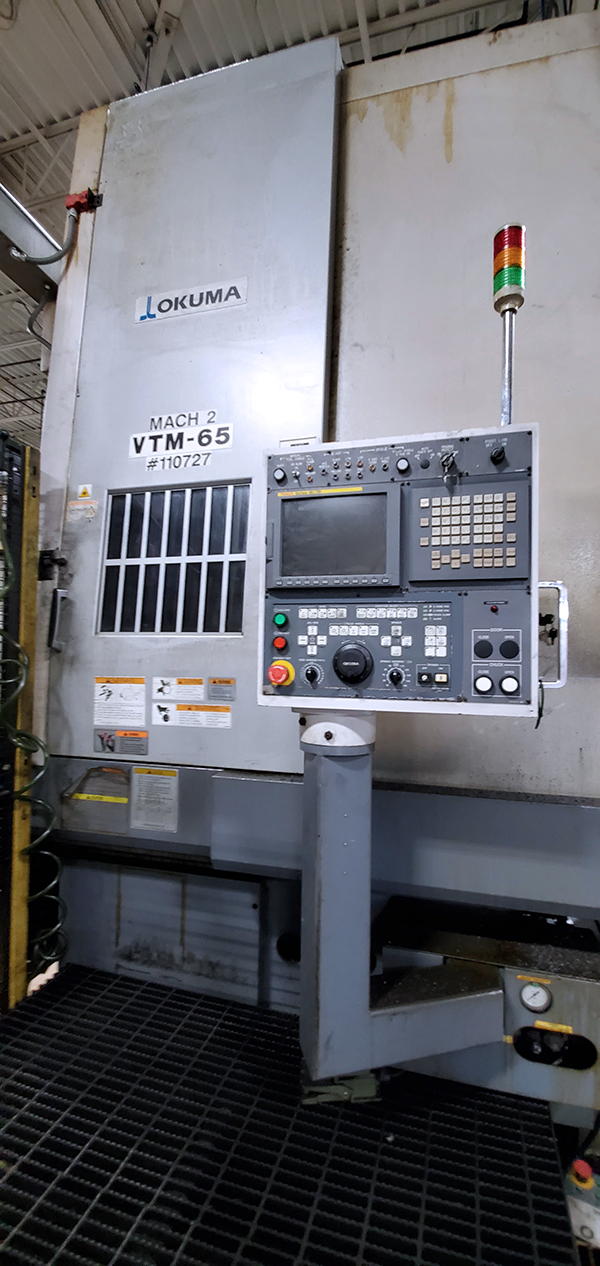

Okuma VTM 65 2007

machine specification

• MAX TURNING DIAMETER
• 25.6"

• MAX SWING
• 29.5"

• MAX TURNING LENGTH
• 25"

• MAX WORKPIECE WEIGHT
• 1765 lbs

• SPINDLE DIAMETER
• 7.87"

• SPINDLE HOLE
• 4.33"

• SPINDLE NOSE
• JIS A2-11

• C-AXIS INCREMENT
• 0.001 Degrees

• SPINDLE TAPER
• CAT 50

• X-AXIS TRAVEL
• 19.7"

• Z-AXIS TRAVEL
• 25"

• SPINDLE HEIGHT FROM FLOOR
• 43.5"

machine equipped with

• W/ FANUC 18I-TB CNC CONTROL
• RENISHAW PROBING
• 60-POSITION ATC
• 3-JAW CHUCK
• COOL JET HIGH-PRESSURE COOLANT SYSTEM
• CHIP CONVEYOR

machine description

The Okuma VTM series 3-axis Vertical Turning Center combines the benefits of a vertical lathe with that of a Machining Center. This 50 taper 60-tool magazine enables the VTM-65 series to offer both Turning & Milling operations on a single platform. This is an ideal machine for efficient low volume parts production, including any work that requires Heavy Milling regardless of material. The box-way construction and wide, angular slideways on each axis provide high rigidity for accurate machining. A vertical axis counterbalance assures smooth, stable feed at all speeds.
