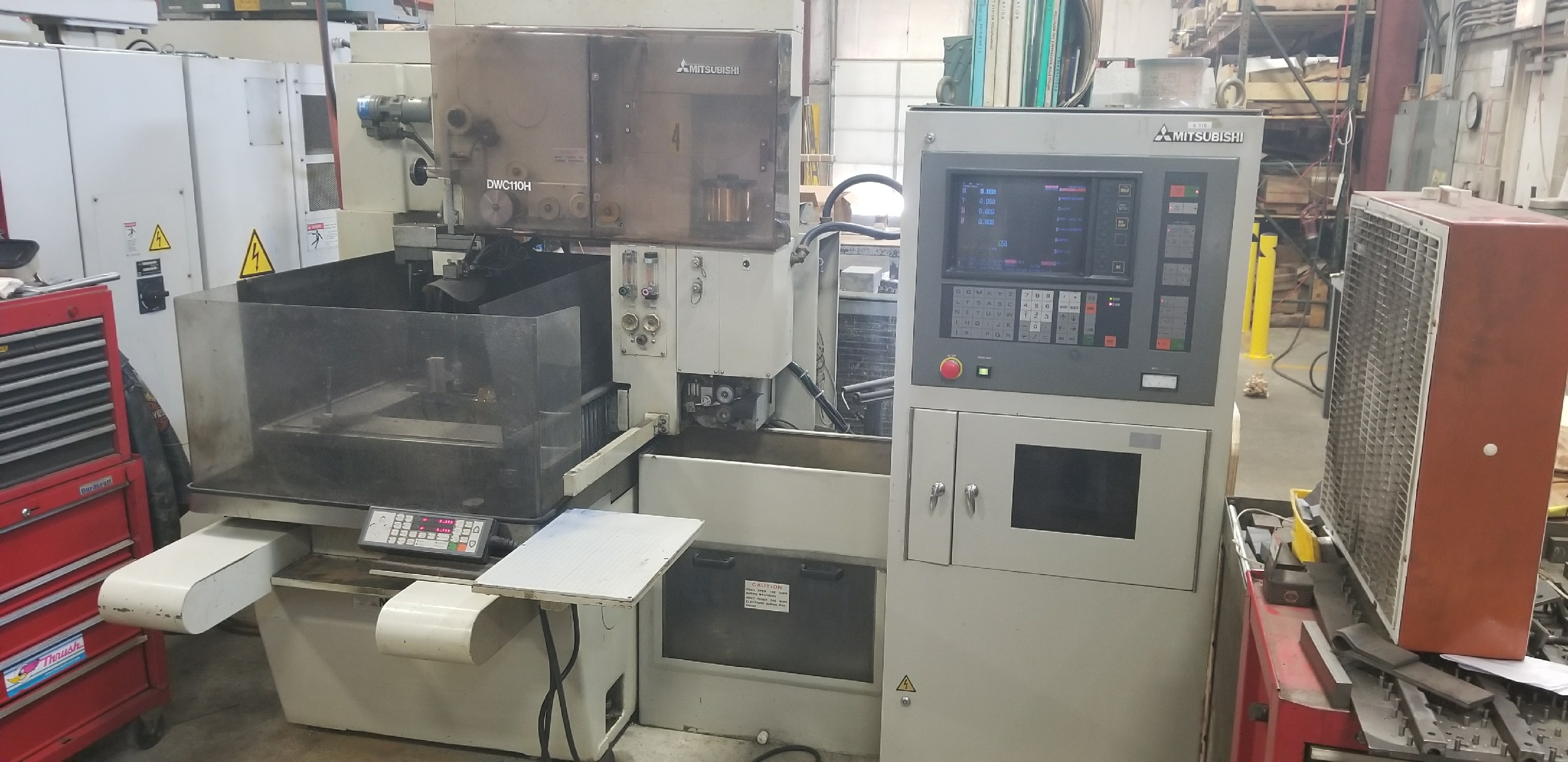

Mitsubishi DWC110H 1988

machine specification

• MAX AMPERAGE
• 50 Apms

• TURRET CAPACITY
• 8 Positions

• TOOL CHANGER TYPE
• 60 ATC

• THROAT DEPTH
• 9.45"

• TABLE SIZE - W
• 30"

• TABLE SIZE - L
• 61"

• PALLET SIZE (INCHES)
• 25"

• BAR STOCK CAPACITY
• 2.0"

• MAX SWING (INCHES)
• 17.32"

• SPINDLE SPEED
• 12,000 RPM

• SPINDLE TAPER (CAT/BT)
• HSK-463

• Z - AXIS TRAVEL (INCHES)
• 14.7" / 375mm

• Y - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• X - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• CHUCK SIZE (INCHES)
• 8"

• MACHINING STROKE
• 11.81" x 17.72"

• TABLE DIMENSIONS
• 25.59" x 23.62"

• MAXIMUM WORKPIECE DIMENSIONS
• 1.65" x 23.62" x 10.24"

• MAXIMUM WORKPIECE WEIGHT
• 1433 lbs

• RAPID TRAVERSE
• 51.18 IPM

• TABLE RESOLUTION
• .000004"

machine equipped with

• MANUALS
• MITSUBISHI CNC CONTROL
