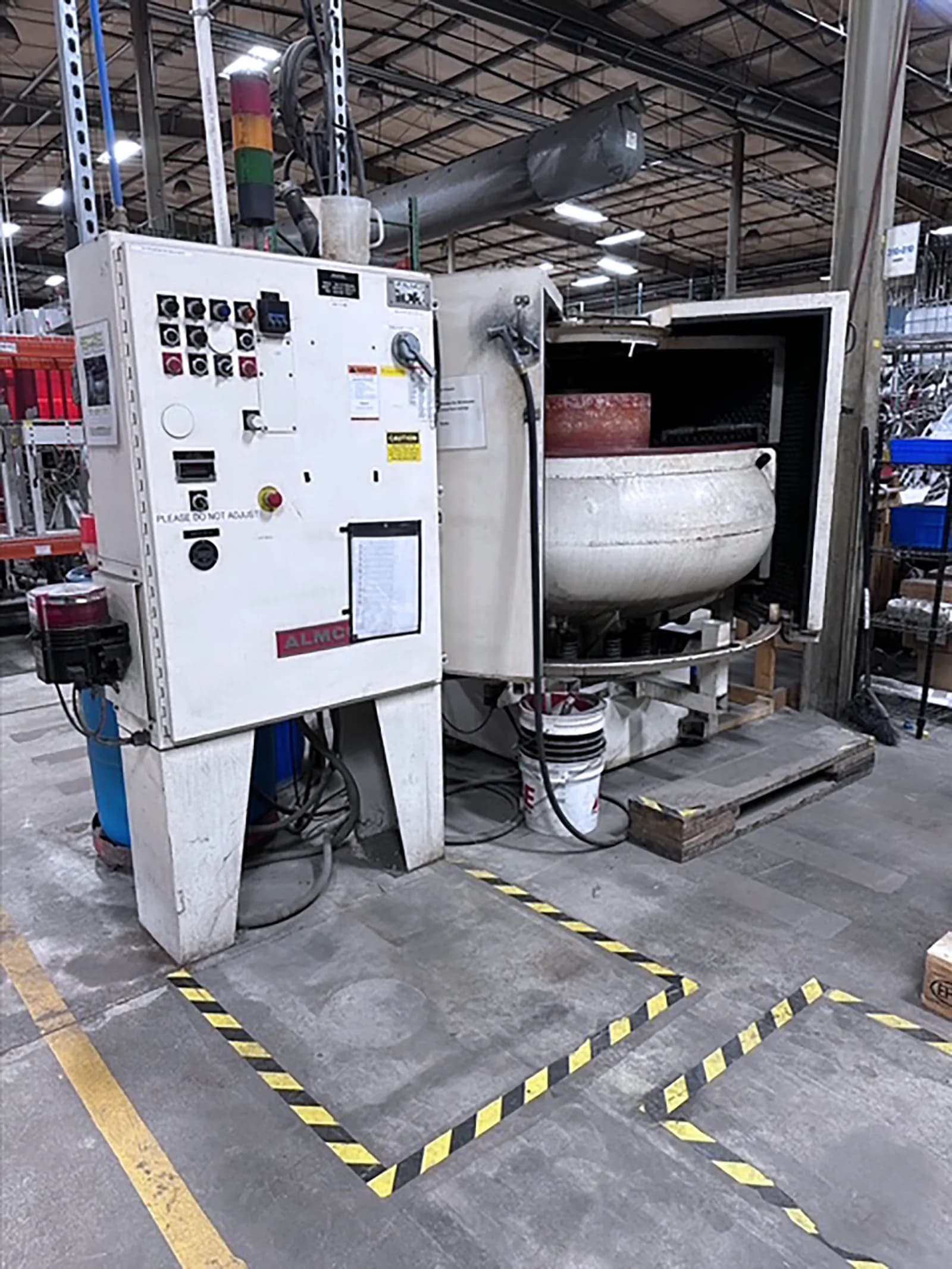

Almco OR-23V
Equipped With
- INCLUDED FEATURES
- Flowmeters
- Elapsed Time Recorder

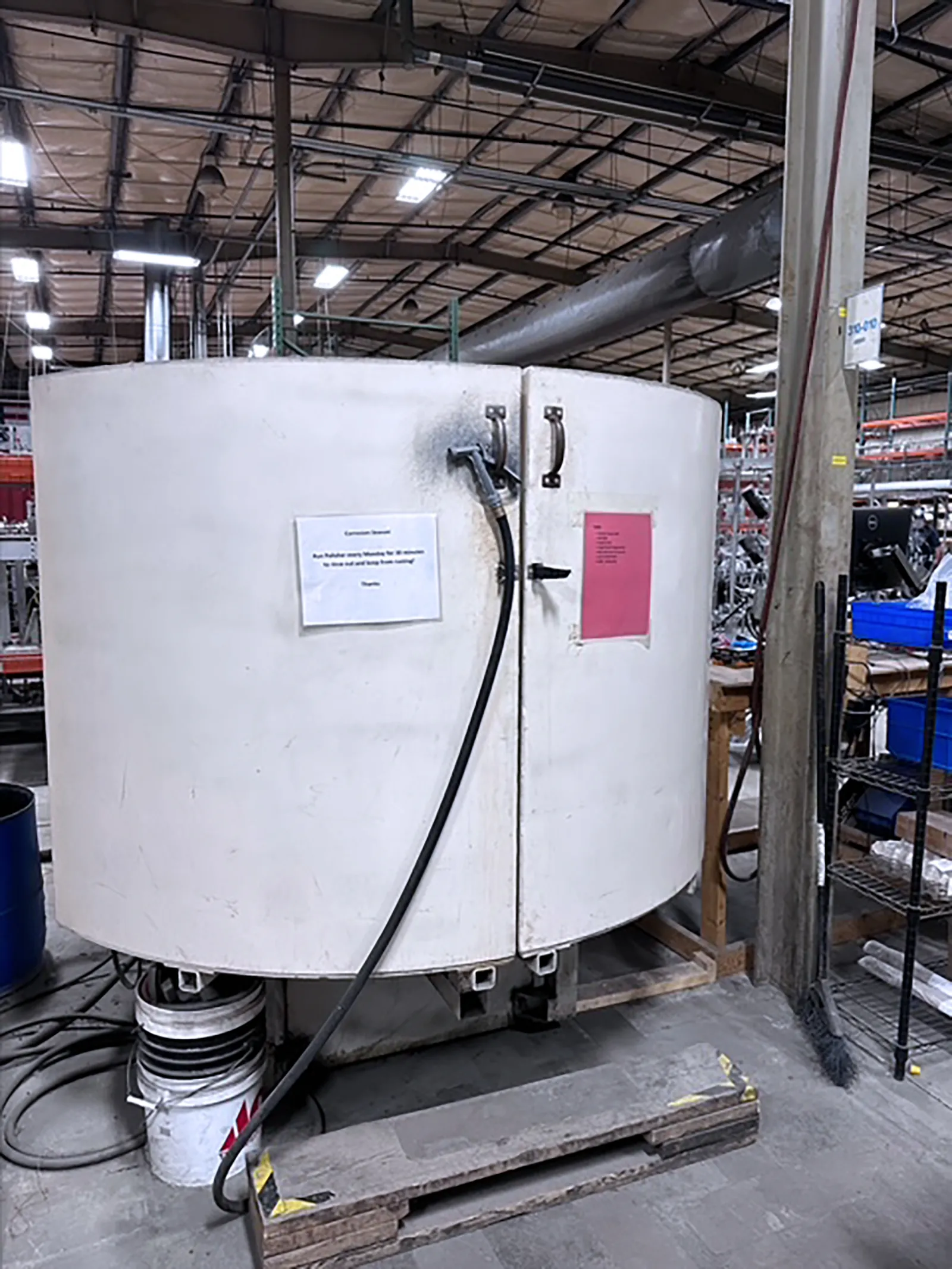

- OR-23V Sound Hood
- Automatic Lubrication System
- Tachometer
- Compartmentalized Divider Assembly
Specifications
- Capacity 23 cu. ft.
- Length 80" (including electrical control box)
- Width 66"
- Height 55"
- Diameter 66"
- Blade Cross Section 19" Dia.
- Lining 1" thick polyurethan (hot pour), 90 durometer

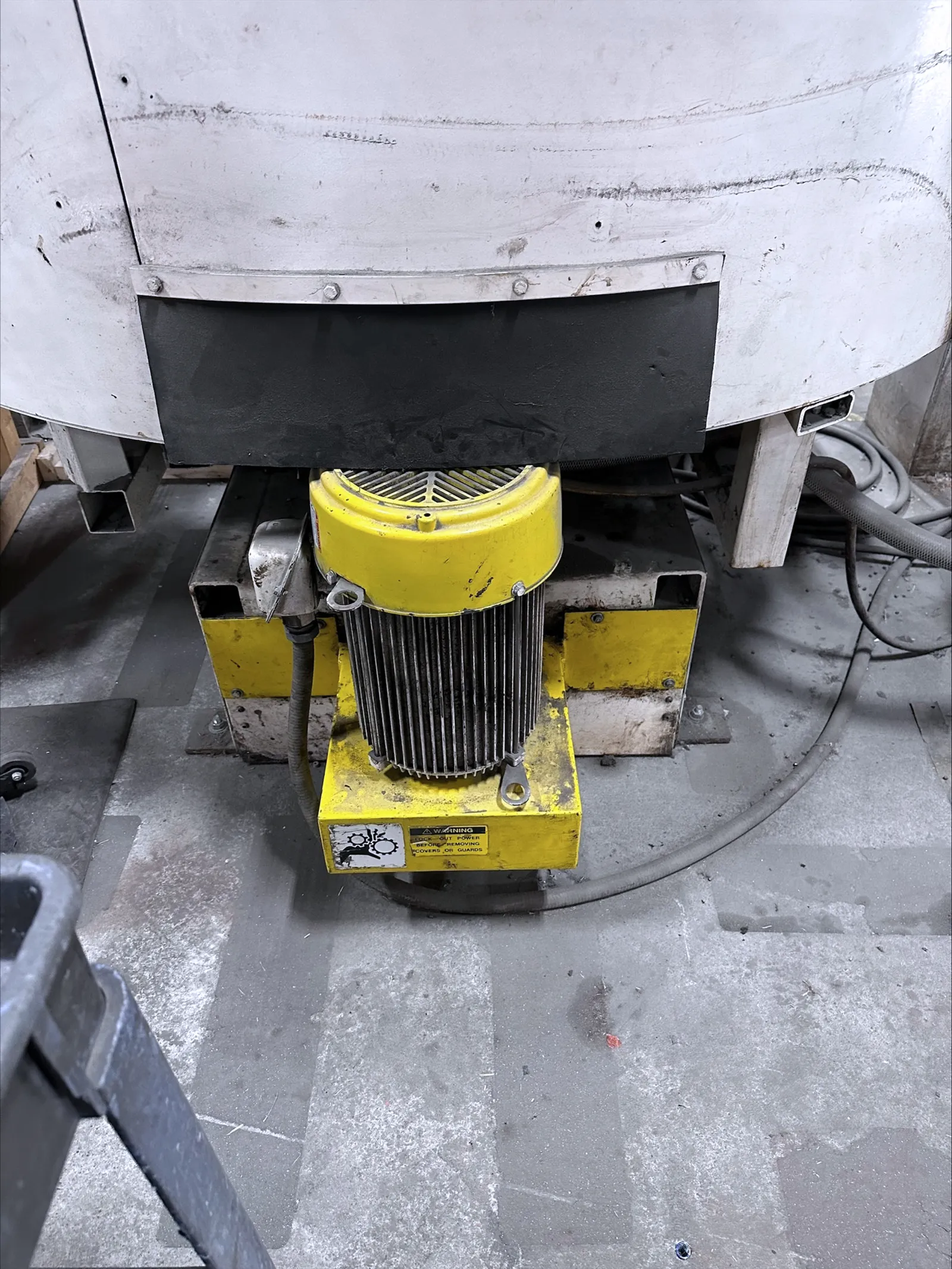

- Power Unit
- HP 10 HP
- 1800 RPM
- Ball Bearing Motor for 460 volts
- 3 Phase
- 60 cycle operation powered by an AC Variable Frequency Inverter
- Pullet is connected by a V-belt to a companion sheave on the vibratory mechanism
- Frequency of vibration is variable from 900 to 1400 cycles per minute
- All moving drive components are well guarded for operator protection
- **GENERAL DESCRIPTION **
- Energy Efficient "OR" Series Machine is composed of the following basic components:
- 1. The Supporting Base and Framework
- 2. The Drive Unit

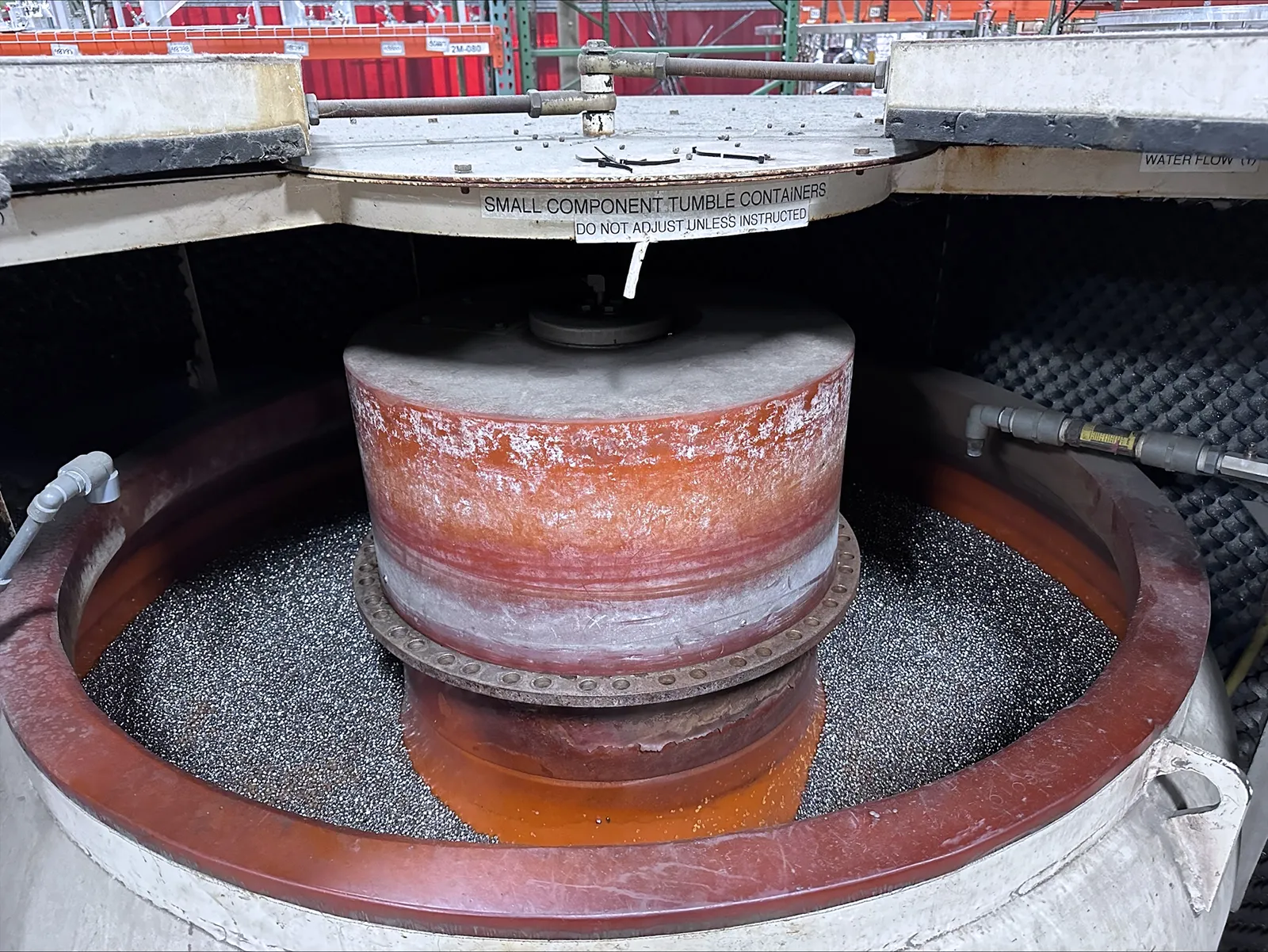

- 3. Almco's Natural Contour Molded Urethane Lined Tub
- 4. The Vertical Shaft Vibrator

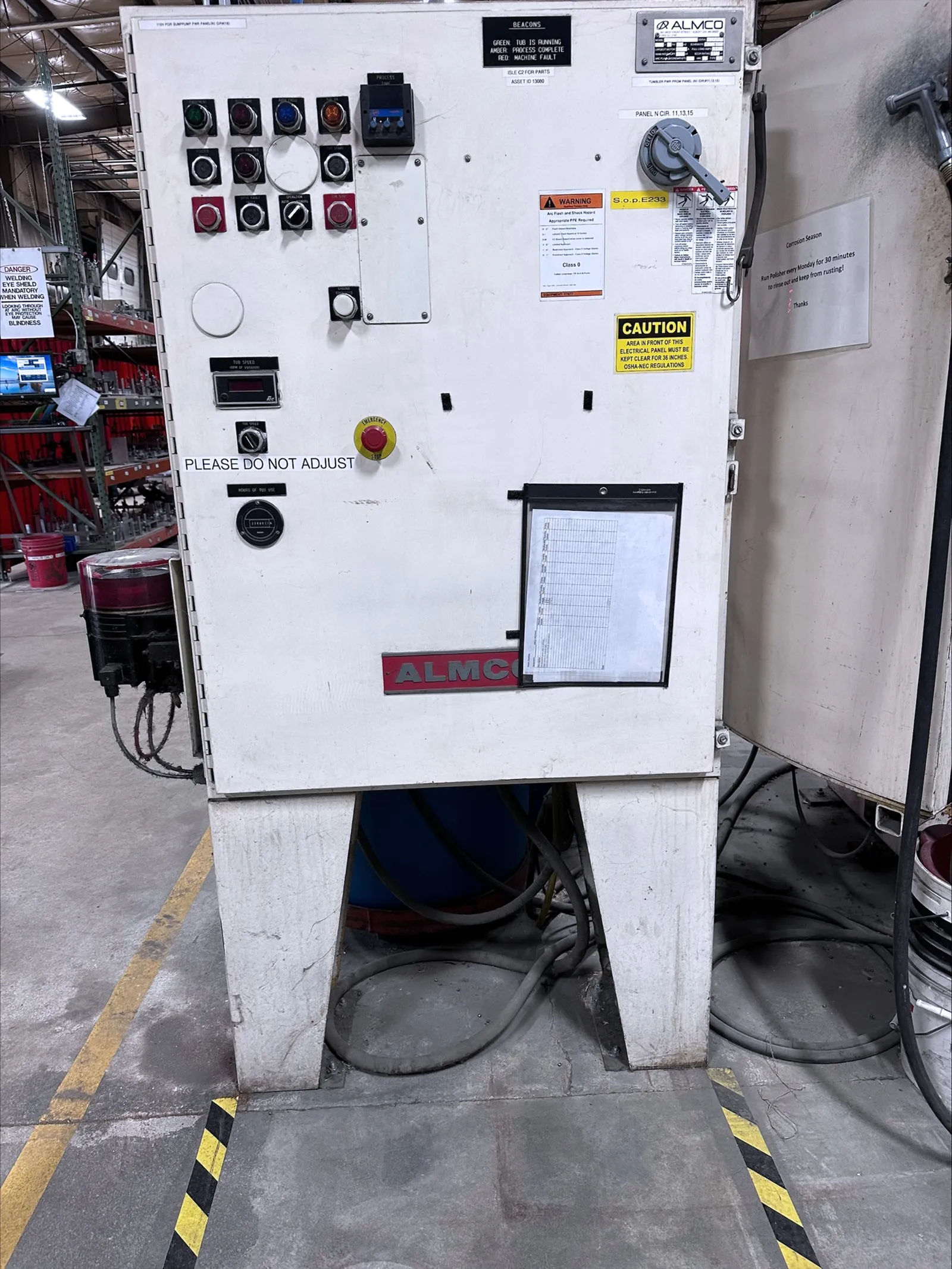

- 5. The Electrical Control Enclosure
Machine Description
No description available
