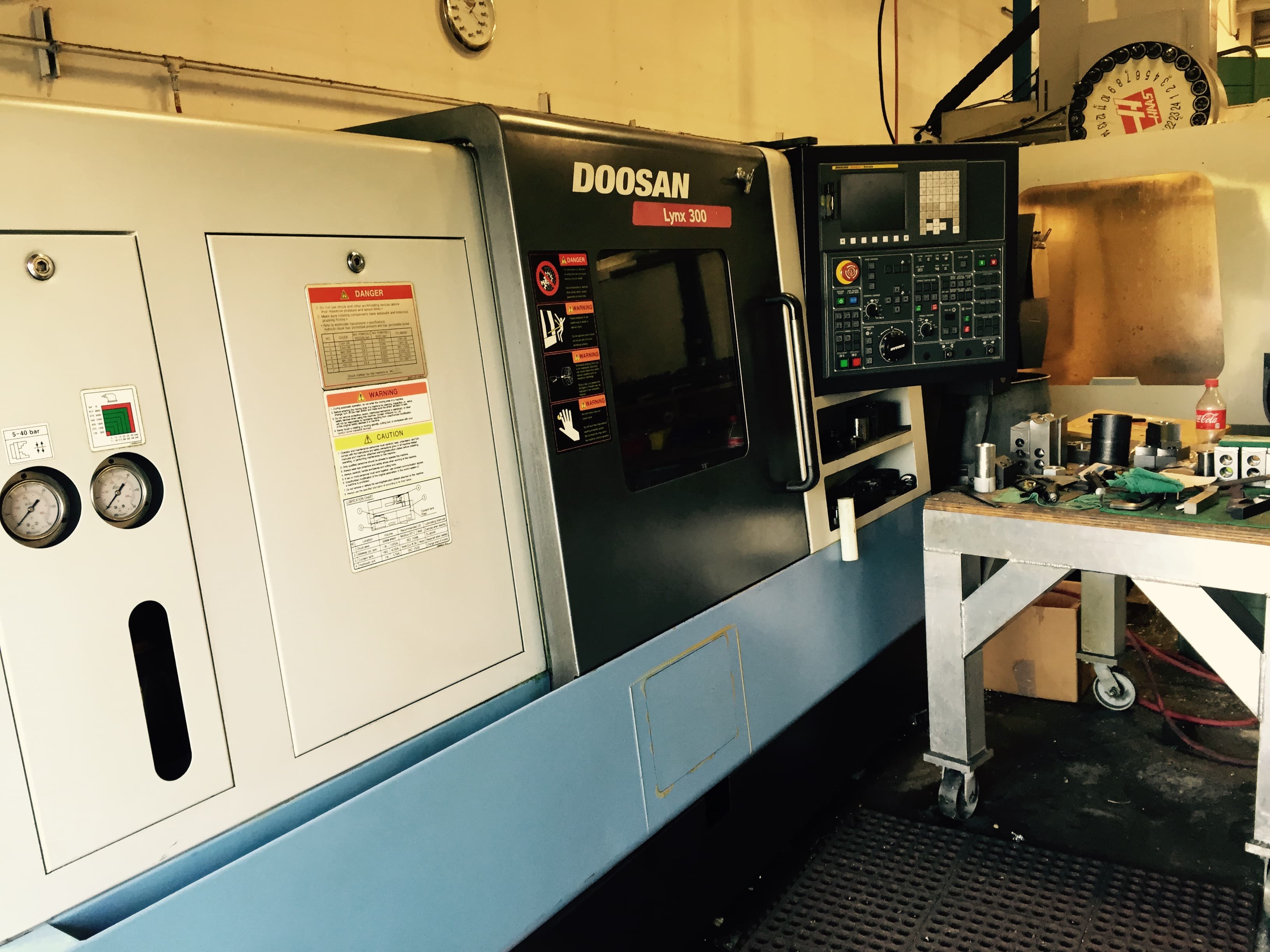

Doosan Lynx 300 2011

Power on Hours: 3822 Spindle Hours: 1394 Seller confirmed these: Swing over bed (651mm) 25.63" Swing over carriage (461mm) 18.15" Maximum turning diameter (Lynx 300 / Lynx 300M) (450mm / 370mm) 17.7” / 14.56” Maximum turning length (Lynx 300 / Lynx 300M) (765mm / 712mm) 30.1” / 28.03” SPINDLE: Spindle speed (RPM) 35 - 3,500 Spindle nose A2-8 Draw tube I.D. (77mm) 3.03" Spindle bore diameter (86mm) 3.38" A.C. Spindle Motor (30 minute rating) (15kW) 20 HP Maximum spindle torque (30 minute rating) (327.4 Nm) 241 ft-lbs. C-AXIS: (Lynx 300M only) Minimum programmable angle (degrees) .001 Rapid traverse rate (RPM) 200 C-axis repeatability +/- .006 deg. C-axis positioning accuracy .0167 deg. BED, SADDLE, & CROSS SLIDE: X axis travel (255mm) 10.0” Z axis travel (790mm) 31.1" Inclined angle of bed 30 degrees X axis guideway span (264mm) 10.39” Z axis guideway span (373mm) 14.68" Tailstock guideway span (148mm) 5.8” X axis rapid traverse rate (24m/min) 945 IPM Z axis rapid traverse rate (30m/min) 1,181 IPM X axis ball screw diameter (28mm) 1.1" Z axis ball screw diameter (40mm) 1.57” TURRET: Number of tools 12 Turning tool shank size (metric turret 25mm) 1.0" Boring bar diameter (metric turret 40mm) 1.5" Turret index time (next station swivel time) 0.15 sec. Tool selection Bi-directional Curvic coupling diameter (210mm) 8.26" Turret clamping force (45.8kN) 10,296 lbs Turret index repeatability + .0005 degree Tailstock quill diameter (80mm) 3.15" Tailstock quill stroke (programmable) (120mm) 4.72" Maximum tailstock quill thrust / maximum hydraulic pressure (7.7kN / 40bar) 1732 lbs. / 580 PSI Tailstock spindle taper MT #4
