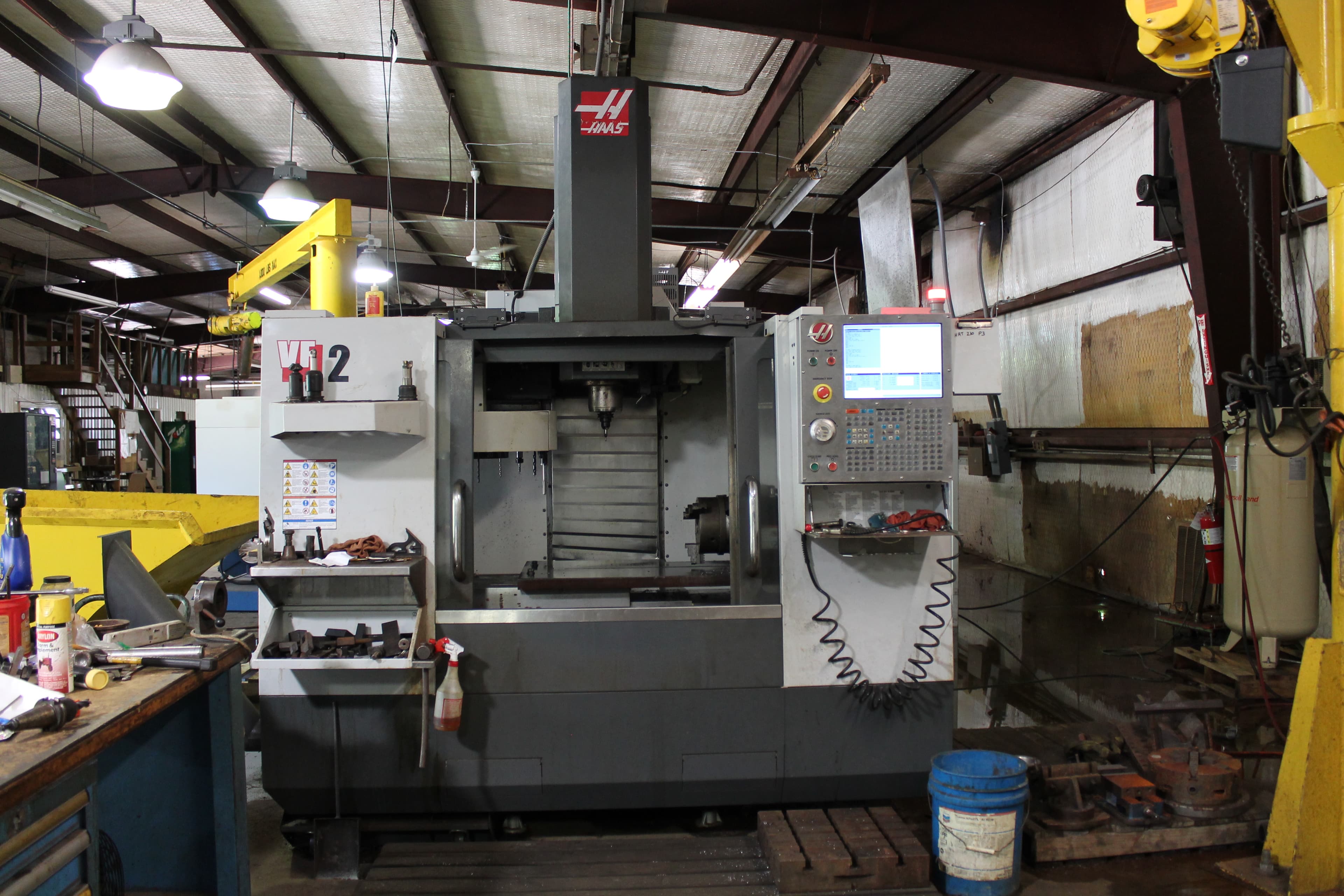

Haas VF-2 2013

Pictures saved to Public - Canon - Redidrill_050516_DM - New Folder With Items: IMG_4698 - 4723 TRAVELS X Axis 30 " Y Axis 16 " Z Axis 20 " Spindle Nose to Table (~ max) 24 " Spindle Nose to Table (~ min) 4 " TABLE Length 36 " Width 14 " T-Slot Width 5/8 " T-Slot Center Distance 4.92 " Number of Std T-Slots 3 Max Weight on Table (evenly distributed) 3000 lb SPINDLE Max Rating 30 hp Max Speed 8100 rpm Max Torque 90 ft-lb @ 2000 rpm Drive System Inline Direct-Drive Max Torque w/opt Gearbox 250 ft-lb @ 450 rpm Taper CT40 Bearing Lubrication Air/Oil Injection Cooling Liquid Cooled FEEDRATES Rapids on X 1000 in/min Rapids on Y 1000 in/min Rapids on Z 1000 in/min Max Cutting 650 in/min AXIS MOTORS Max Thrust X 2550 lb Max Thrust Y 2550 lb Max Thrust Z 4200 lb TOOL CHANGER Type Carousel Capacity 20 Max Tool Diameter (full) 3.5 " 8 Max Tool Weight 12 lb Tool-to-Tool (avg) 4.2 sec Chip-to-Chip (avg) 4.5 sec GENERAL Air Required 4 scfm, 100 psi Coolant Capacity 55 gal
