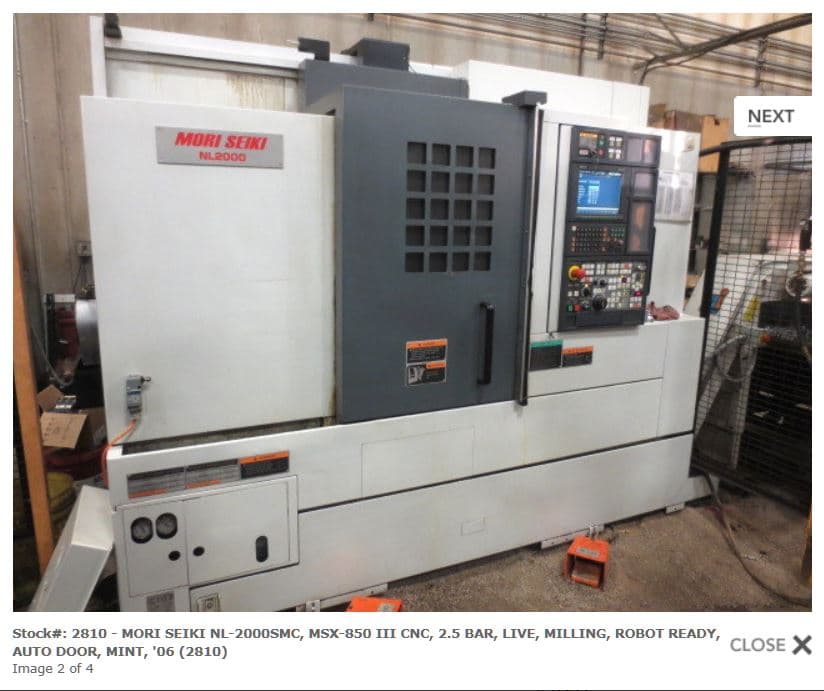

Mori Seiki NL2000SMC/500 2006

SWING OVER BED / CROSS SLIDE..... 36.4" / 29.7" MAX. TURNING DIAMETER / LENGTH... 14" / 20.0" MAX. TURNING LENGTH.............. 20.0" BAR WORK CAPACITY (MAIN / SUB)... 2.5" / 1.35" X AXIS TRAVEL.................... 10.2" Z AXIS TRAVEL.................... 23.2" C AXIS TRAVEL MAIN & SUB......... 0.001º B AXIS SUB SPINDLE TRAVEL........ 24.6" RAPID TRAVERSE X, Z & B AXES..... 1181 IPM RAPID TRAVERSE C AXIS............ 400º/MIN MAIN SPINDLE SPEED............... 5,000 RPM SUB SPINDLE SPEED................ 6,000 RPM SPINDLE MOTOR MAIN/SUB........... 20 HP / 15 HP SPINDLE BORE (MAIN / SUB)........ 2.9" / 1.7" BAR CAPACITY..................... 2.56" SPINDLE NOSE (MAIN / SUB)........ A2-6 / A2-5 TURRET POSITIONS................. 12 TURRET INDEX TIME................ 0.25 SECONDS LIVE TOOL SPEED.................. 100 - 6,000 RPM LIVE TOOL MOTOR 5 MIN/CONT....... 7.5/5 HP APPROX DIMENSIONS (NO BARFEED)... 134" x 76" x 84" MACHINE WEIGHT (APPROX).......... 13,000 LBS Equipped With: MORI SEIKI MSX-850 III CNC CONTROL WITH 10" LCD SCREEN RS-232C PORT INTERFACE FOR DNC (OFFLINE PROGRAMMING) TOOL EYE /TOOL PRESETTER, PCMCI SLOT ON CONTROL FACE AUTO DOOR OPEN AND CLOSE
