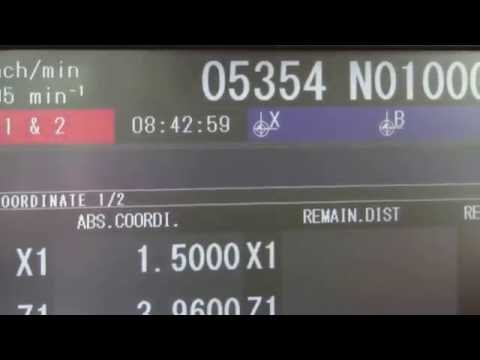

Watch how it performs
in real-world use
This Machine has been sold and is No longer Available... Find similar machines below
SOLD
Activate Search Agent
We'll help you find what you need
Equipped With
- Fanuc MSX-501 CNC Control With 14" LCD Screen
- Ethernet Port Interface / DNC Operation
- Collet Chucks on Main Spindle & Sub Spindle
- Rigid Tapping
- Polar Coordinate Interpolation
- Chip Blaster High Pressure Coolant Pump
- Parts Catcher
- Universal Barfeed Interface
- Iemca Boss 547/37 Bar Feeder
- Right Hand Discharge
- Chip Conveyor
Specifications
- X - Axis Travel (inches) 15.7" / 400mm
- Y - Axis Travel (inches) 15.7" / 400mm
- Z - Axis Travel (inches) 14.7" / 375mm
- B-Axis Travel (Spindle 2) 20.7"
- C - Axis Indexing L 0.001 degree
- Max Swing (inches) 17.32"
- Spindle Motor (HP) 15 HP
- Spindle Speed 12,000 RPM
- Distance between Spindle Noses 29.5"
- Rapid Traverse Rate X/Z Axes 708/945 IPM
- Rapid Traverse Rate B/Y Axis 945/236 IPM
- Live Tool Speeds (Upper/Lower) 100 – 6,000 RPM
- Max Turning Diameter 7.4"
- Resonator ( Type ) 55
- Spindle Taper (CAT/BT) HSK-463
- Bar Stock Capacity 2.0"
- Tool Changer Type 60 ATC
- Turret Capacity 8 Positions
- V-Axis Travel 5555
- Vertical Travel of Ram 4444
- Wire Diameter (inches) 3333
- Wire Traveling Speed 22
- Throat Depth 9.45"
- Pallet Size (inches) 25"
- Table Size - L 61"
- Table Size - W 30"
- Chuck Size (Inches) 8"
Machine Description
Maximum Swing of Workpiece: 9.8"
Max. Turning Diameter: 7.4"
Distance Between Spindle Noses: 29.5"
X Axis Travel (Upper & Lower): 5.3"
Z Axis Travel (Upper Turret): 17.7"
Z Axis Travel (Lower Turret): 17.3"
C Axis Indexing: L 0.001º
Y Axis Travel: 3.2" (±1.6")
B Axis Travel (Spindle 2): 20.7"
Rapid Traverse Rate X/Z Axes: 708/945 IPM
Rapid Traverse Rate B/Y Axis: 945/236 IPM
Spindle Nose (Both Spindles): A2-6
Max. Bar Capacity (Both Spindles): 1.9"
Spindle Speeds (Both Spindles): 60 - 6,000 RPM
Spindle Motor (Both Spindles): 15 HP
Turret Capacity (Upper/Lower): 16/16 Stations
Live Tool Motor: 7.5 HP
Live Tool Speeds (Upper/Lower): 100 - 6,000 RPM
Approx. Dimensions (Machine Only): 110" X 79" X 79"
Machine Weight (Approx): 11,500 Lbs
