This Machine has been sold and is No longer Available... Find similar machines below
SOLD
Estimated amount
$3,377.38/month
for over 72 months at 6.75% APR *
Activate Search Agent
We'll help you find what you need
Equipped With
- $38000 WORTH OF TOOLING
- 120 INCH BASE EXTENSION
- SWING AWAY WIPER DIE HOLDER
- HITCH FEED
- SPRINGBACK COMPENSATION
- DUAL SPINDLE SWING ARM
- PDI ZONE RECAPTURE
- WIPER DIE HOLDER
- LASER SAFETY SCANNER
- QUICK DISCONNECT MANDREL ROD
- REMOTE OPERATOR CONTROL STAND
- COUNTER CLOCKWISE ROTATION
- MANDREL EXTRACTOR WITH MANDREL ROD
- HEAVY DUTY AUTOMATIC MANDREL LUBRICATOR
- TWIN OVERHEAD TIE BARS
- FAN COOLED HEAT EXCHANGER
- HYDRAULIC INLINE PRESSURE DIE ASSIST
- INDEPENDENT CLAMP & PRESSURE DIE OPERATION (Independent Tools)
- AUTOMATIC SLIDE LUBRICATOR
- FAN COOLED HEAT EXCHANGER
Specifications
- Steel Tubing Y.P. to 40,000 PSI 4" x .109"
- Motor 40 HP 30Kw
- Operating Pressure 2000 PSI
- Stainless Steel Y.P. to 60,000 PSI 4" x .065"
- Reservoir Capacity 100 Gallons
- Non-Ferrous Tubing Y.P. to 25,000 PSI 4" x .188"
- Weight 4500 lbs
- Steel Pipe Schedule 80 2.5"
- Standard Bend Radius to Centerline 12"
- Standard Max. Tube Length Over Mandrel 136"
- Standard Carriage Travel 72"
- Carriage Travel (Y Motion) +- .005"
- Collet Rotation (B Motion) +- .10 Degrees
- Bend Arm Rotation (C Motion) +- .10 Degrees
- Bend Arm Rotation 195 Degrees
- Collet Rotation 360 Degrees
- Overall Length 226"
- Length of Arm 38"
- Bed Length 188"
- Centerline Height 3"
- Undernose Clearance 30"
- Working Height 42"
- Maximum Bend Angle (+allowance for spring back) 180 Degrees
- Max Bend Arm Rotation 195 Degrees
- Over-Mandrel Tube Length 136"
- Bending Arm Speed 21 RPM
Machine Description

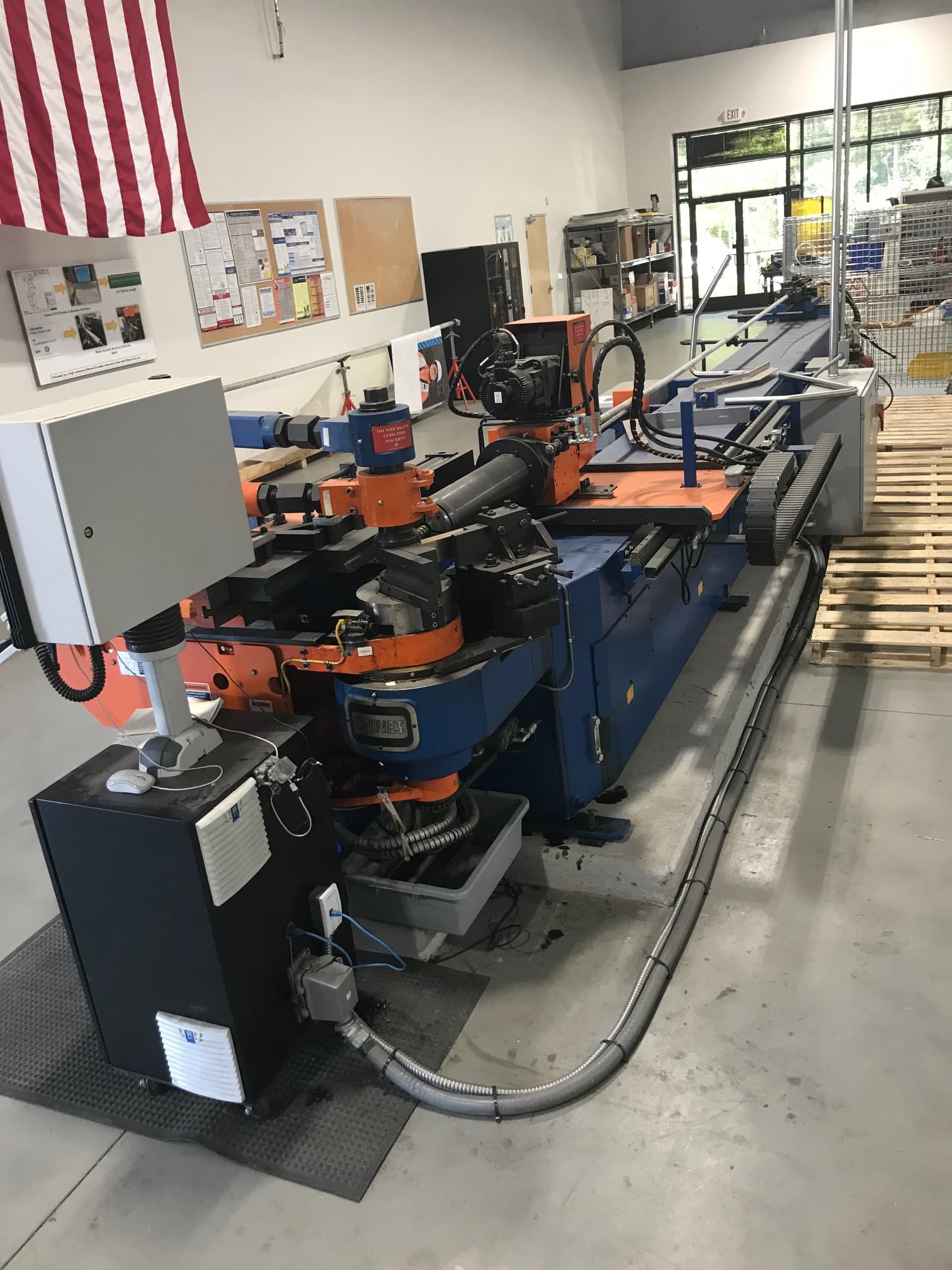

Used Pines CNC-100. This pre-owned Tube Benders is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Pines Tube Benders we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Related Tags

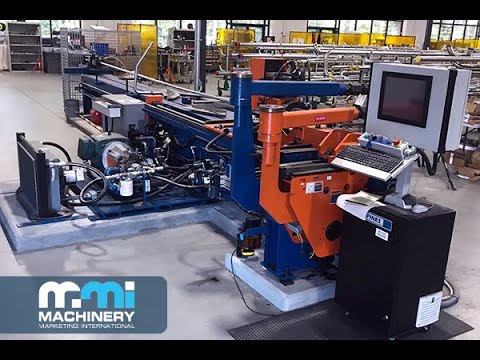

See the Machine in Action
