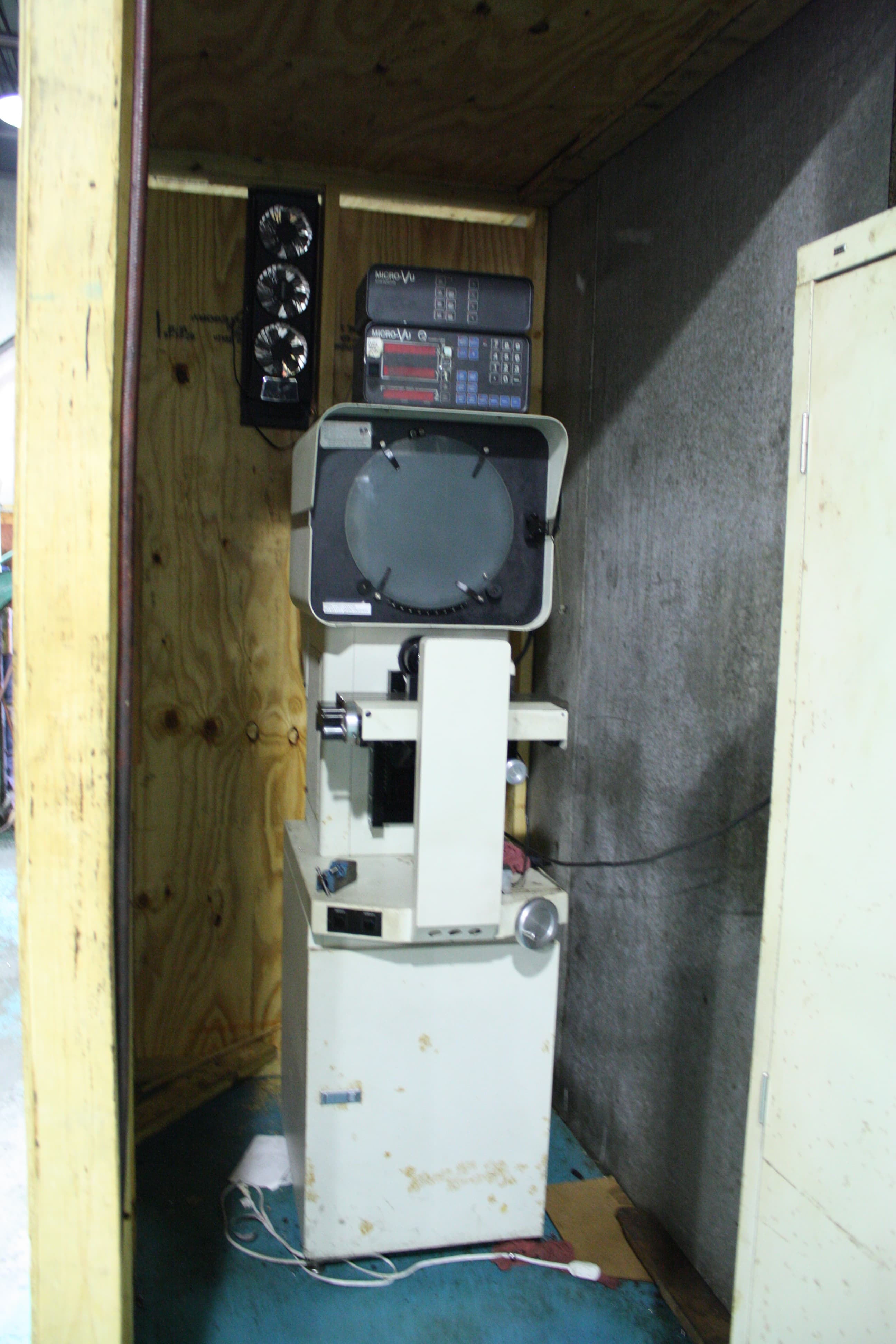

Shadow Graph Macro Vu S14

X-Y-Z Performance Linear accuracy X overall: ..............................................00075" Y overall: ..............................................0005" X-Y Repeatability............................0001" Perpendicularity X to Y axis overall:................................0005" Z to X/Y axis overall:.............................0005" Optical performance Distortion Profile illumination:..........................± 0.1% Surface illumination: .......................± 0.1% Focal Lengths C9131 10x lens 4.5" C9132 20x lens 2.0" C9133 30.25x lens 1.25" C9134 40x lens 1.25" C9135 50x lens 1.25 Features OPTICS Image .............................................14" Erected Lens ...............................................10X, 20X, 31¼X, 40X, 50X, 62½X, 100X Lens focal distances ....................10X: 4.8", 20X: 2.4", 40X: 1.2", 50X: 1 Profile light ...................................#L7390 (MicroVu part #7347), 100 watt halogen, 2,000 hours Surface light (all models) ..............#ELS (MicroVu part #7341), 50 watt, 200 hours Q16 controls • 16-bit Processor • 100 Memory locations (battery backup) • RS232 Computer interface • RS232 Printer interface Options • Programmable Q16 • .00005 Resolution encoders • Electronic protractor • Pentium 100 computer system • Surface illumination with mounting bracket • InSpec metrology software • Miscellaneous fixtures • ED-50 edge detector • Extra lenses: 10X, 20X, 25X, 31¼X, • CAD interface software 40X, 50X, 62½X, 80X, 100X • Impact printer • Extra screens • Overlay clips • Spare lamps • Footswitch
