Trumpf TC-200r 1997

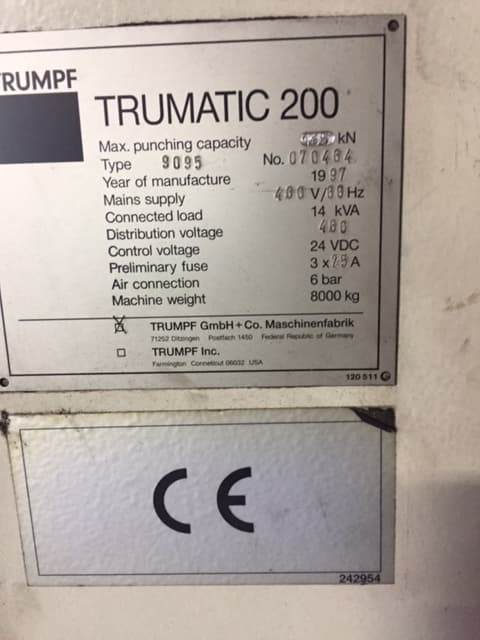

Hours are in the documents. The tool drawers do not come with it. The tooling will be boxed if machine is purchased Reason for selling:We are upgrading and need to make room for the new one. Working Range (X x Y) 81.49 x 50.39 Without Repositioning With Complete Table Support Performance Max Punching Power 165 kN Max Sheet Thickness .25" Max Weight of Workpiece 330 lbs Max Punch Diameter 3" Speed Max Positioning Speed X-Axis 3150"/min Y-Axis 2165"/min Simultaneous 3818.9"/min Rotation Axis 360 degrees fully rotating Max Strokes/Min 500 Type of Drive X/ Y/ C Axis maintenance-free AC-Motors Punching Head Hydraulic Drive Accuracy Coordinate guide accuracy .004" Coordinate guide repeatability .001" Automatic Tool Changer Linear Magazine Number of Tool Stations 12 Tool Change Time 1.5-6.5 sec Safety Light Curtain Safety System: standard - full perimeter Connection Values Electrical 14 kVA Compressed Air Requirement 8 Nm3/h - 6 bar Dimensions and Weights: Space Required 236.2" x 220.4" Height 81.9" Weight 17,637 lbs.
