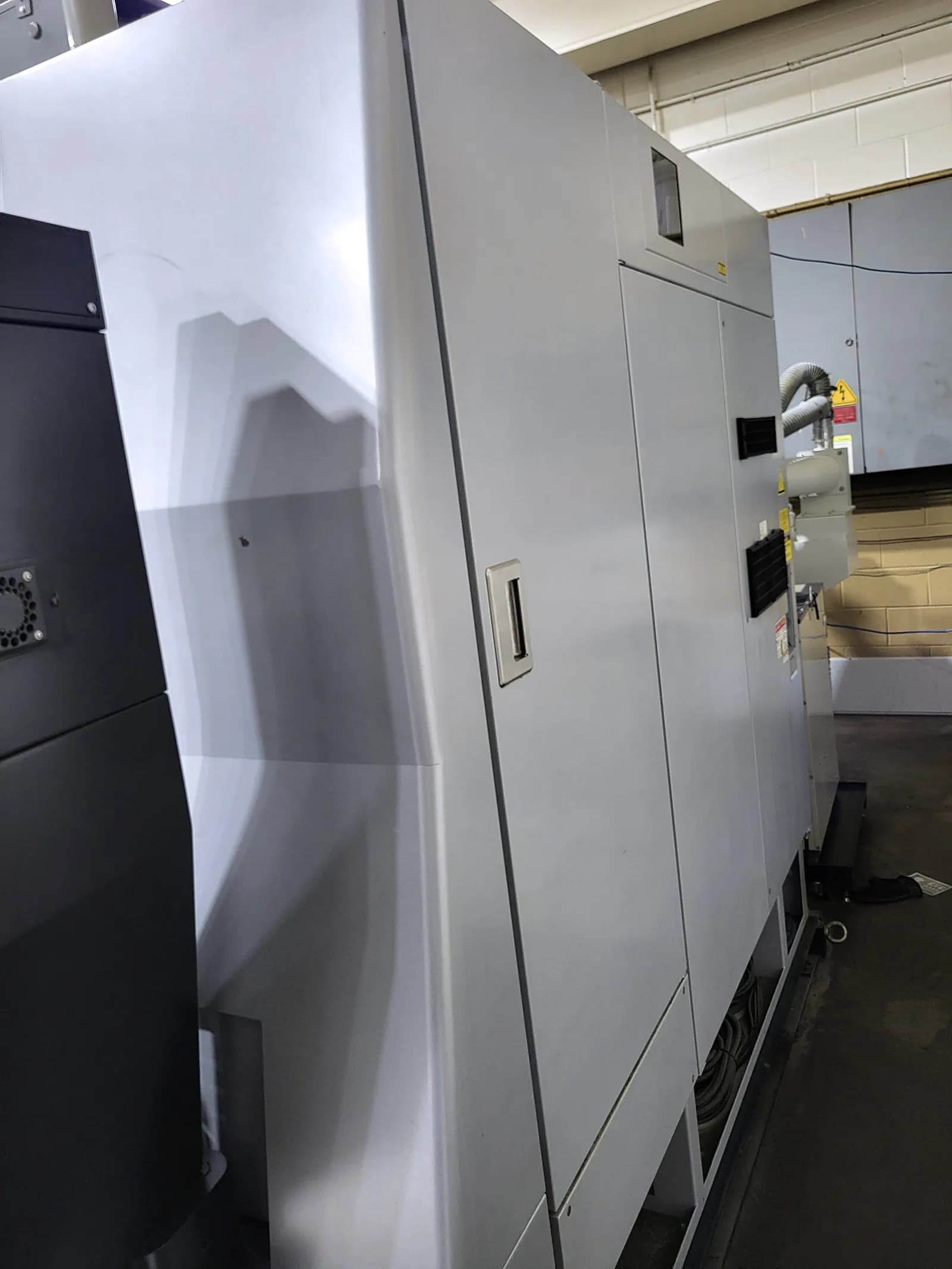

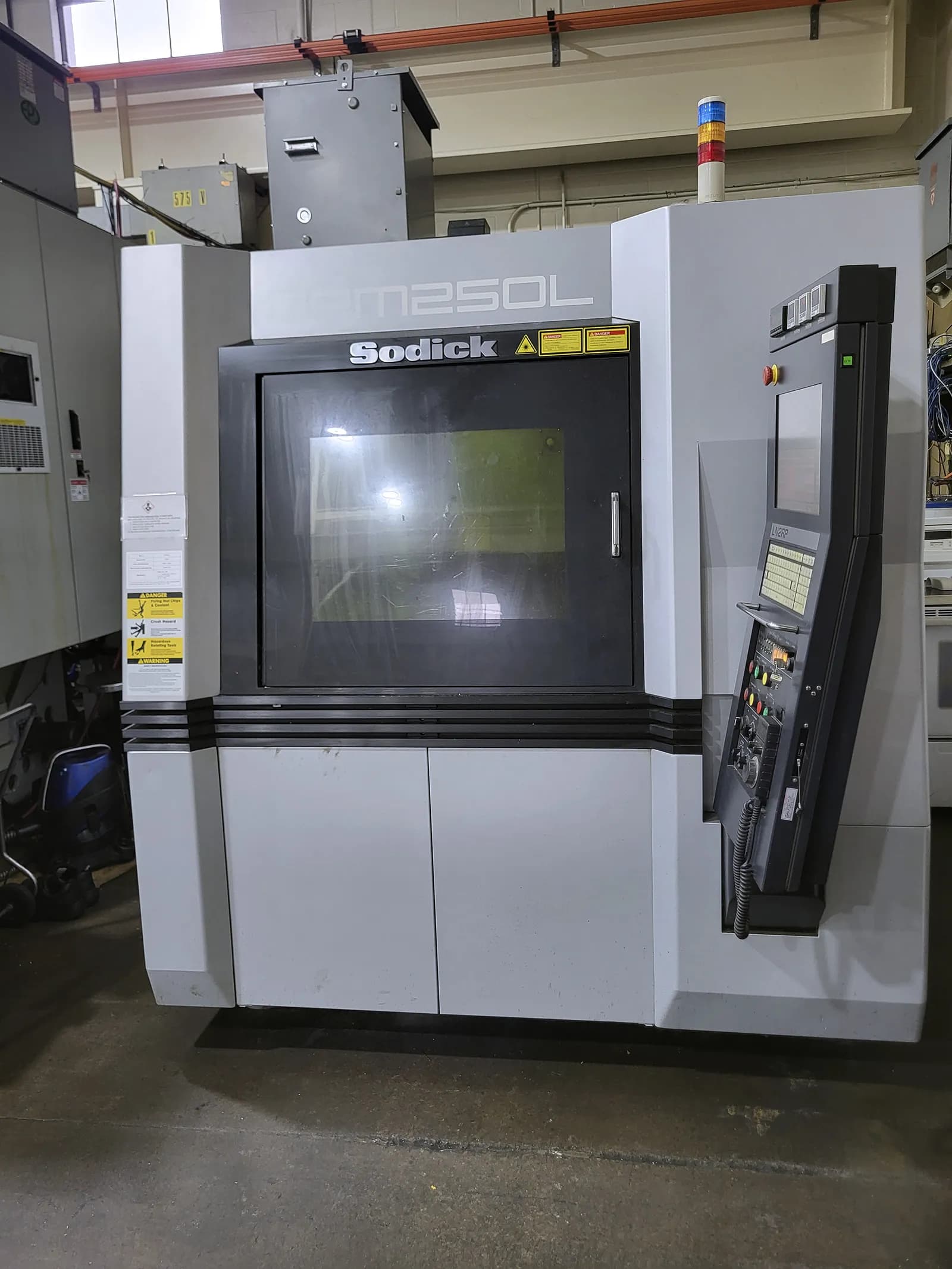

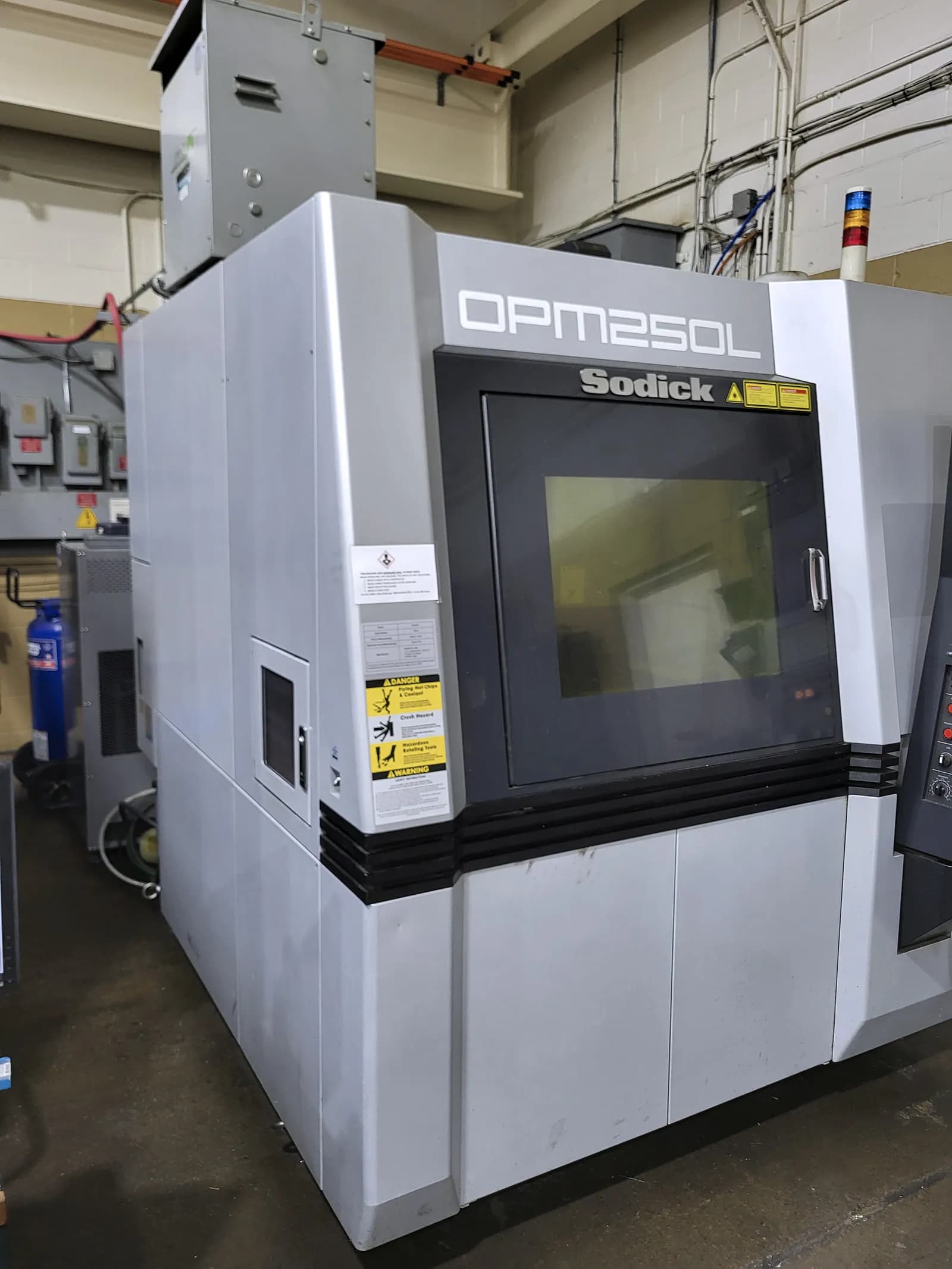

Sodick OPM250L 2016
One-Process Efficiency: Combines printing and finishing in a single workspace. Eliminating the need for post-process EDM or separate CNC setups
Equipped With
- Sodick LN2RP CNC Control
- Sodick OS-FLASH CAM Software

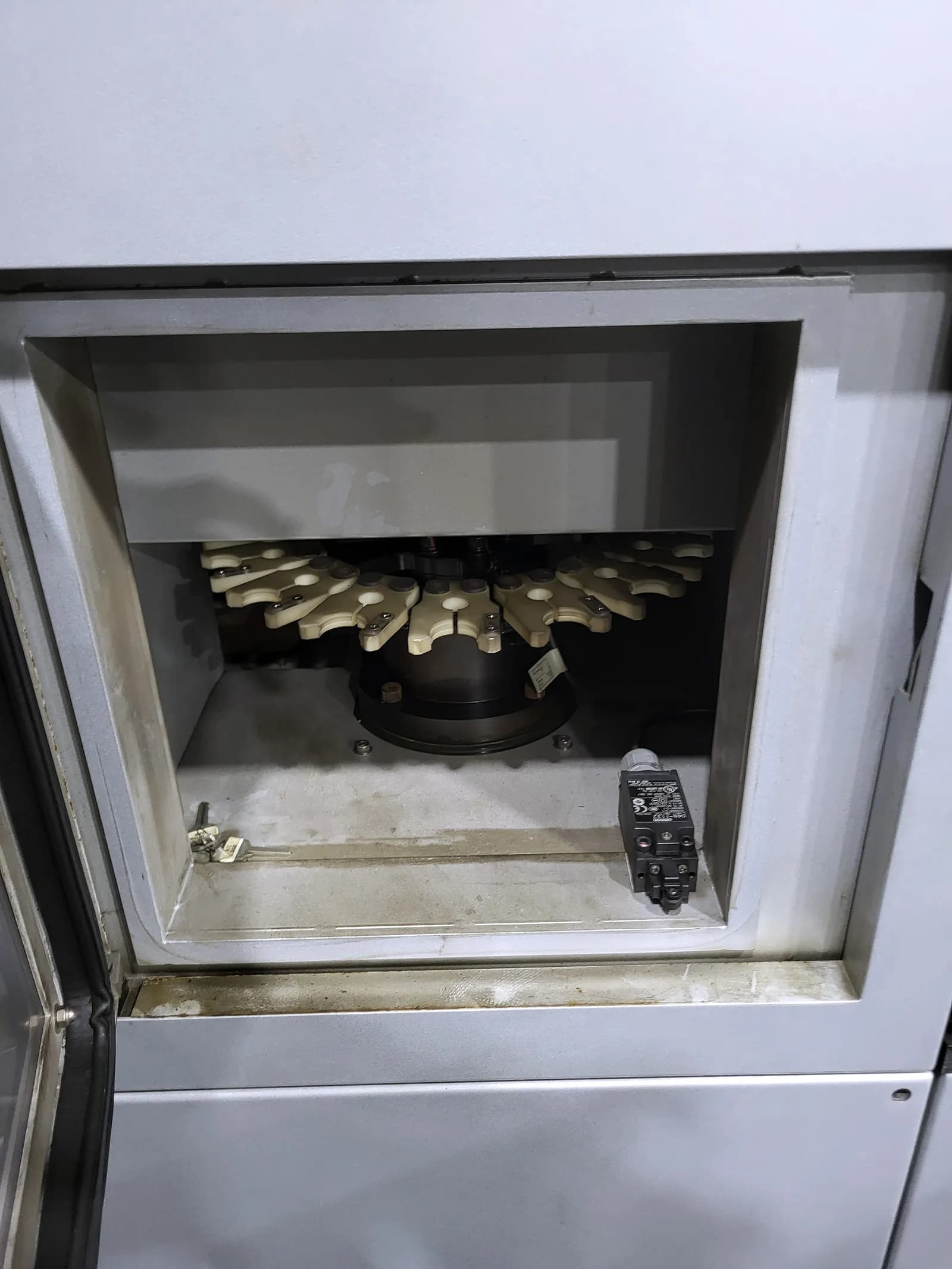

- Automatic Tool Changer (ATC): 16 Position Automatic Tool Changer
- Tool Measurement: Blum Laser Tool Length Measuring System
- Drive System: Rigid Linear Motors (X- Y- Z axes)
- Absolute Linear Glass Scales (X/Y/Z)

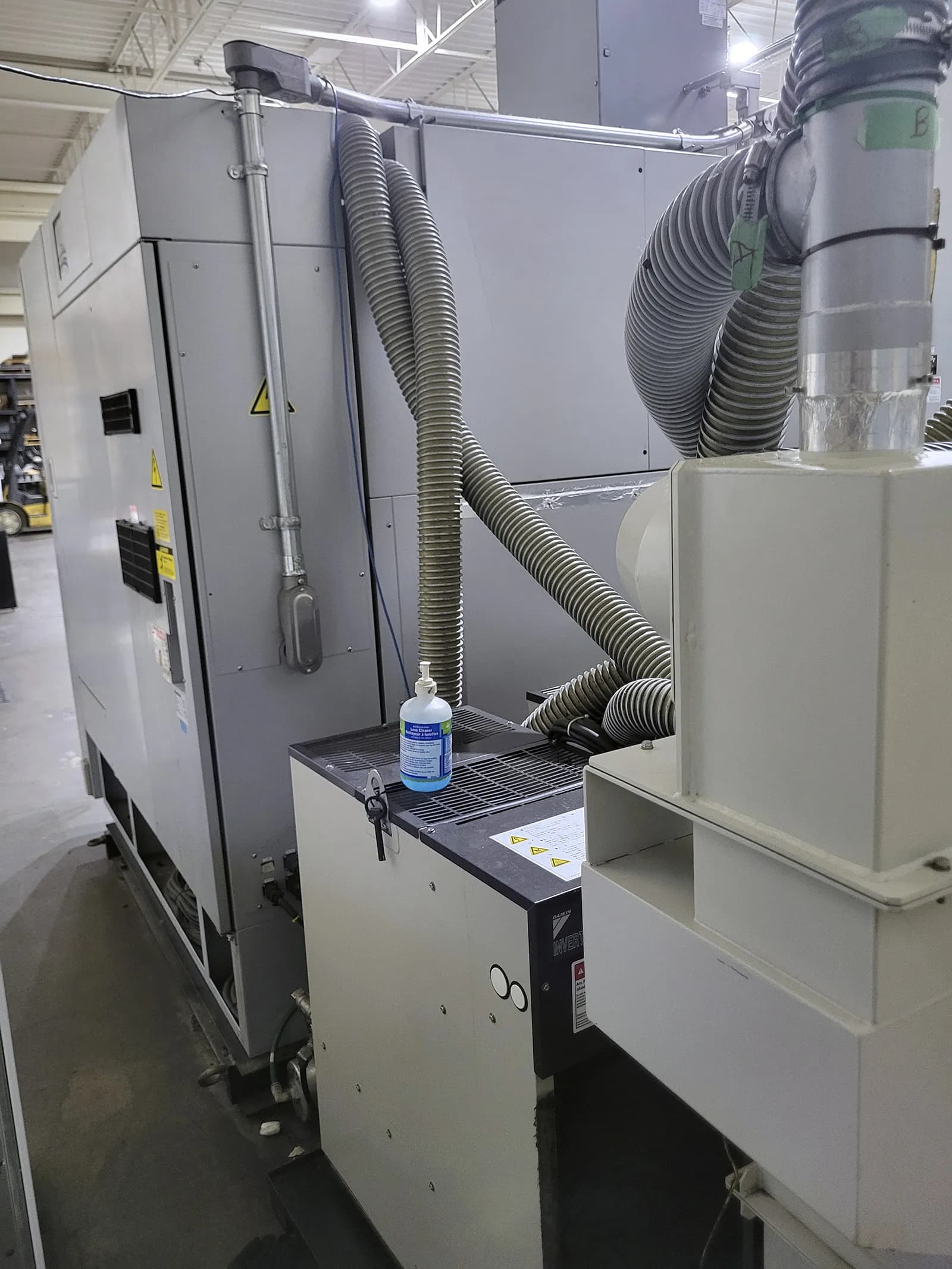

- High Speed Spindle Chiller Unit

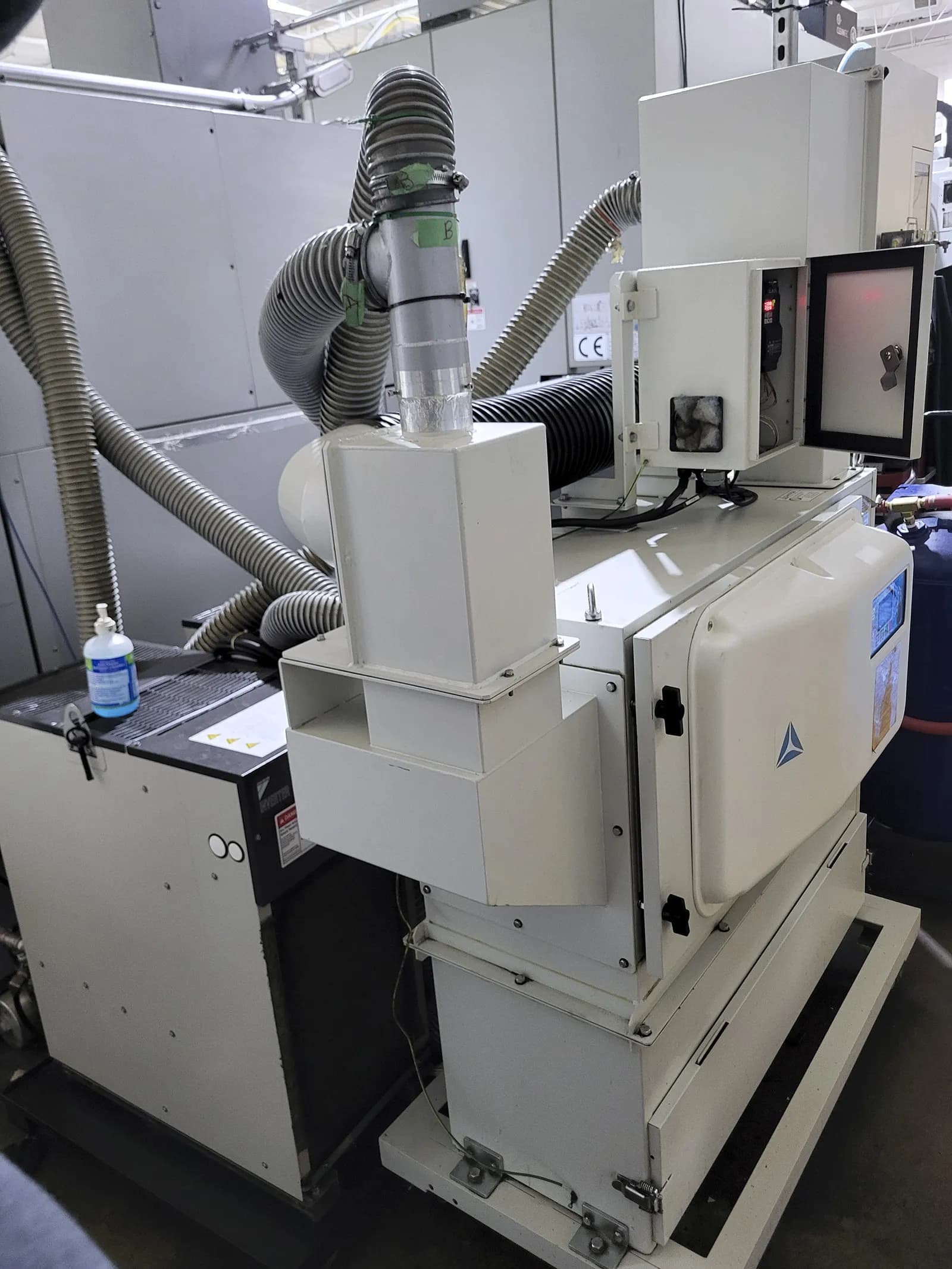

- Automatic Material Recovery System (MRS): Integrated unit for powder supply. collection. and automatic sieving for material recycling with dedicated Sinter software

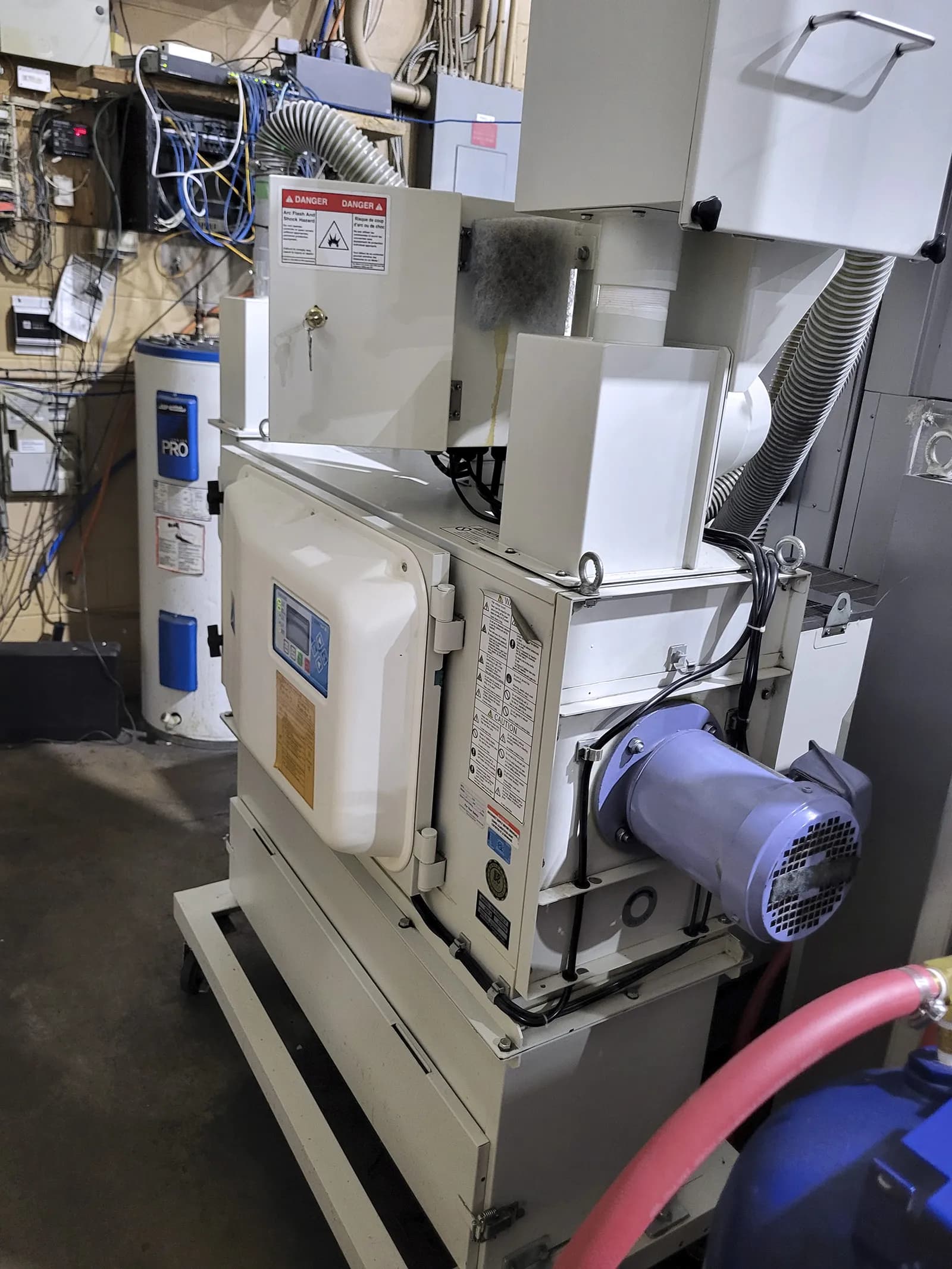

- Fume Collector
- Nitrogen Supply Interface
- Conformal Cooling Capability
Specifications
- Max Spindle Speed 45,000 RPM
- X-Axis Travel 10.24" (260 mm)
- Y-Axis Travel 10.24" (260 mm)
- Z-Axis Travel 10.24" (260 mm)
- Spindle Z-Axis Stroke 3.94" (100 mm)
- Tool Holder Type HSK-E25 (Dual face contact)
- Max Workpiece / Build Size 9.84" x 9.84" x 9.84"(250mm x 250mm x 250 mm)

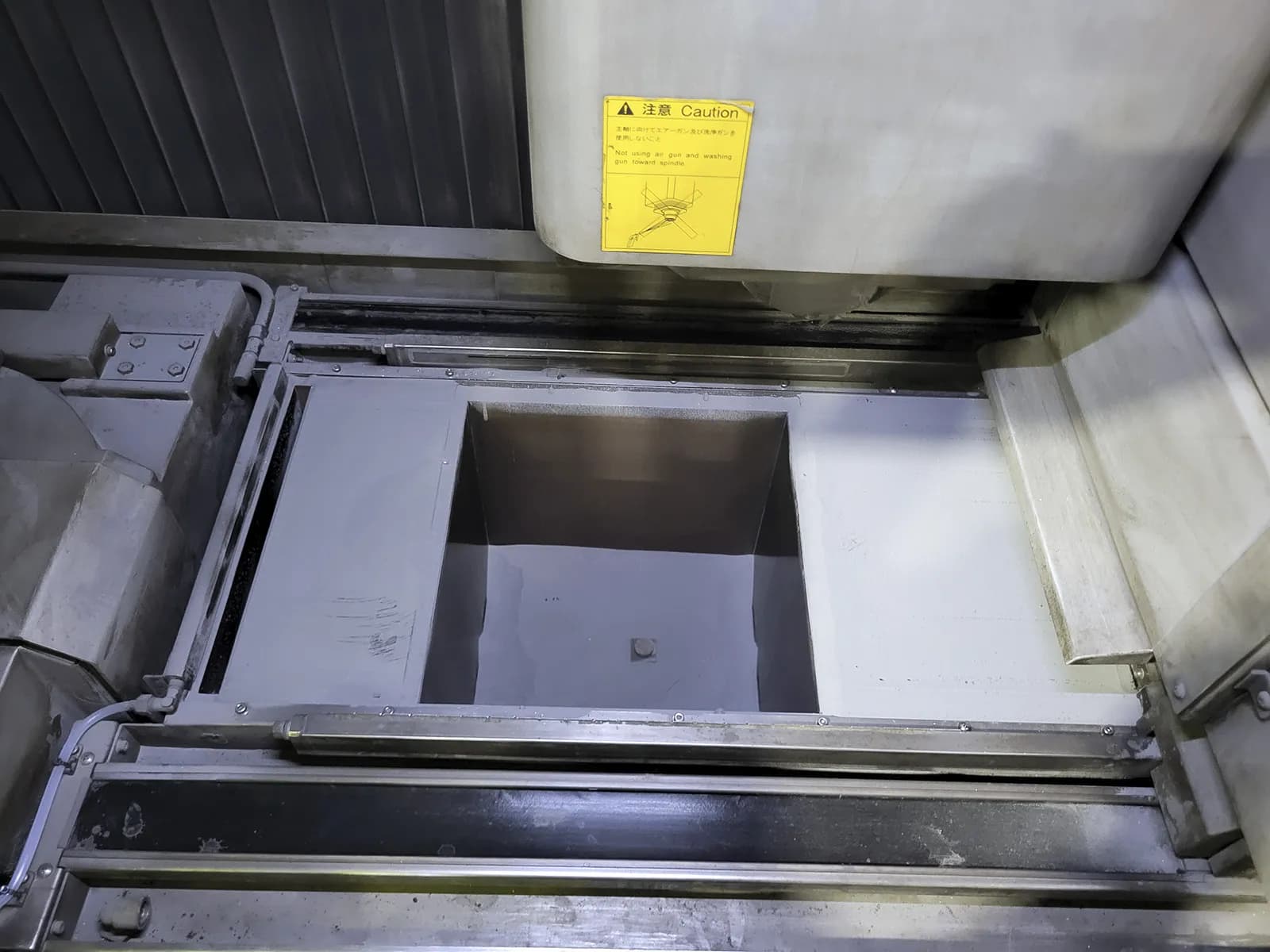

- Molding Tank Inner Dimensions: 11.42" x 11.42"(290mm x 290 mm)
- Max Workpiece Weight 220 lbs (100 kg)
- Laser Type Yb (Ytterbium) Fiber Laser
- Max Laser Output 500 W
- Laser Wavelength 1070 nm
- Laser Scanning Method Galvano Method

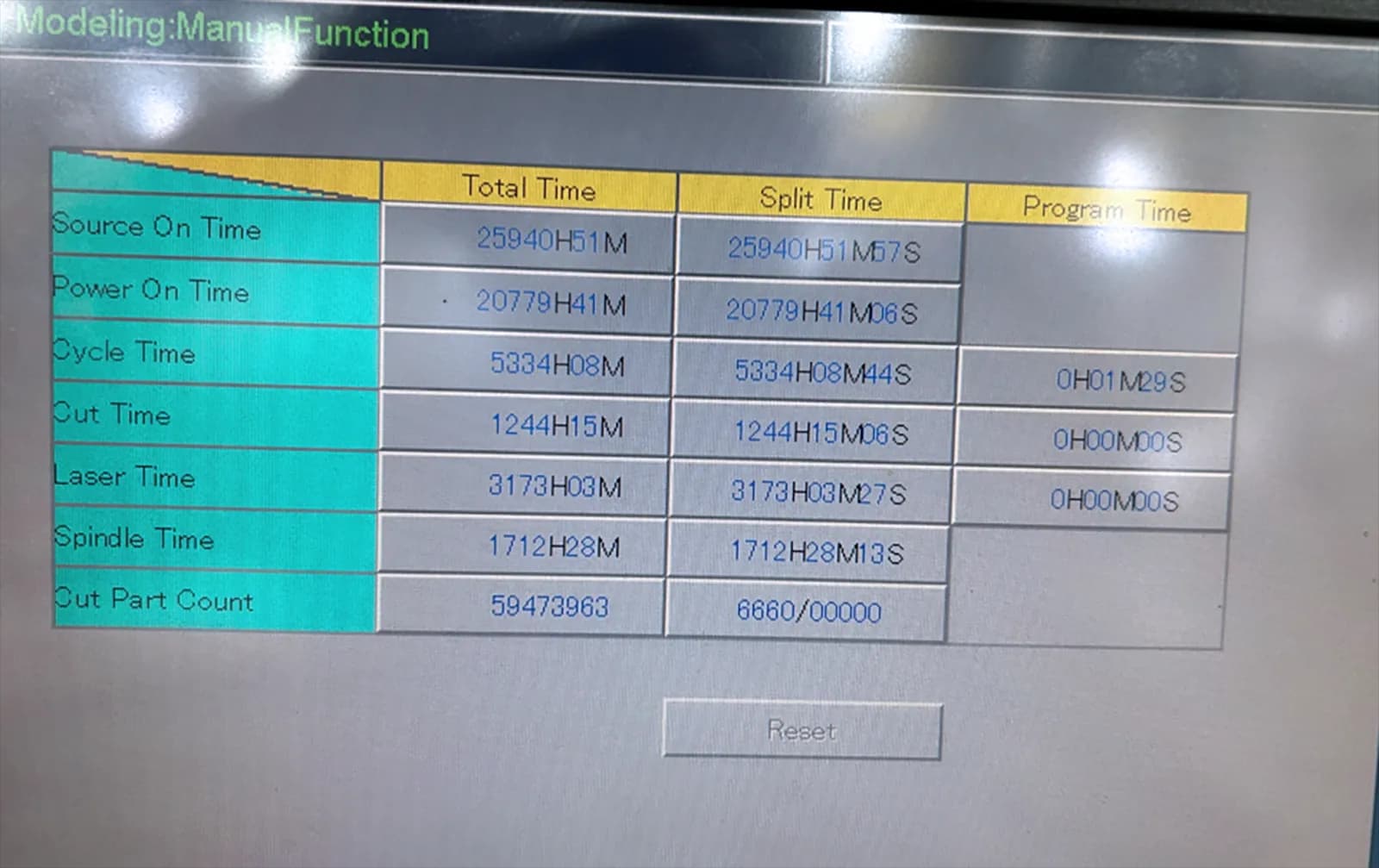

- Power On Time 20779 Hrs
- Cut Time 1244 Hrs
- Laser Time 3173 Hrs
- Spindle Time 1712 Hrs
- Overall Machine Dimensions 73.62" x 87.80" x 80.91" (1,870mm x 2,230mm x 2,055 mm)
- Machine Weight 9,920 lbs (4,500 kg)
Machine Description

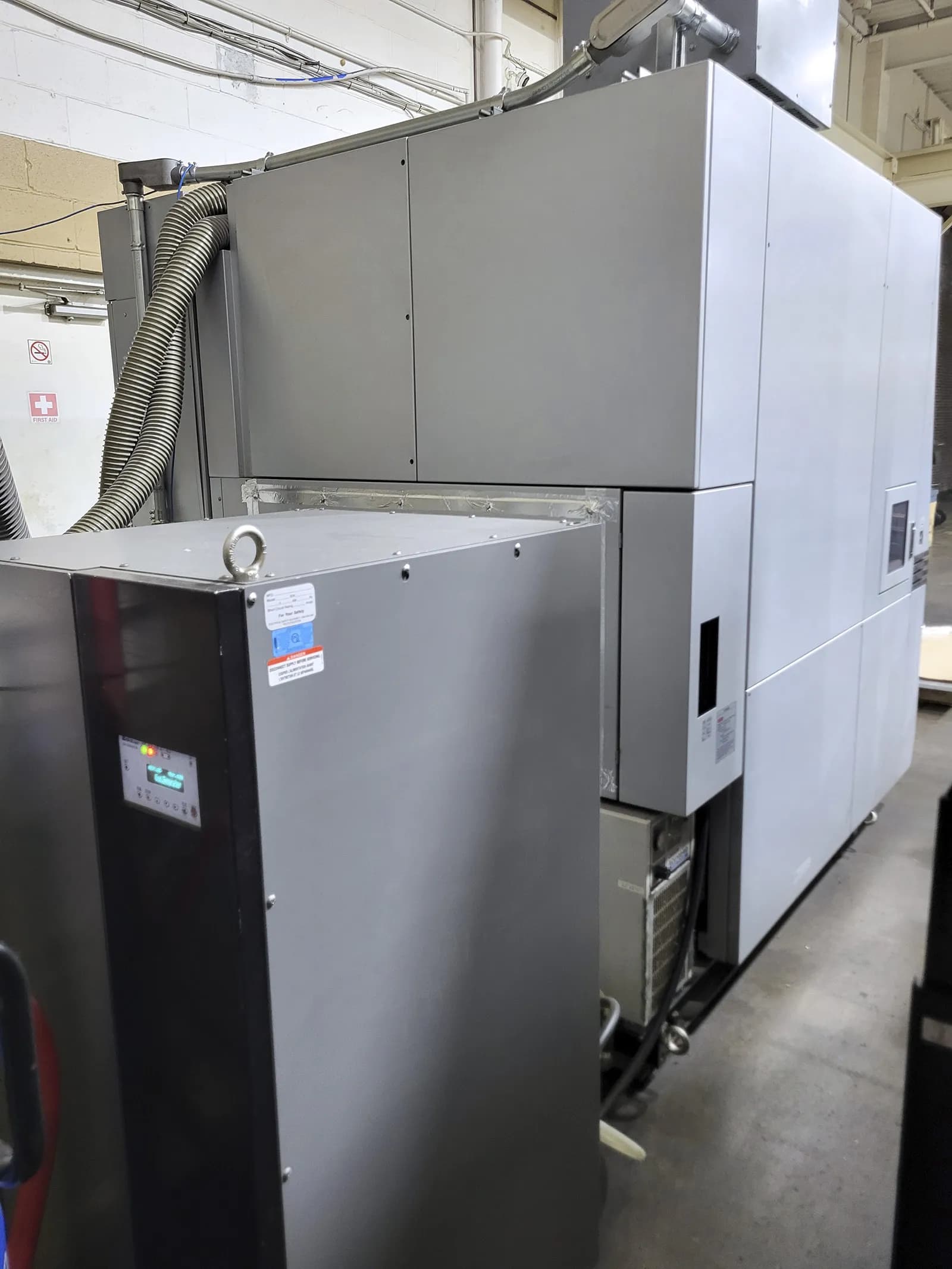

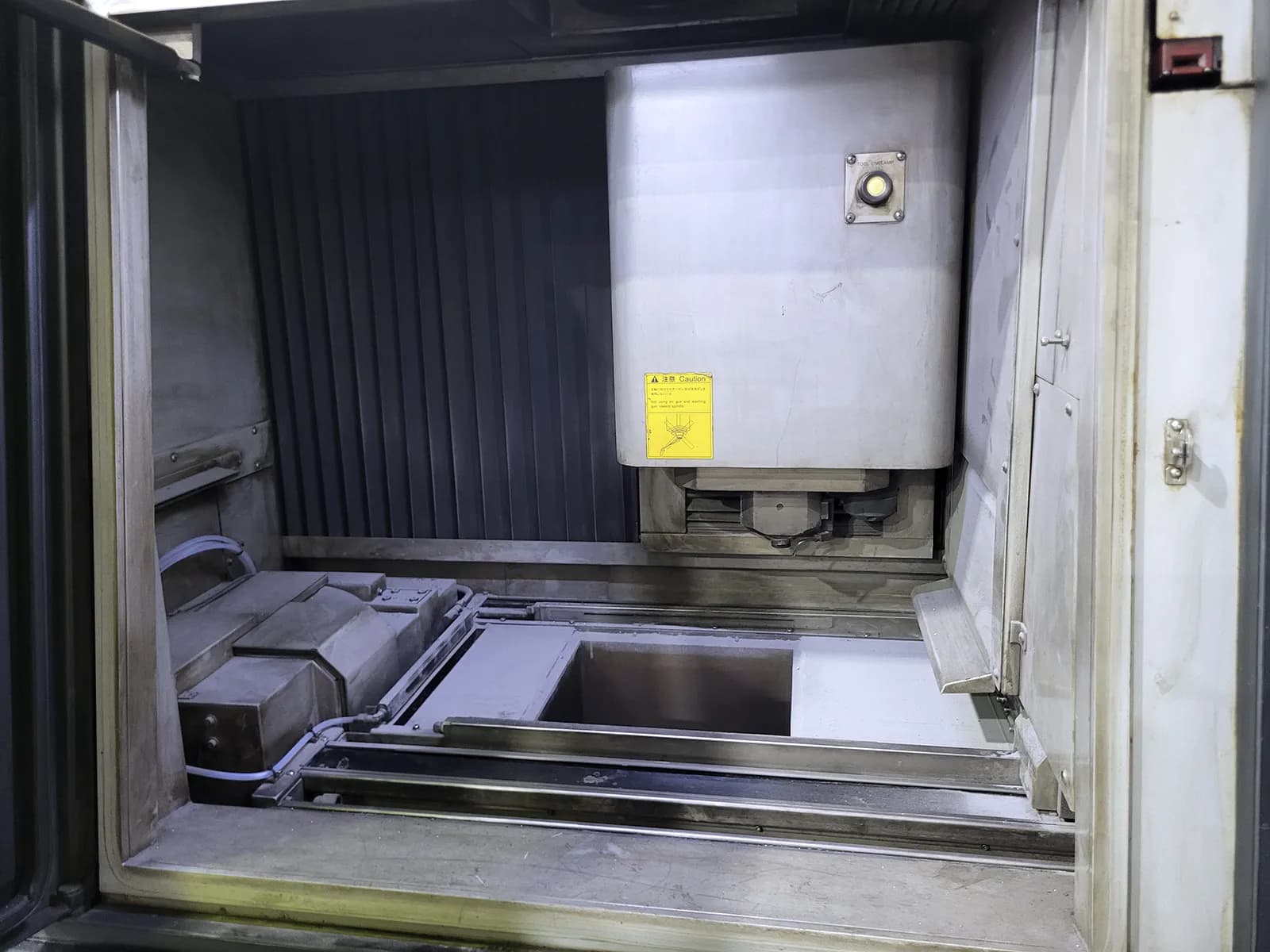

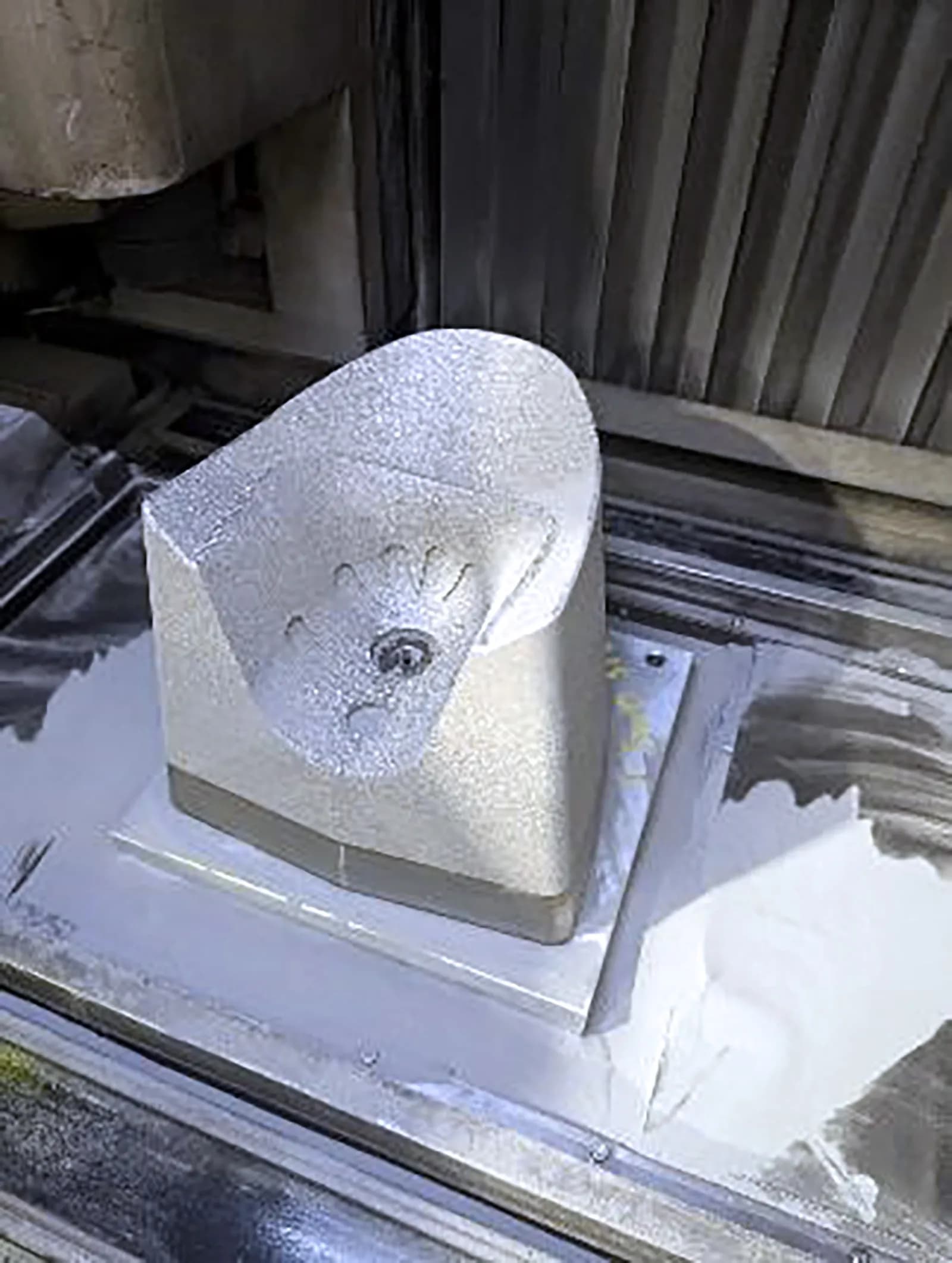

The Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill combines metal additive manufacturing with precision CNC milling to produce complex, high-hardness steel molds in a single setup. Ideal for creating conformal cooling channels that reduce injection molding cycle times by up to 60%, it is widely used for precision tooling, mold & die production, and advanced components in aerospace and medical industries.
