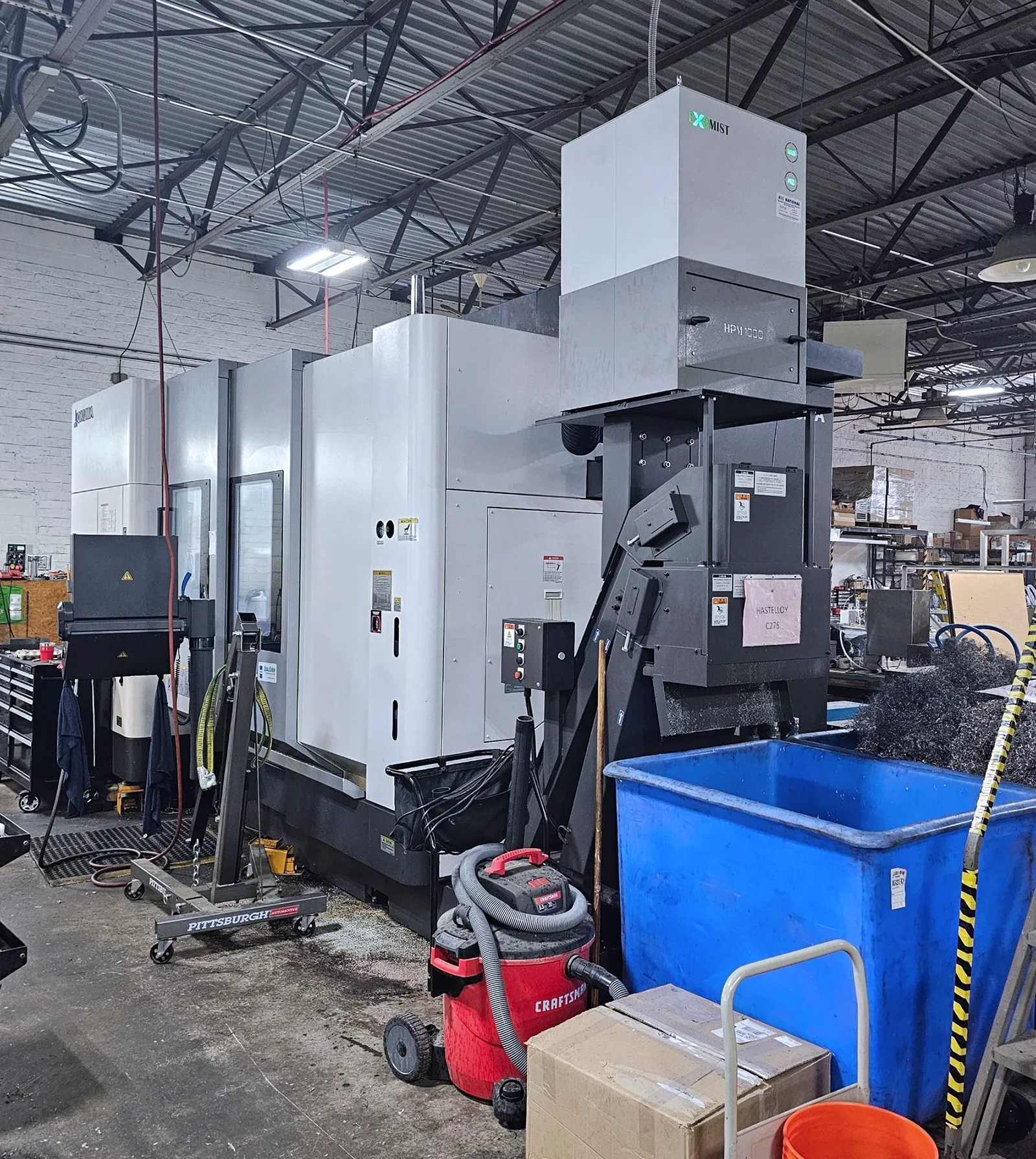

Okuma U30002SW/1500 2021
2021
Equipped With

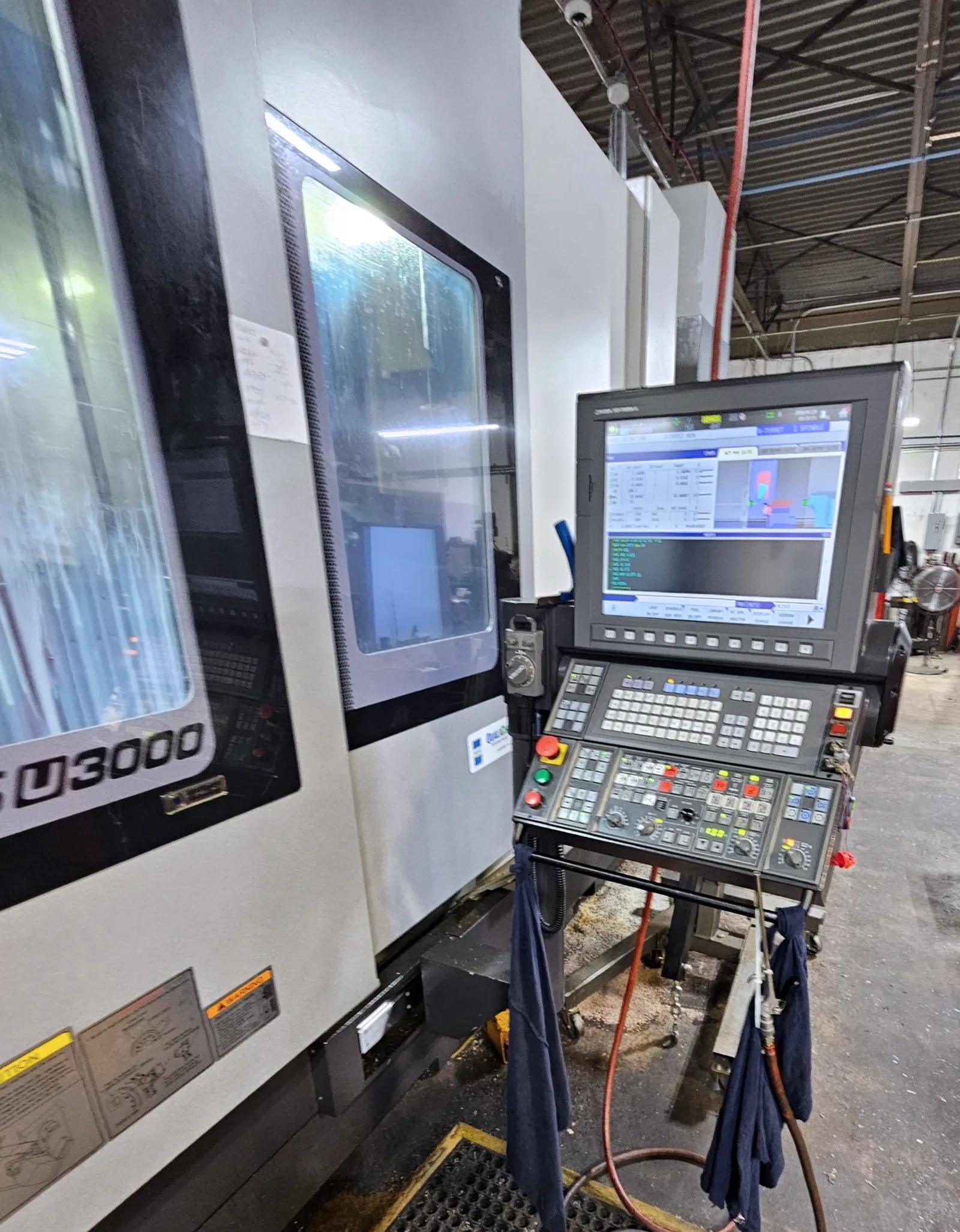

- OKUMA OSP-P300SA-L THINC CONTROL

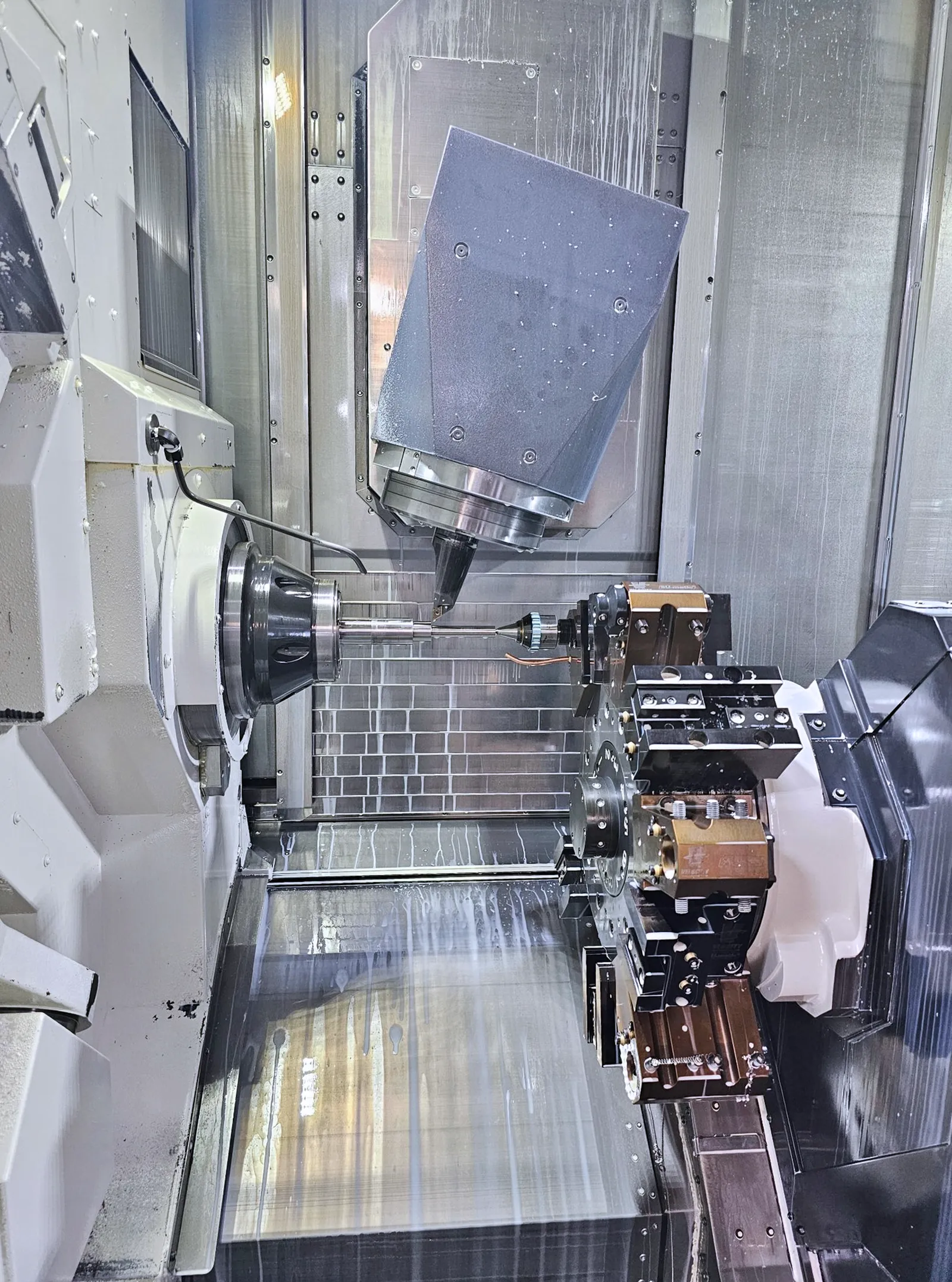

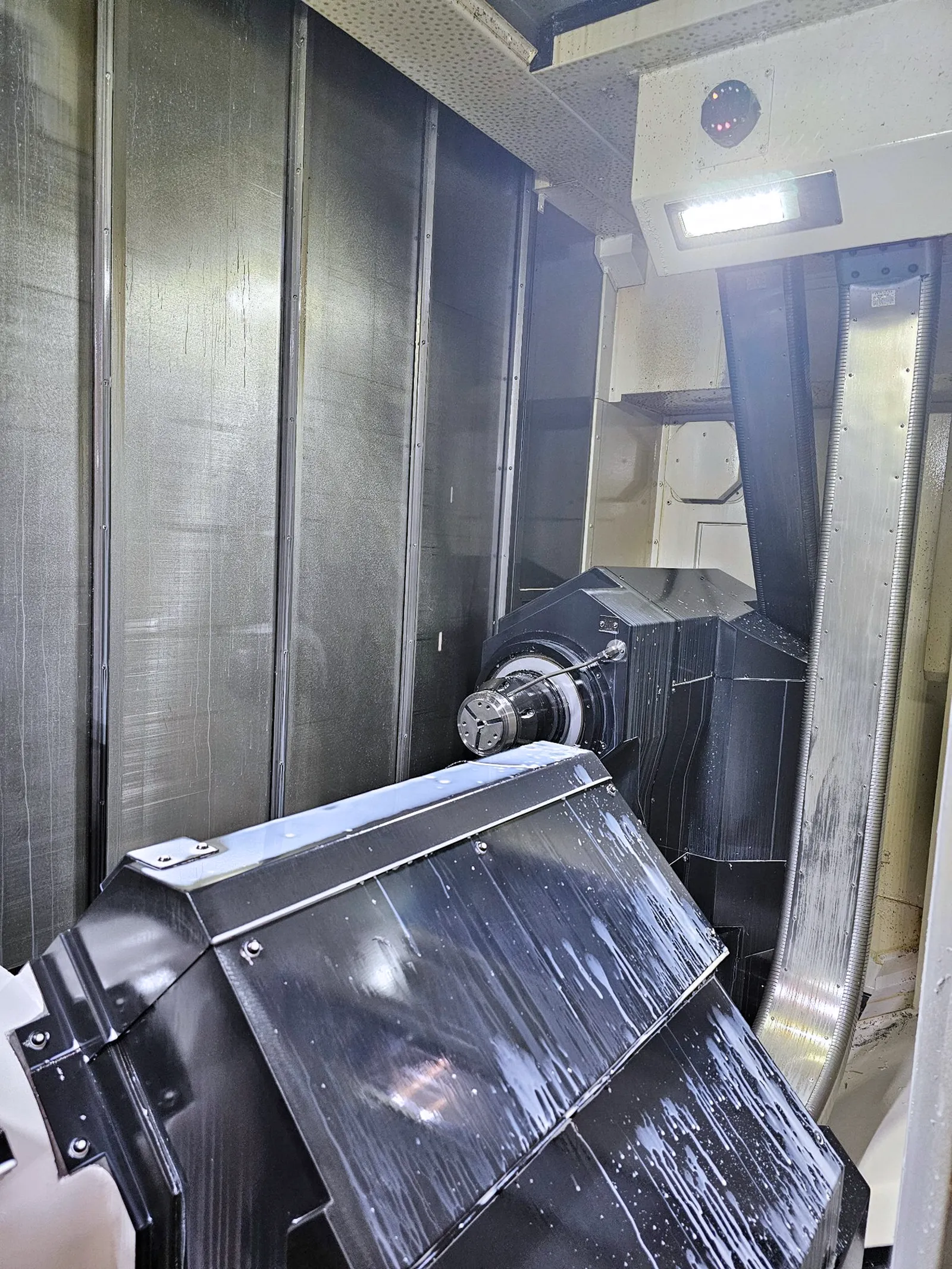

- FULL 5-AXIS CONTOURING B-AXIS MILLING SPINDLE (12000 RPM CAPTO C6)
- Y-AXIS

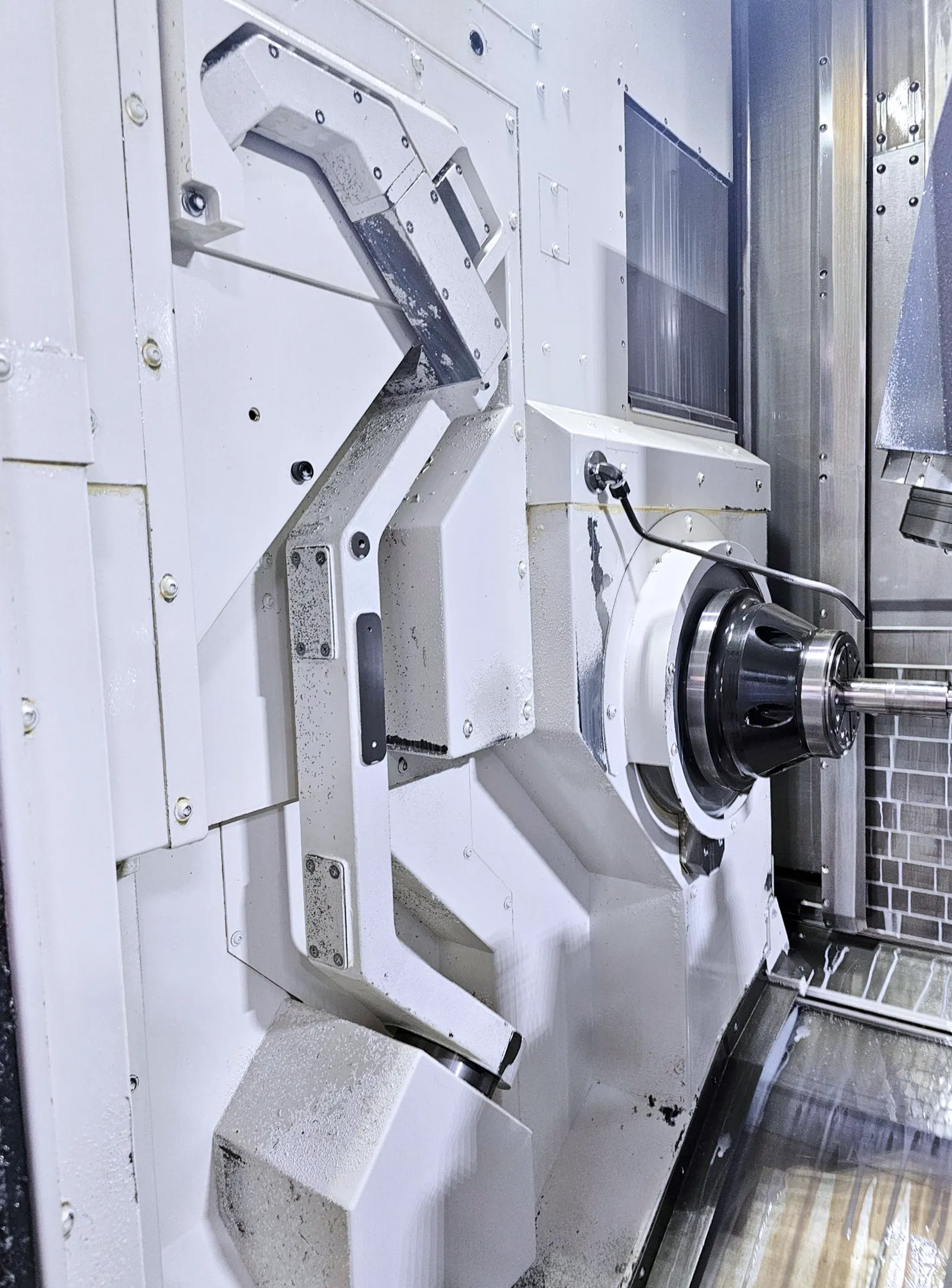

- SUB SPINDLE
- LOWER TURRET (STATIC)
- BIG BORE (3.1” BAR CAPACITY – MAIN SPINDLE)
- 2-SPEED GEARBOX
- ROYAL QG-80 COLLET CHUCK (MAIN)
- ROYAL QG-65 COLLET CHUCK (SUB)
- C-AXIS SYNC (BOTH SPINDLES)

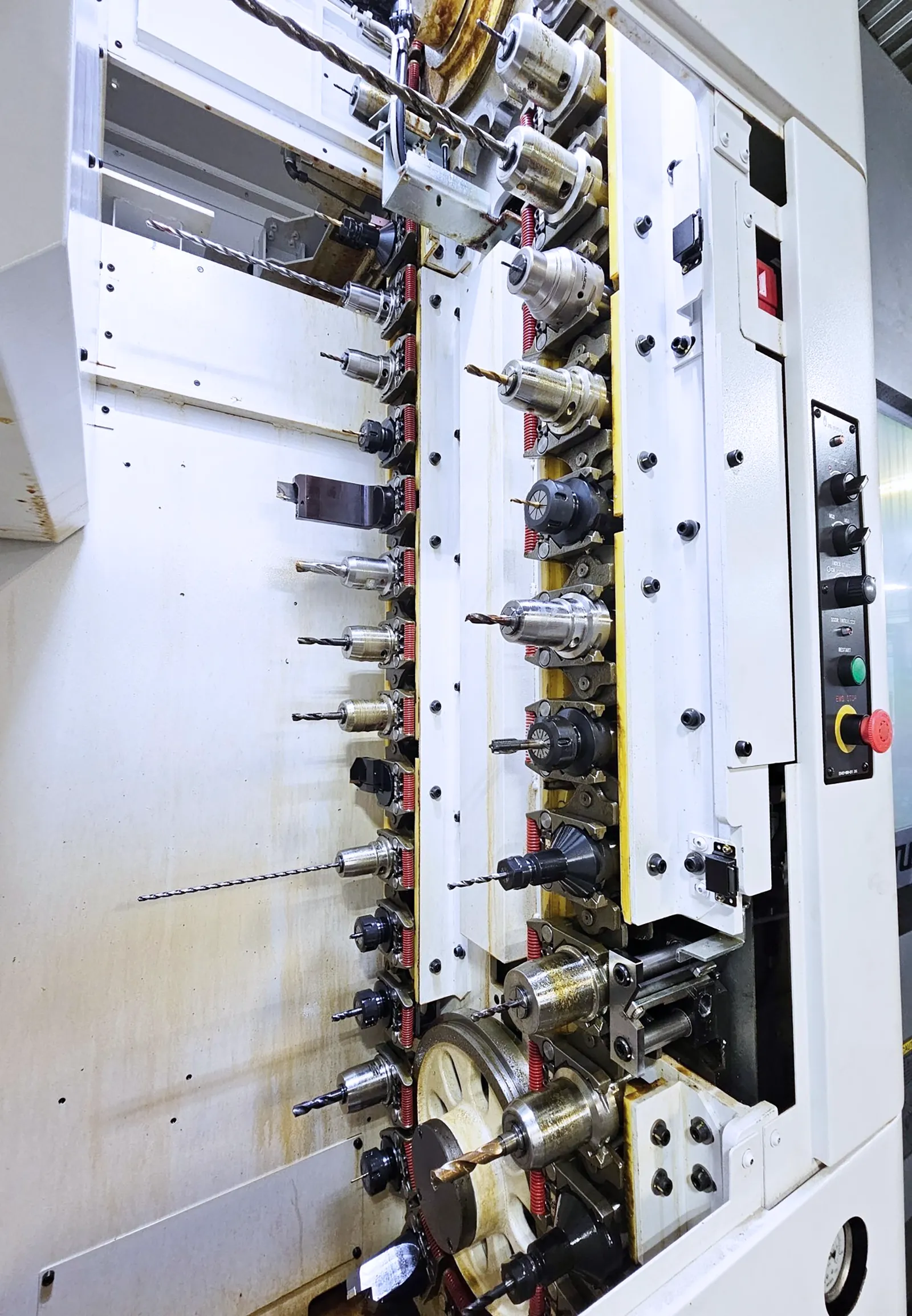

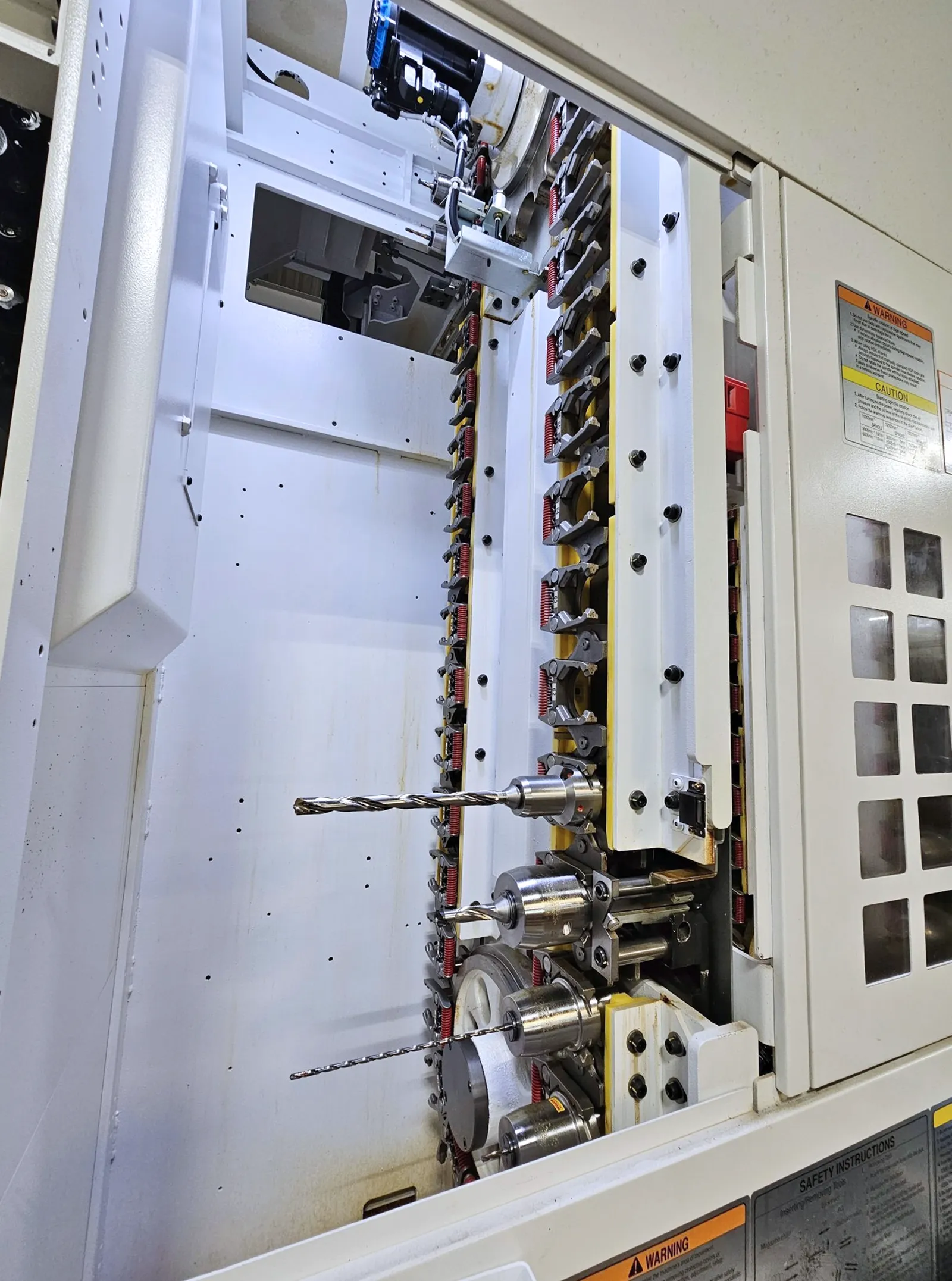

- 80-TOOL POSITIONS (CAPTO C6)
- 60”/1500MM BED LENGTH
- RENISHAW RMP600 AUTO-GAUGING PROBE
- AUTOMATIC TOOL PRESETTER

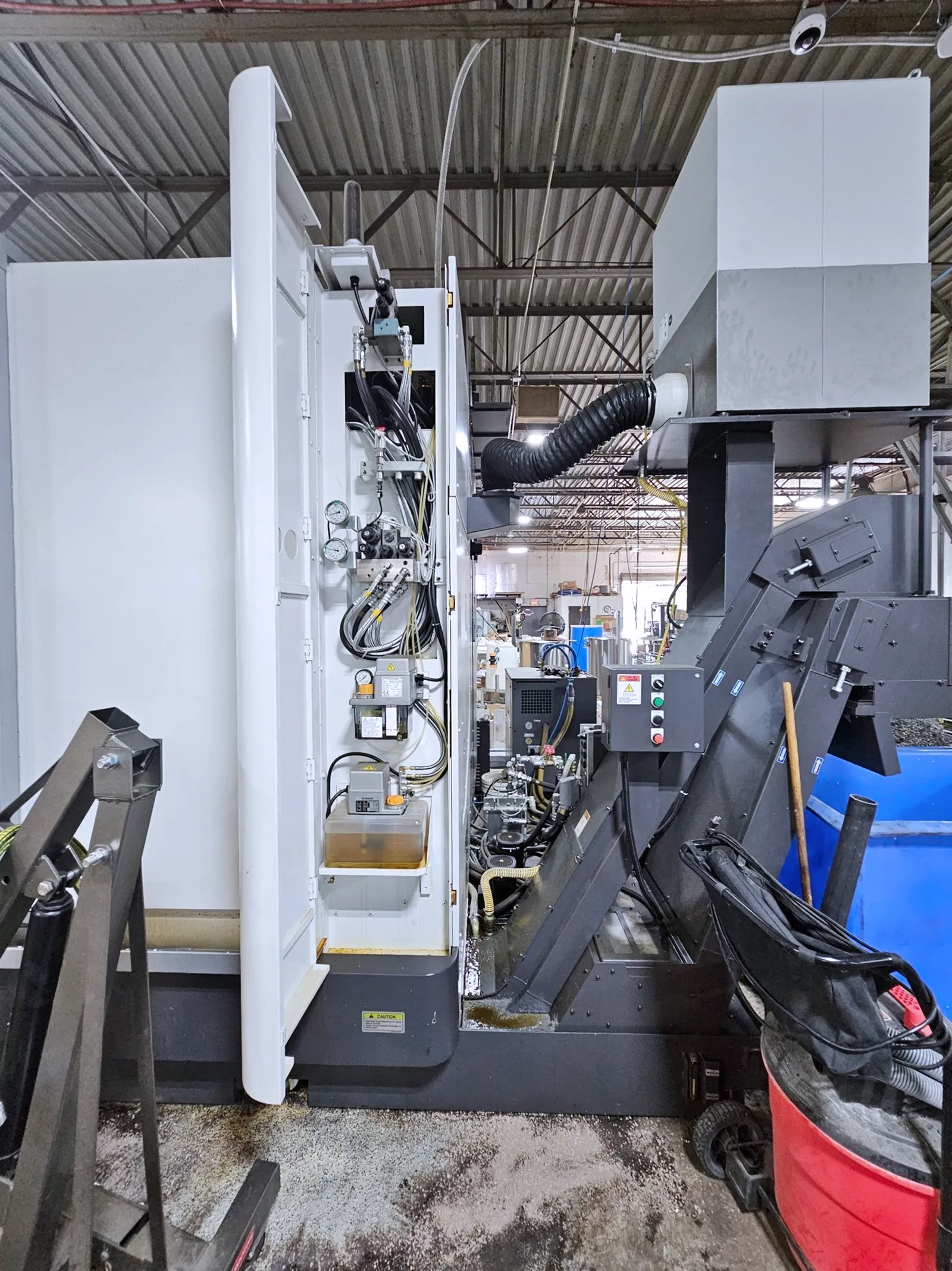

- CHIP CONVEYOR

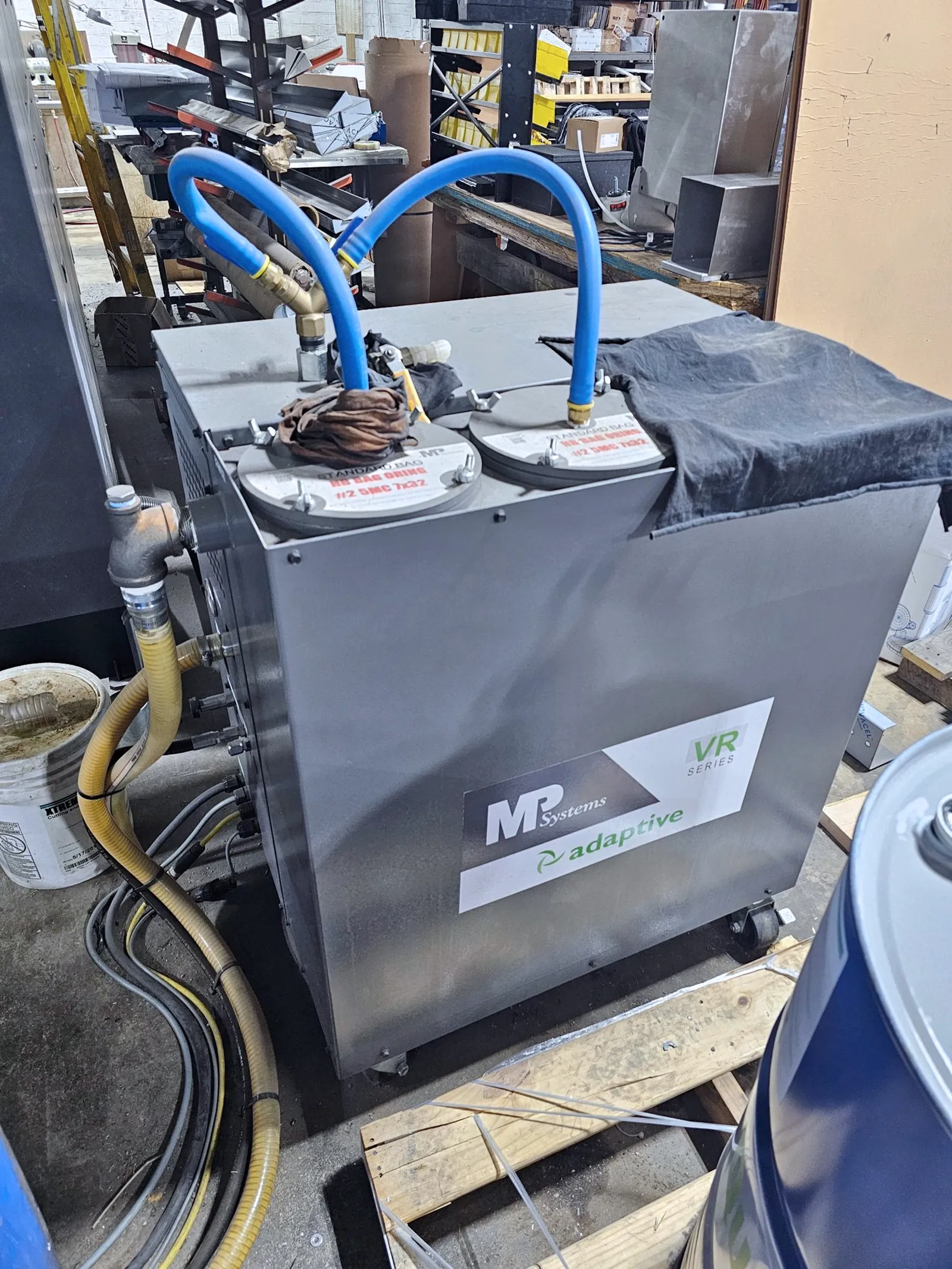

- MP SYSTEMS (VF-8) HIGH-PRESSURE COOLANT UNIT
- NIAGARA SHOWER COOLANT
- EXO-MIST MIST COLLECTOR
- Y-AXIS GAUGING WITH SLOPE GAUGING
- C-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
- Z-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
- SUPER NURBS (X+ Y+ Z+ C+ B)
- ADVANCED ONE-TOUGH IGF
- MULTI-EDGE LATHE TOOL INDEX FUNCTION
- THERMO FRIENDLY CONCEPT (SPINDLES & CASTING)
- NEGATIVE TOOL RADIUS COMPENSATION
- GEOMETRUC ERROR COMPENSATION
- GEOMETRIC ERROR GAUGING
- TOOL CENTER POINT CONTROL II
- STRIAGHTNESS COMPENSATION
- COLLISION AVOIDANCE SYSTEM
- (8) SETS OF SPARE M-CODES
- SPINDLE FLUCTUATE
- FIXTURE TRACKING
- SYNCHRO TAPPING
- SPINDLE SYNC TAP
- ARC THREAD CUT
- 3D ANIMATION
- ANIMATION
- HI-CUT PRO
- MAC MAN
- (50) CAPTO C6 TOOL HOLDERS
- MORE OSP OPTIONS THAN LISTED (OSP DATA CARD AVAILABLE UPON REQUEST)

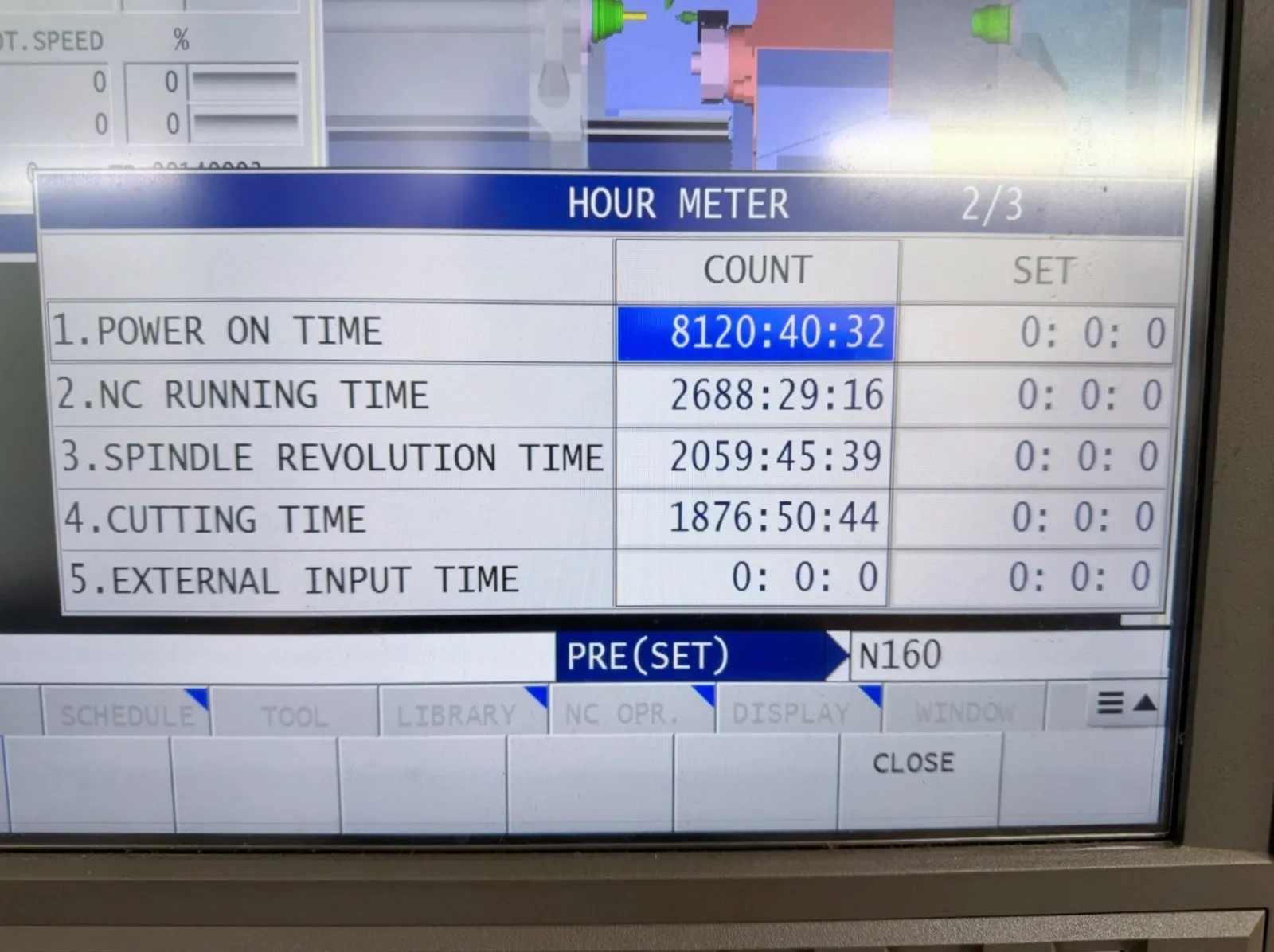

- ** AS OF JUNE 2026 CUTTING TIME – 1876 HOURS
- ** FULL REPLACEMENT COST AS EQUIPPED - $950000+
- ** MACHINE CUT PRIMARILY STAINLESS STEEL PLASTIC & HASTELLOY
- ** IN PLANT UNDER POWER AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
Specifications
- Swing over Bed 25.59"
- Max Cutting Diameter 25.59"
- Max Cutting Length 59.06"
- X-Axis Travel 25.39"
- Y-Axis Yes
- Y-Axis Travel 9.84" (+/- 4.92")
- Z-Axis Travel 62.99"
- Bar Capacity 3.1"
- Spindle Nose A2-8
- Spindle Motor 30 hp
- Spindle Speed 4,200 RPM
- RAPID TRAVERSE RATE - X-AXIS 1,968 in/min.
- RAPID TRAVERSE RATE - Y-AXIS 1,574 in/min.
- RAPID TRAVERSE RATE - Z-AXIS 1,969 in/min.
- Sub Spindle Yes
- SUB SPINDLE - Spindle Nose A2-6
- SUB SPINDLE - SPINDLE MOTOR 30 hp
- Sub Spindle - Spindle Speed 5,000 RPM
- SUB SPINDLE / W-AXIS TRAVEL 62.36"
- B-AXIS SPINDLE MOTOR 30 hp
- B-AXIS MILLING SPEED 12,000 RPM
- B-Axis Spindle Taper CAPTO C6
- B-AXIS TOOL POSITIONS 80
- TURRET 2 CAPACITY 12
- TURRET 2 - X-AXIS TRAVEL 9.25"
- TURRET 2 - Z-AXIS TRAVEL 62.36"
Machine Description

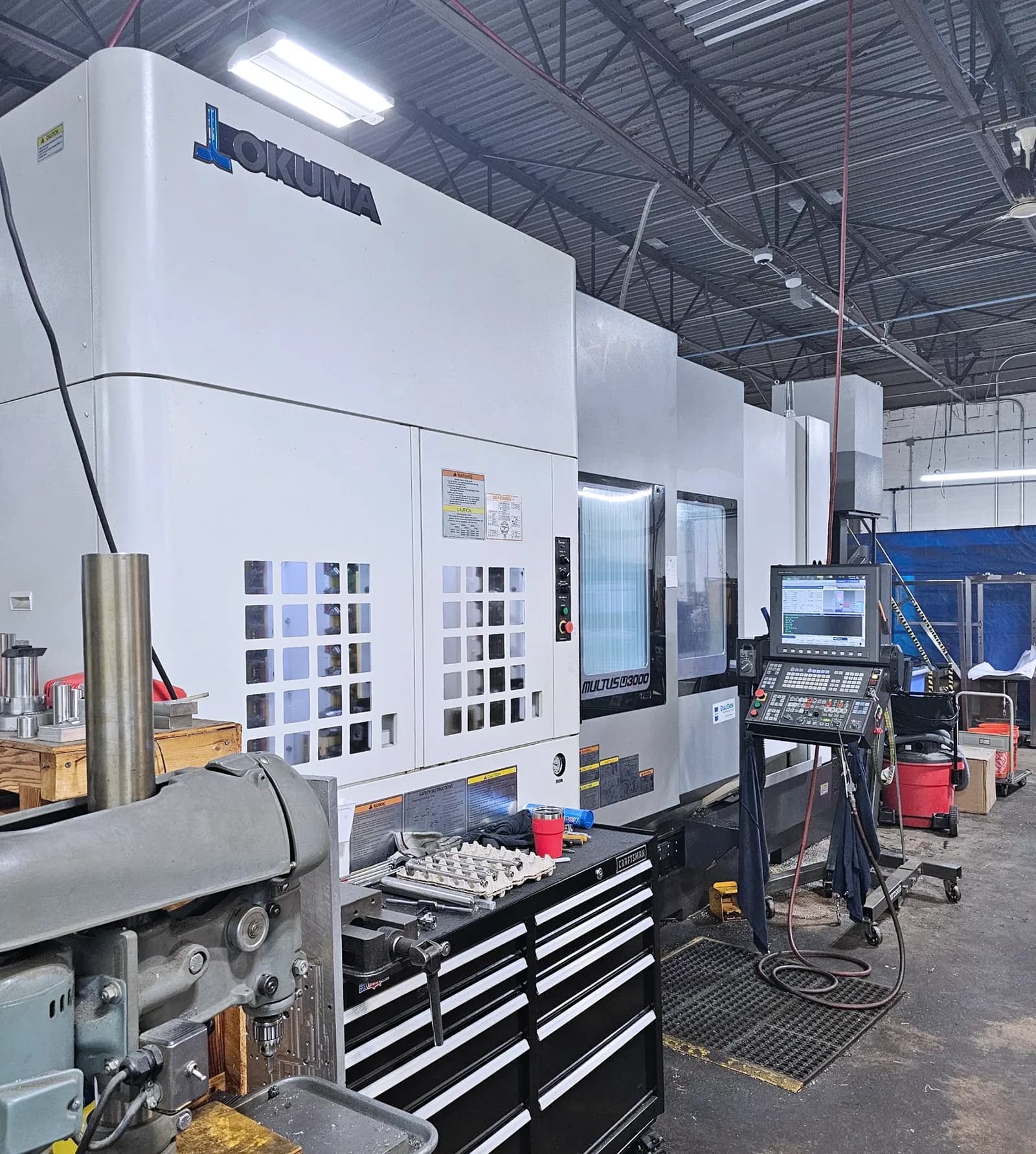

The OKUMA MULTUS U3000-2SW/1500 5-Axis Machining Center (2021) is a high-performance multitasking CNC designed for complete done-in-one machining. Combining turning, milling, drilling, and gear cutting in a single setup, it maximizes accuracy and productivity for aerospace, energy, oil & gas, automotive, heavy equipment, and high-precision general engineering applications.
