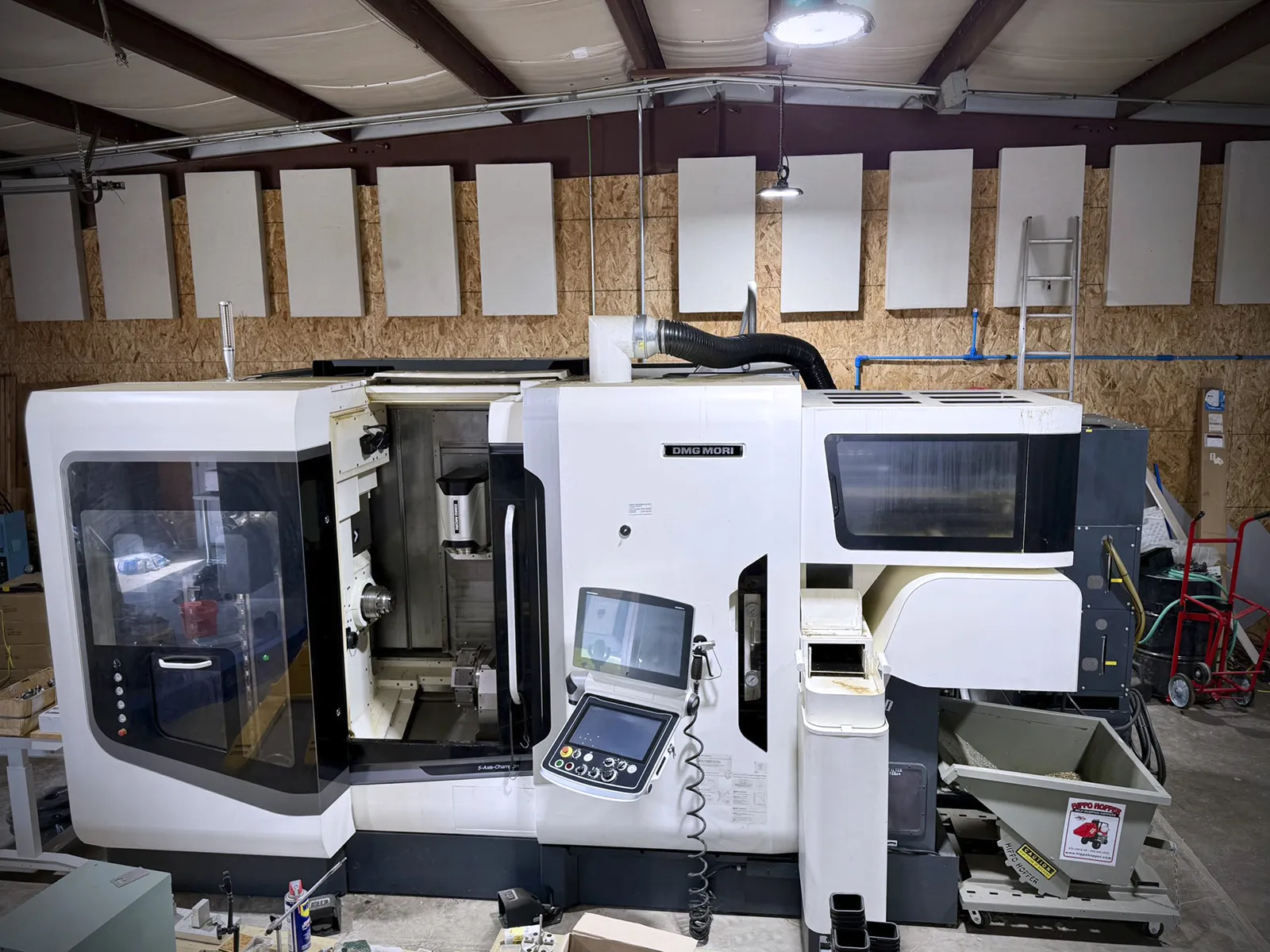

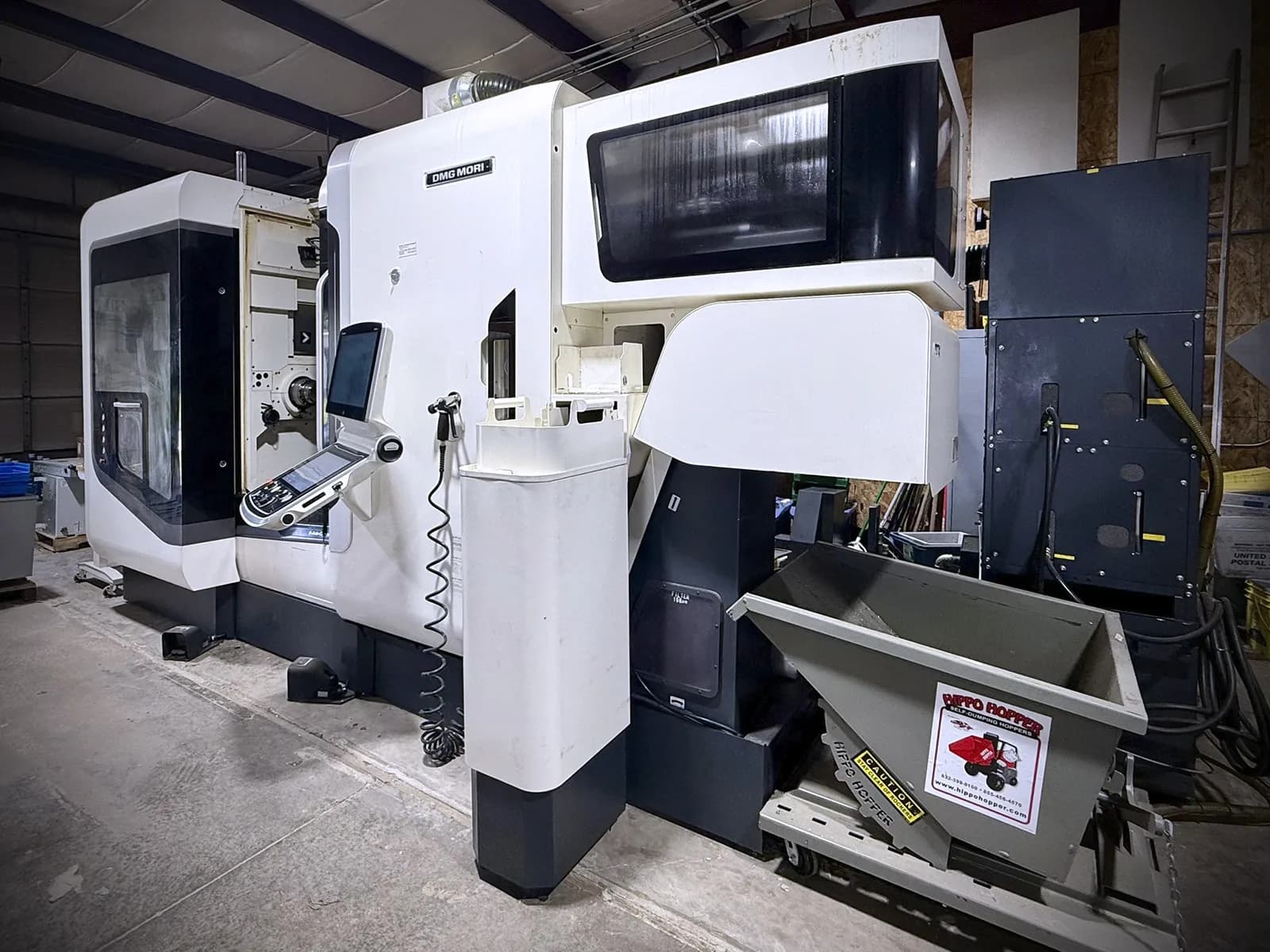

DMG Mori NTX 1000 2019
Equipped With
- CELOS Control with FANUC 31i-B5

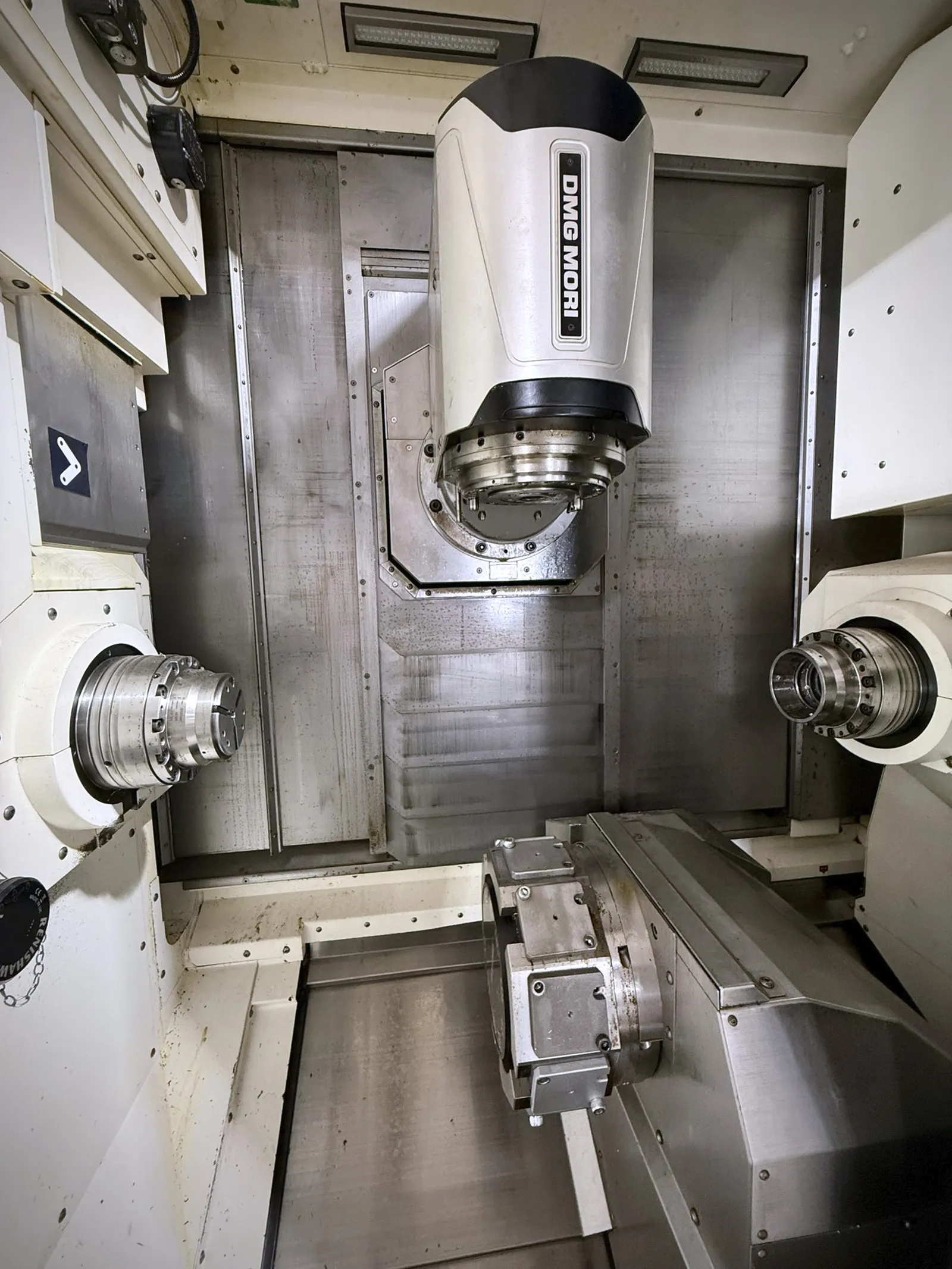

- 20000 RPM B-Axis Milling Spindle
- Capto C5 Tooling Interface
- Simultaneous 5-Axis Machining
- Full C-Axis on Main and Sub-Spindle
- Collet Chuck included

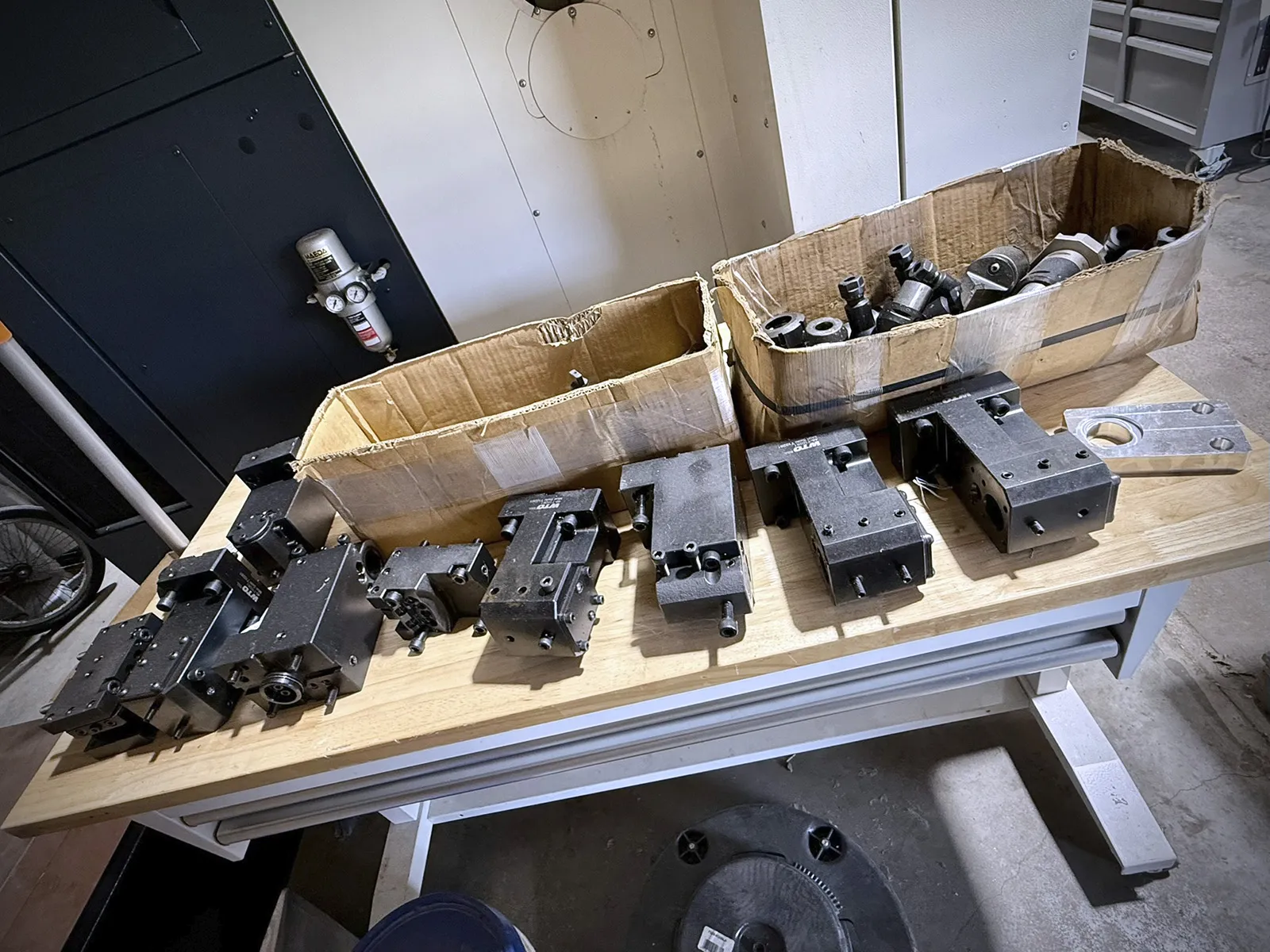

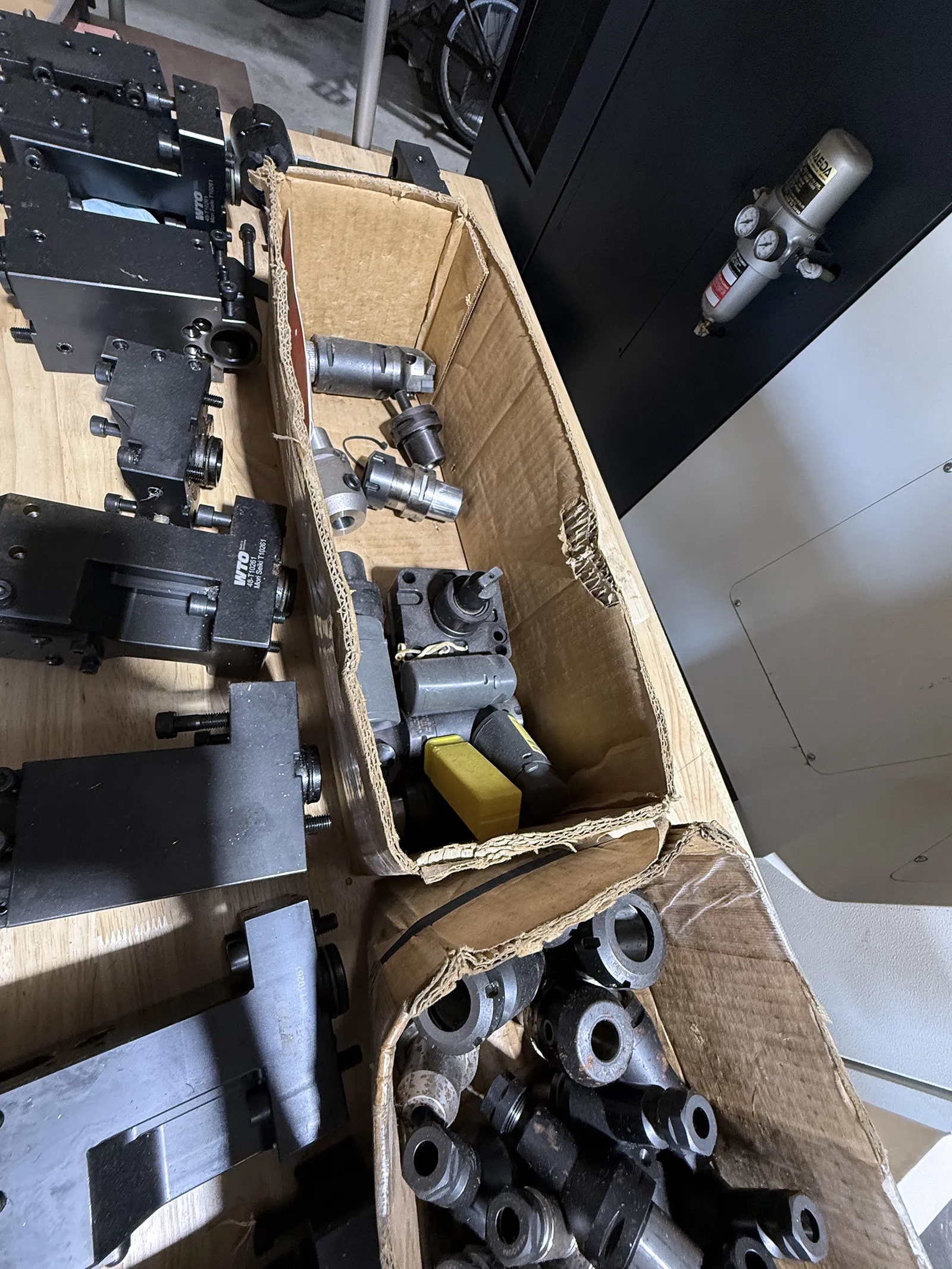

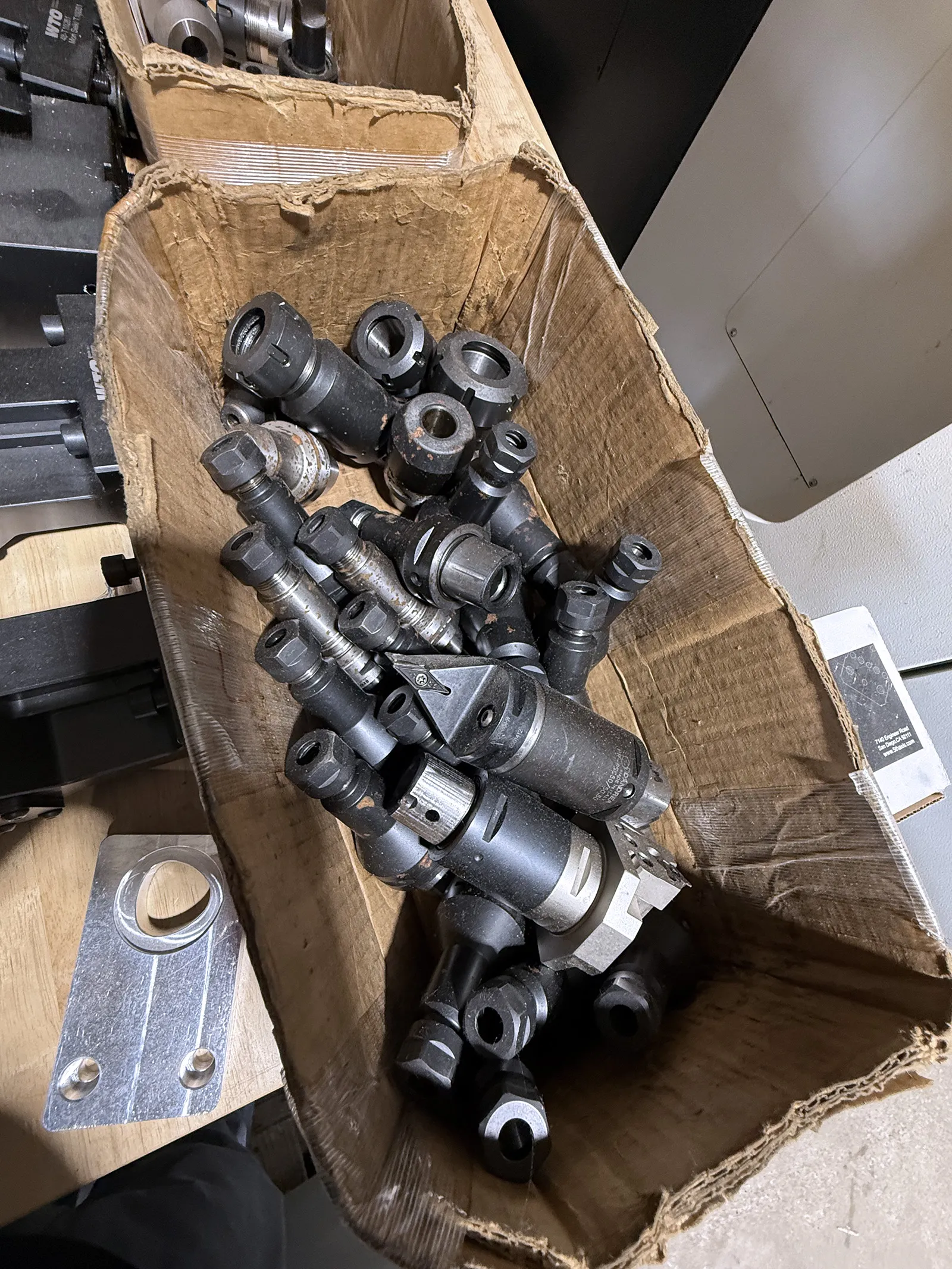

- Pictured Tooling included

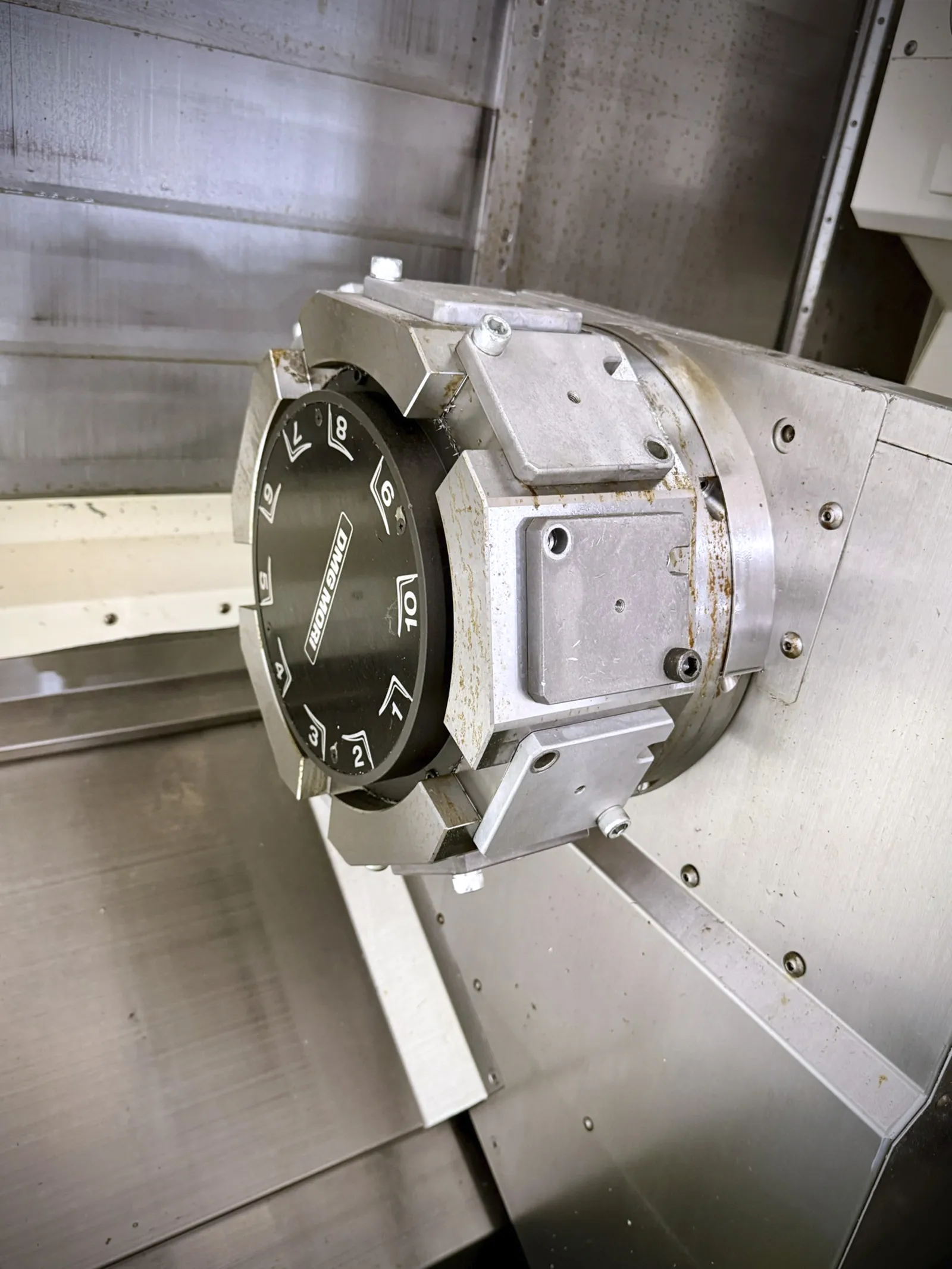

- 10-Station Lower Turret with milling

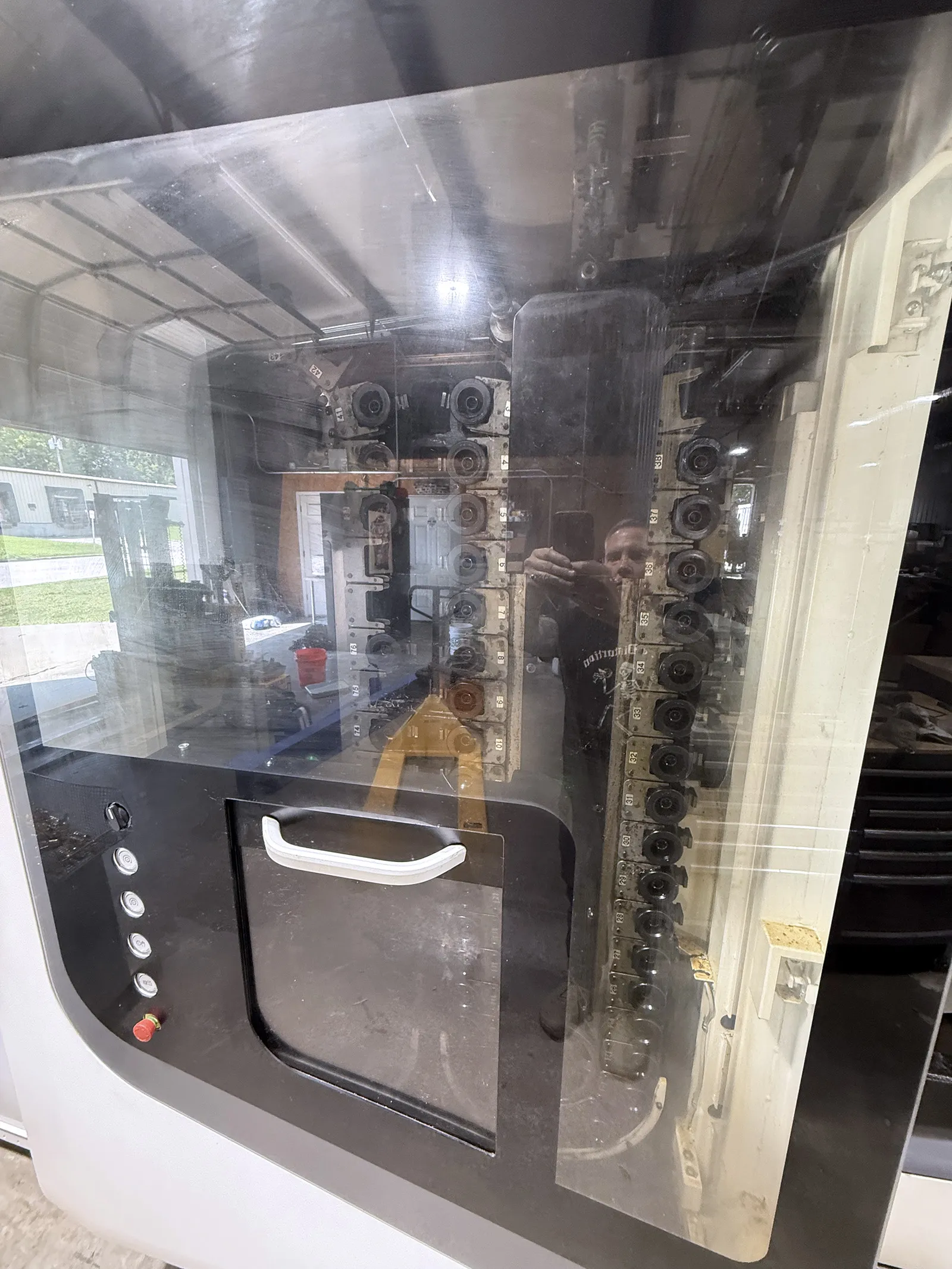

- Extended 76 tool capacity
- Renishaw Tooo Presetter
- High-Pressure Coolant

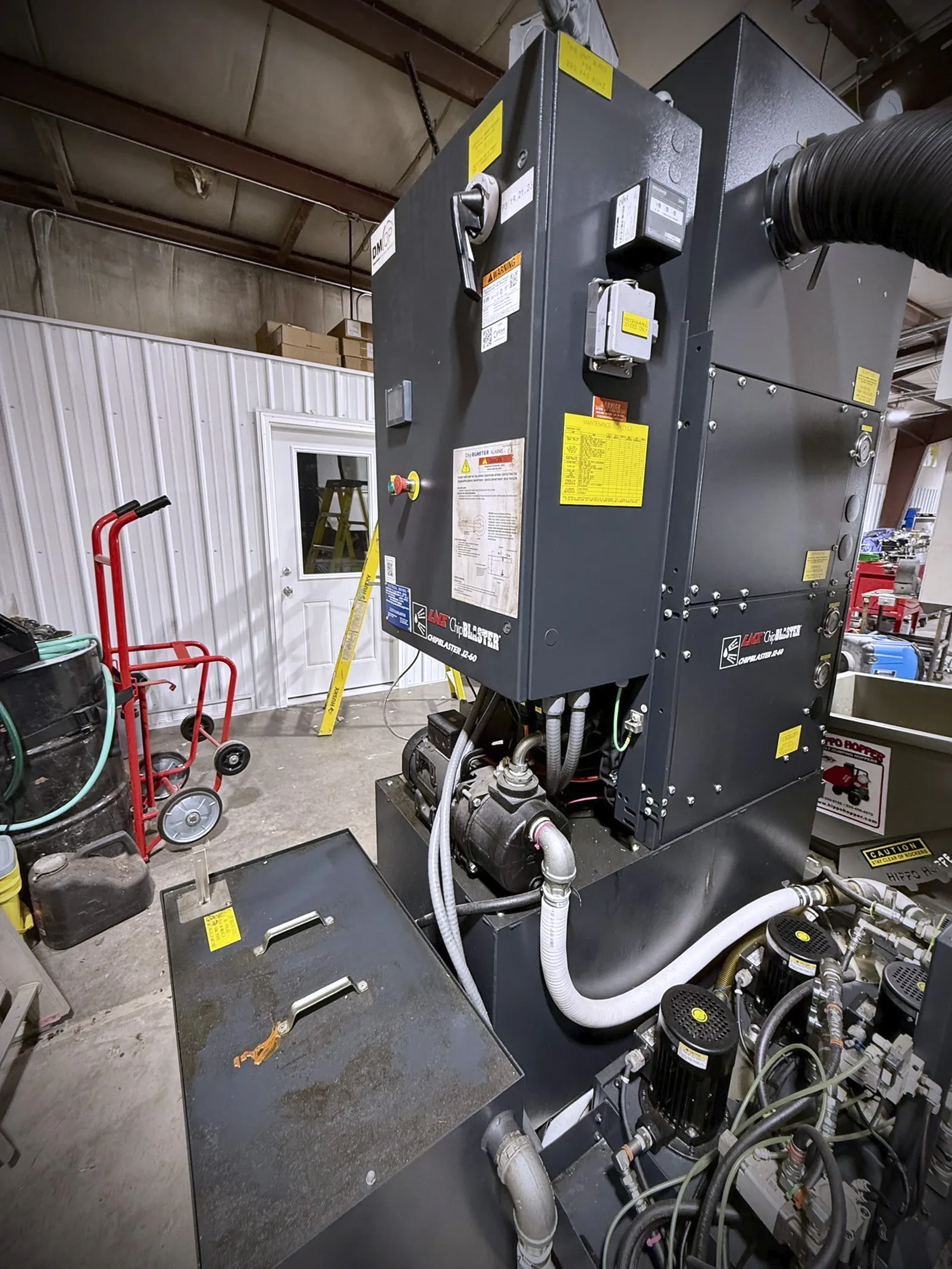

- LNS ChipBLASTER R-50
- 3D quickSET
- Gantry unloader system
- Parts Conveyor system
- Chip Conveyor
Specifications
- Max Turning Diameter 16.9″
- Max Turning Length 31.5″
- Max Bar Capacity 2.6″
- Swing over cross slide 17.7″
- Distance Between Spindles 41.3″
- X1 Axis Travel 17.9″
- Y Axis Travel +/- 4.53″
- Z1 Axis Travel 31.4″
- X2 Axis Travel 6.2″
- Z2 Axis Travel 28.7″
- B Axis Travel 240 Degree
- C axis 360 Degree (0.001)
- X Rapid Traverse Rate 1574.8 Inch Per Minute
- Y Rapid Traverse Rate 1574.8 Inch Per Minute
- Z Rapid Traverse Rate 1968.5 Inch Per Minute

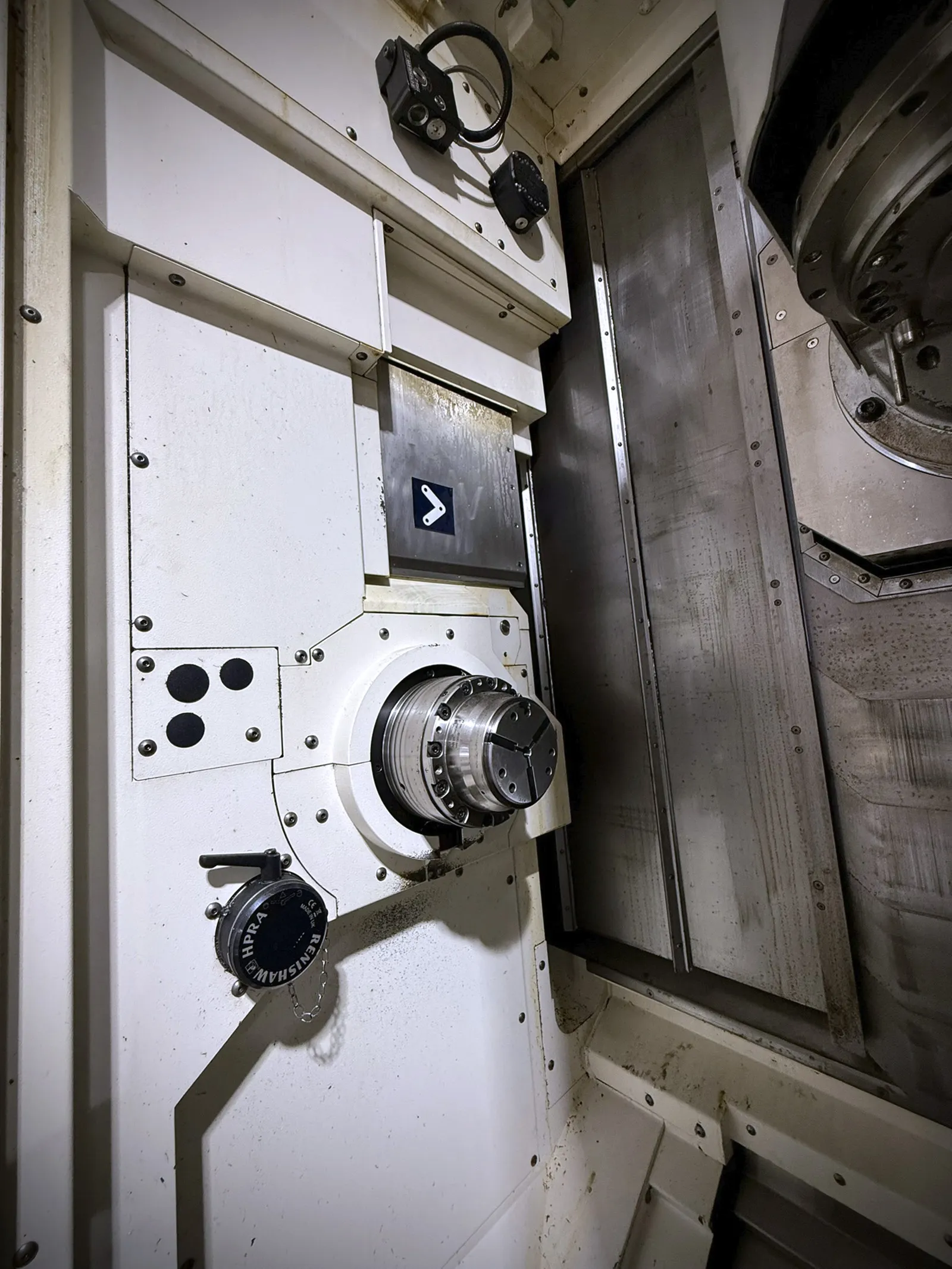

- Main Spindle Nose A2-6
- Main Spindle Bore 2.5″
- Main Spindle Speed 5000 RPM
- Main Spindle Motor 15 HP

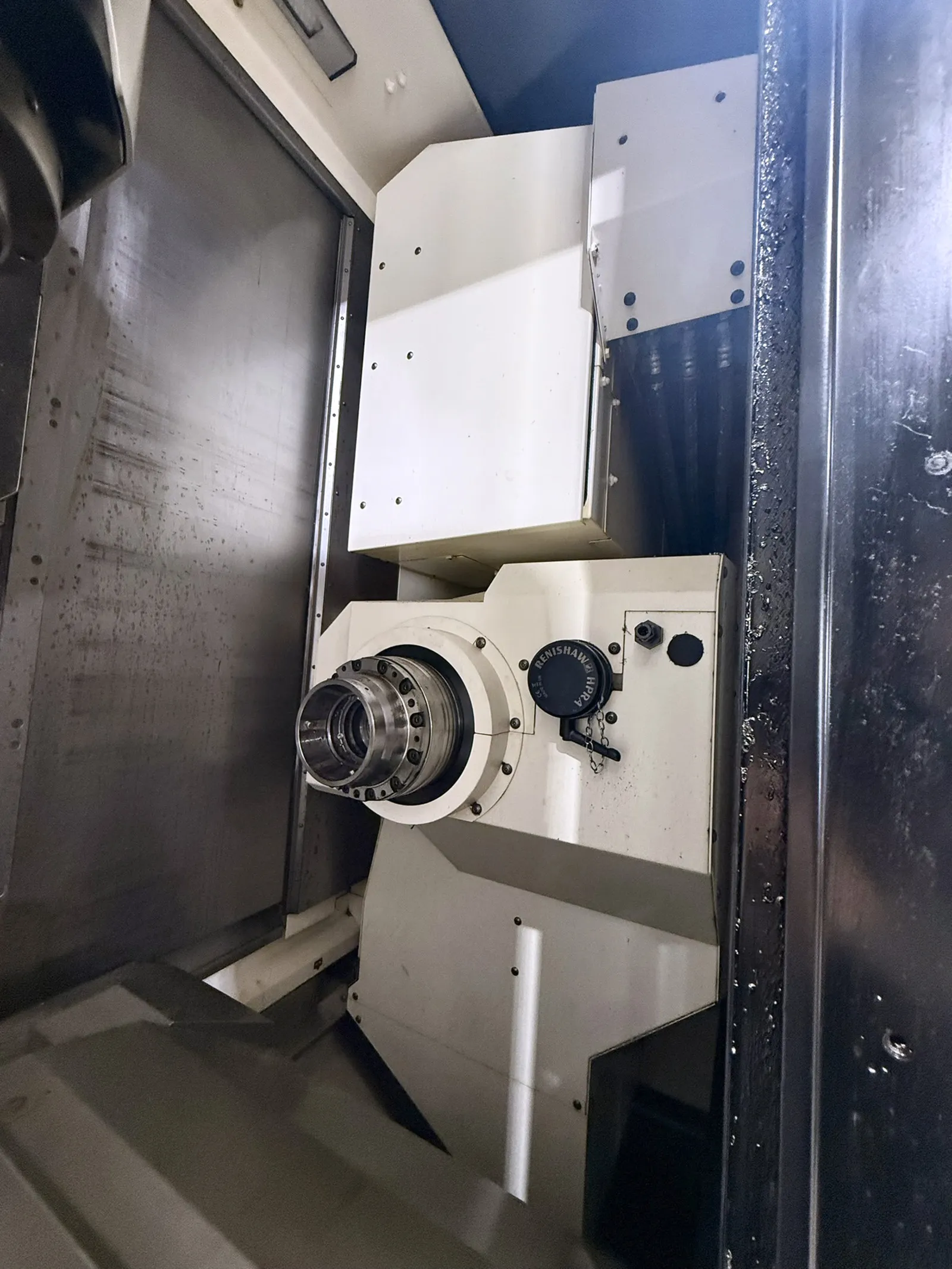

- Sub Spindle Nose A2-6
- Sub Spindle Bore 2.0″
- Sub Spindle Speed 6000 RPM
- Sub Spindle Motor 15 HP
- Milling Spindle Taper Capto C5
- Milling Spindle Max speed 20,000 RPM
- Tool Storage Capacity 76 tools
- Lower Turret Capacity 10 tools
- Overall Dimensions 178.5″ x 100.1″ x 101.8″ High
- Weight 25,353 lbs Approx.
Machine Description

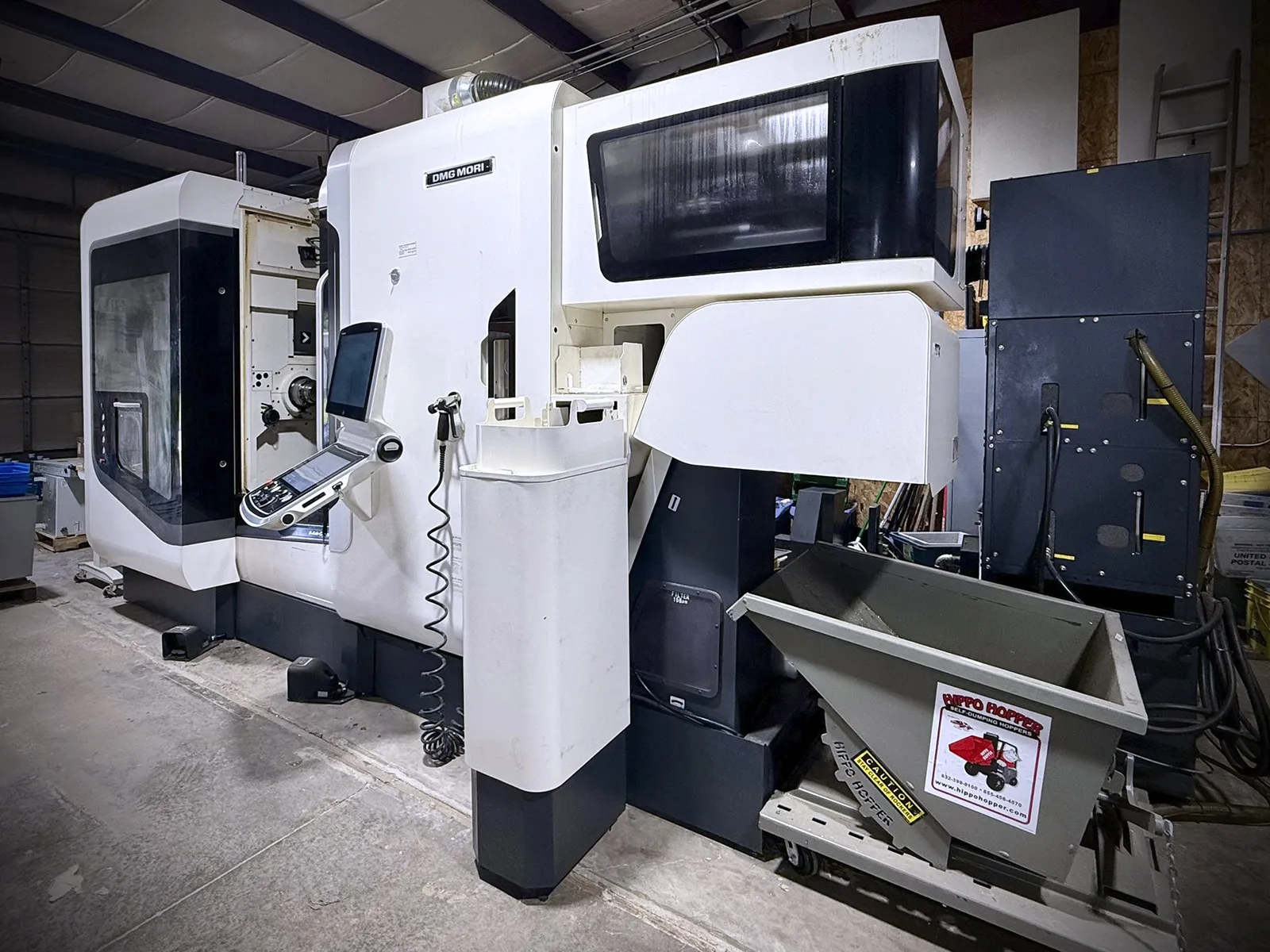

DMG Mori NTX 1000 (2019) Ganty is a high-precision CNC turn-mill center built for complex, multi-tasking machining. Ideal for medical, aerospace, automotive, EV, electronics, and hydraulic components, it combines turning and milling capabilities for accurate, efficient production of demanding precision parts.
