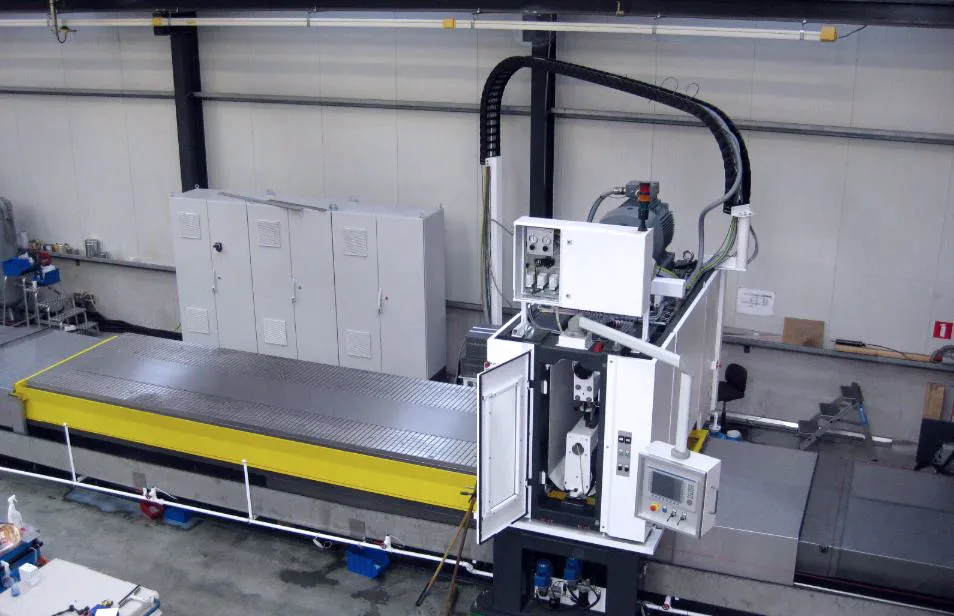

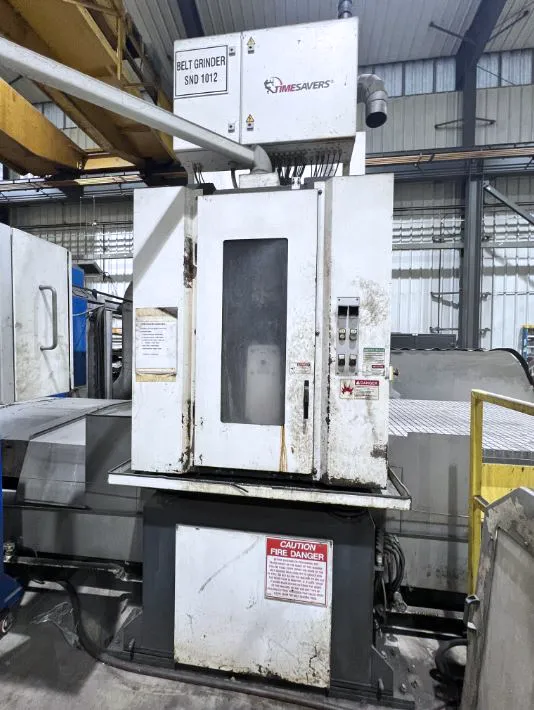

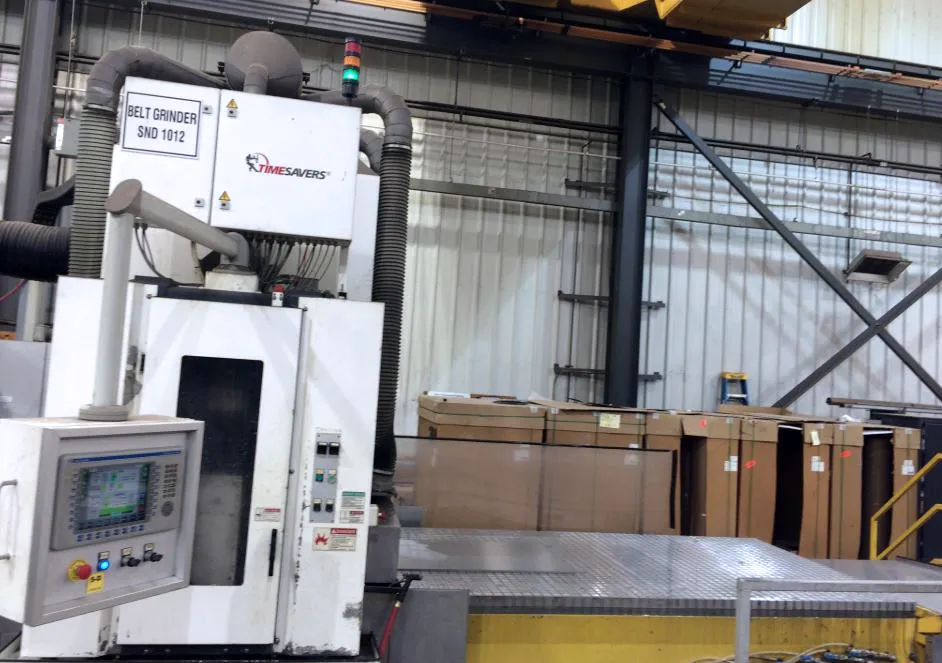

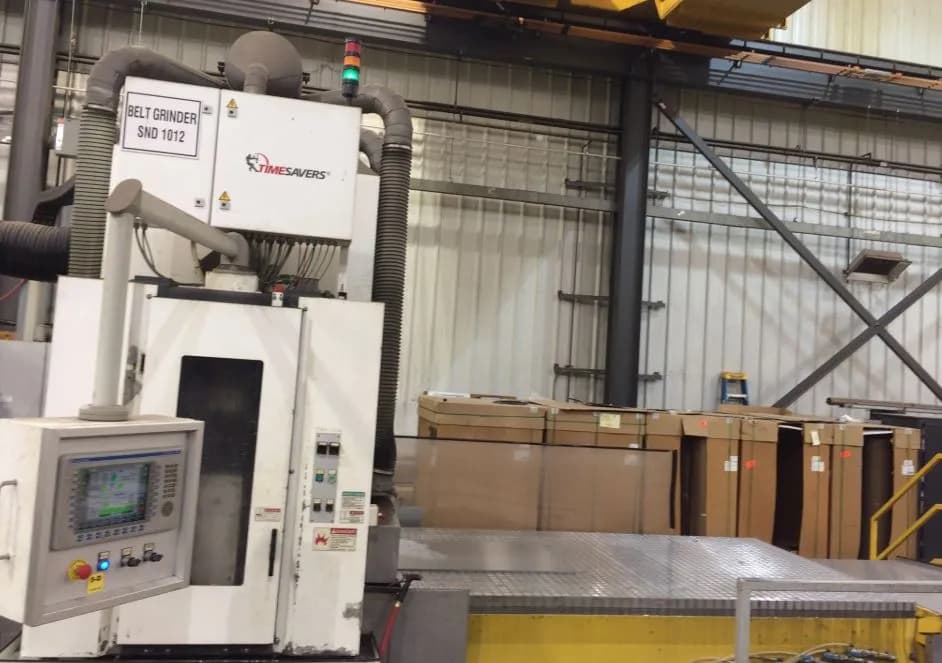

TIMESAVERS Series 81 2012
Equipped With

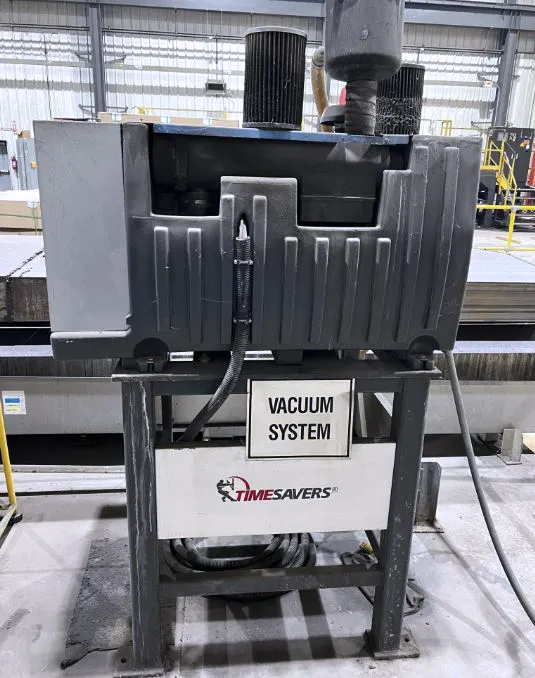

- Vacuum Table
- Filter System
- Pump
- Cooler
- The machine is able to run with smaller belts
- The max amount of belt widths are 3 (For example 38" 48" and 60")
- Grinding capabilities in both directions
Specifications
- Distance between the contact roller and the vacuum table 0.030-4"
- Accuracy in adjustment of height 0.0005"
- Feed speed, frequency controlled 0.001-4"/min
- Vacuumtable L x W 255" x 60"
- Vacuum force max 98%
- Vacuum Pump 7.5 Kw
- Minimum Feed speed 4"/min
- Maximum Feed Speed 30 feet/min
- Minimum Length 4"
- Minimum Width 4"
- Minimum Height 0.080"
- Maximum Length 255"
- Maximum Width 60"
- Maximum Height 4"
- Maximum Sheet/Plate weight 10,000 lbs

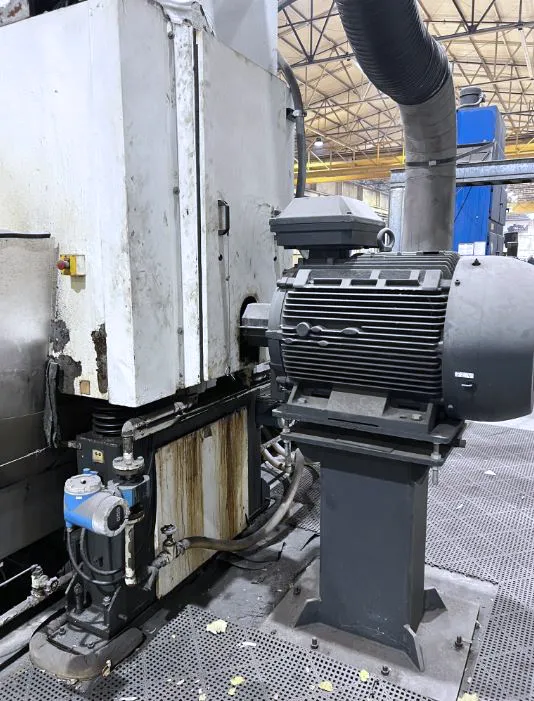

- Main Motor 90 kW
- Frequency controlled, adjustable grinding belt speed 1400-4400 Cf/m
- Table Motor 7 kW
- Electrical connection 460 Volt
- Cycles 60 Hz
- Control current 24 V
- Total installed power of system approx. 130 kW
- Air Pressure Required 100 PSI
- Air consumption per head 4 gallons/min
- Capacity tank filler 2,000 gallon
- Pump capacity grinding machine (adjustable in the machine max. 125 gallon/min
- Pump capacity to clean the system max 125 gallon/min
- Cooler keeps the temp on adjusted value 70-100 fahrenheit
- Weight of Machine 50,000 lbs
Machine Description
Used TIMESAVERS Series 81. This pre-owned Belt Grinder is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this TIMESAVERS Belt Grinder we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
