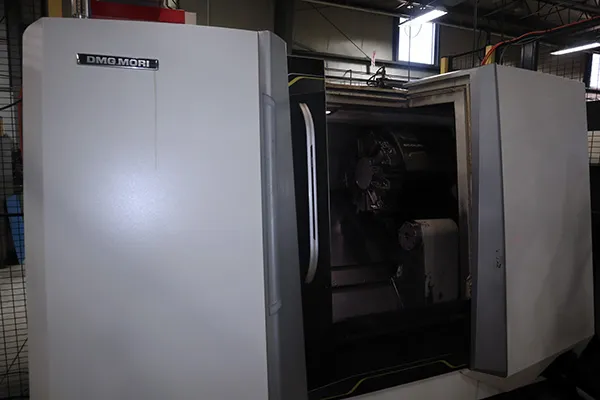

DMG Mori EcoTurn 450 2016

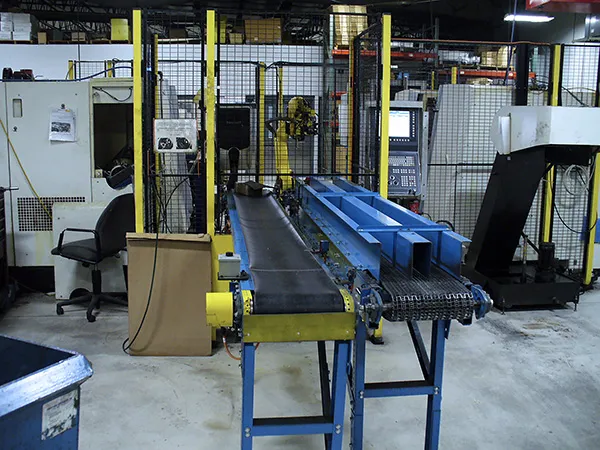

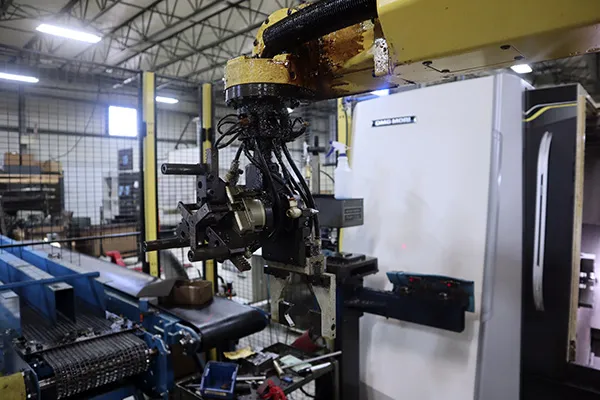

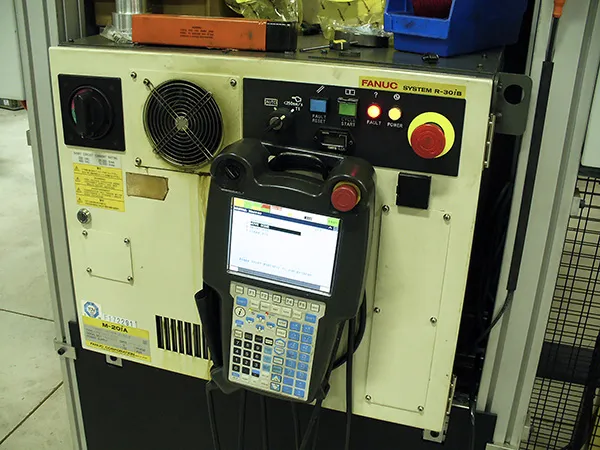

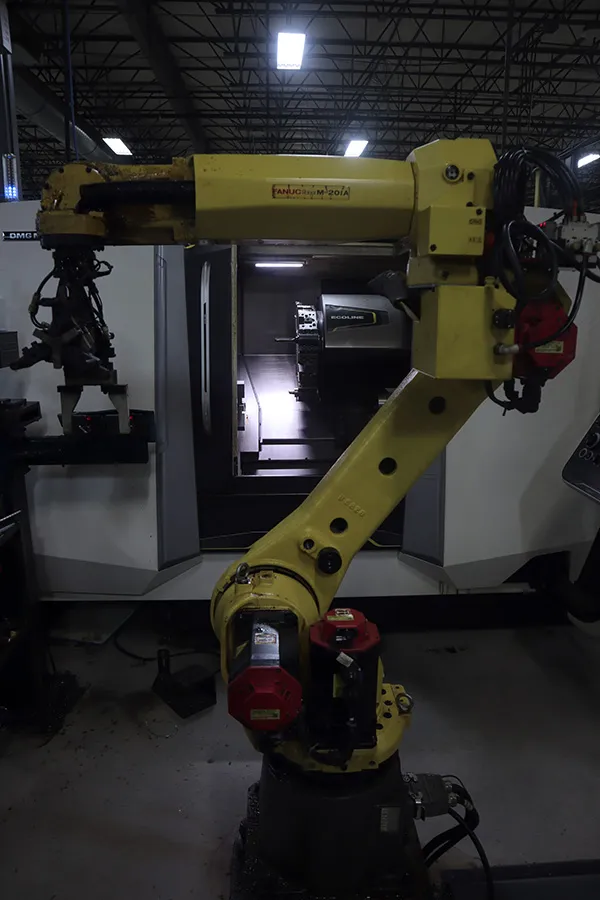

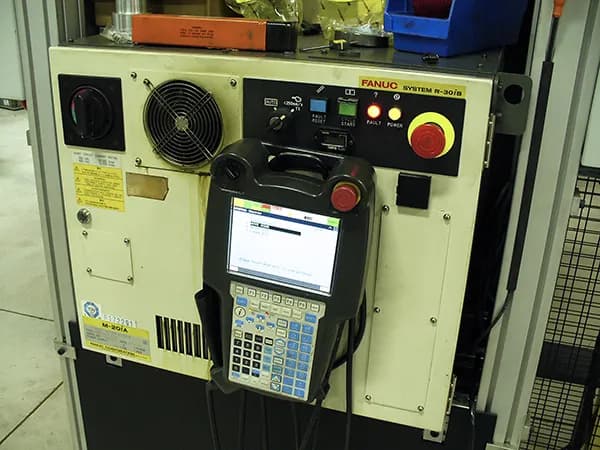

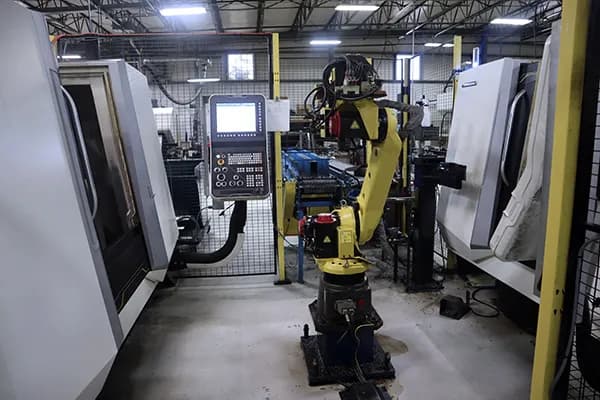

Complete Cell with 2 Identical Lathes | Fanuc M-20iA Robot and Intregrated Infeed/Outfeed Conveyor System

DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
DMG Mori Ecoturn 450 2016
2016
N/A
#3644022

Specifications

Equipped With

  • Swing Over Bed (Z-axis slide cover) 26.77"
  • Swing Over Ned (chuck wiper base cover) 24.80"
  • Swing over cross slide 1.57"
  • DISTANCE BETWEEN CENTERS 26.97"
  • Max. Turning Diameter 15.98"
  • Max. Turning Length 22.36"
  • Max Bar Working Capacity 3.15"
  • X-Axis Travel 10.53"
  • Z-Axis Travel 23.62"
  • Spindle Speed Ranges 4000
  • Number of Spindle Speed Ranges unchangeable
  • Spindle Nose Type A2-8
  • THROUGH-SPINDLE HOLE DIAMETER 3.58"
  • Minimum Spindle Indexing Angle 0.01 spindle mode
  • Spindle bearing inner diameter 5.12"

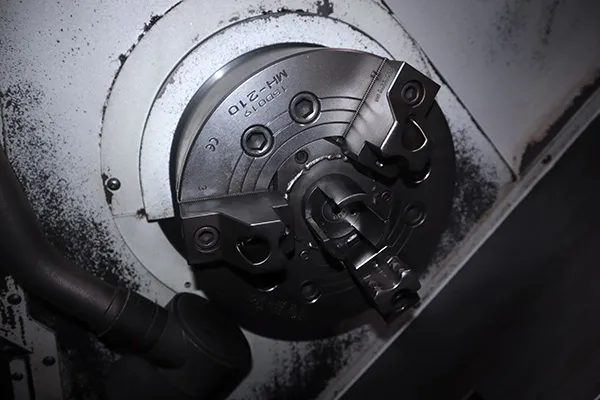

  • Chuck 10" hollow & solid; 12" hollow & solid

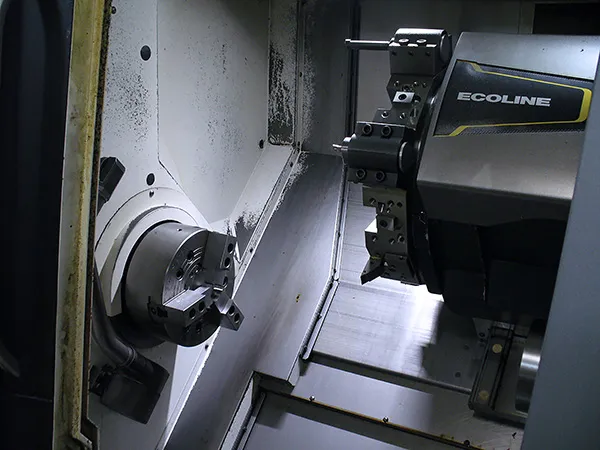

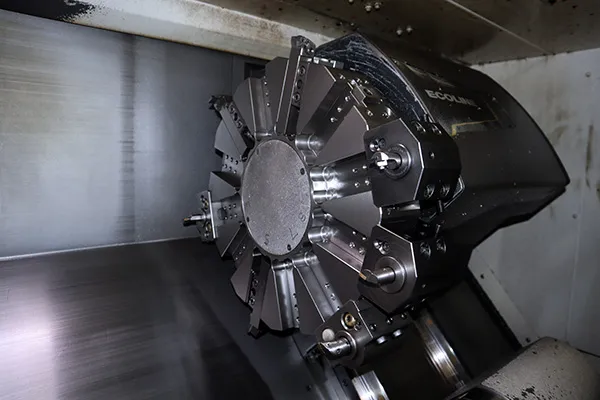

  • Turret Type 12 stations
  • Turret Tool Mounting Capacity: 12 tools
  • Height of Angled Tool Shank Section 1"
  • Diameter of Boring Bar Shank Section 2"
  • Rapid Traverse Rate X-1181.19ipm, Z-1181.10ipm, tailstock (digital tailstock spec.): 787.4" (retract) / 275.59" (advance)
  • Jog Feedrate X, Z, B: 0-196.85ipm [21 steps]

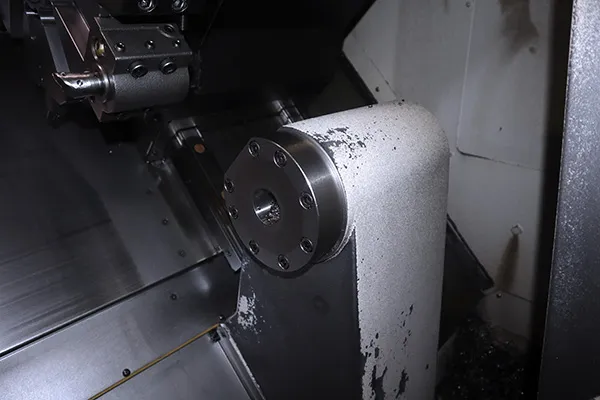

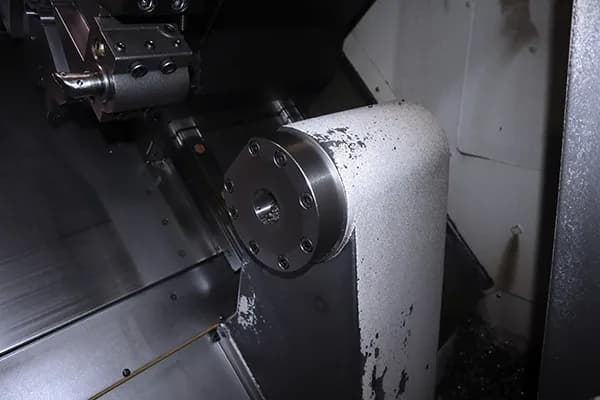

  • Tailstock Travel 19.69"
  • Spindle Drive Motor (1/6H/40% ED/Cont.): 24.66/20/16 HP
  • Tailstock Spindle Taper Hole MT5
  • Feed Motors (X/Z) 2.66 HP
  • Hydraulic Pump Motor 2.0 HP
  • Lubricating Pump Motor 0.02 HP
  • Coolant Pump Motors 0.43 / 0.69 HP
  • Chip Conveyor Motor: 0.33 HP
  • Hydraulic oil tank capacity 2.64 gal.
  • Lubricating Oil Tank Capacity 0.53 gal.
  • Coolant Tank Capacity 34.32 gal.
  • Machine height 76.06"
  • Floor Space (only machine): 117.13" x 77.09" (w/o operation panel)
  • Floor Space (including Right Disposal Chip Conveyor): 166.34" x 77.09" (w/o operational panel)
  • Floor Space (including Rear Disposal Chip Conveyor): 104.57" x 133.86" (w/o operational panel)
  • Machine Mass (including Right Disposal Chip Conveyor) 12,100lb

Machine Description

No description available
