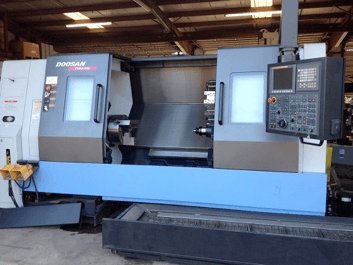

Doosan Puma 400B 2014

Swing over bed: 30.3" Swing over carriage: 23.2” Distance between centers: 44.7” Maximum turning diameter: 21.7" Maximum turning length: 41.1" Spindle speed: 20 – 2,000 RPM Spindle nose: ASA-A2-11 Draw tube ID: 4.62” Spindle bore diameter: 5.20” AC Spindle Motor (30 min. rating): 50 HP Spindle speed ranges: 2 Turret type: 12 Position Maximum spindle torque (30 min. rating): 2,419 ft-lbs. X axis travel (362mm) 14.3” Z axis travel (1105mm) 43.5” Rapid traverse rate X/Z: 630 IPM/790 IPM Repeatability X/Z: +0.00008"/+0.00012” Tailstock quill diameter / center: 4.7" / MT #5 Tailstock quill travel: 4.7” Coolant pump pressure: 65 PSI Complete set of tool holders for turret: - 6 pc. ID tool holder - 3 pc. U-Drill cap (for coolant through the drill or boring bar) - 6 pc. Straight shank 2.5” OD bushings (5/8”, 3/4“, 1”, 1-1/4”, 1-1/2”, 2”) - 4 pc. U-drill sleeve (1”, 1-1/4”, 1-1/2”, 2”) - 2 pc. Facing tool holder - 2 pc. Extended turning tool holder - 2 pc. OD clamp wedge (for mounting of OD tools to turret) Like New - 140 Hours
