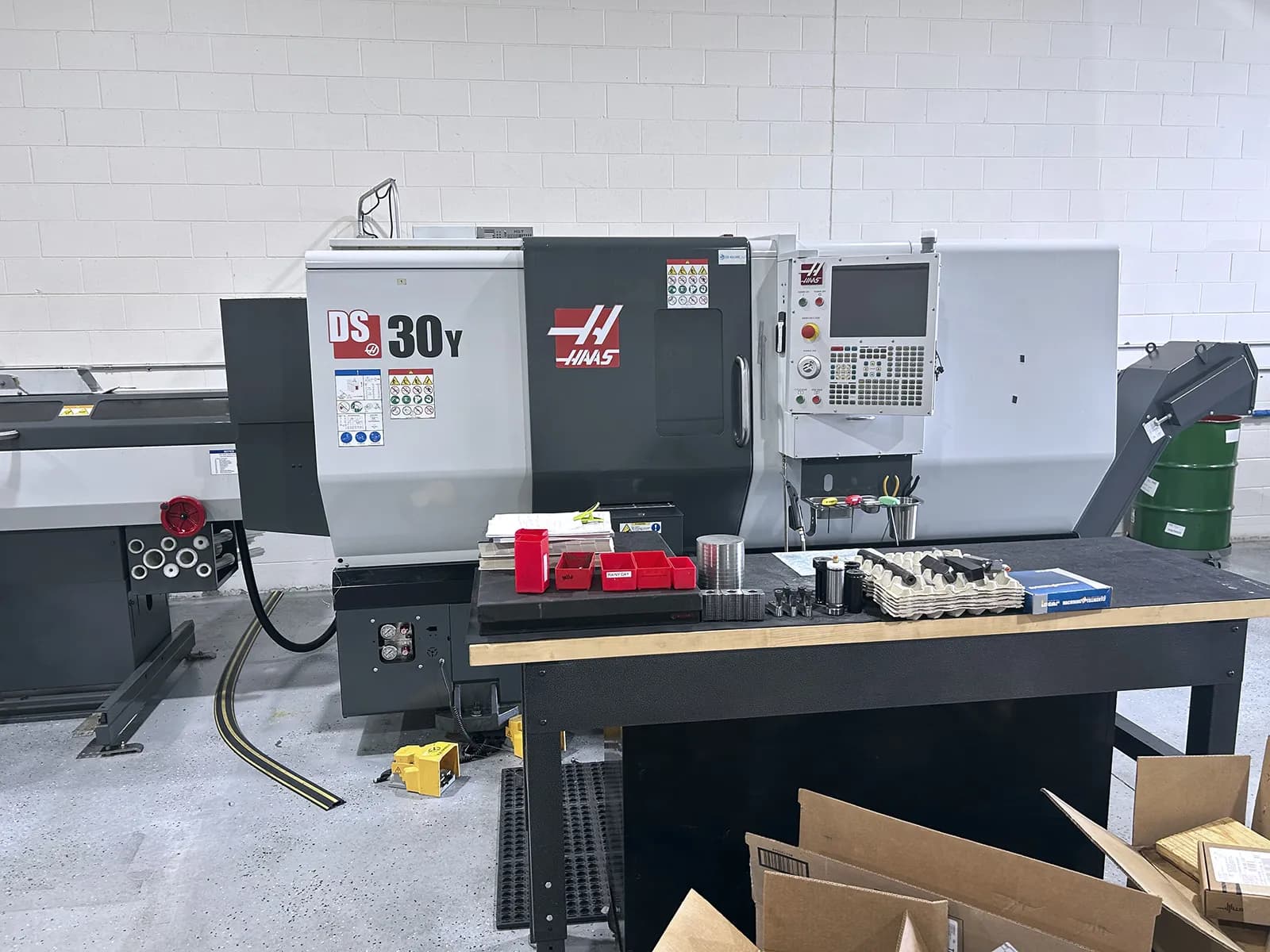

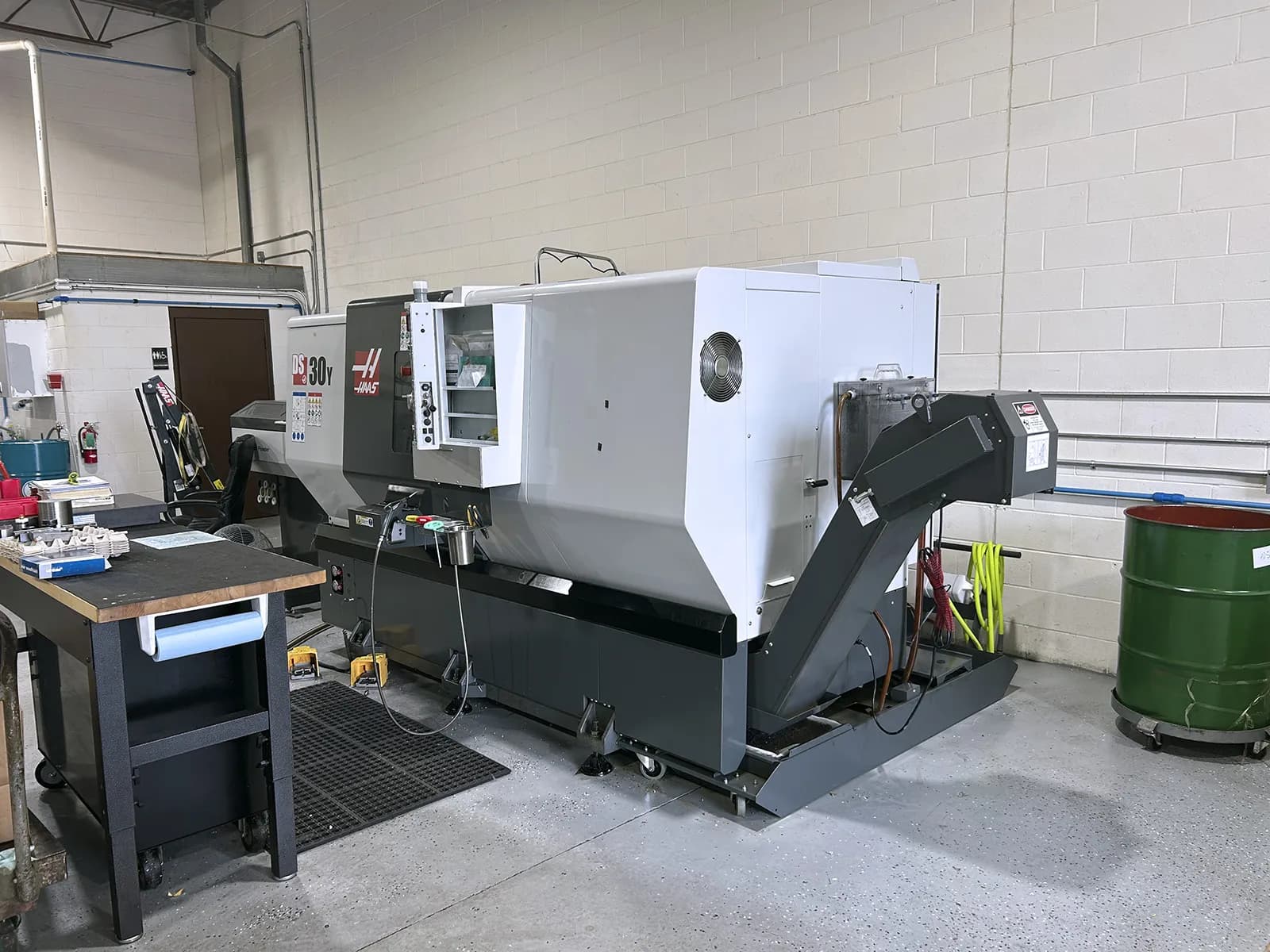

Haas DS-30Y 2019
Equipped With
- Haas Next Gen Control

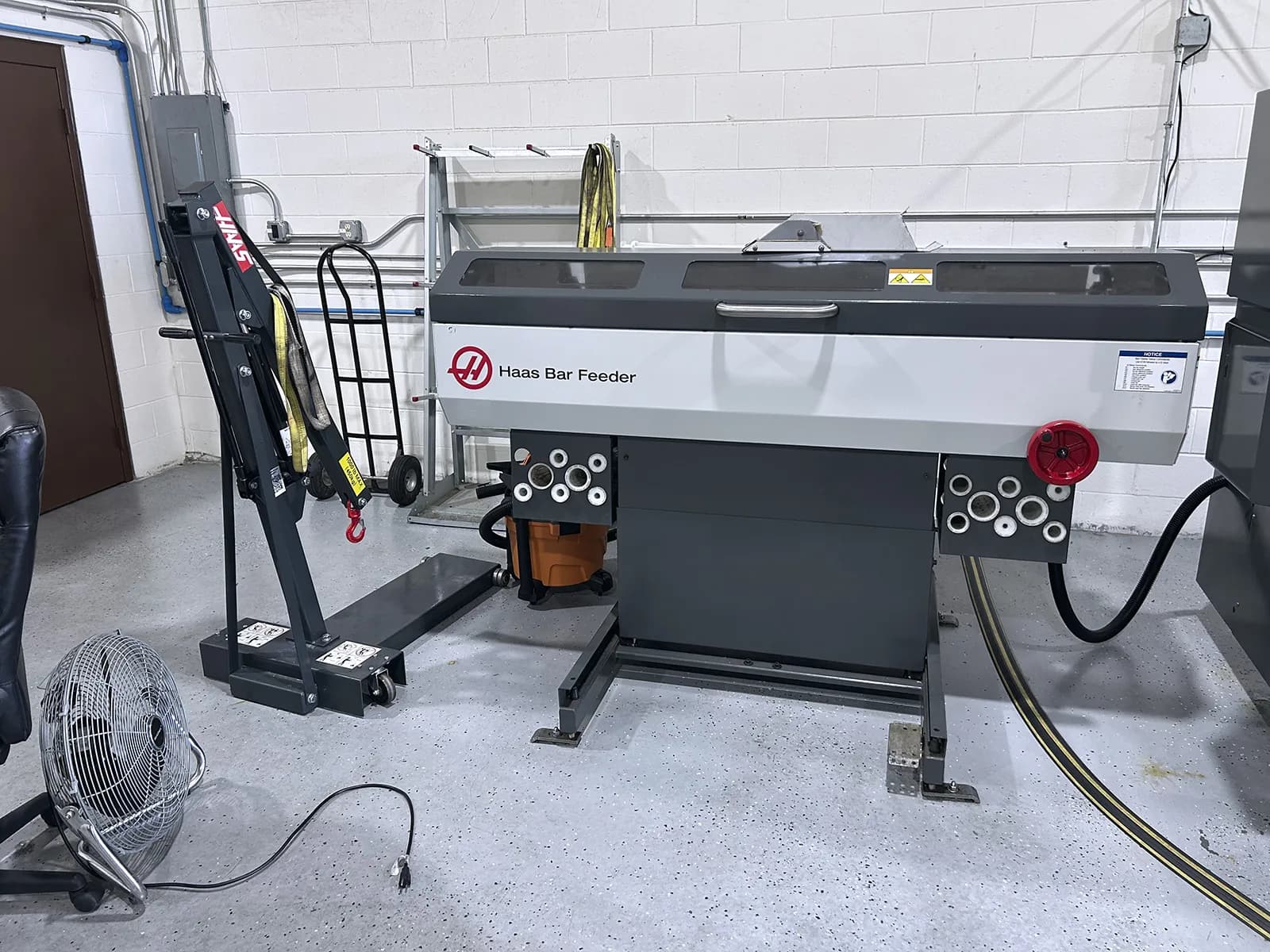

- Haas Barfeed included
- Y-axis enabled
- Sub Spindle
- 2 Live Tools included
- Full C-axis on Main and Sub Spindle
- Chip Conveyor
- 10" Chuck on Main Spindle
Specifications
- Main Chuck Size 10"
- Sub-Spindle Chuck Size 8.3"
- Maximum Part Swing 21.0"
- Maximum Cutting Diameter 13.75"
- Maximum Cutting Length 32.5"
- Maximum Bar Capacity 3.00"
- DISTANCE BETWEEN CENTERS 32.5"
- X-Axis Travel 9.40"
- Y-Axis Travel ±2.00" (4.00" total)
- Z-Axis Travel 32.50"
- Main Spindle Speed 4,500 RPM
- Main Spindle Motor 30 HP
- Main Spindle Torque 275 ft-lb @ 500 RPM
- Main Spindle Nose A2-6
- Main Spindle Bore 3.50"
- Main Spindle C-Axis Full Interpolated C-Axis
- C Axis Positioning ±0.01°
- Sub-Spindle Speed 4,000 RPM
- Sub-Spindle Motor 15 HP
- sub-spindle torque 100 ft-lb @ 870 RPM
- Sub-Spindle Nose A2-5
- Sub-Spindle Bore 2.31"
- Sub-Spindle C-Axis Full Interpolated C-Axis
- Maximum Synchronized Speed 4,000 RPM
- Turret Capacity 12 Stations
- Turret Type BMT65
- Live Tooling Speed 4,000 RPM
- Live Tooling Drive Ratio 1:1
- Coolant Capacity 55 Gallons
- Approx. Machine Weight 12,200 lbs
Machine Description
Used Haas DS-30Y 2019 CNC Turning Center is a high-productivity “done-in-one” machining system combining dual-face turning and milling. Reduce setups, cycle times, and handling errors while maximizing throughput. Ideal for aerospace, automotive, medical, fluid control, and high-volume contract manufacturing.
