Hyundai WIA L500LMA 2024
Equipped With

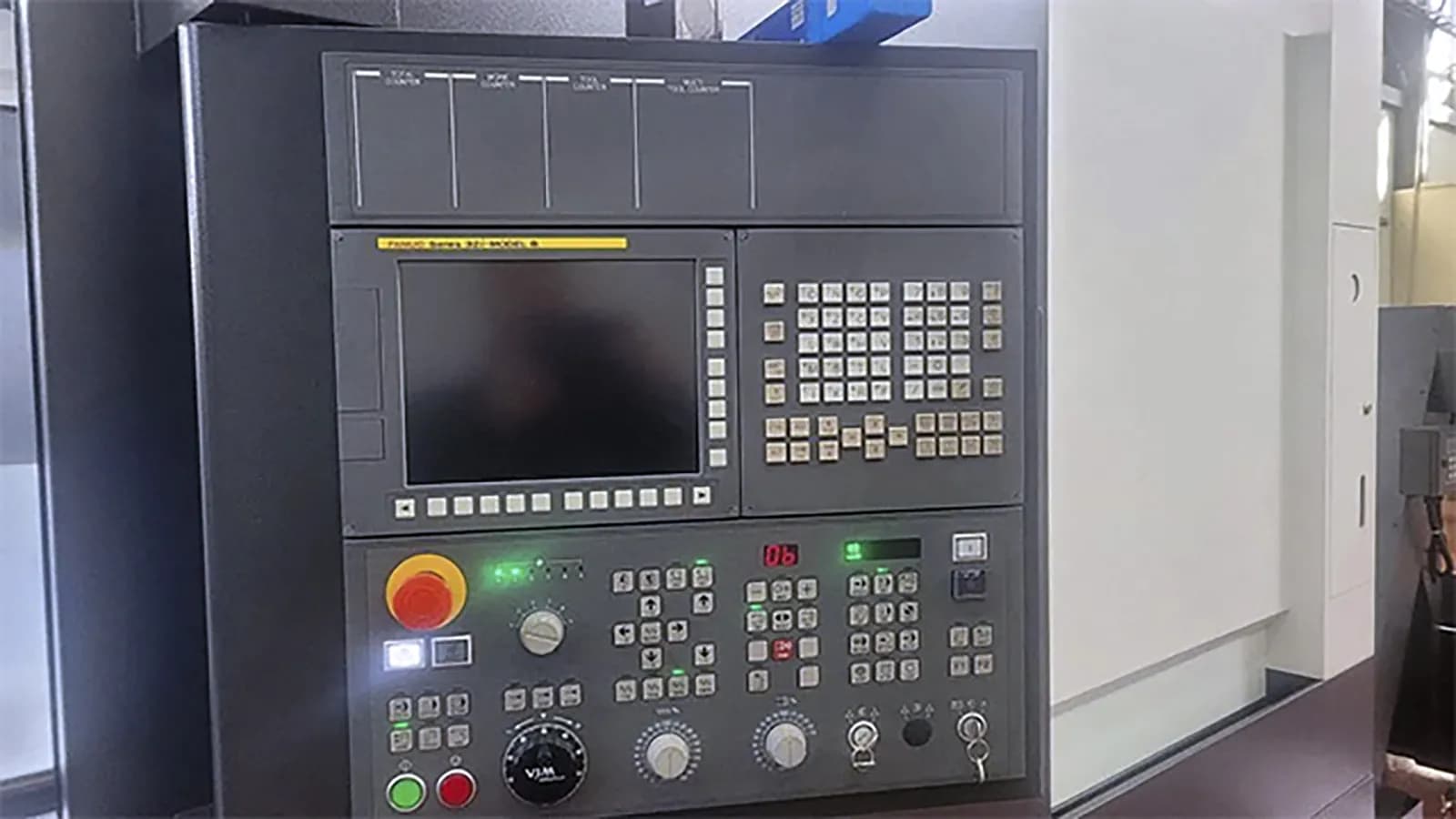

- FANUC 32iB CNC COLOR CONTROL
- THREAD SYNCHRONIZED CUTTING
- THREAD CUTTING RETRACT
- VARIABLE LEAD THREADING
- TOOL PRE-SETTER

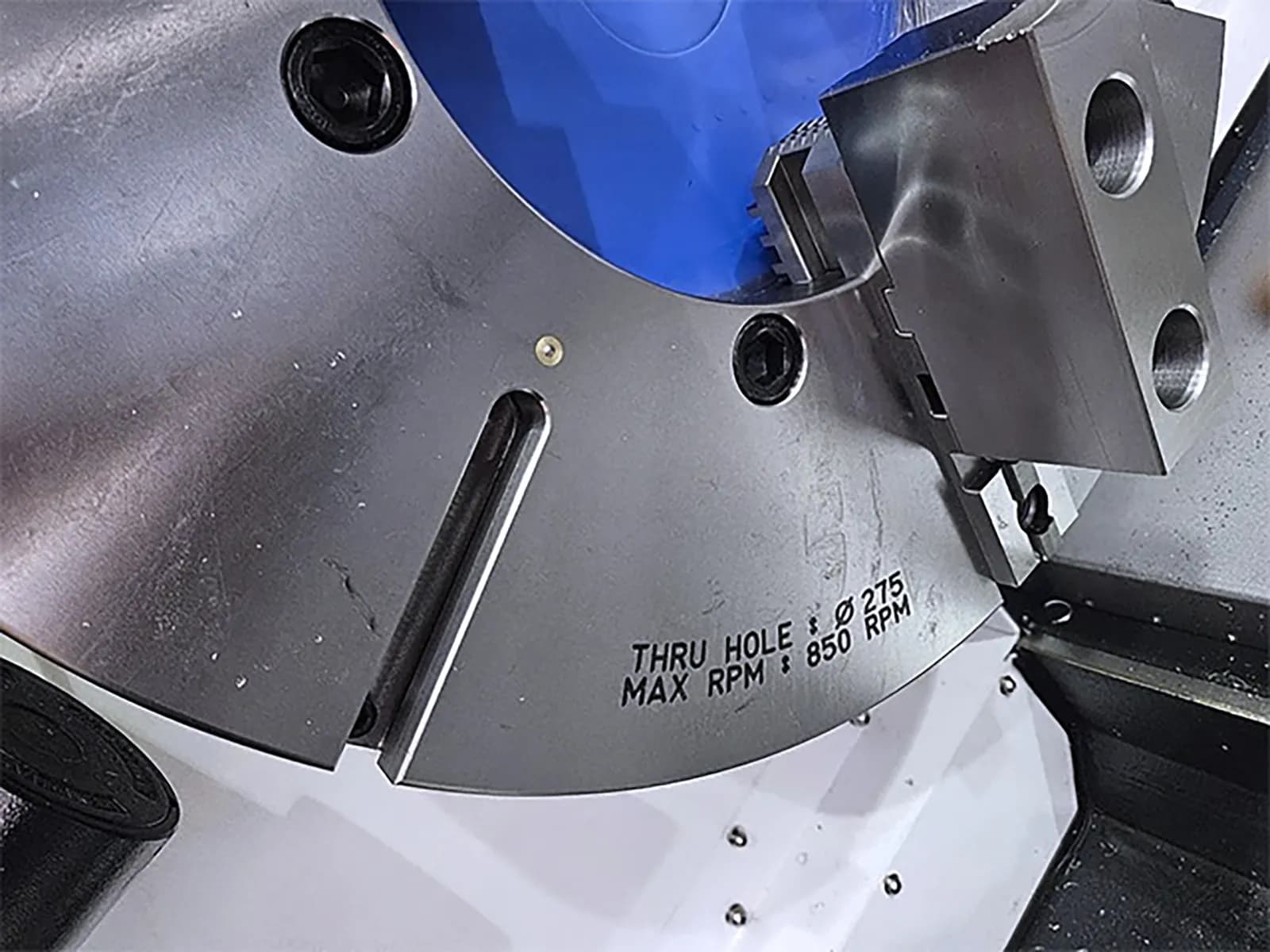

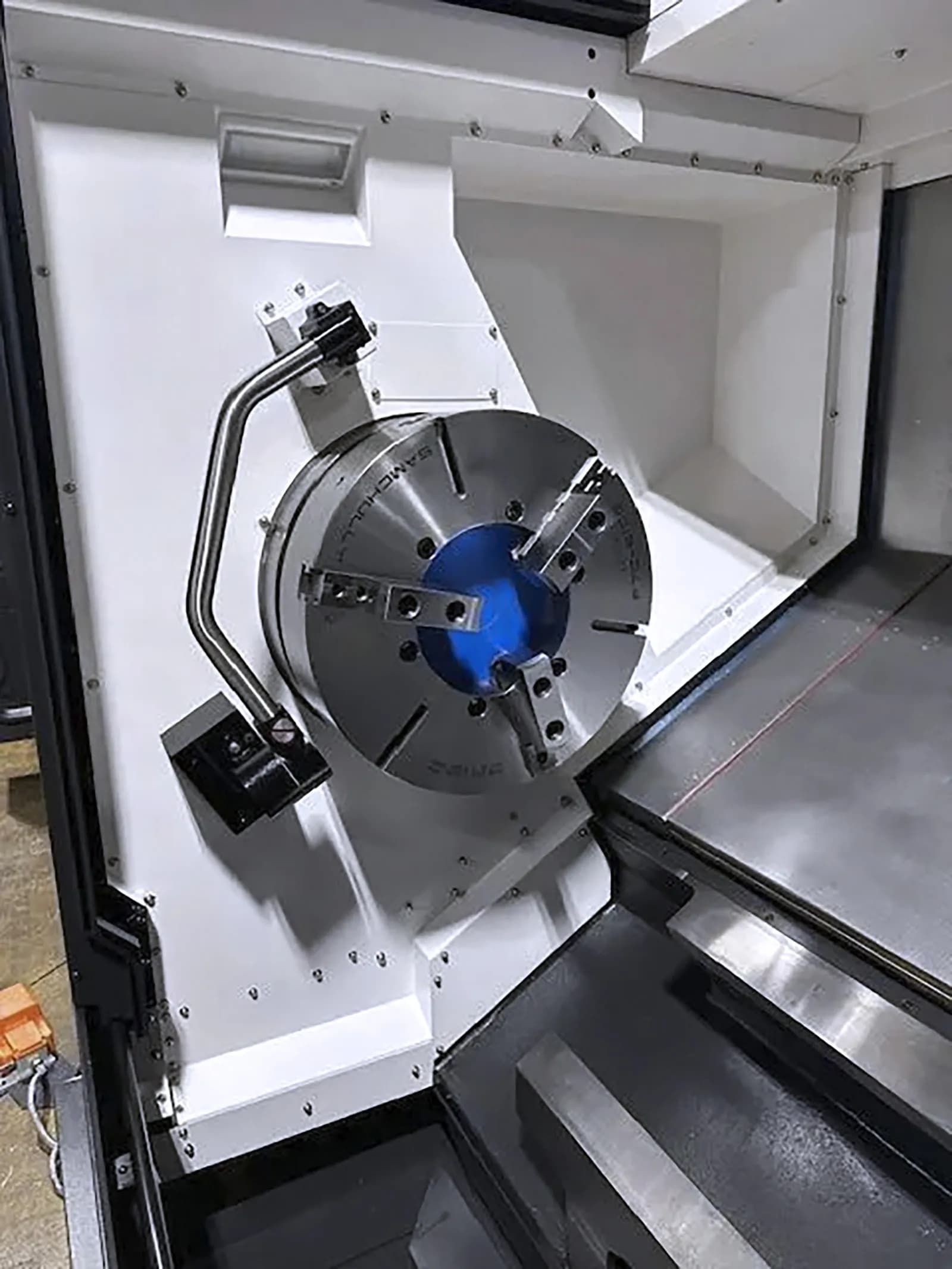

- (2) 24" 3-JAW MANUAL CHUCKS

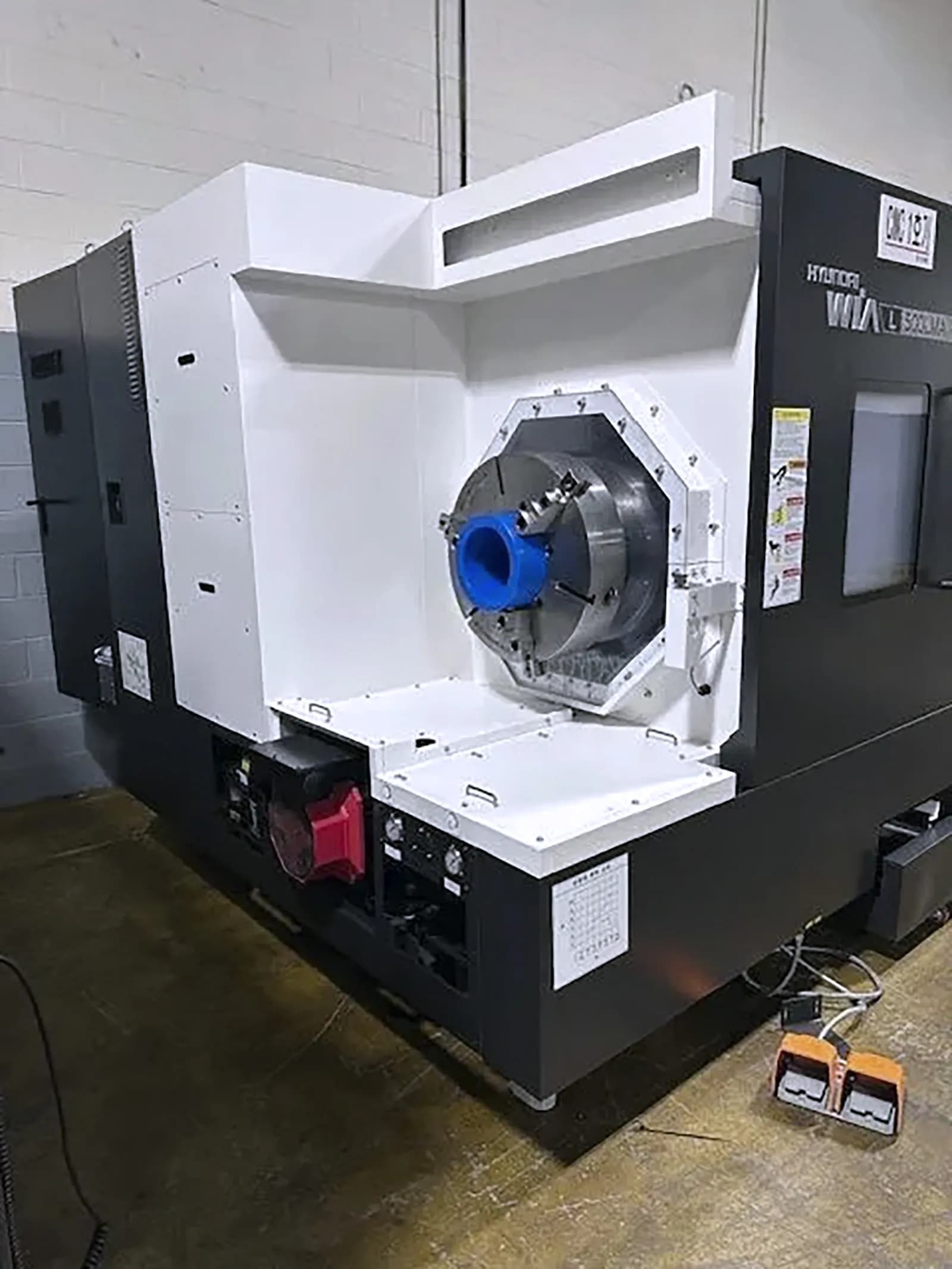

- FRONT AND REAR SPINDLE (W/10.8" BORE EACH)
- (1) O.D. ROTARY HEAD
- (1) I.D. ROTARY HEAD
- CHIP CONVEYOR

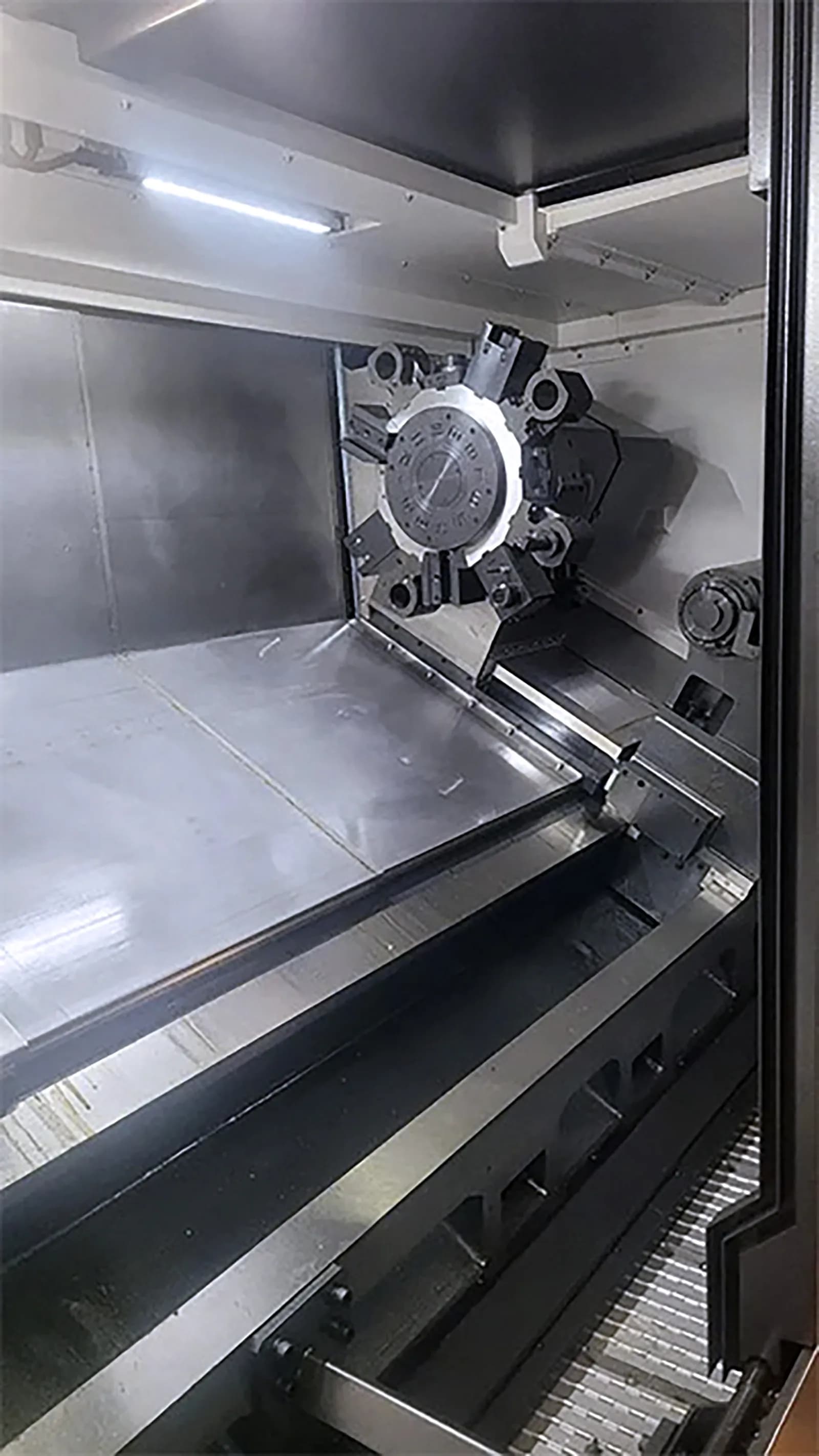

- HEAVY DUTY BOX WAY CONSTRUCTION
- PROGRAMMABLE TAILSTOCK
- 200 HOURS ON TIME
Specifications
- Swing over Bed 40.6"
- Machining Length 82.7"
- Turning Diameter 27.2"
- Chuck Size 24"
- Spindle Nose A1-15
- Spindle Bore Diameter 10.8"
- Bar Capacity 10.8"
- Spindle Horsepower 60 hp
- Rapid Traverse Rate X 788 ipm
- Rapid Traverse Rate Z 709 ipm

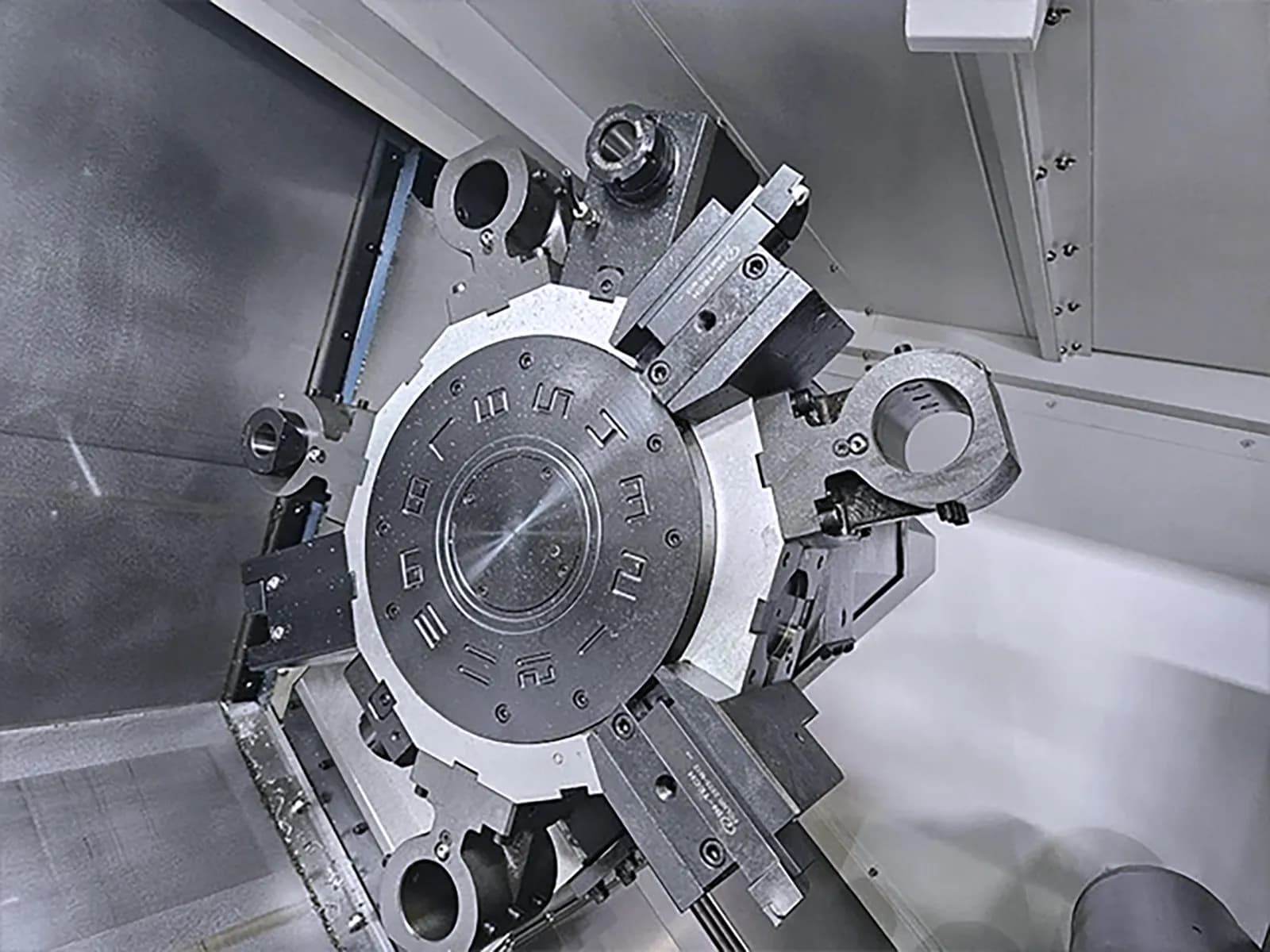

- Turret Tool Positions 12 station
- Turret Rotary Tool Speeds 4,000 RPM
- Turret Rotary Tool Horsepower 15 hp
- Tailstock Quill Diameter 5.2"
- Tailstock Taper MT 5
- Tailstock Quill Travel 5.2"
- Programmable Tailstock Yes
- Tailstock Travel 82"
- Number of Axis 3
- Live Tooling Yes
- Sub Spindle No
- Machine Weight 33,510 lb
- Control Fanuc 32iB
Machine Description

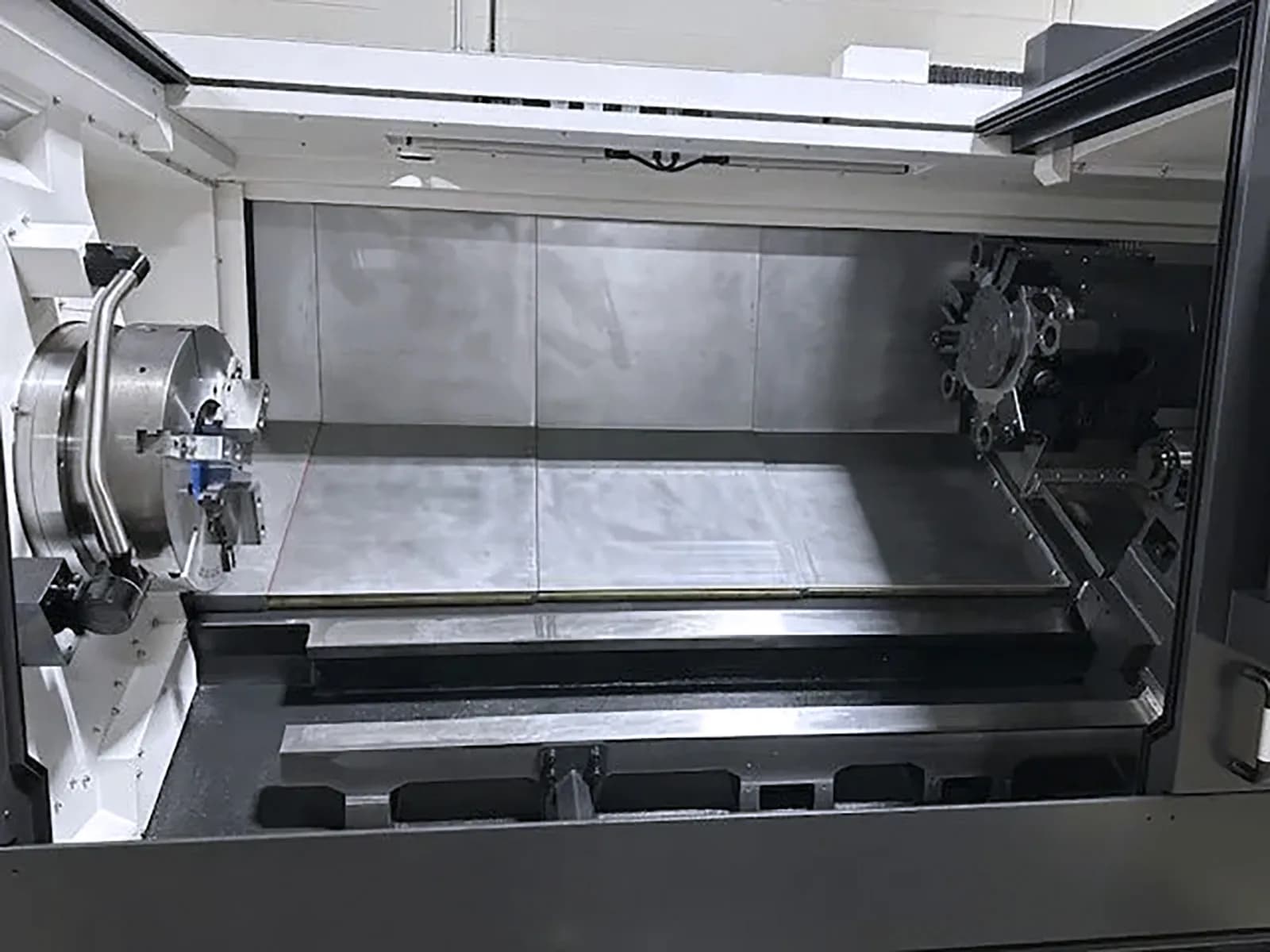

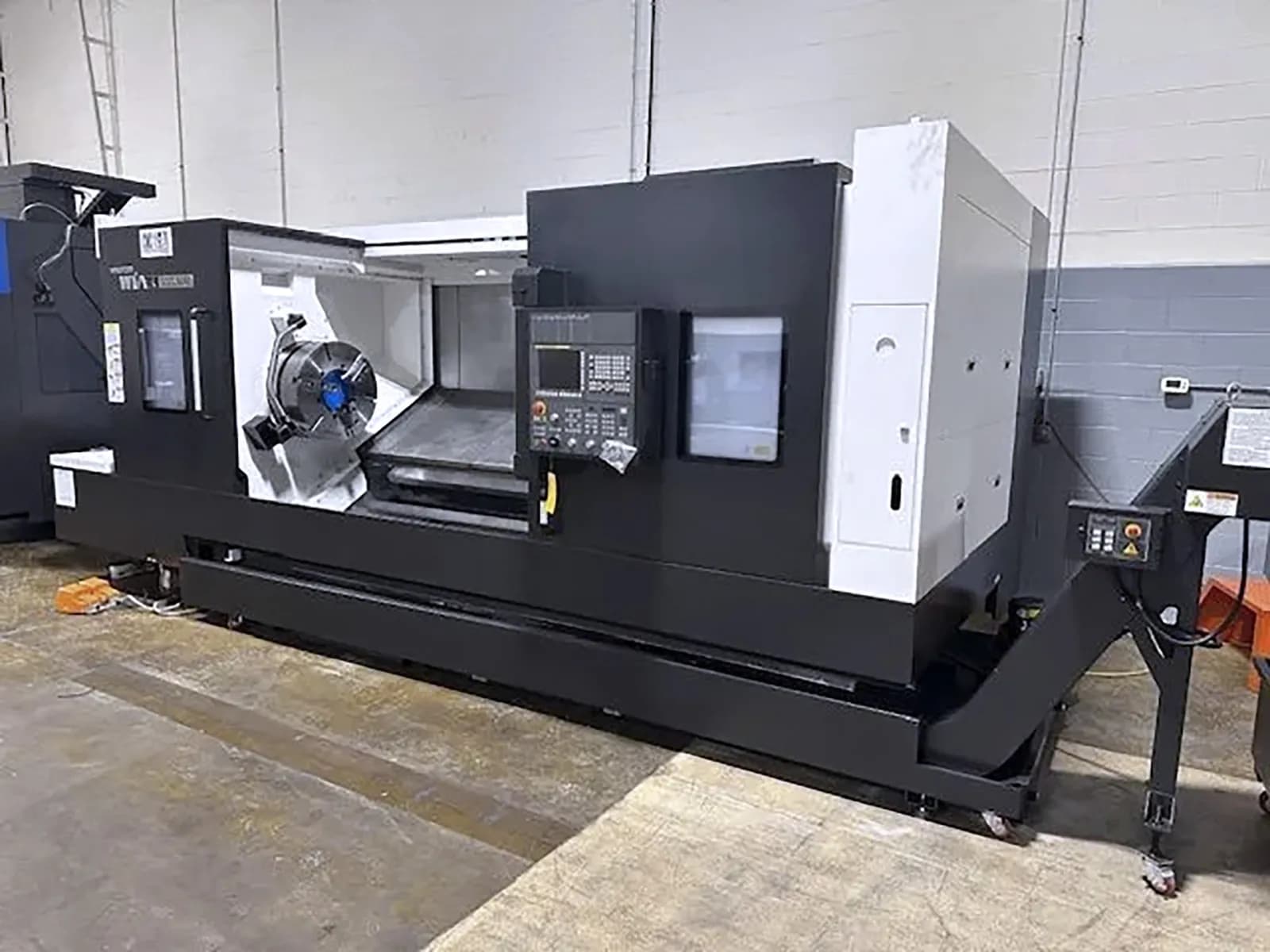

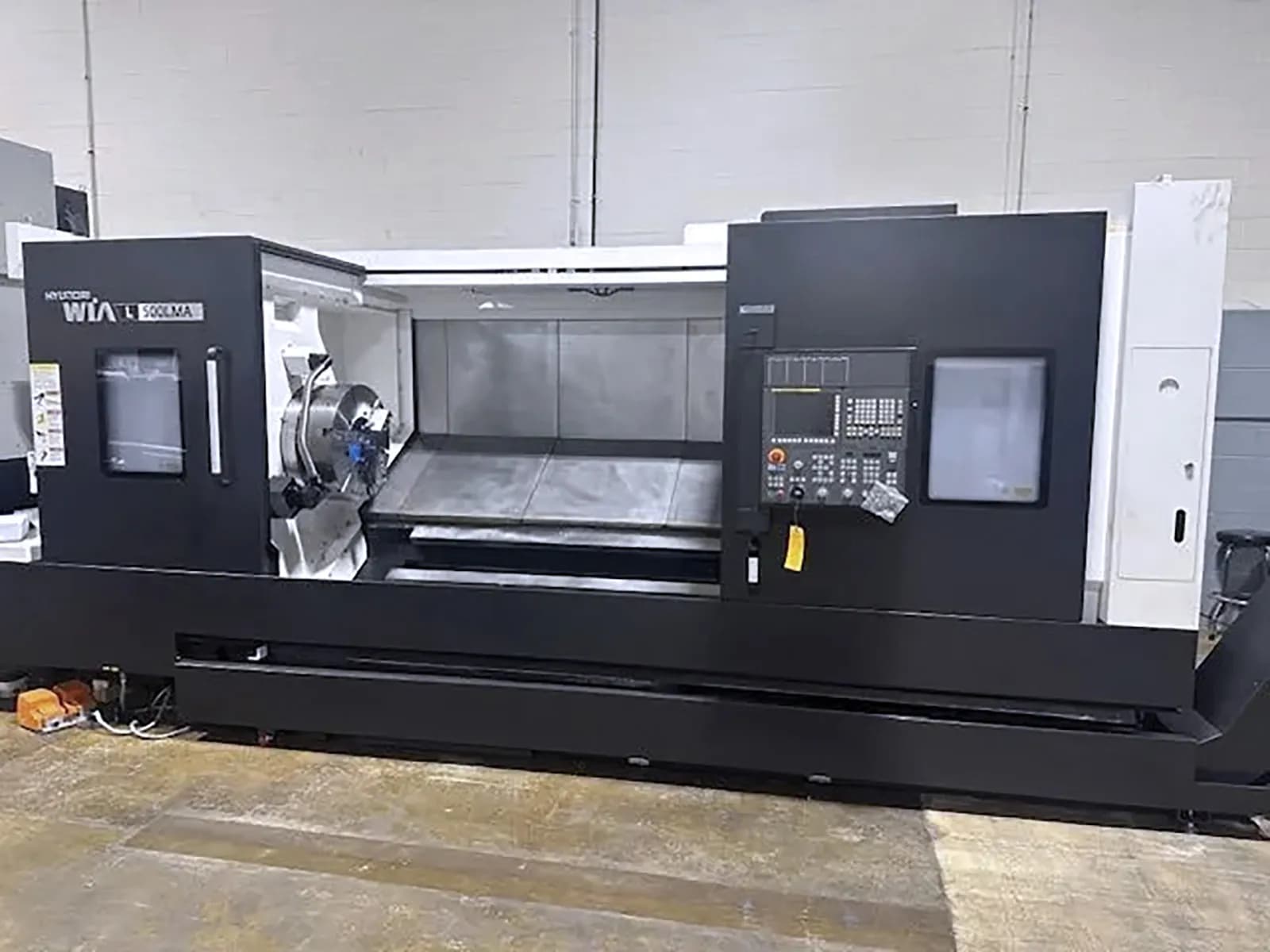

Used Hyundai WIA L500LMA 2024 CNC Turning Center delivers heavy-duty, large-capacity machining with milling capabilities for demanding production. Built for high-precision turning of large shafts, cylinders, bores and complex components, it is ideal for oil & gas, energy, heavy machinery, shipbuilding, aerospace and power generation applications.
