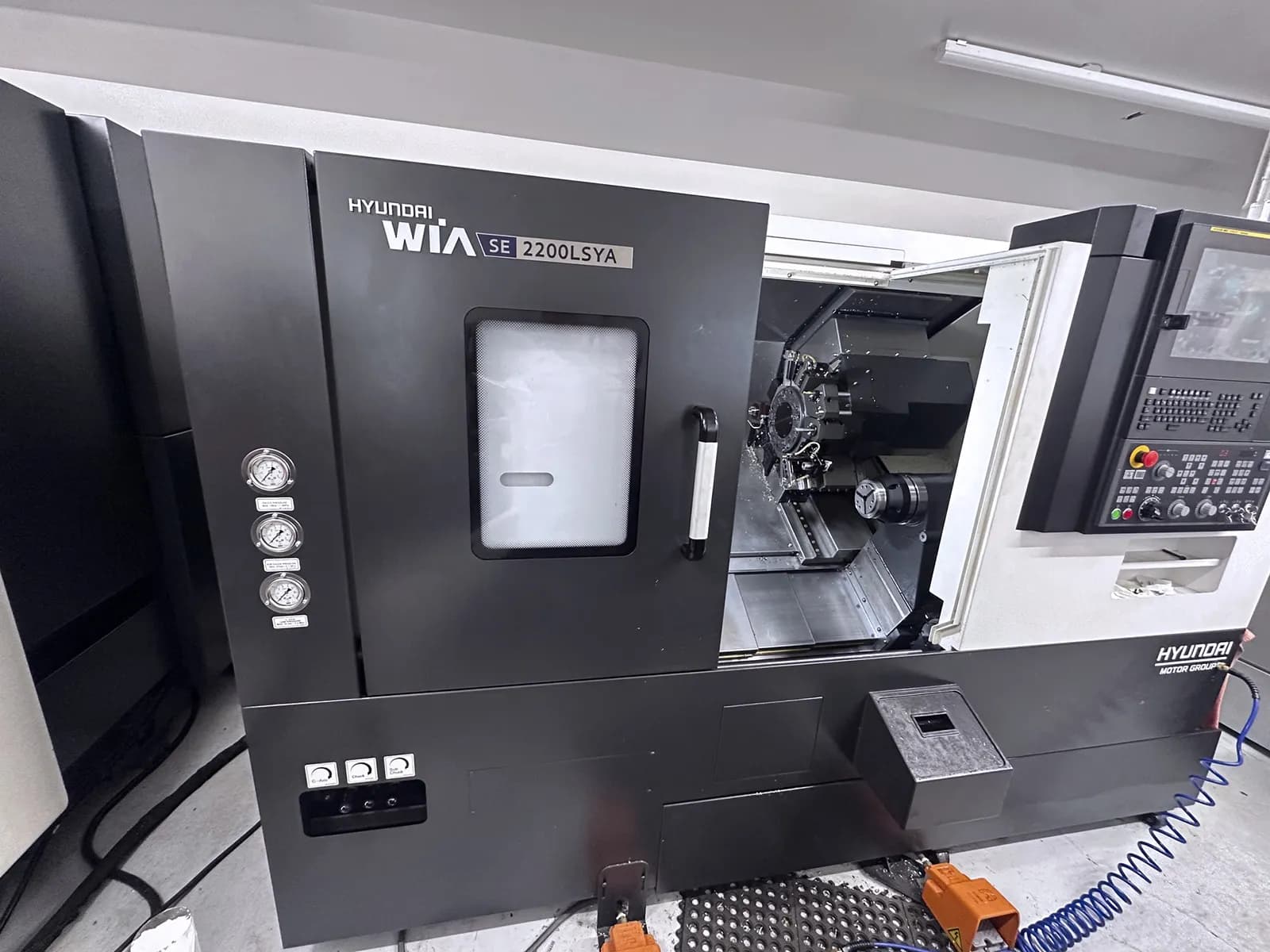

Hyundai WIA SE2200LSYA 2021
Equipped With

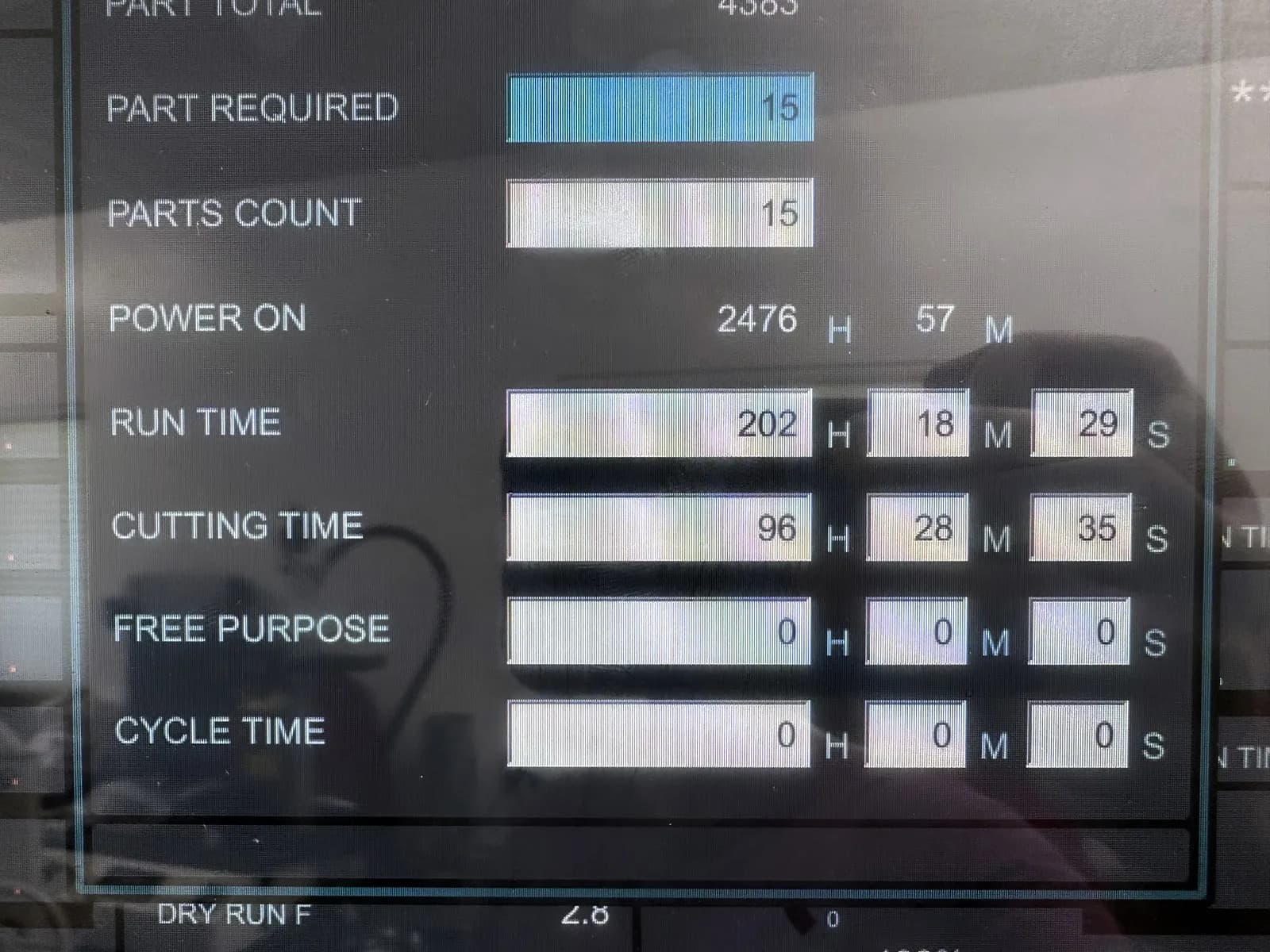

- Only 96 Cutting Hours
- 15" touch screen FANUC i Series Smart Plus Control
- Samchully Chuck Main + Sub
- Royal Collet Nose Main + Sub
- Tool Pre-Setter

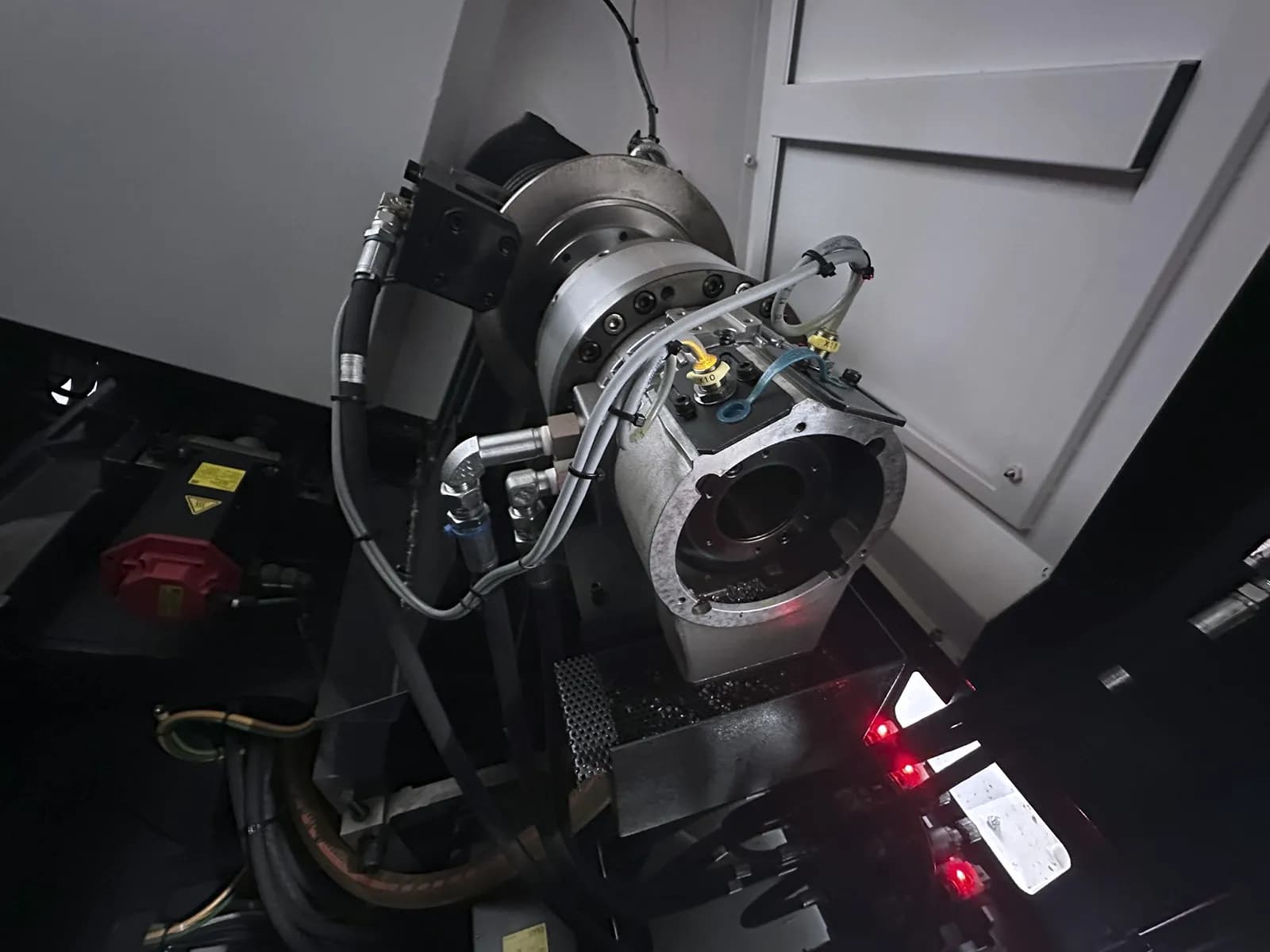

- Sub Spindle
- Y-Axis

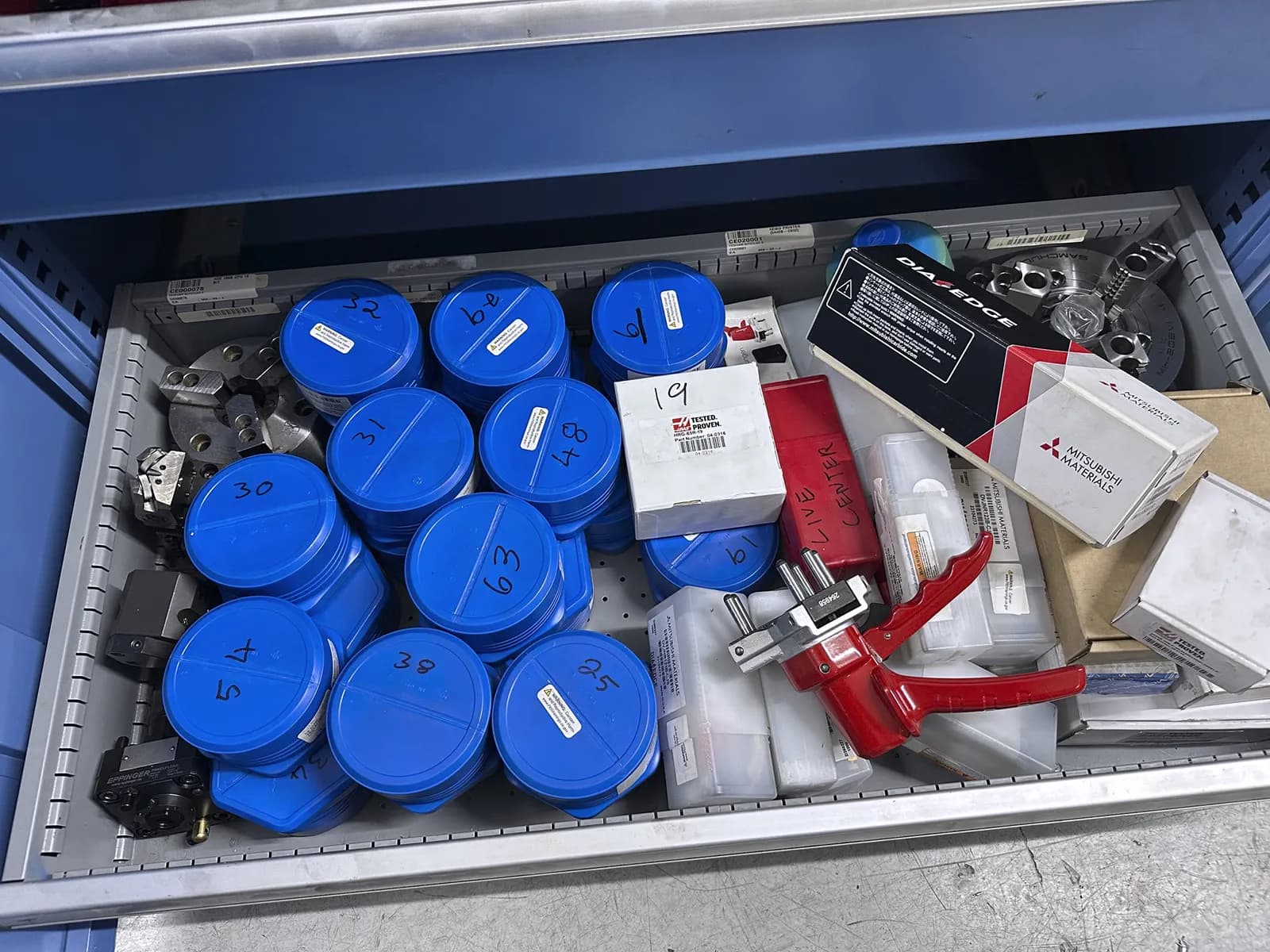

- Tool Holders

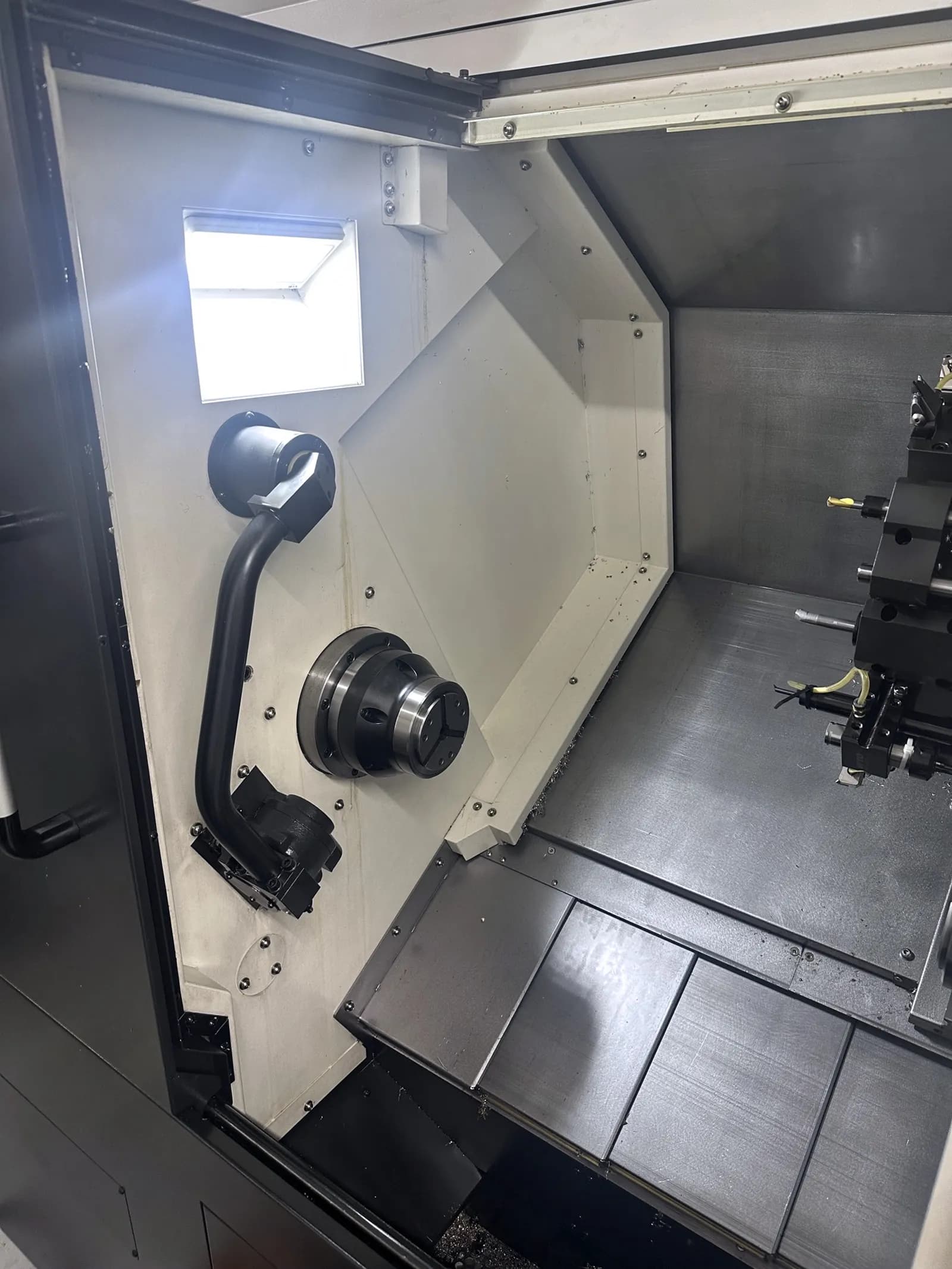

- Parts Catcher
- Coolant Tank
- Chip Conveyor
Specifications
- Swing over bed / carriage Ø600 mm (23.6")
- Max Turning Diameter Ø300 mm (11.8")
- Max Turning Length 529 mm (20.8")
- Bar Capacity (Main/Sub) Ø51 mm (2") / Ø32 mm (1.3")
- Chuck size (main/sub) 6" / 5"
- Spindle bore (main/sub) Ø60 mm / Ø42 mm
- Spindle nose (main) A2-5
- Spindle Speed (Main/Sub) 6,000 rpm
- Main Spindle Motor 15/11 kW (20/15 HP)
- Sub-Spindle Motor 7.5/3.7 kW (10/5 HP)
- C-axis (main and sub) 0.001° indexing
- Travel, X / Y 210 mm (8.3") / 110 mm (4.3", ±55 mm)
- Travel, Z / ZB 560 mm (22") / 599.3 mm (23.6")
- Rapids X 30 / Y 10 / Z 36 / ZB 15 m/min

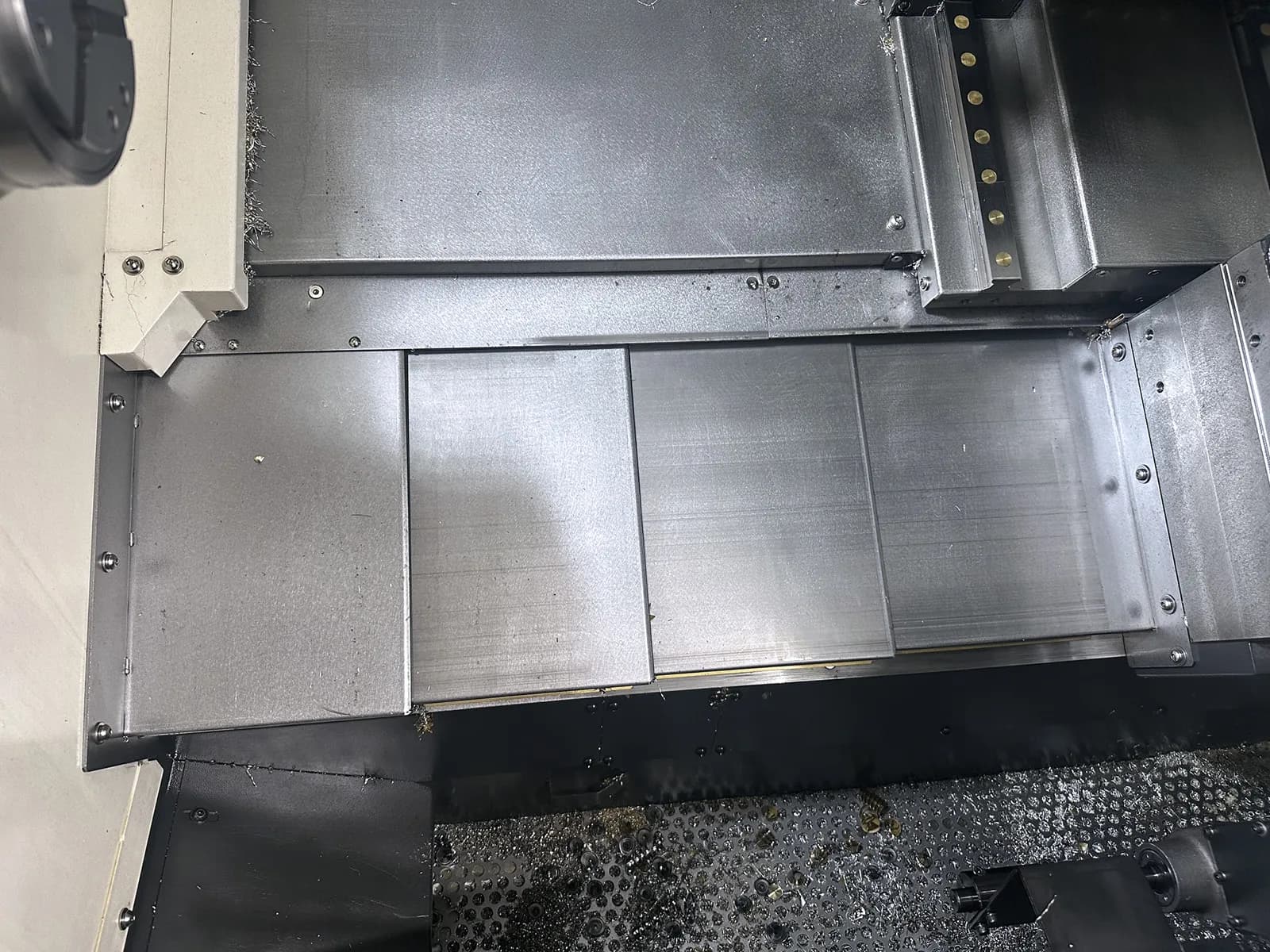

- Guideways Roller LM guide, 30° slant bed

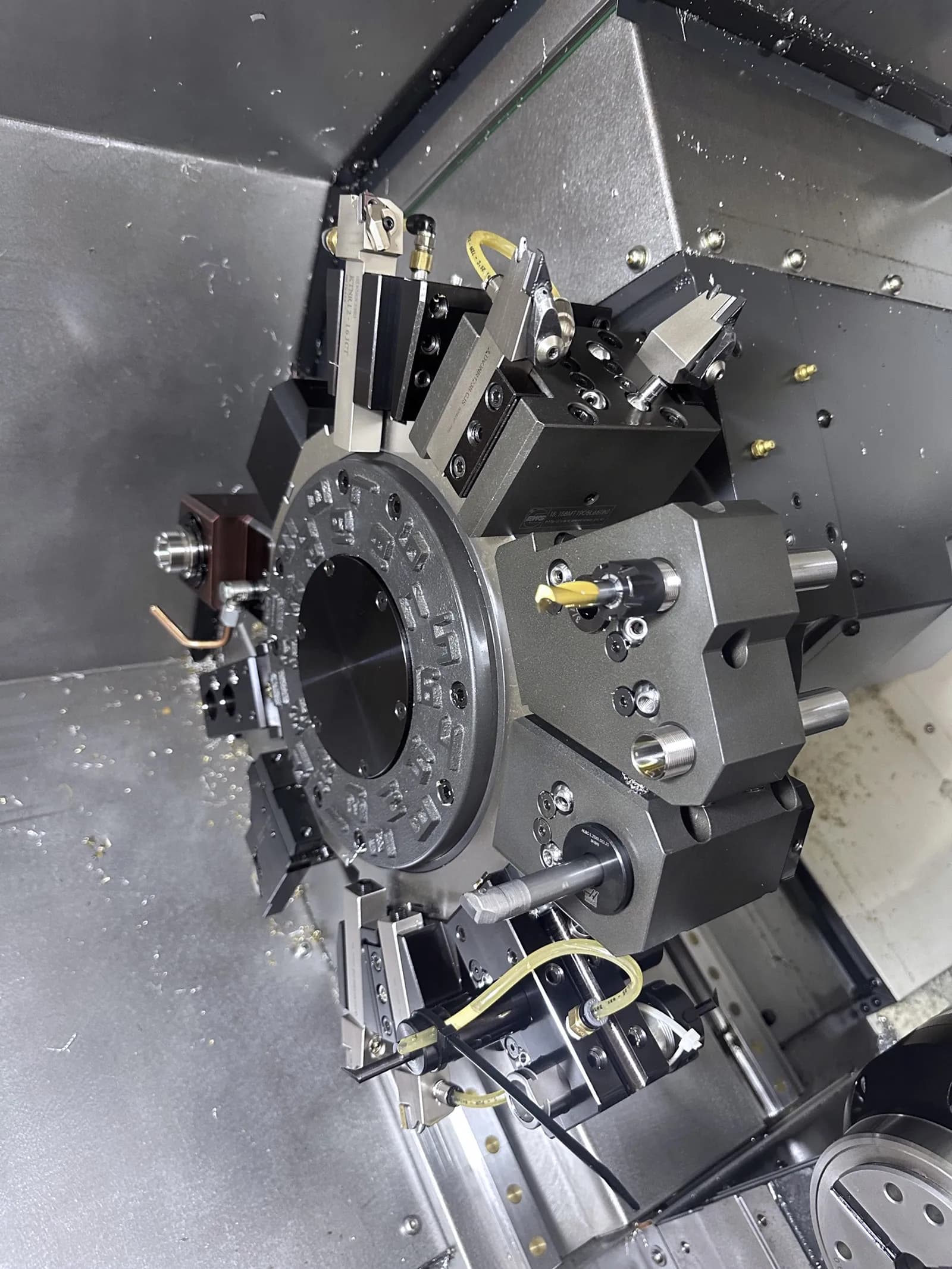

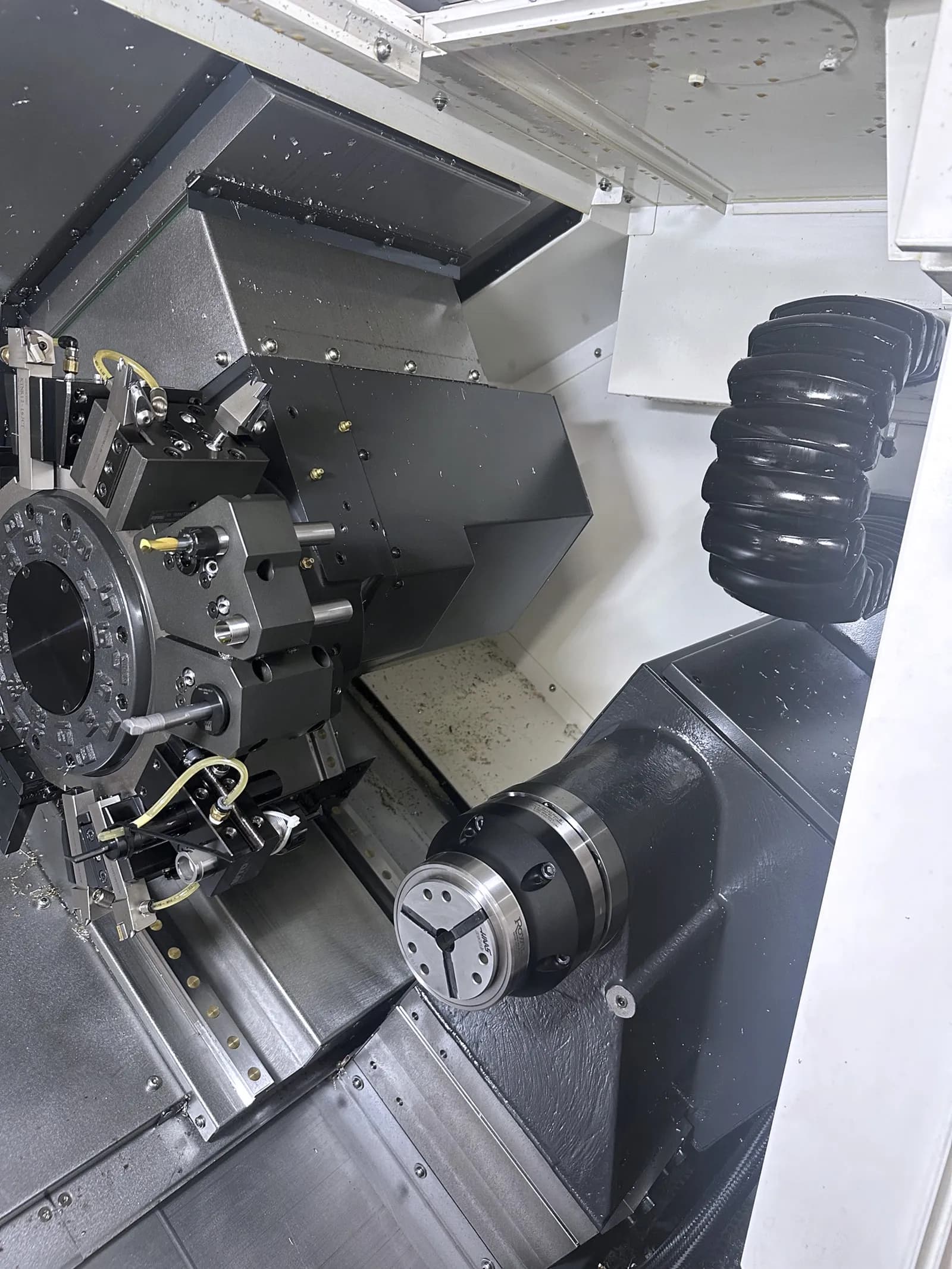

- Turret BMT45, 24 Station, 0.15 sec index
- Tool Size 20 mm (3/4") OD square shank, Ø32 mm (1-1/4") ID

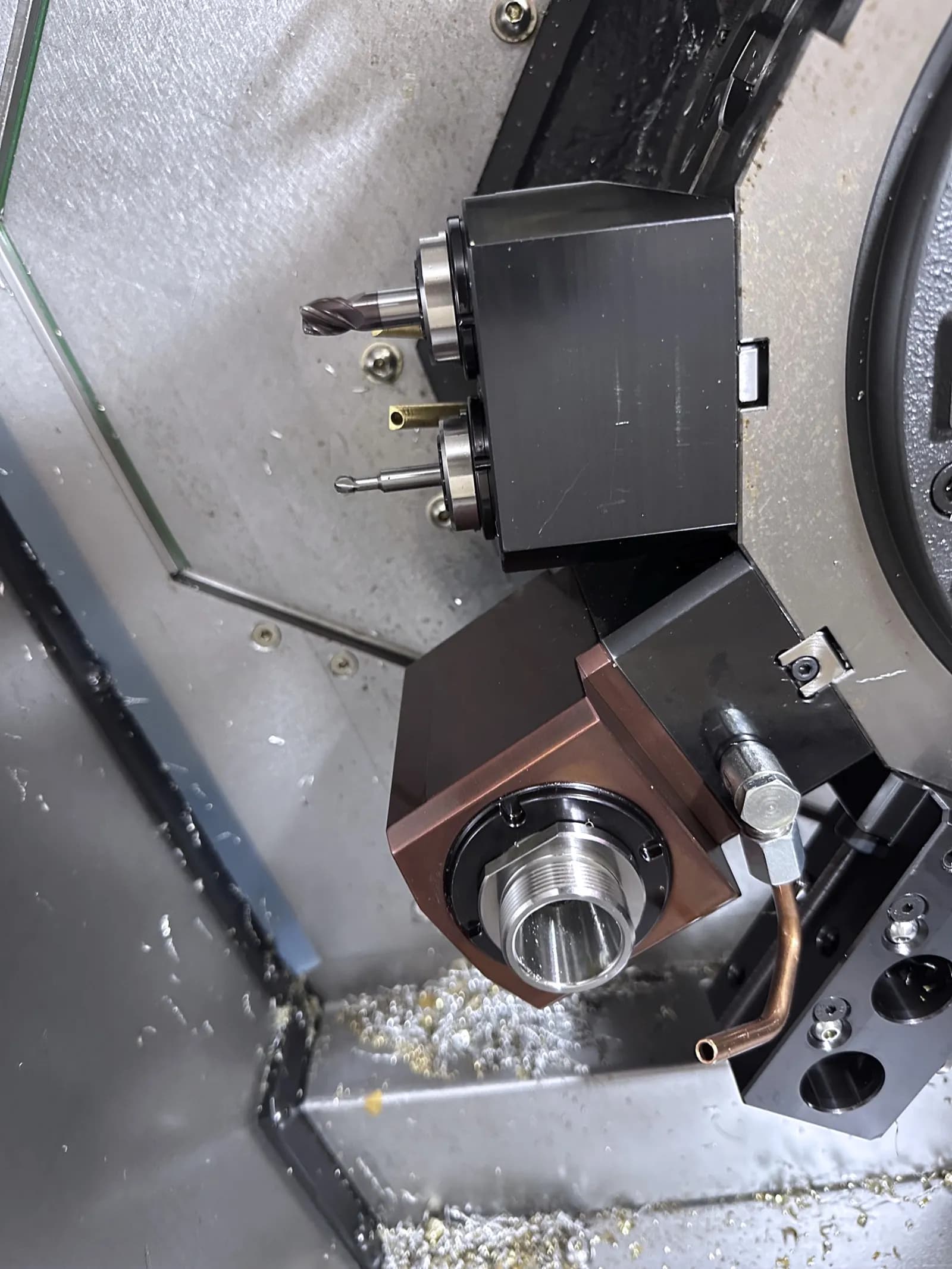

- Live Tooling 6,000 rpm, 3.85/2.59 kW, ER20 collets
- Y-axis type Wedge type
- Coolant Tank 200 L (52.8 gal)
- Footprint (L x W) 2,960 x 1,730 mm (116.5" x 68.1")
- Height 1,920 mm (75.6")

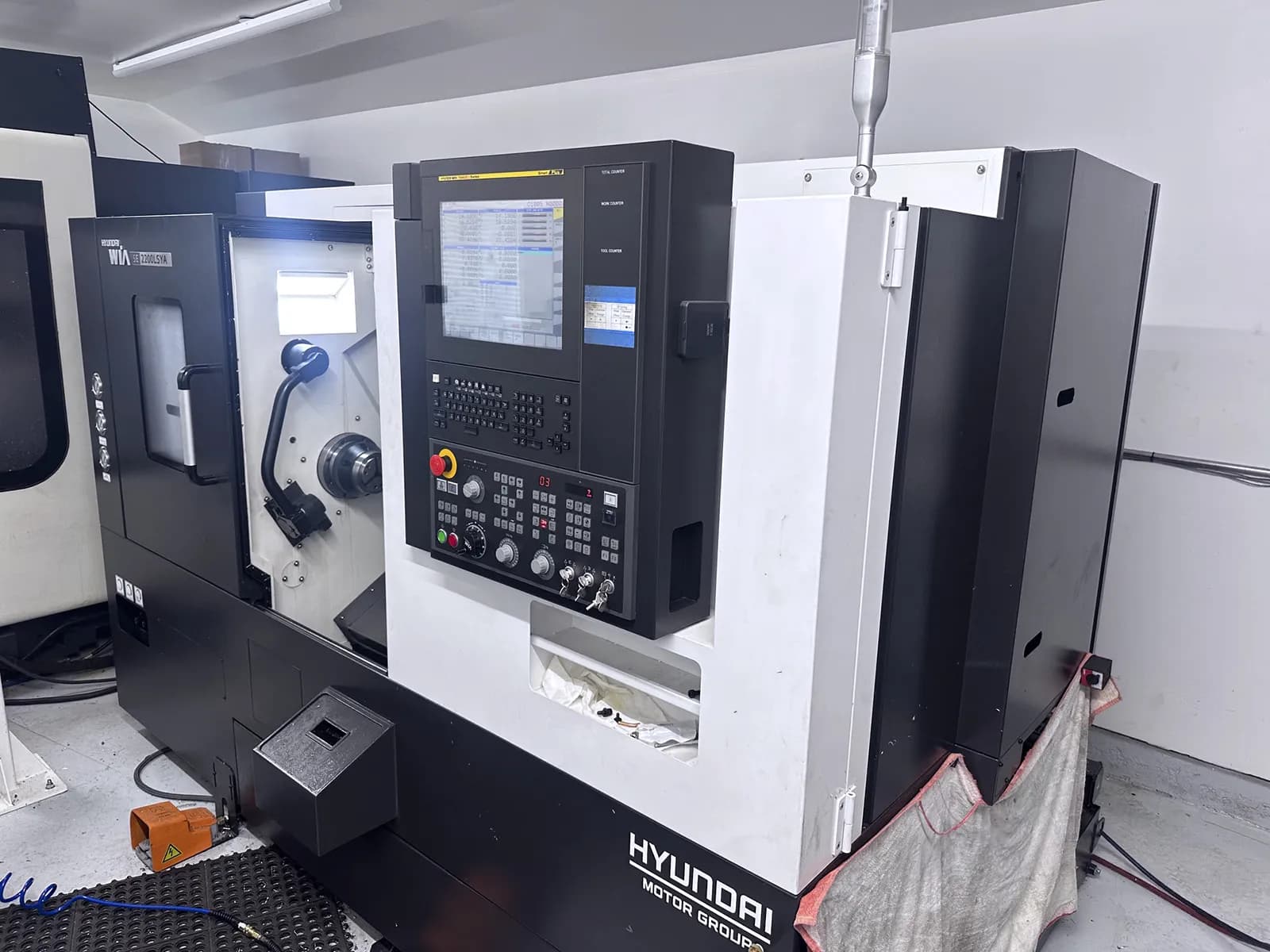

- Control Hyundai WIA FANUC i Series Smart Plus, 15" touchscreen
Machine Description
Used Hyundai WIA SE2200LSYA CNC Lathe 2021 delivers powerful multi-axis turning, milling and drilling for complex parts in one setup. Boost production, reduce setups and machine demanding components with precision. Ideal for automotive, aerospace, medical, oil & gas and job shops. Add proven CNC capability to your operation today.
