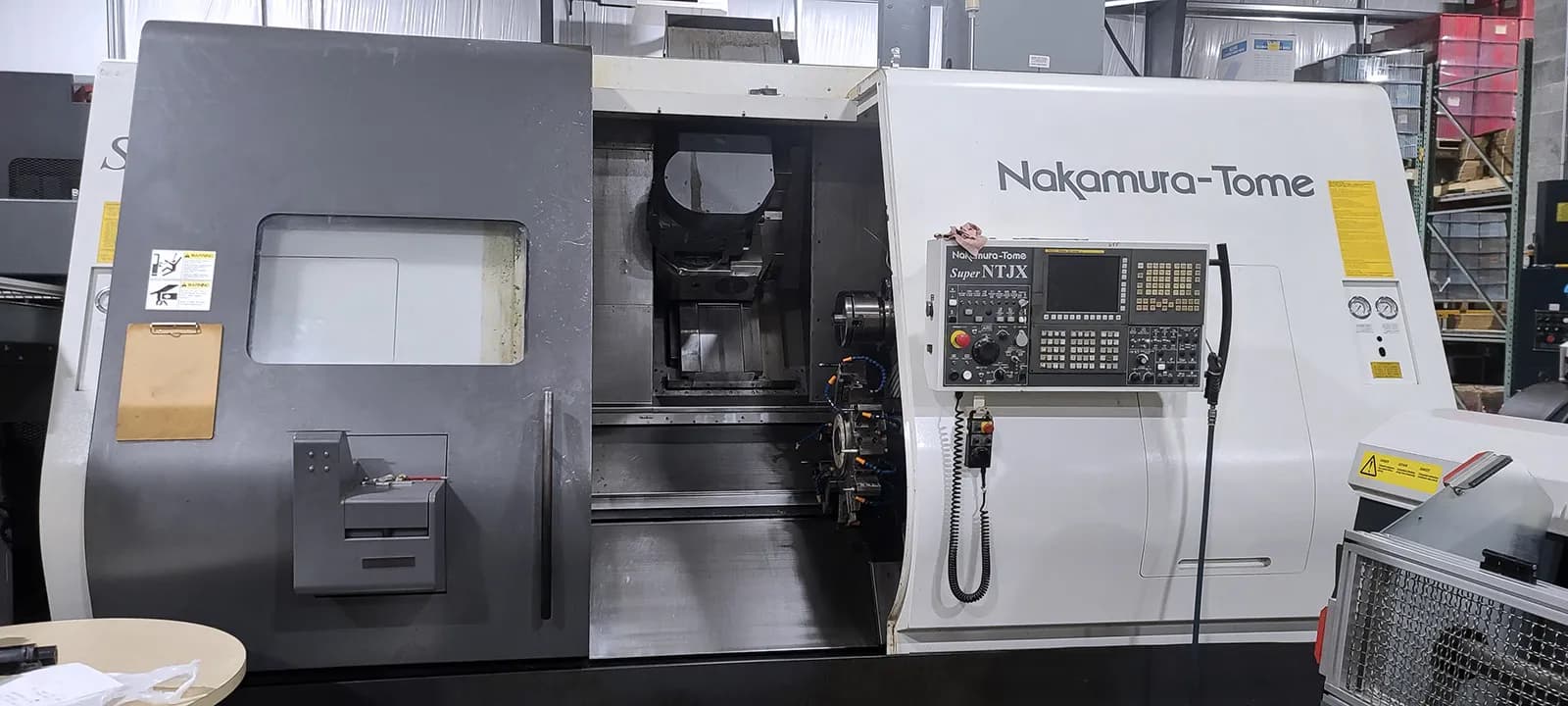

Nakamura Tome Super-NTJX 2007
Y-Axis Upper Tool Spindle | Y-Axis Lower Turret | CTS
Equipped With

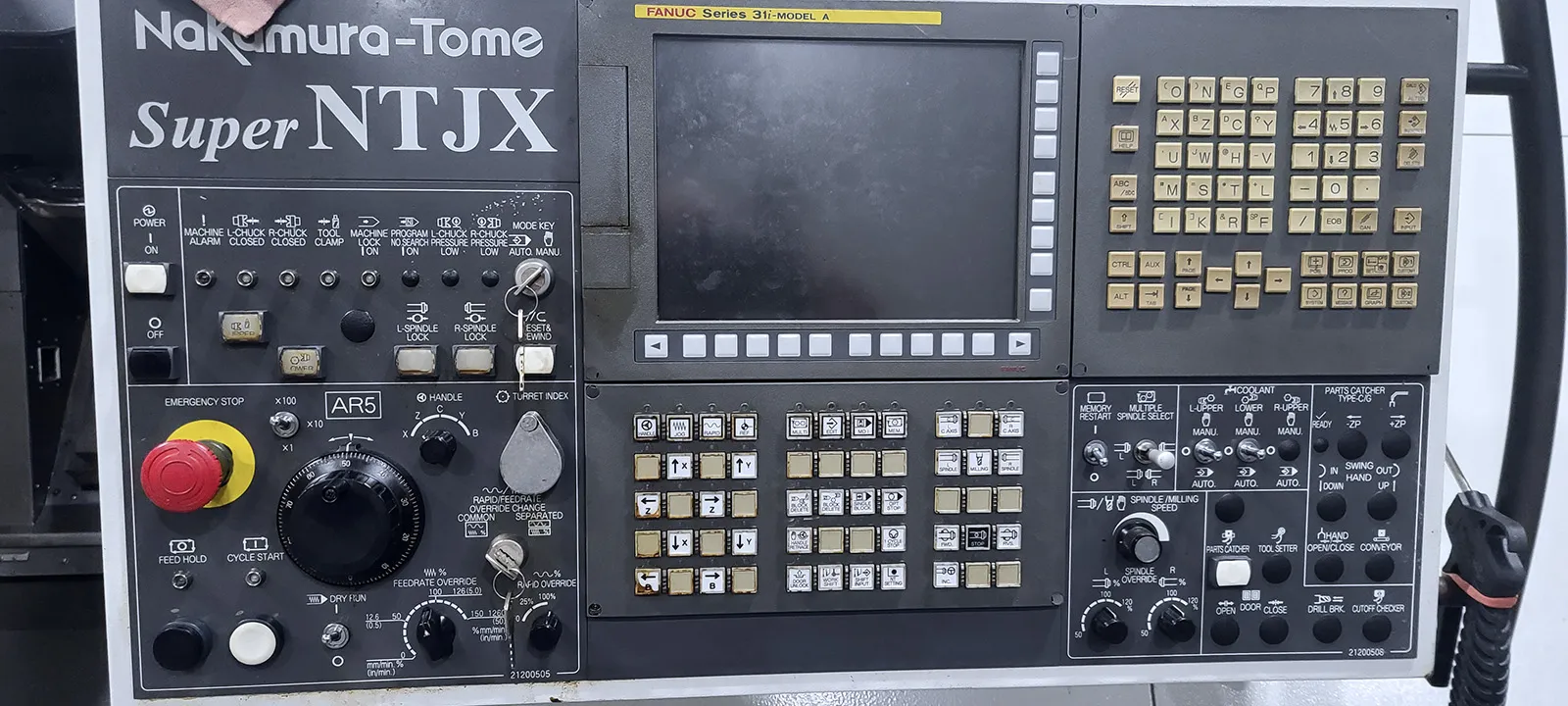

- Fanuc 31i-A CNC Control
- 4500 RPM / 20HP / 65mm (2.5”) Bar Spindle Left
- 6000 RPM / 15HP/ 51mm (2”) Bar Spindle Right
- 20/15 HP Spindle Motor Left
- 15/10 HP Spindle Motor Right
- 10/5 HP Tool Spindle Motor
- Tool Spindle Capto C6 Type
- 12
- 000 RPM Tool Spindle Speed
- 40 ATC Tool Magazine
- C-Axis Function
- 3600 RPM / 7.5 / 5 HP Milling Turret
- Y-Axis Upper Tool Spindle
- Y-Axis Lower Turret
- NT-Nurse II System
- NT Work Navigator
- Fixed Air Blow
- L/R Spindle
- Spindle Speed Override L/R
- Parts Catcher “T”
- NTJX
- Coolant Non-Return Valve (U/L)
- Manual Handle Retrace
- Manual Pulse Generator
- Manual Tool Setter

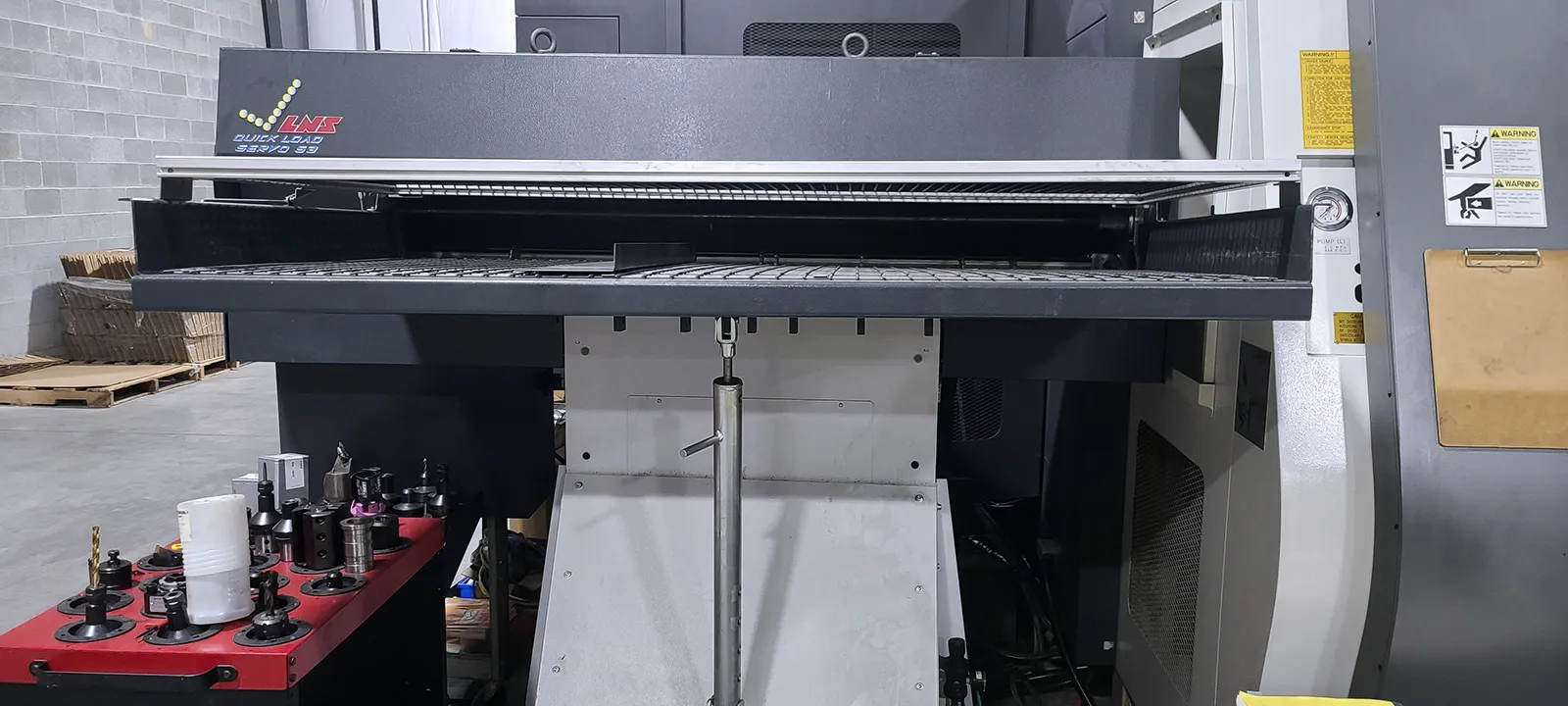

- Barfeed Interface
- Helical Interpolation

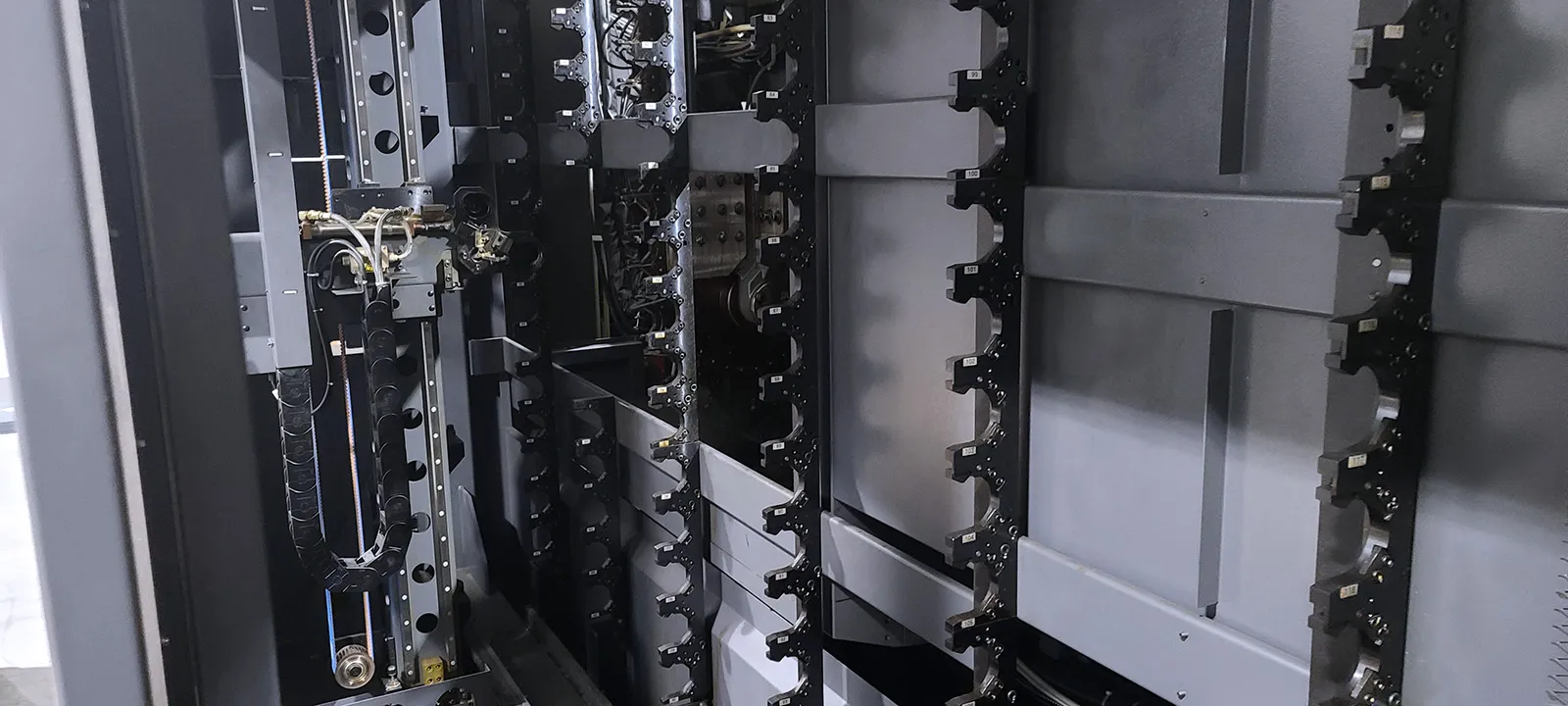

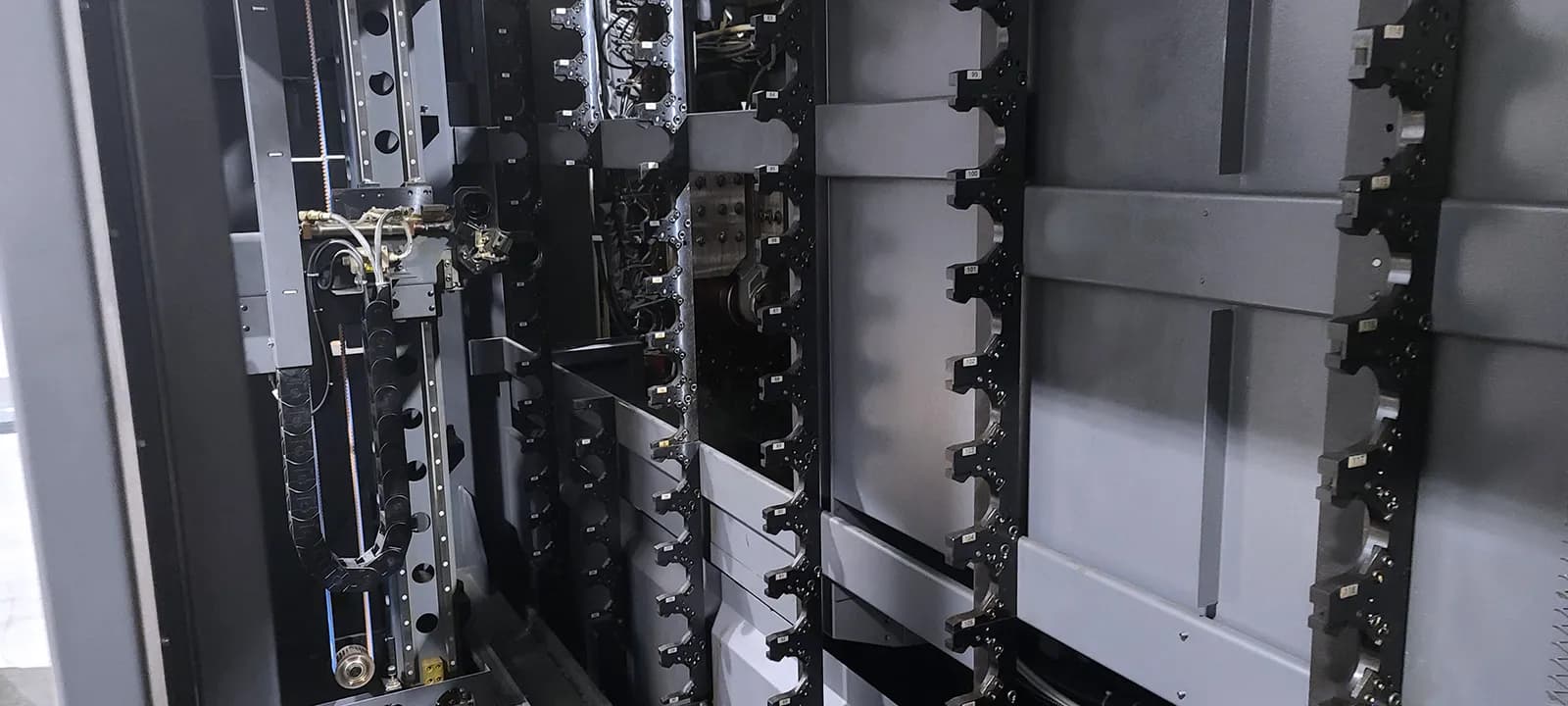

- 160 Tool ATC (40+120)
- Coolant Thru Turret
- Lower
- Coolant Thru Tool Spindle
- Workpiece Counter Nakamura
Specifications
- Max. turning diameter / max. turning length 9.64” / 42.91”
- Distance between spindles max 50.78” / min. 8.26”
- Bar Capacity: 2.5”
- Axis Travel
- Slide travel (X1 / X2 / Z1 / Z2 / B2) 17.91” / 8.75” / 42.91”/ 39.56” / 39.68”
- Slide travel (Y1 / Y2) ±2.76 / +.787”, -1.96”
- Spindle L, R
- Spindle Speed 4500 RPM
- L spindle motor 20/15HP / 221.5/162.5N·m
- R spindle motor 15/10HP / 208/115N·m
- Tool Spindle
- Tool Spindle Speed 12,000 RPM
- TOOL SPINDLE MOTOR 10/5 HP, Max54N·m
- Tool Shank Type CAPTO-C6
- ATC, Number of tools 40+120 (160)
- Max. tool diameter / No adjacent tools 2.75” / 3.54”
- Max. tool length / Max. tool weight 11.02” / 17.6 lbs
- Orientation function 90 degree indexing
- B-axis positioning range 190° (±95°)
- Lower Turret
- Driven-tool spindle speed 3600 RPM
- DRIVE MOTOR 7.5 / 5 HP / Max. 24N·m
- Type of turret / Number of indexing pos. Dodecagonalk / 24st
- Drive type / Number of driven-tool stations indv. rotation / 12
- GENERAL
- Floor space (L × W × H) 186” x 115” x 96.3”
- Machine weight (incl.control) 30,870 lbs
Machine Description
No description available
