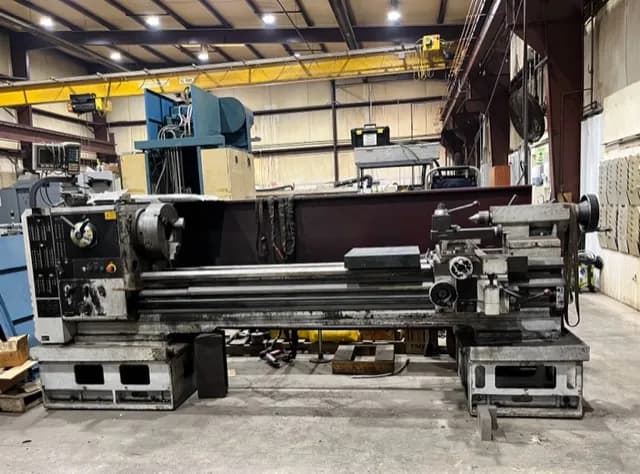

Harrison M550 GH 2001
Equipped With
- 2-Axis Accurtie Digital Read Outs
- 15 1/2" Chuck-3-Jaw
- IN/MM Threading
- Tailstock
- Tool Post
- Coolant
Specifications
- Machine Foot Print (LxWxH) (inch) 180 x 63 x 57*
- Voltage Required 230/460Phase3
- Max Swing over Bed 21.81"
- Swing over cross slide 14.57"
- Swing in Gap 32.68"
- DISTANCE BETWEEN CENTERS 80"
- Bed Width 15.75"
- Spindle Bore 3"
- Spindle Nose Camlock D1-11
- Spindle Nose Taper 5 MT
- SPINDLE SPEED RANGE RPM 18-1800
- Chuck Size 15.5"
- Cross slide travel 11.81"
- Cross Slide Width 8"
- Compound top slide travel 7.5"
- Tailstock Quill Diameter 3.74"
- Tailstock Quill Travel 5.7"
- Tailstock Quill Taper 6 MT
- Longitudinal Feed Range 0.0016 – 0.11
- Cross Feed Range (48) 0.0008 – 0.055
- Number of Inch Pitches 73
- Range of inch pitches 2 - 84
- Number of Metric Pitches 51
- Range of metric pitches 0.2 - 14
- Number of Diametral Pitches 27
- Range of Diametral Pitches 8 - 72
- Number of Module Pitches 27
- Range of Module Pitches 0.2 – 3.5
- Voltage Required 230/460Phase3
- Machine Weight 7,942 lbs.
Machine Description
Used Harrison M550 GH. This pre-owned Engine Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Harrison Engine Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
