Dr. Fritsch DSP 517 2020

Machine Only Used in R&D Lab. No Production Time

Buy Now
Previous|Next

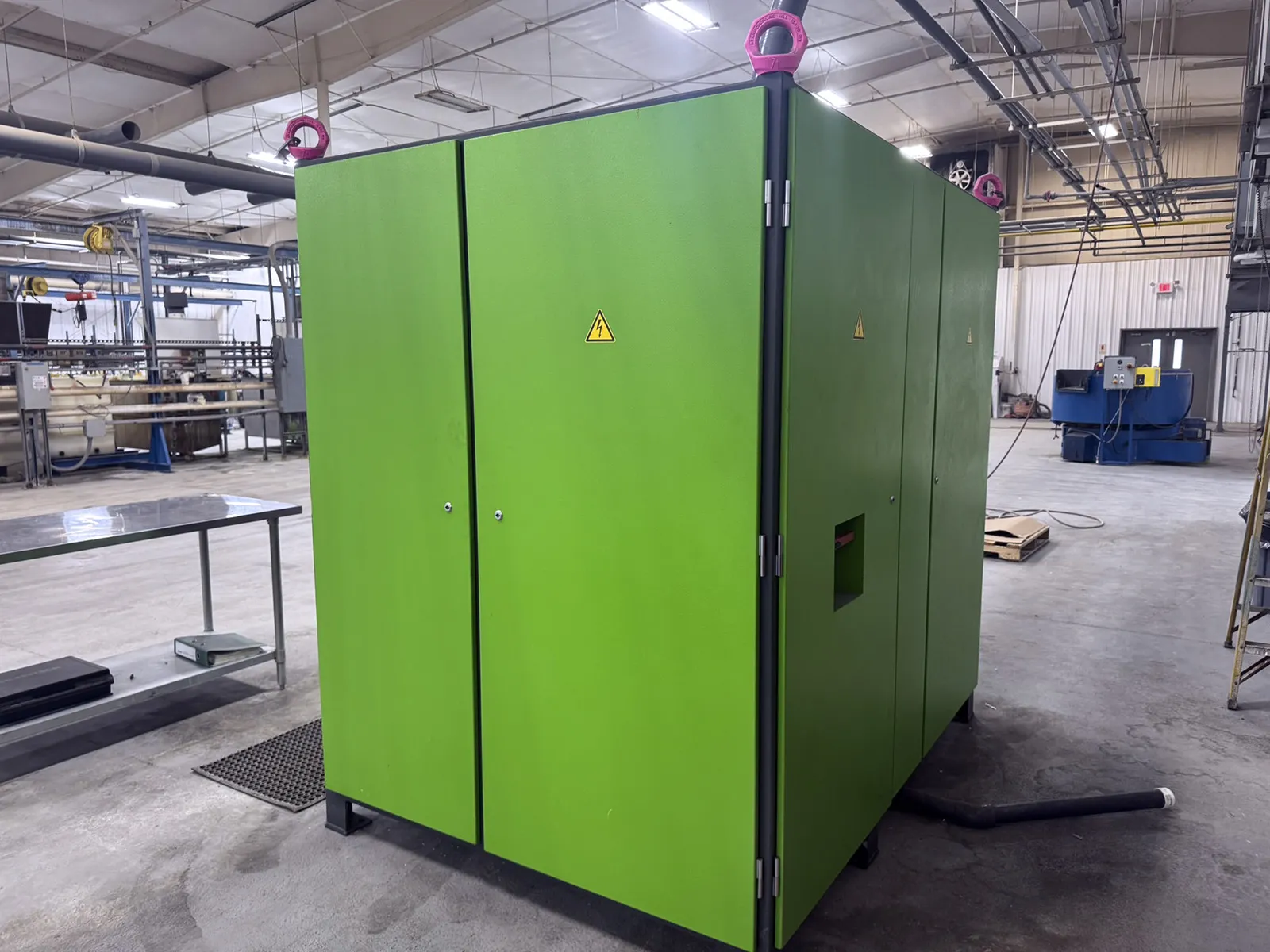

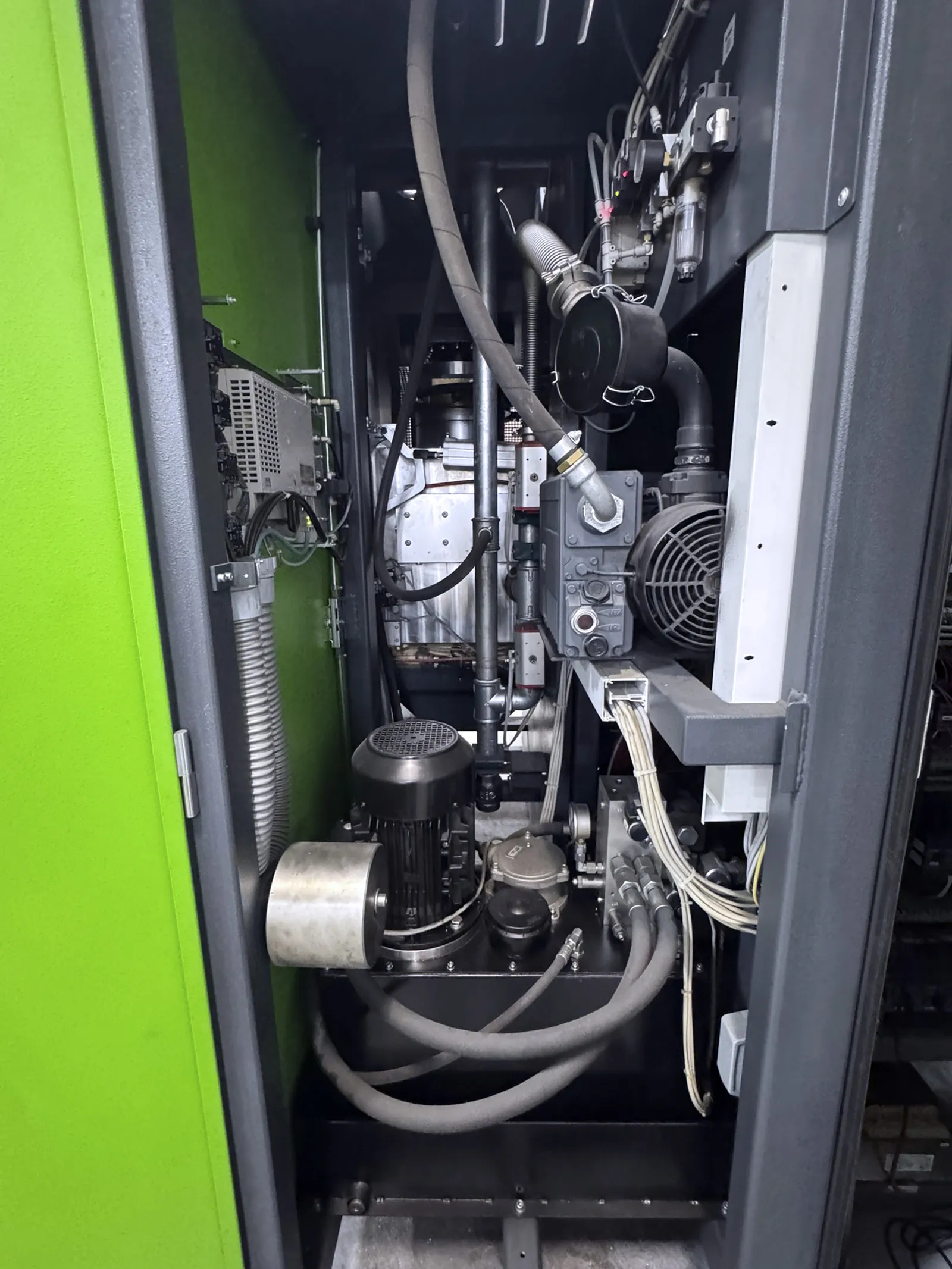

Dr. Fritsch DSP517 Sintering Press _3750280

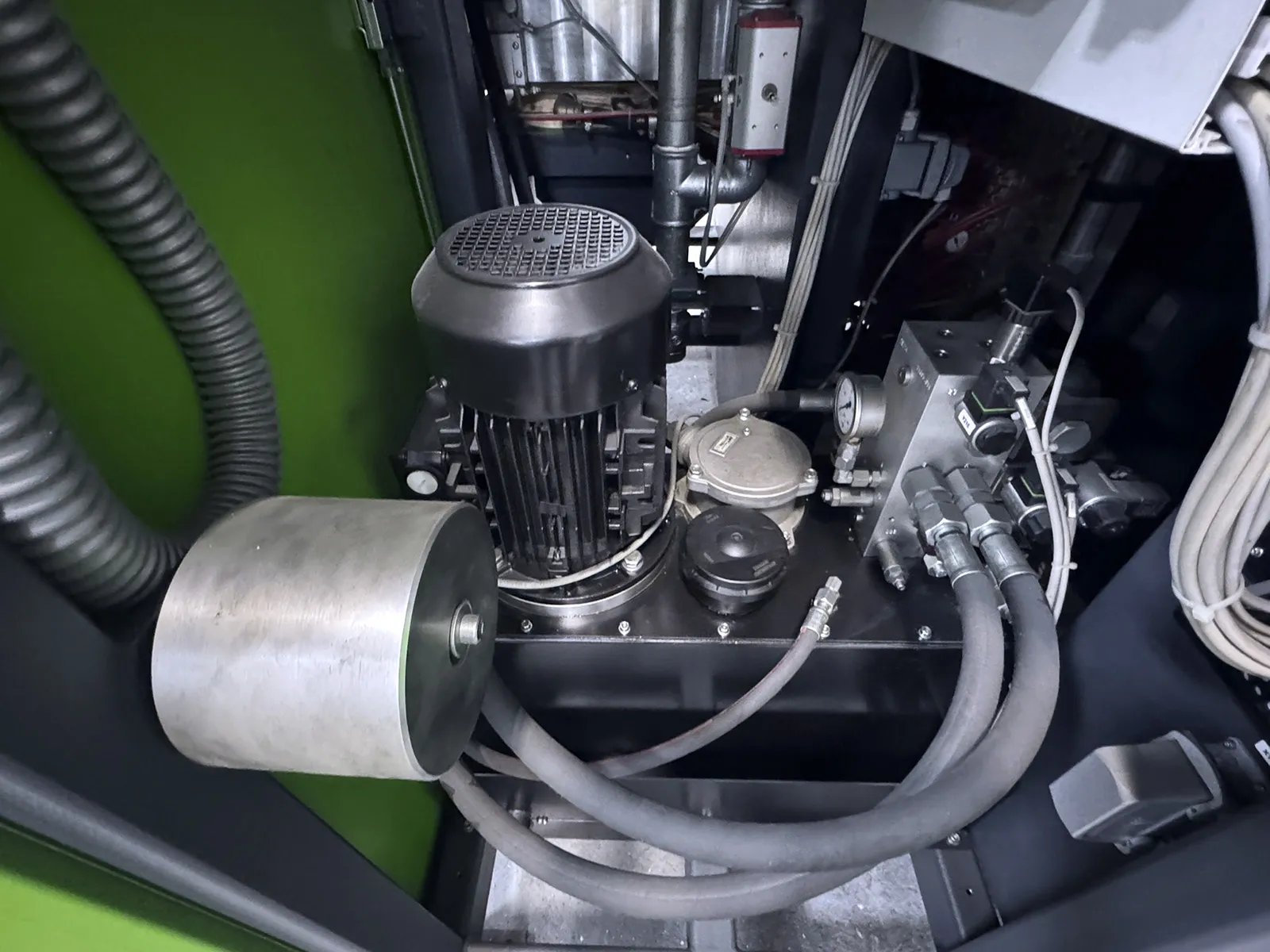

Dr. Fritsch DSP517 Sintering Press _3750280

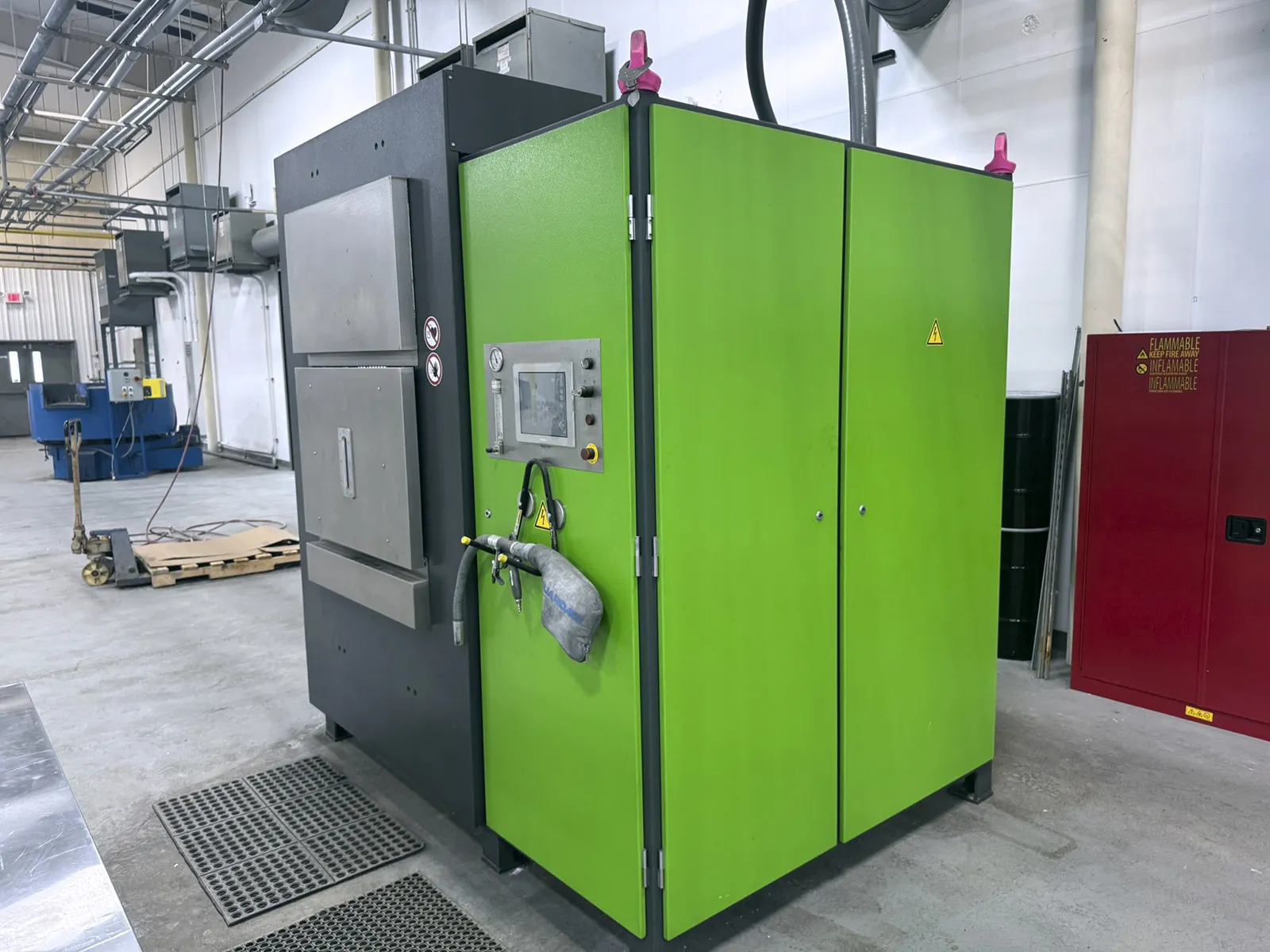

Dr. Fritsch DSP517 Sintering Press _3750280

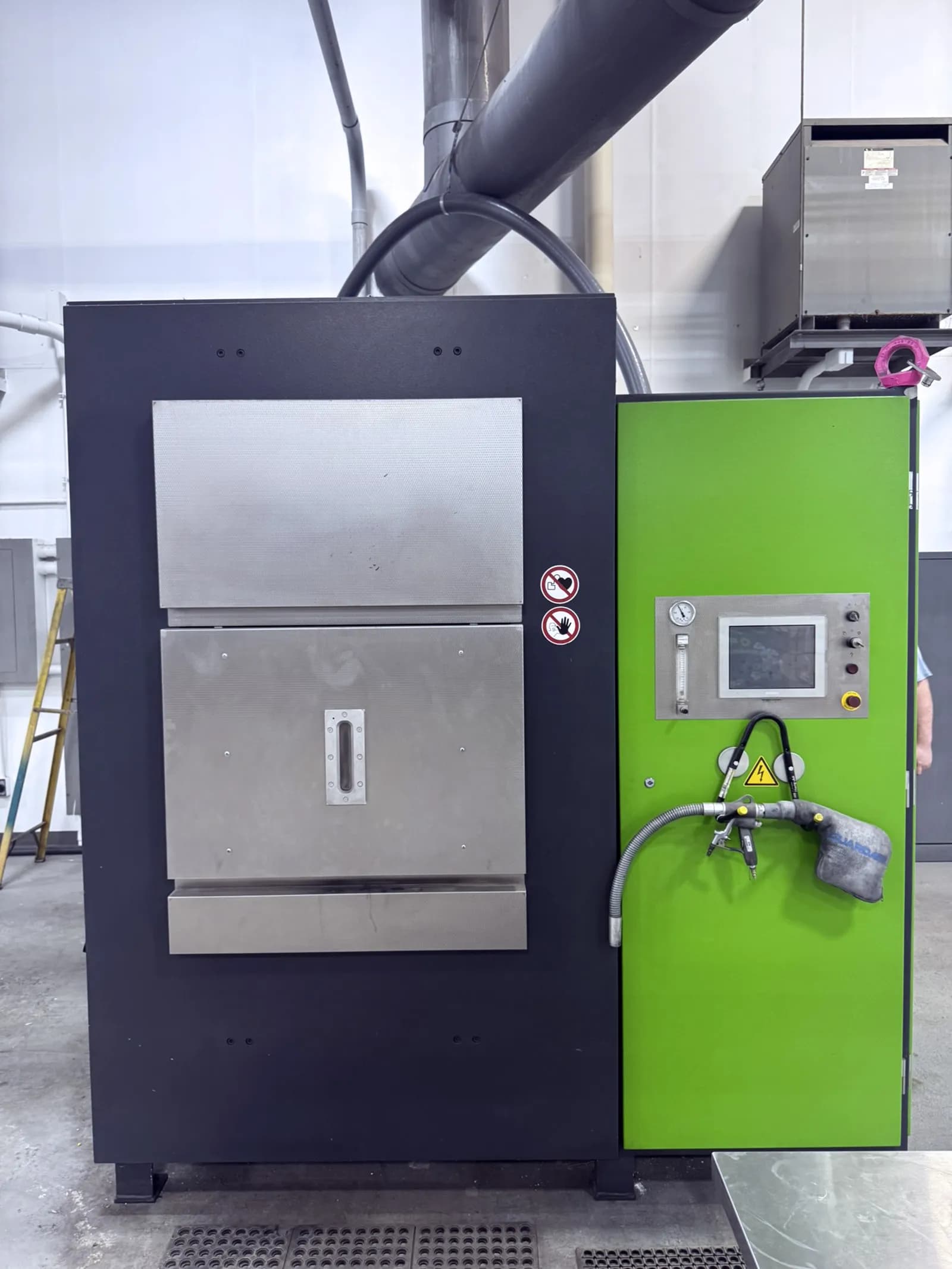

Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch DSP517 Sintering Press _3750280
Dr. Fritsch
DSP 517
2020

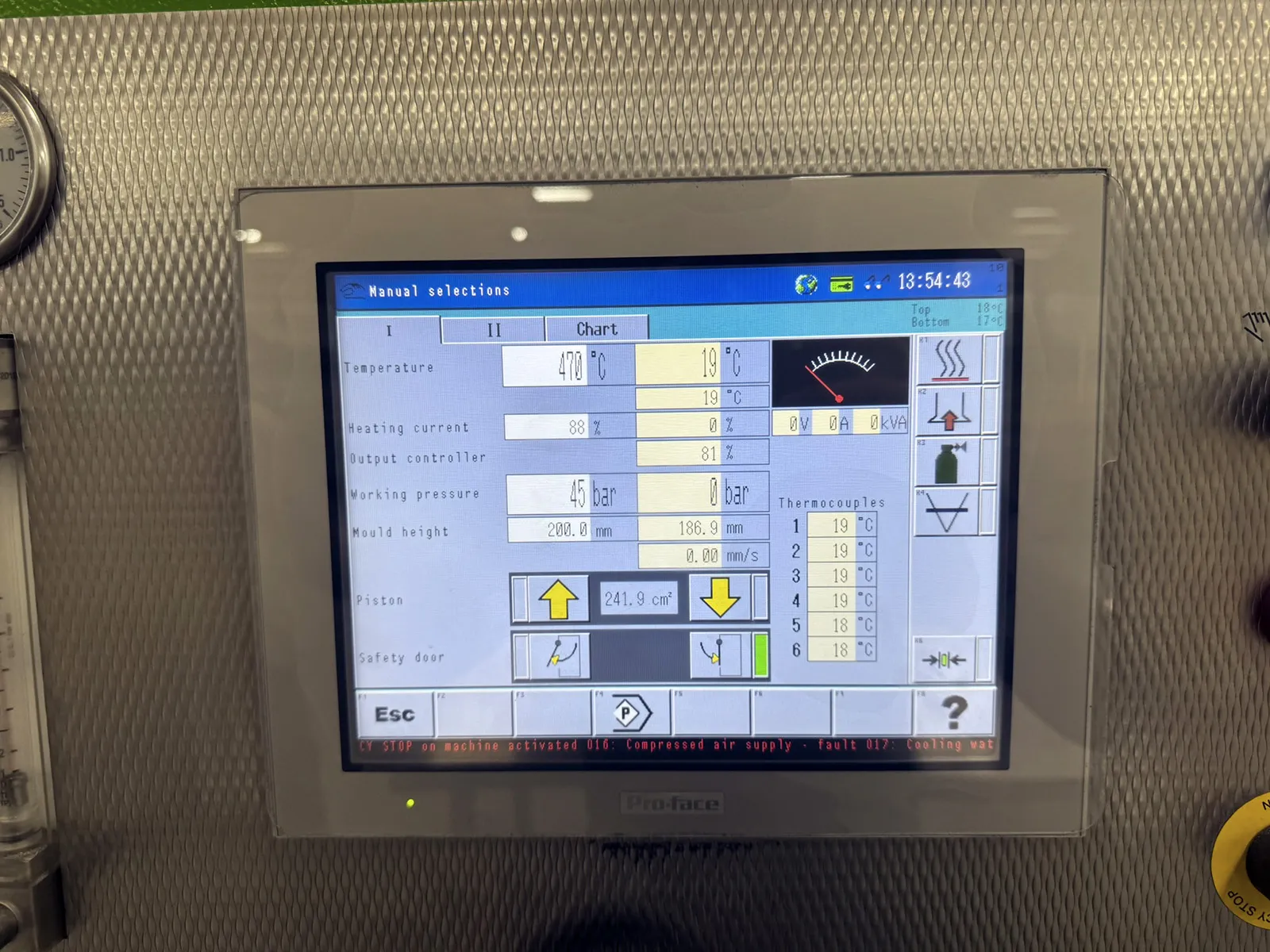

Pro Face
#3750280
High Speed Press

Contact For Price

Request QuoteMake Offer
Sell your Dr. Fritsch

Need more help? Chat now or Contact Us

Specifications

Equipped With

  • Core Sintering Specifications
  • Pressing Force 67.7 Tons nominal (with N/D switching options ranging from 4.38 to 51.82 Tons or 5.73 to 67.7 Tons).
  • Temperature Range 0 – 2,192°F (Standard thermocouple range).

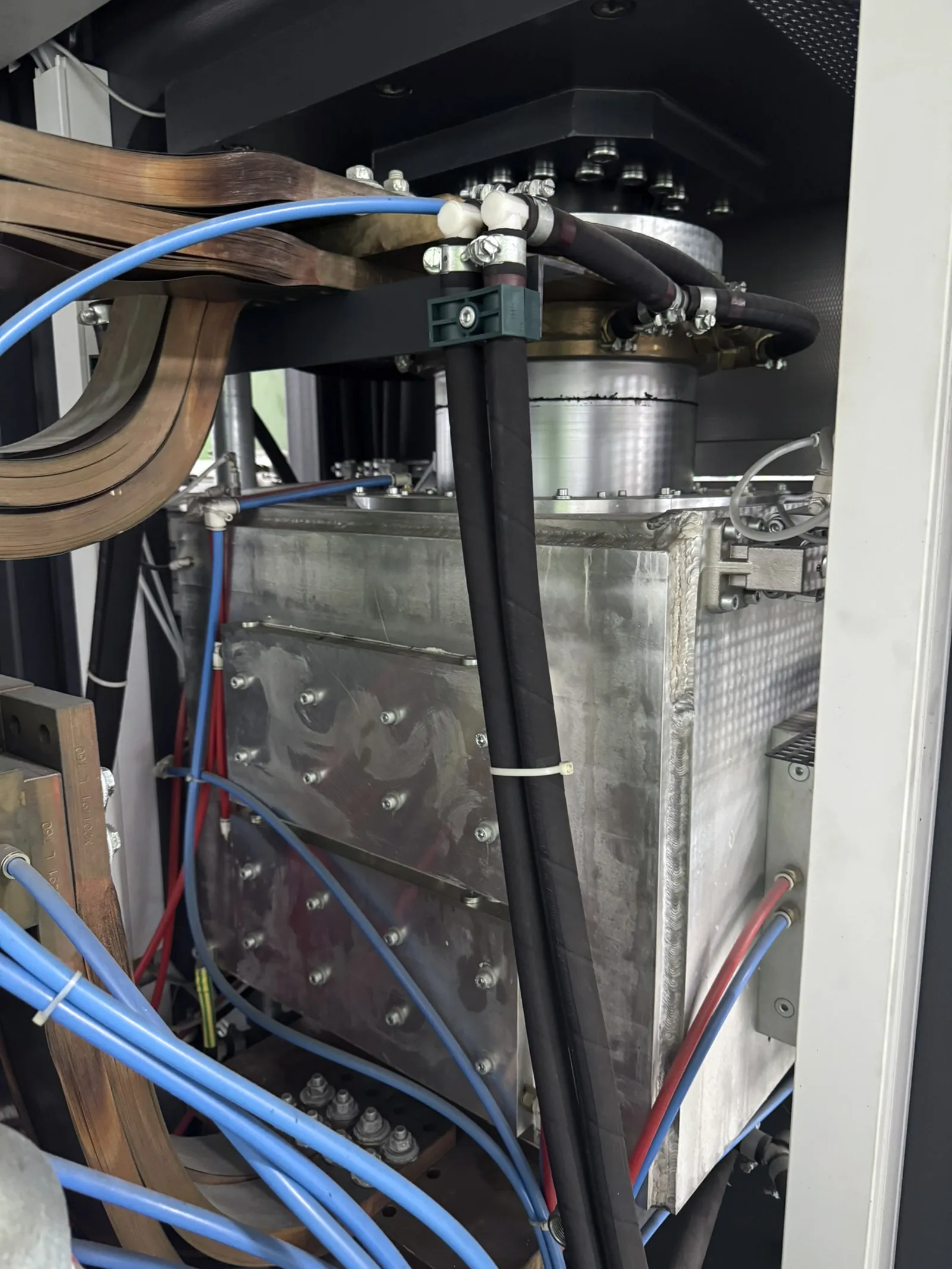

  • Graphite Electrode Dimensions 13.78″ x 13.78″ x 3.149″.
  • Electrode Opening Height 2.95″ minimum to 8.85″ maximum.
  • Effective Cylinder Pressing Area 23.85 sq. in.
  • Fluid & Gas Consumption

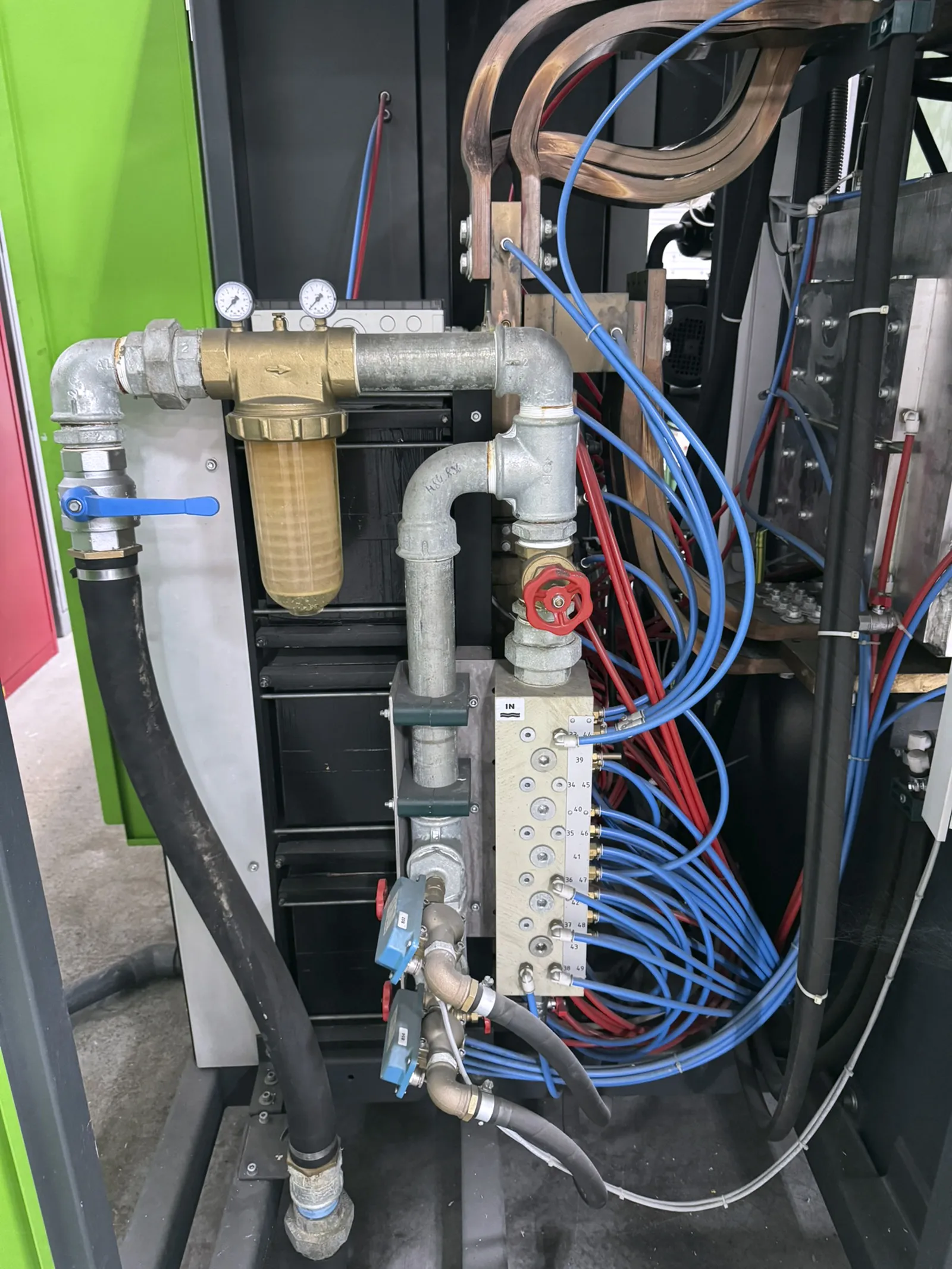

  • Cooling Water Consumption Approximately 58.12 gal/min.
  • Cooling Water Supply Temperature 64.4°F – 71.6°F.
  • Cooling Water Pressure 29 – 58 psi (Differential pressure: 14.5 – 29 psi).
  • Compressed air consumption Approximately 5.28 gal/min at 58 – 87 psi.
  • Inert Gas Consumption 79.25 – 264.17 gal/min at 14.5 – 72.52 psi.

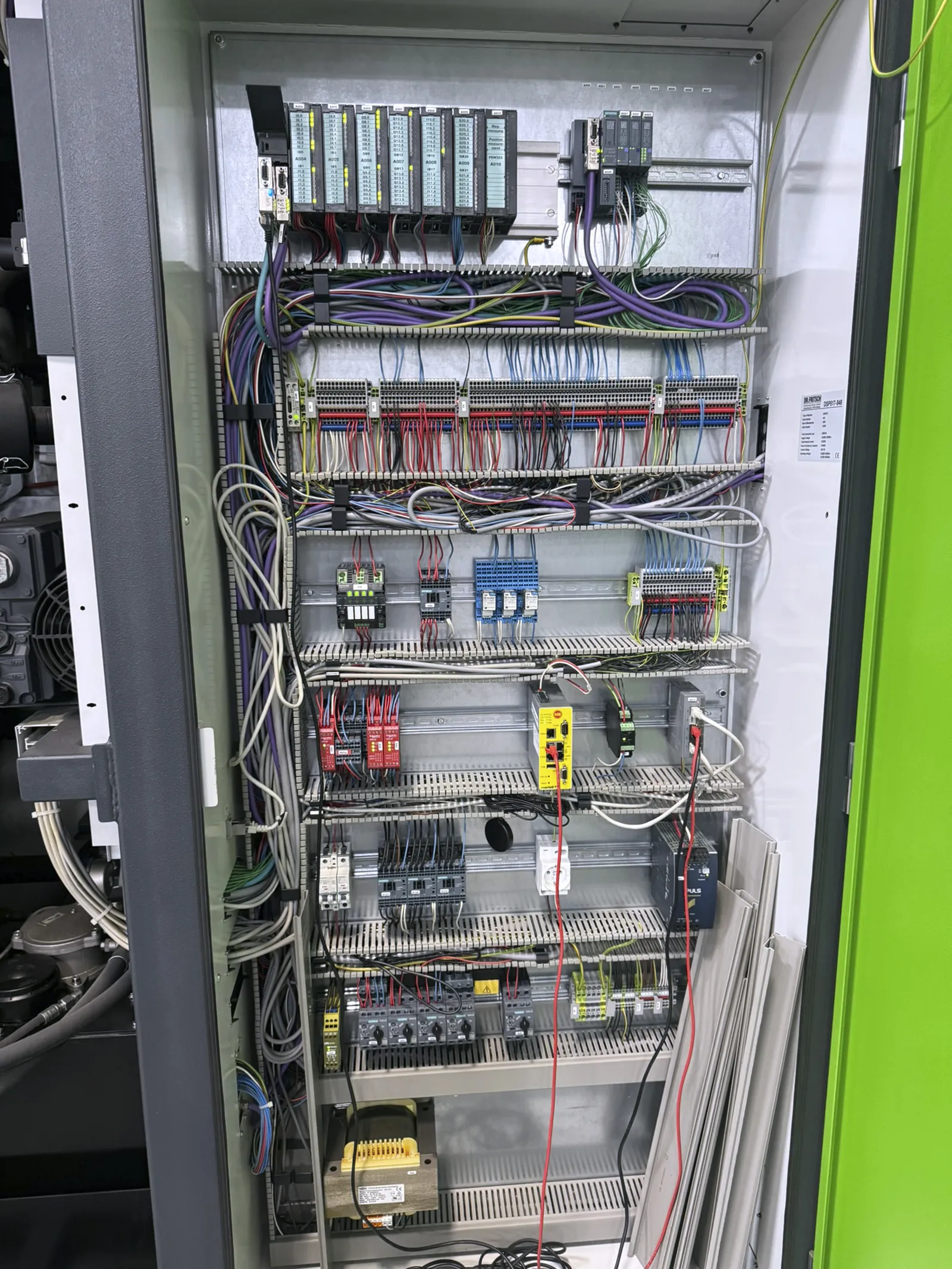

  • Electrical Requirements
  • Total Electric Power Approximately 250 kVA.
  • Maximum Heating Power 205 kVA (standard) or up to 240 kVA (optional).
  • Supply voltage 3 x 400V, 50/60Hz

Machine Description

The Dr. Fritsch DSP517 Sintering Press (2020) uses advanced Field-Assisted Sintering Technology for high-density sintering of diamond tools, such as segments and grinding wheels, as well as advanced ceramics and hard metals. Ideal for industries requiring precision sintering of materials like Boron Carbide, Alumina, and Titanium Diboride. Perfect for diamond tool manufacturing, powder metallurgy, and advanced material research.
