Sunnen SV15CD 2023
Equipped With

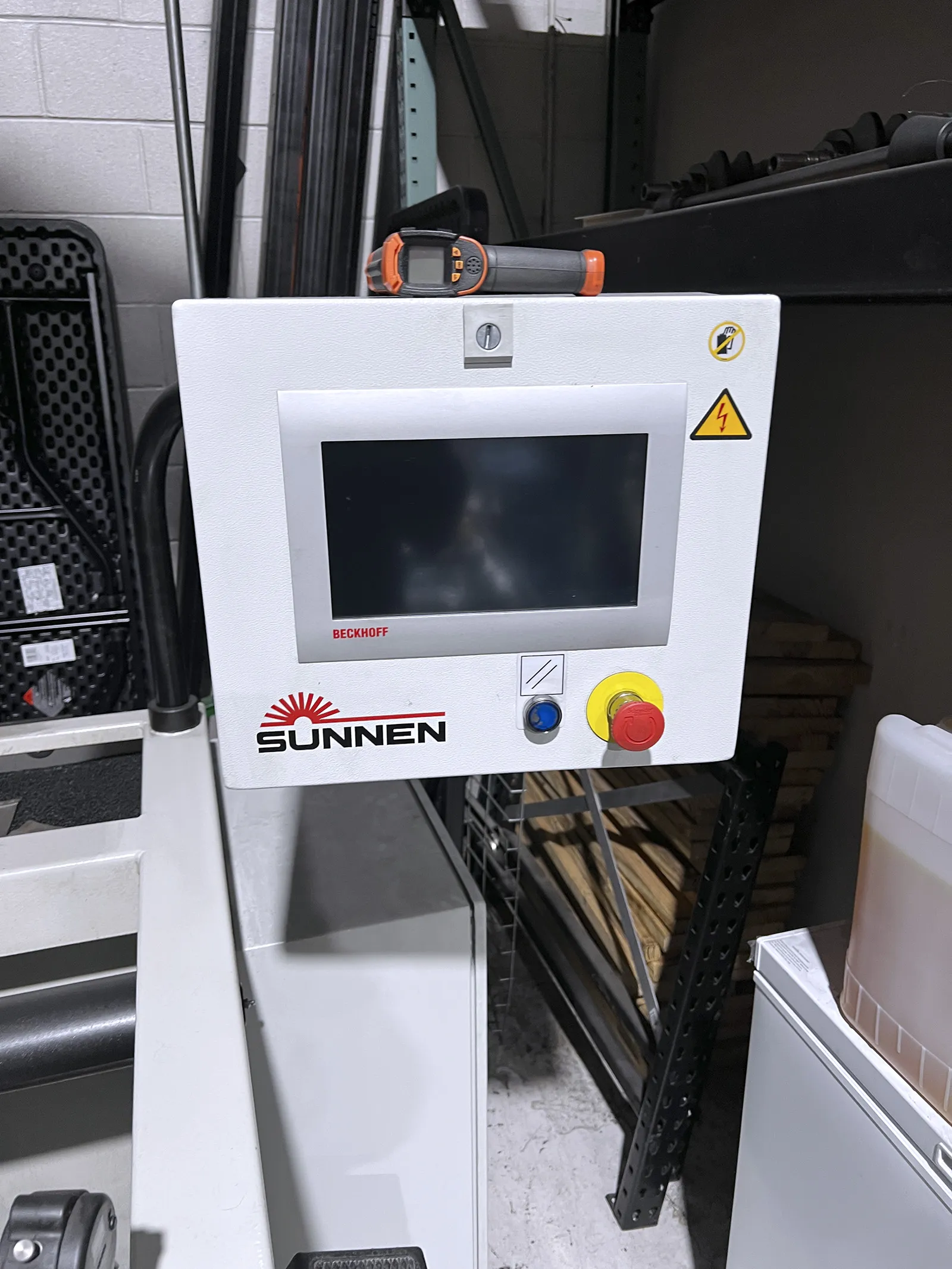

- 9" Touchscreen Control Panel
- Sunnen CK6200 CK Clamp Kit
- Sunnen DHT70 DH Diamond Hone Body & Driveshaft
- (2) DH2S1GMH75 DH Diamond Stone Sets — 2.750"–3.060" bore range
- DH1B1534 DH Abrasive Brush Set
- 180 SiC — 2.750"–3.060" bore range
- (2) DH2S2GMH75 DH Diamond Stone Sets — 3.060"–3.370" bore range
- DH1B2534 DH Abrasive Brush Set
- 180 SiC — 3.060"–3.370" bore range
- (2) DH2W3GMH75 DH Diamond Stone Sets — 3.370"–3.680" bore range
- DH1B3534 DH Abrasive Brush Set
- 180 SiC — 3.370"–3.680" bore range
- Sunnen CF1126 Setting Fixture
Specifications
- Bore Diameter Range 0.750" – 8" (19–203 mm),
- Cylinder Length - (Standard) Up to 11"
- Cylinder Length - (With Special Tooling) Up to 18"
- Spindle Speed 90–350 RPM
- Spindle Motor 3 HP
- Stroker Motor 1 HP
- Stroke Speed 40–80 SPM
- Stroke Length 0–9"
- Carriage Travel (X-Axis) 35"
- Maximum Workpiece Weight 1,496 lbs., including fixture
- Maximum Workpiece Size 46" L × 22" W × 26.5" H
- Honing Oil Reservoir 55 Gallons
- Coolant flow 10 GPM @ 25 PSI
- Machine Dimensions 89.5" L × 72.5" W × 86.5" H
- Machine Weight Approx. 1,900 lbs.
- Shipping weight Approx. 2,500 lbs.
- Electrical 230V / 60 Hz / 3-Phase (SV-15CD)
Machine Description

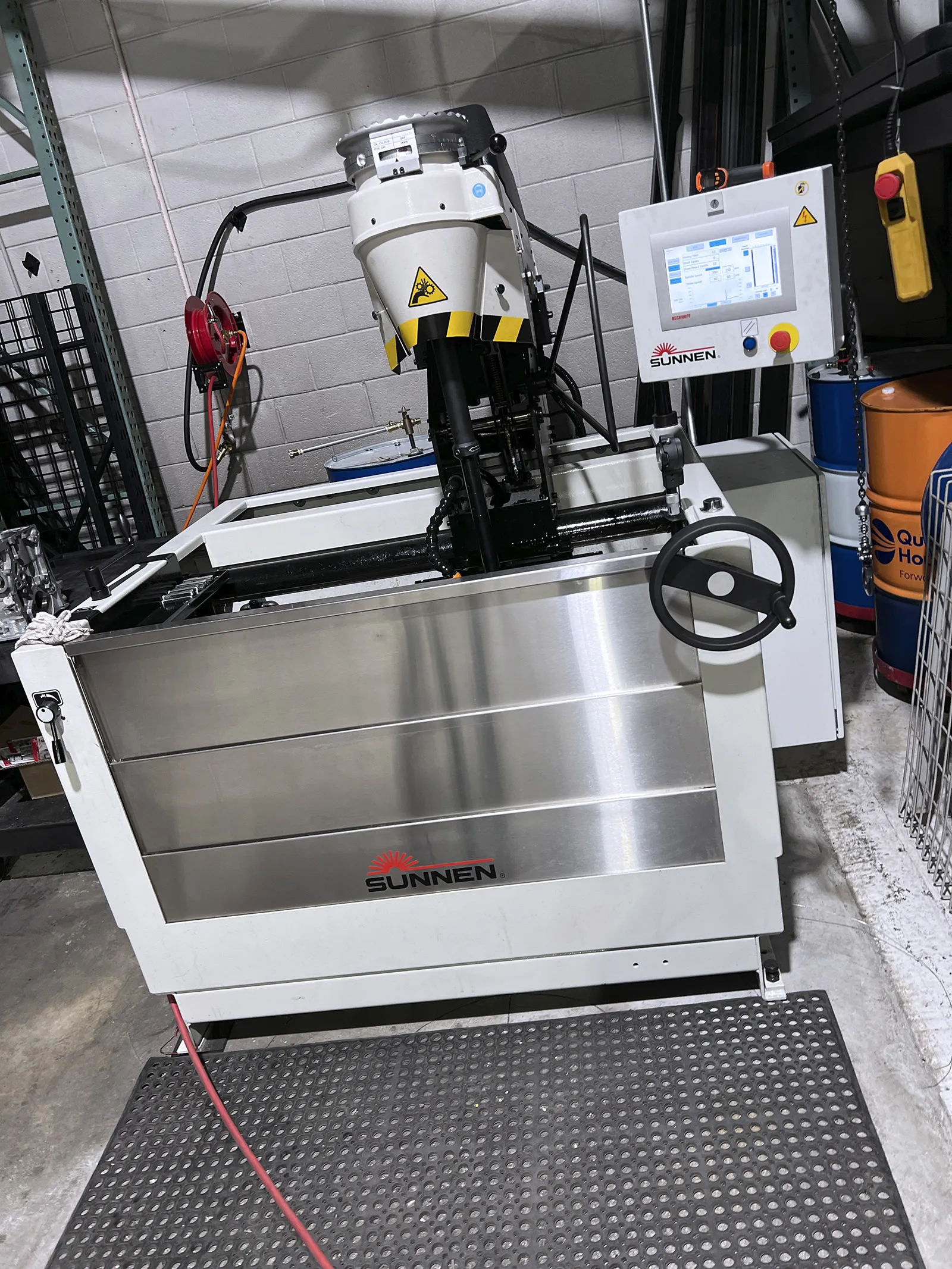

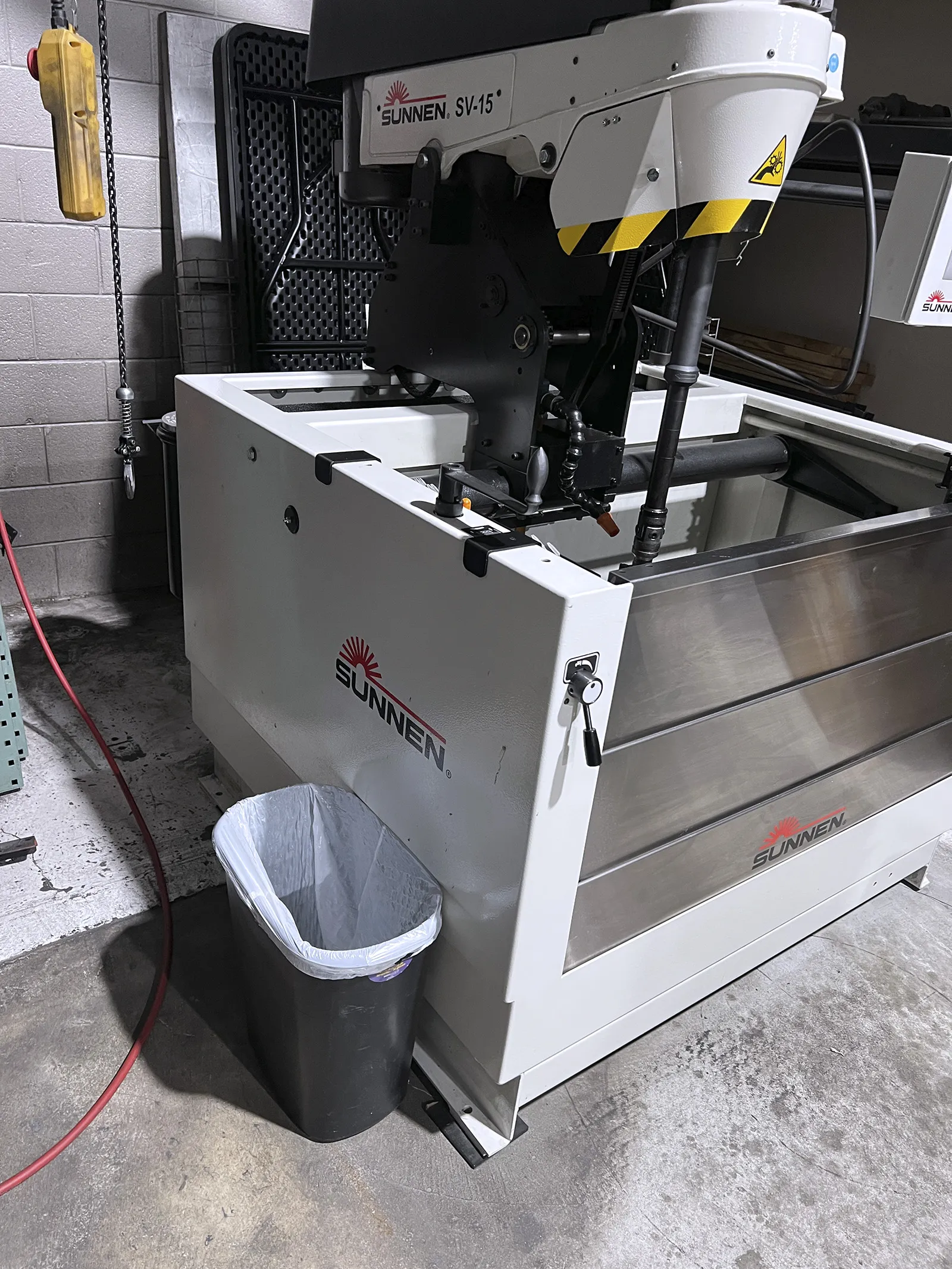

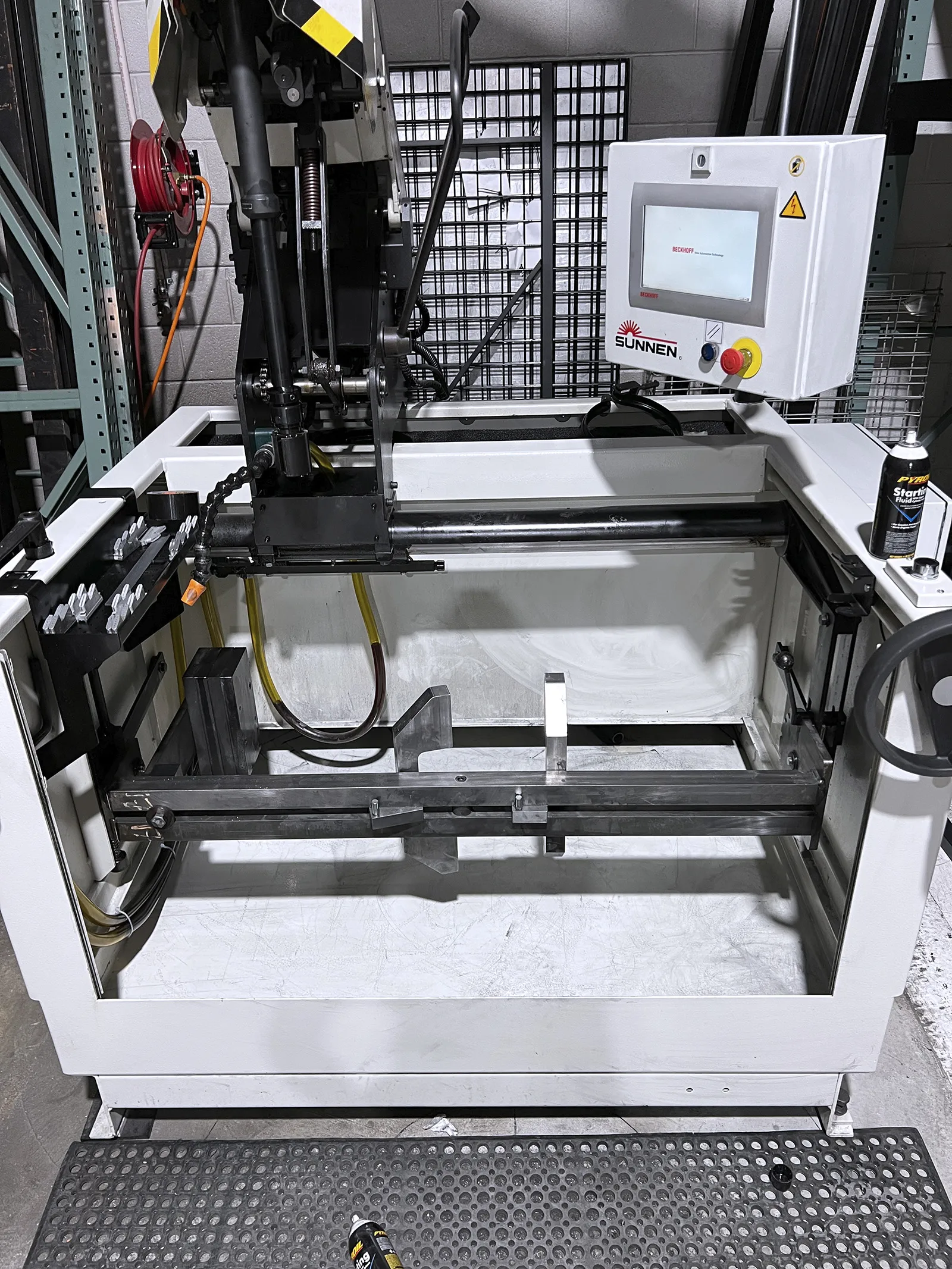

The Sunnen SV15CD Vertical Honing Machine (2023) is a high-precision computerized honing system designed for accurate bore sizing, roundness, and cross-hatch surface finishing. Ideal for automotive, hydraulics, aerospace, small engine, defense, and oil & gas applications requiring precise internal diameter control.
