FomIndustrie Dali 70 2020
Equipped With

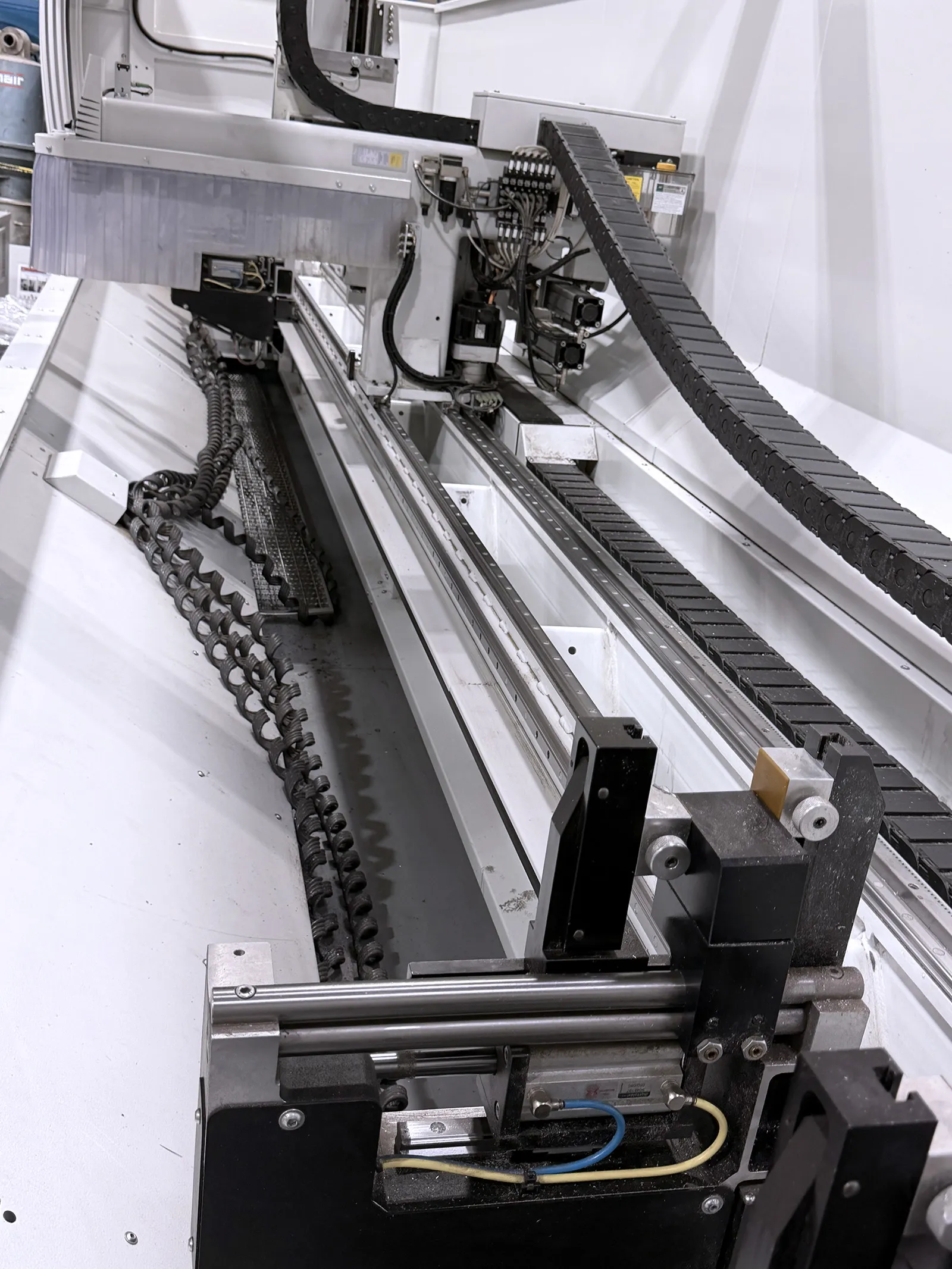

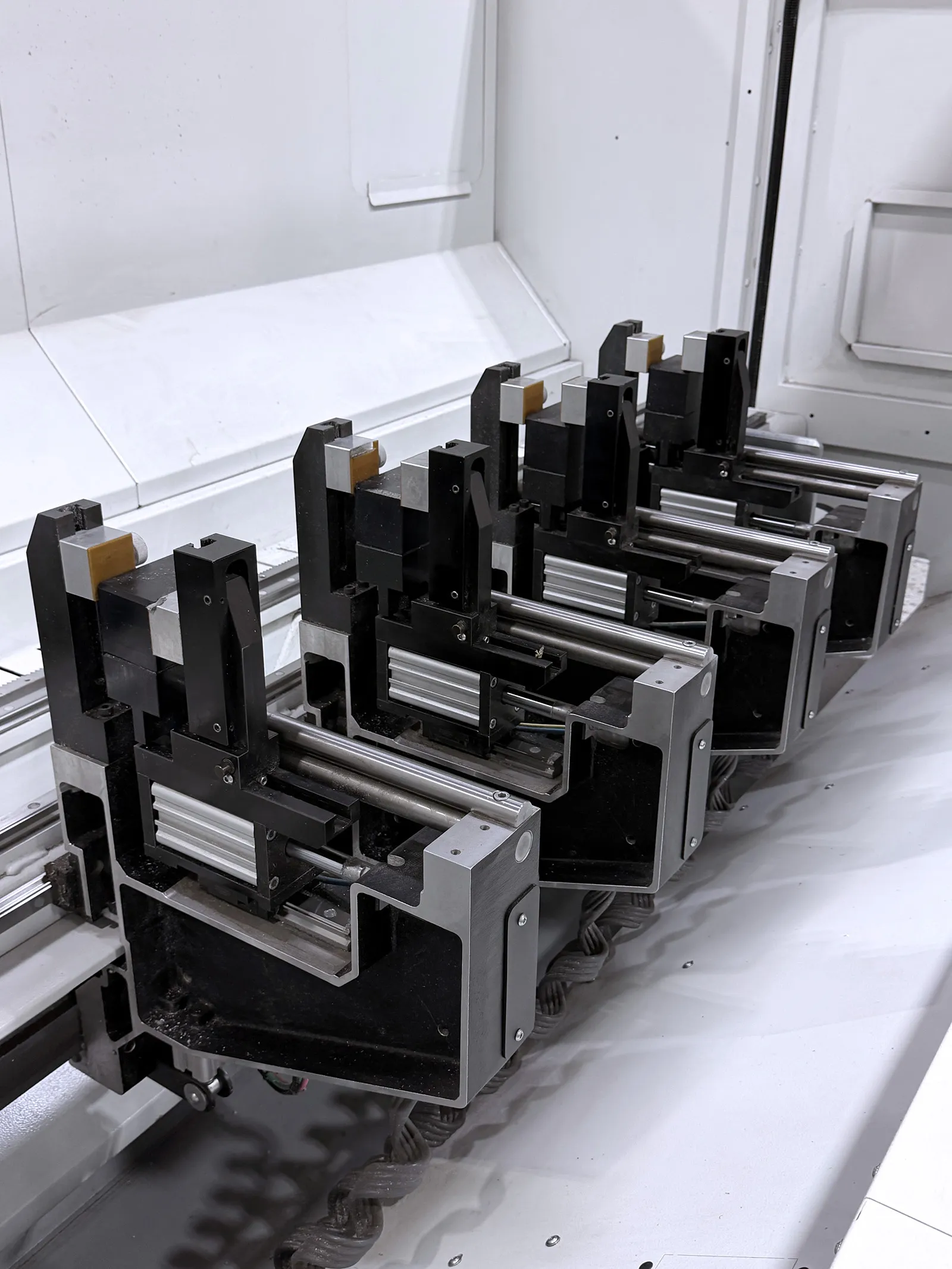

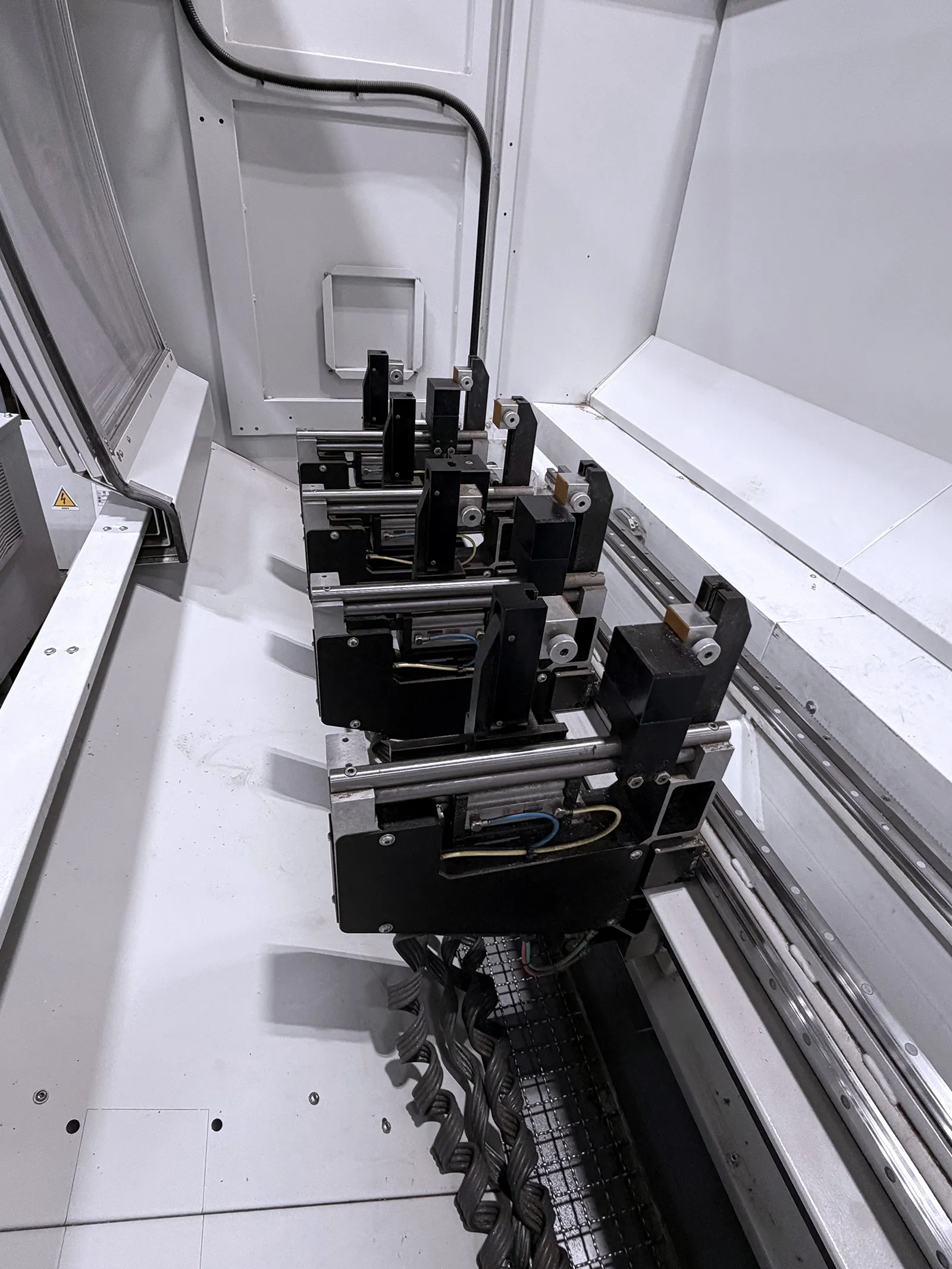

- Eight independently positionable pneumatic clamps/vices installed
- 10 total ISO 30 tool positions consisting of a seven-position magazine plus three positions on the machining head
- Air cooled ISO 30 electro spindle rated 6.5 kW continuous/8 kW intermittent
- 19
- 000 RPM and 7-Nm continuous torque

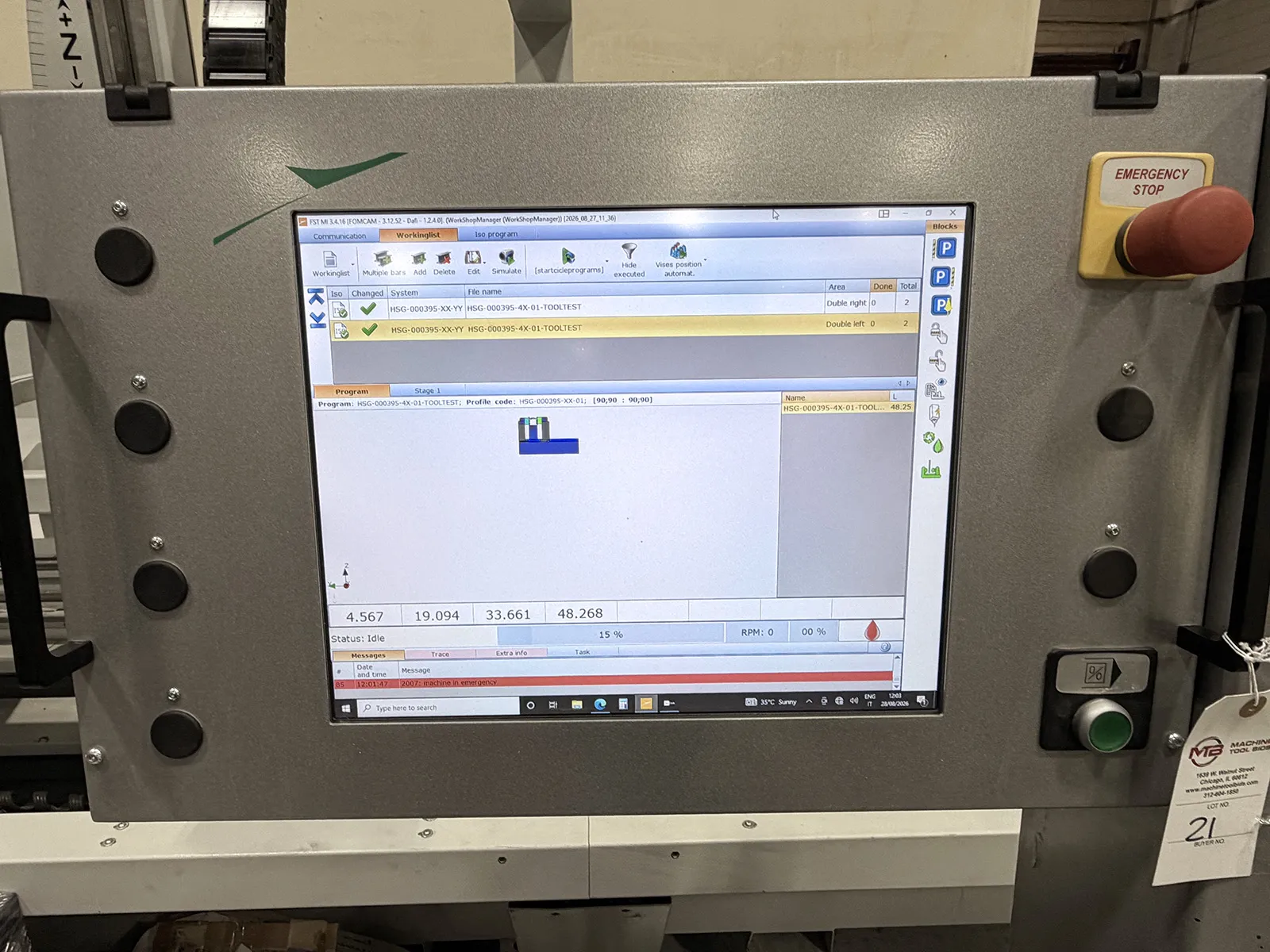

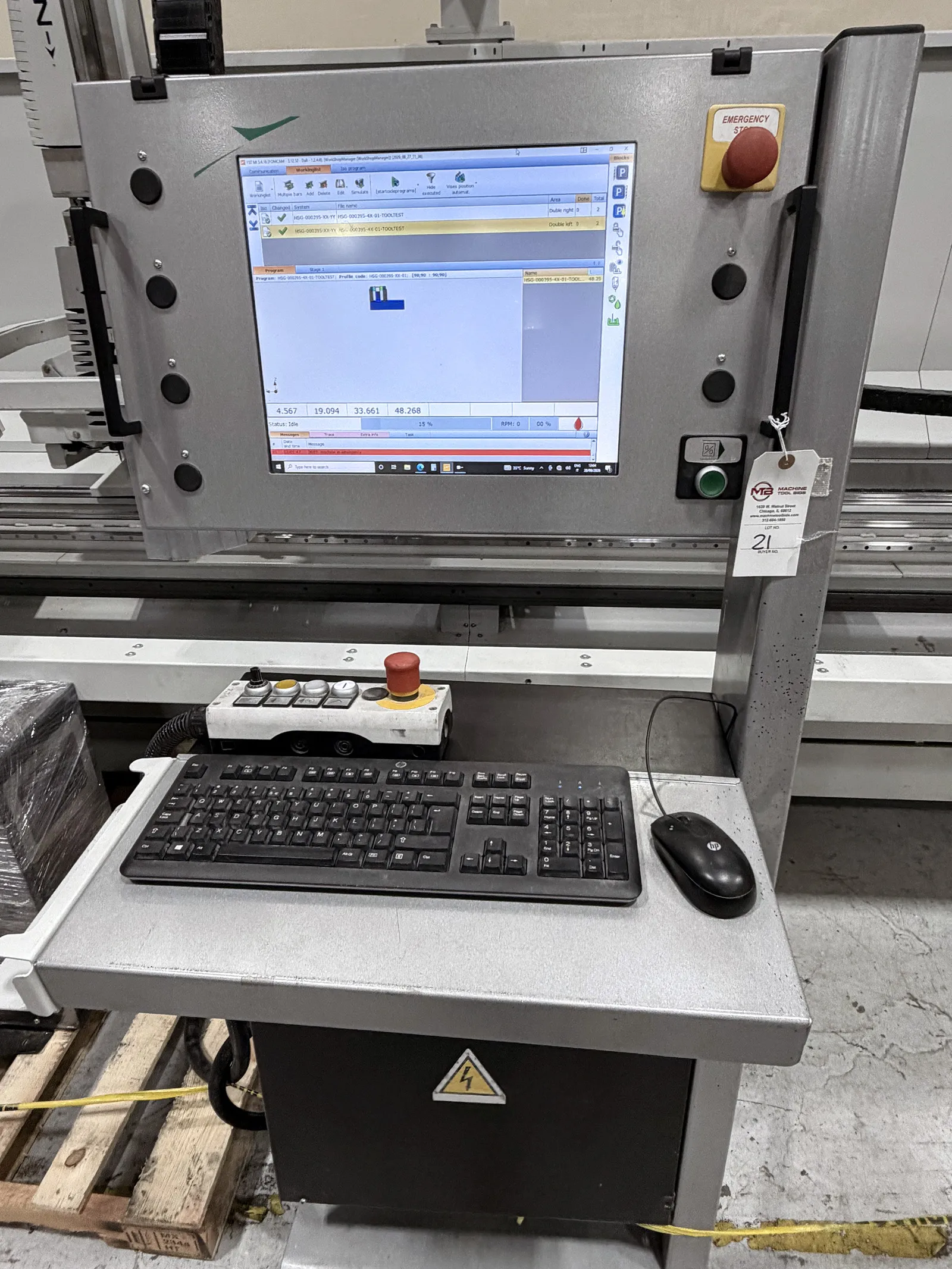

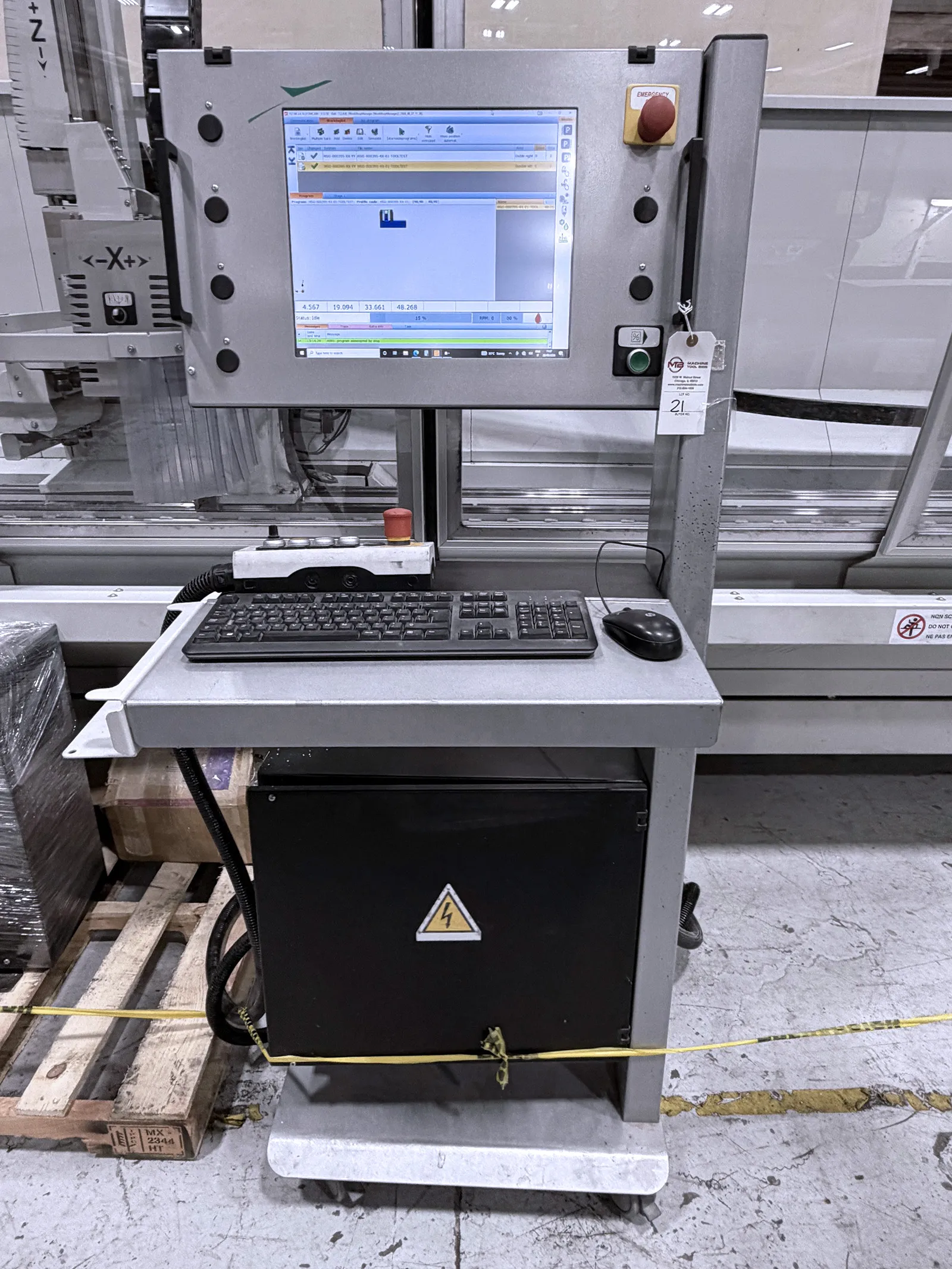

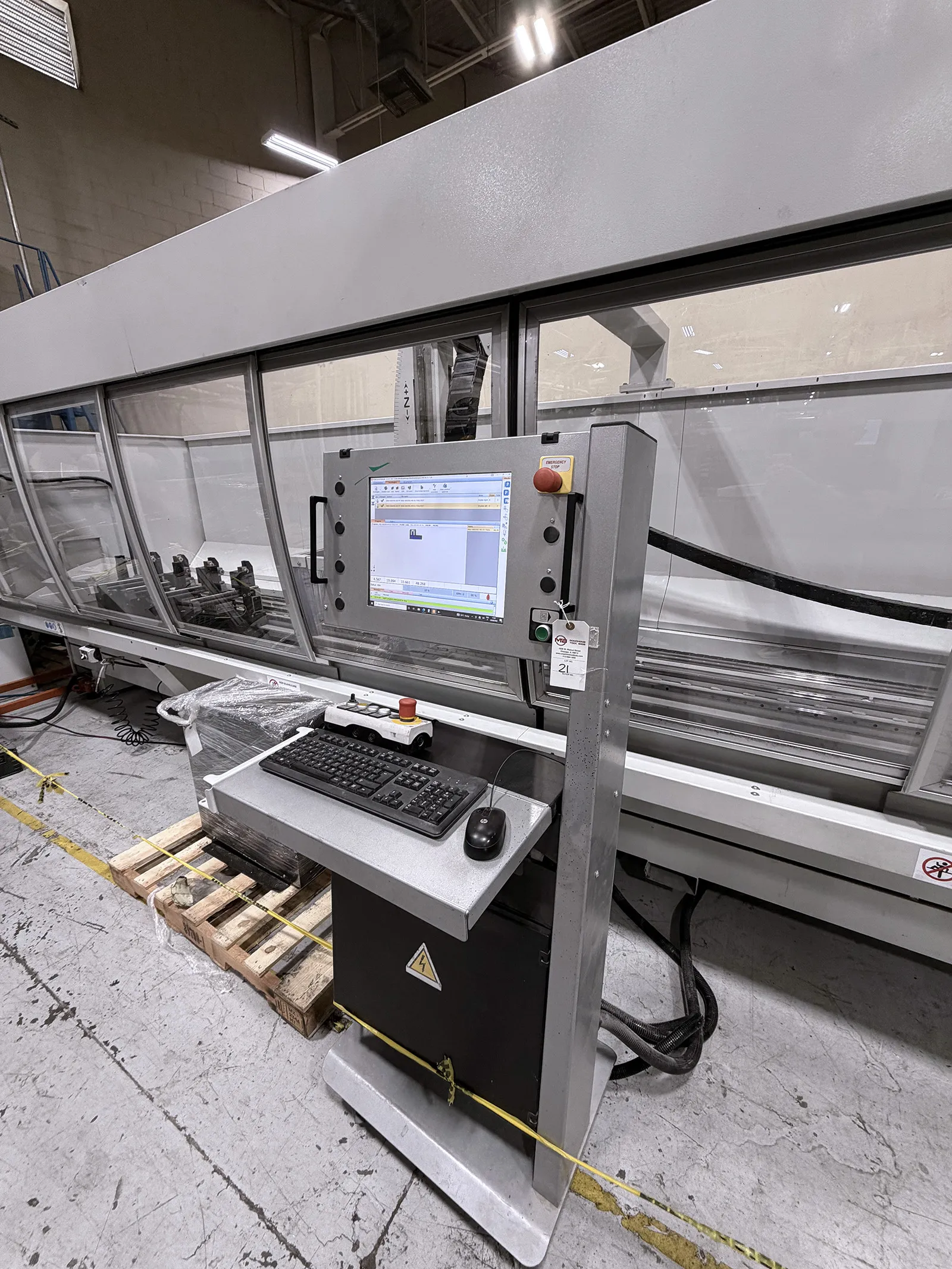

- FOMCAM PC control
- Rigid tapping; multi-piece and pendulum machining capability
- Automatic guide and ball screw lubrication

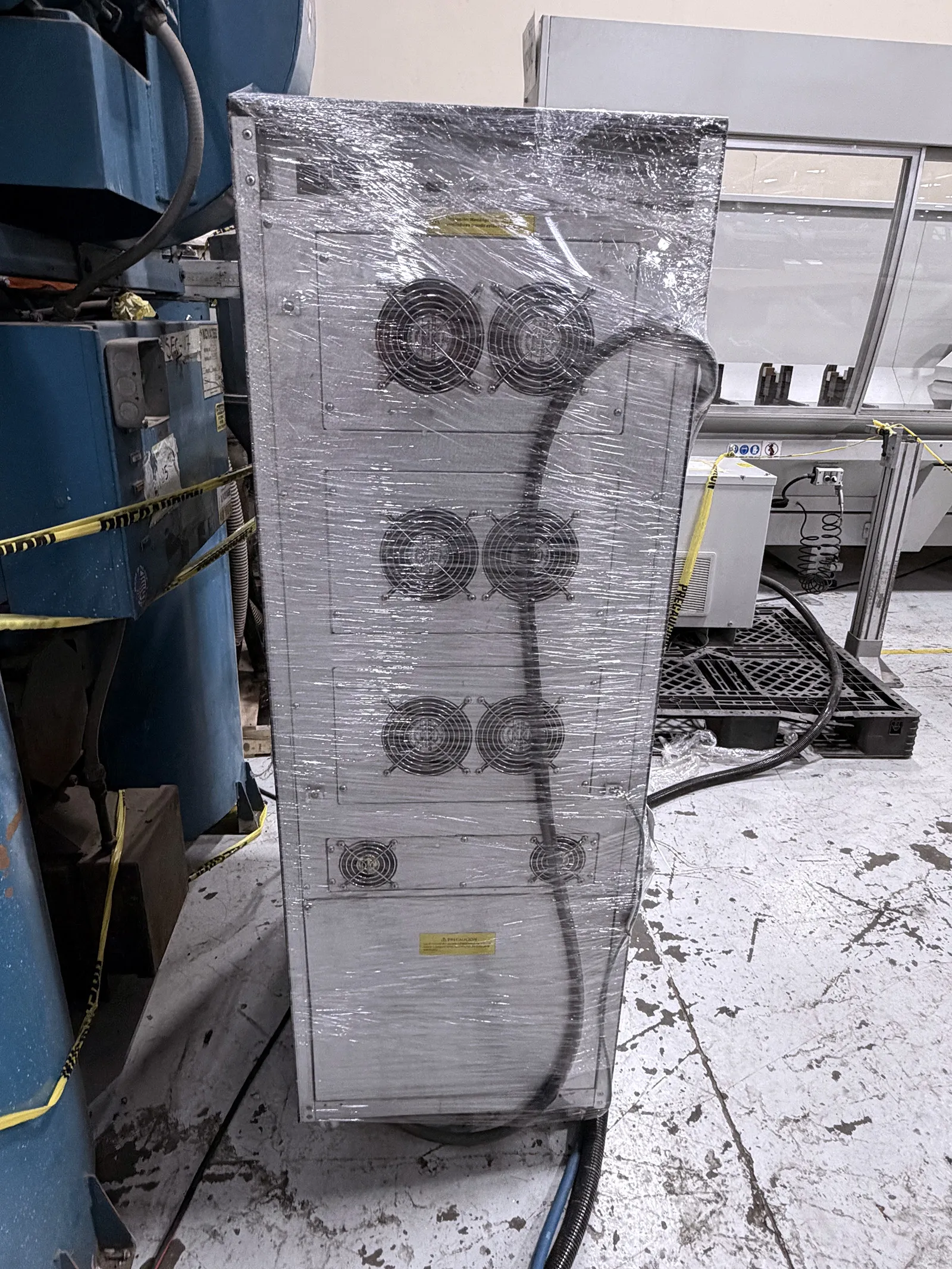

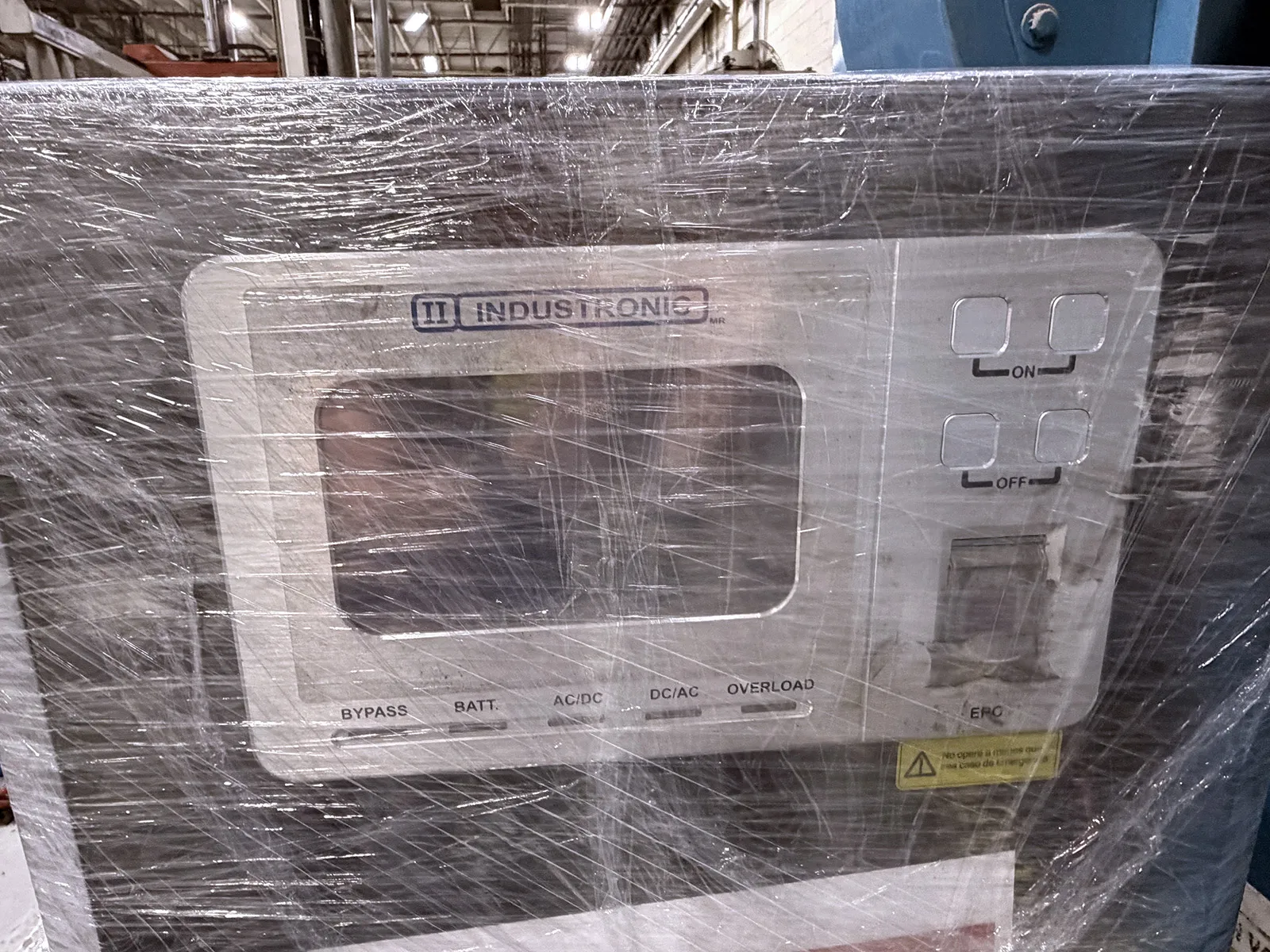

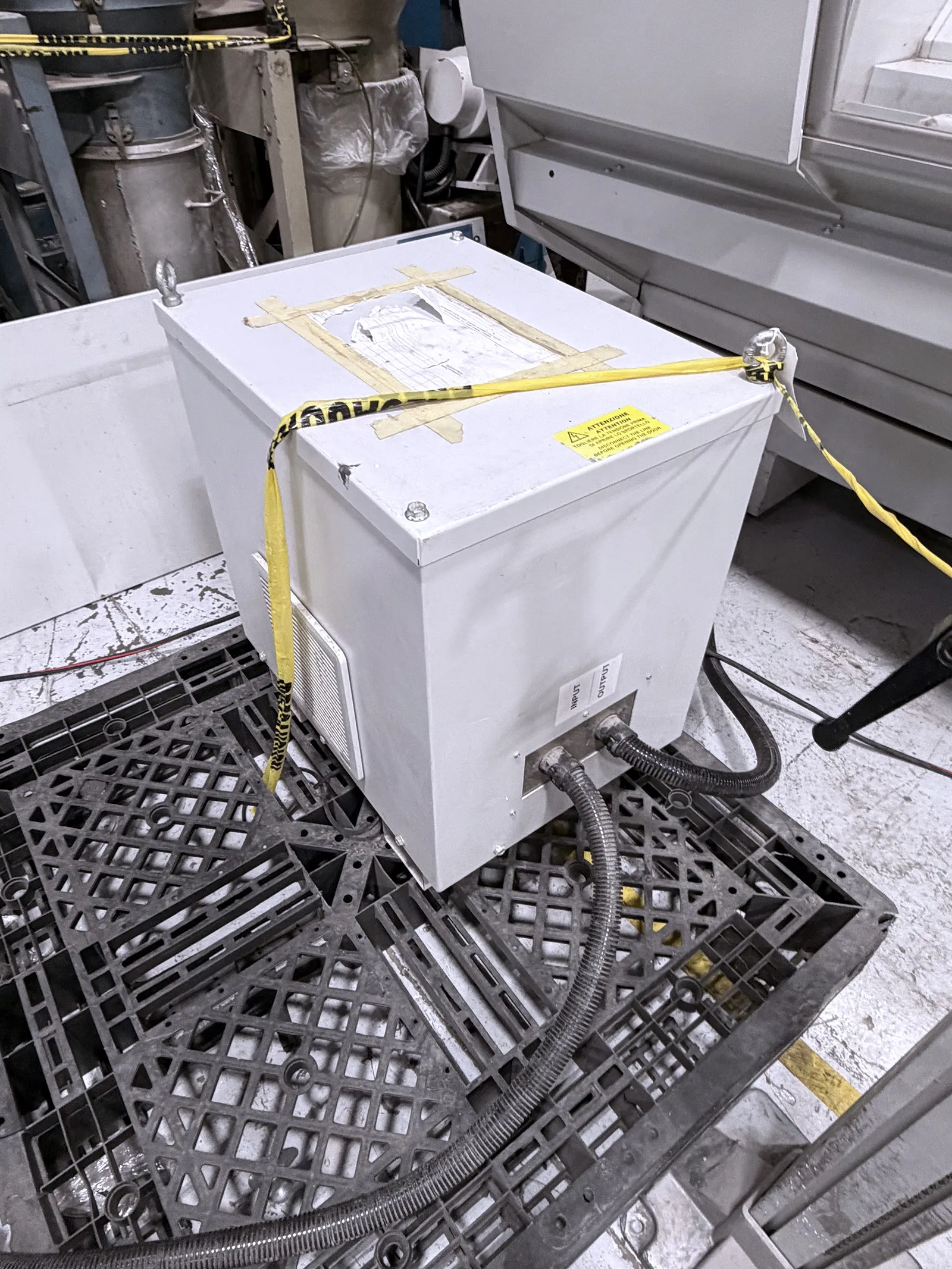

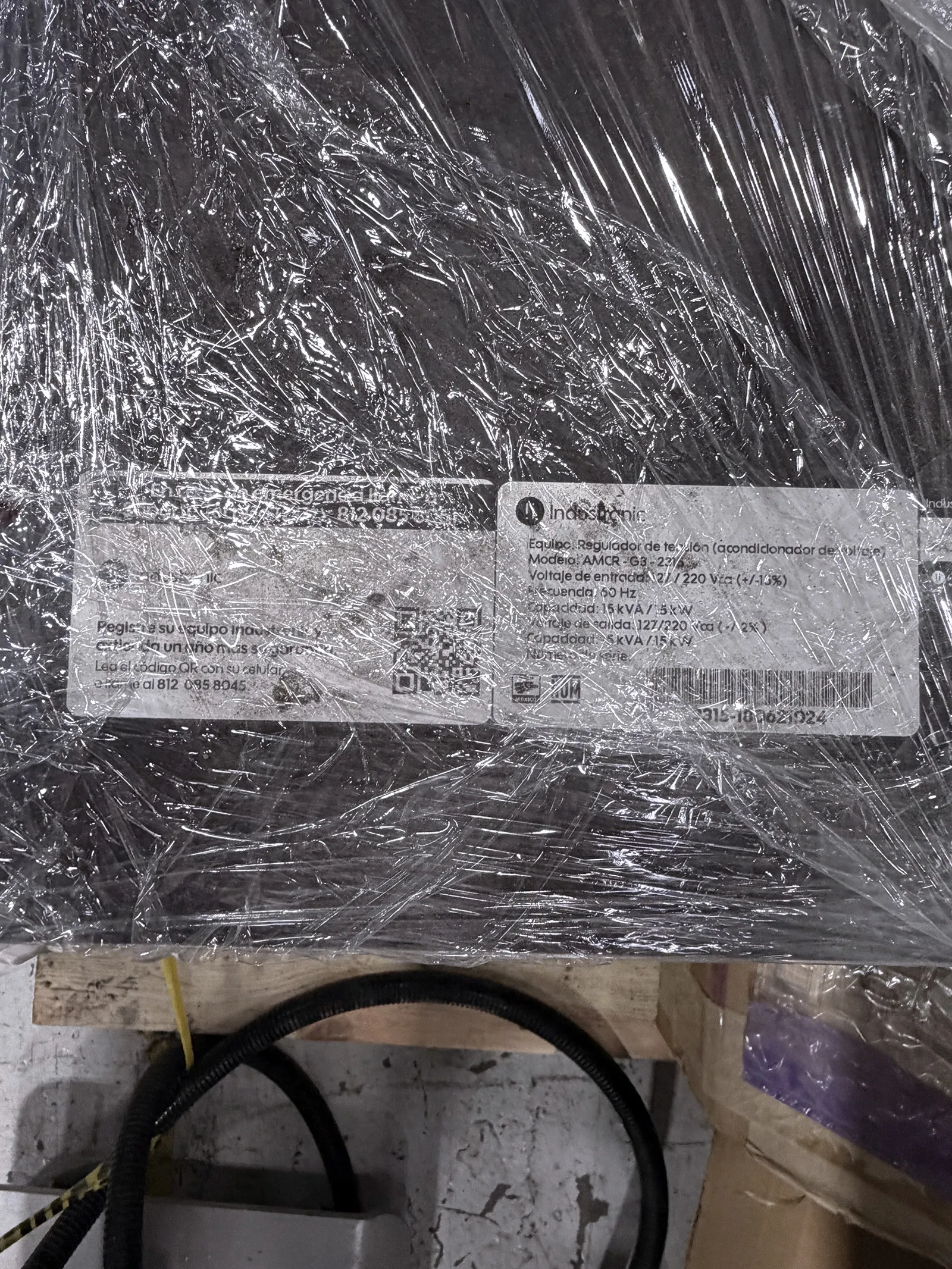

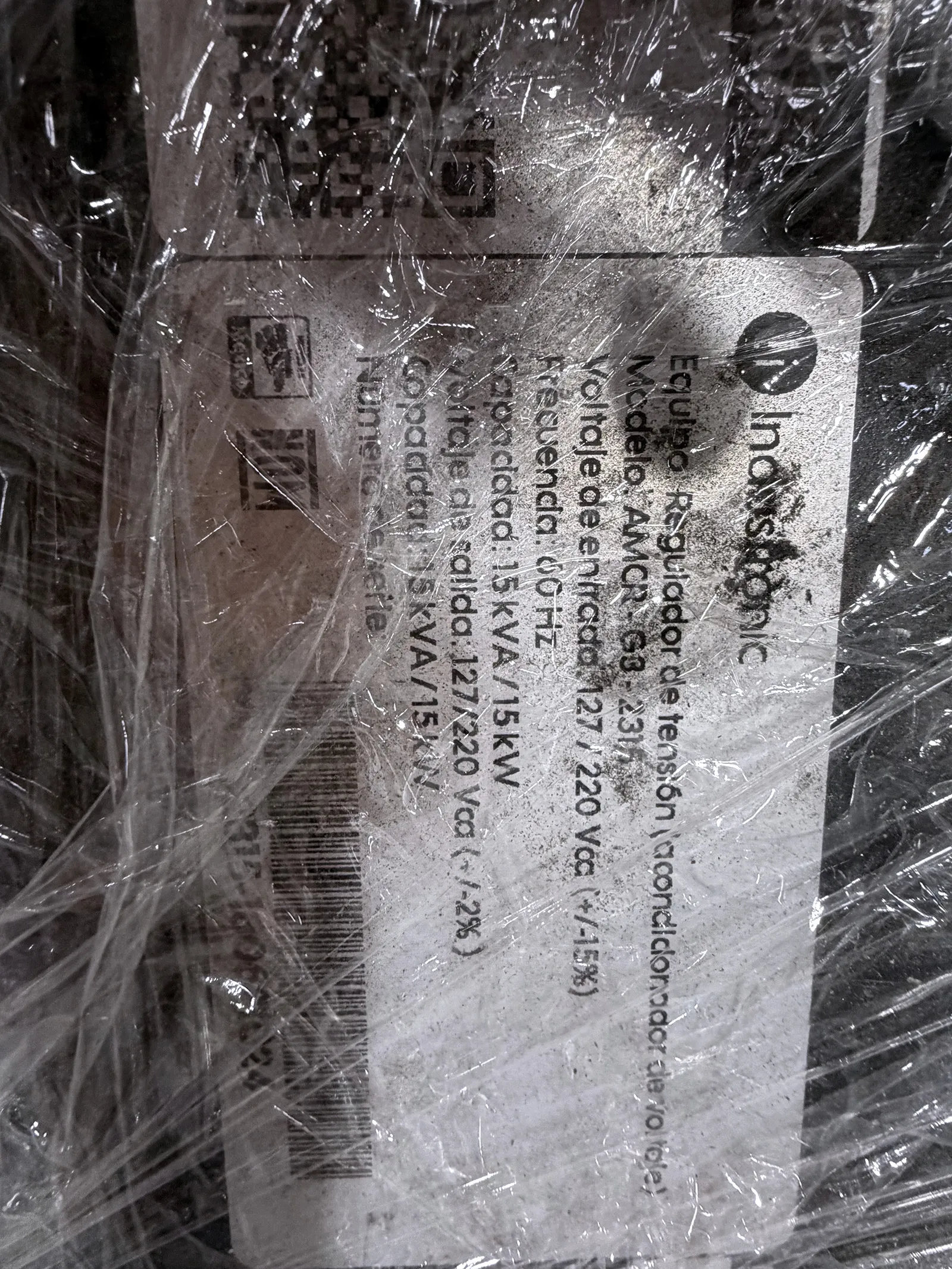

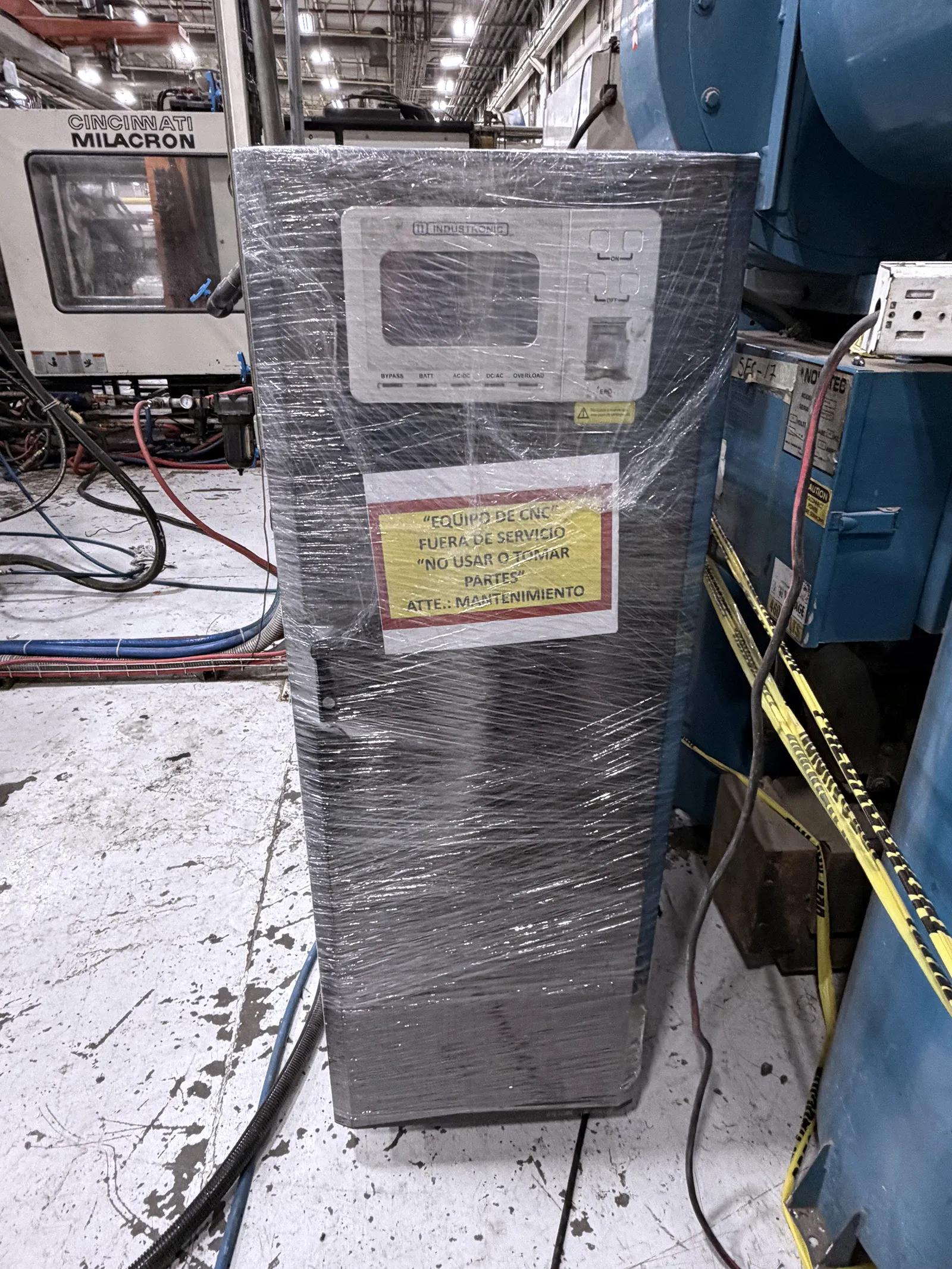

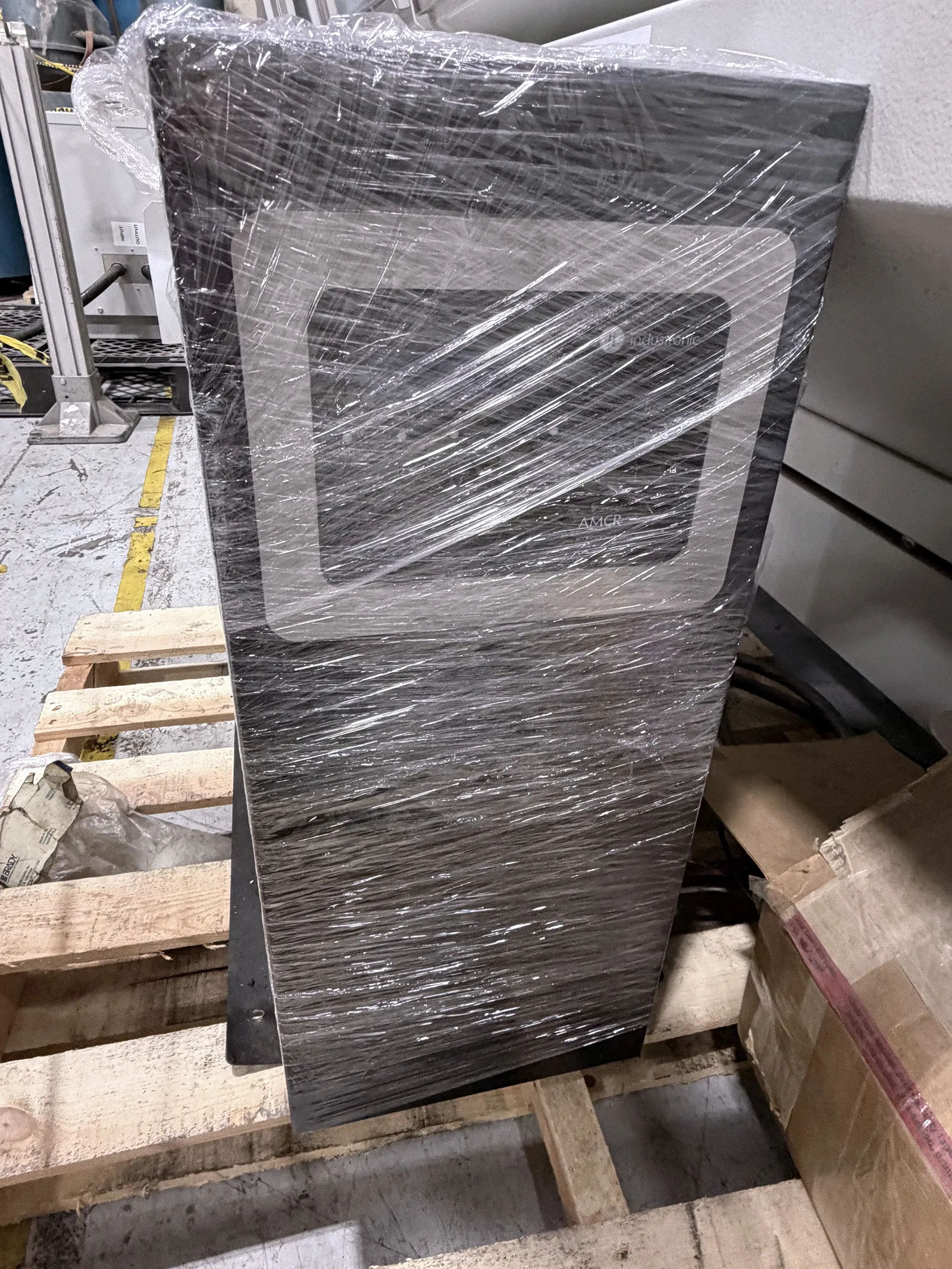

- Includes Industronic power-conditioning/UPS cabinet
- ISO 30 toolholders and photographed accessories
Specifications
- X Axis 7,320 mm (288.2 in.)
- Y Axis 1,040 mm (40.9")
- Z axis 435mm (17.1")
- A-Axis spindle Rotation from -15° to +195°
- Working Capacity 7,000 × 220 × 250 mm
- X-Axis Rapid 100 m/min
- Y-axis rapid 33 m/min
- Z-Axis Rapid 13 m/min
- A-Axis Speed 180°/sec
- FOM electrospindle 6.5 kW S1
- Tool Interface ISO 30
- Rated spindle torque 7 Nm
- Tool Magazine 7-position
- Max Tool Length 150 mm
- Max Tool Diameter 20 mm
- Max blade diameter 200 mm
- Overall Dimensions 8,600 × 2,051 × 2,214 mm
- Approx. Footprint 28'2" × 6'9"
- Approx. height 7'3"
- Weight 3,900 kg / 8,598 lb
Machine Description

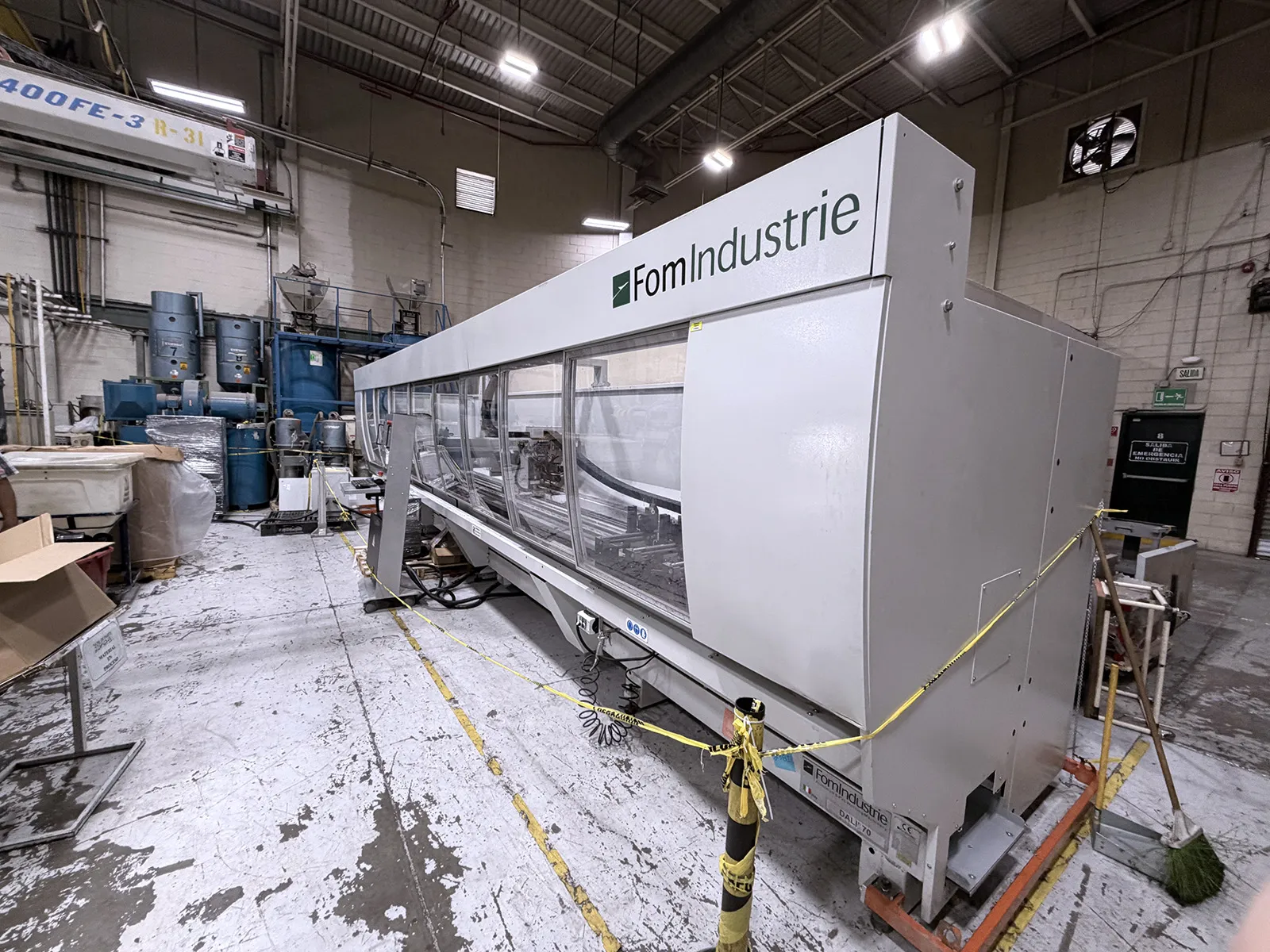

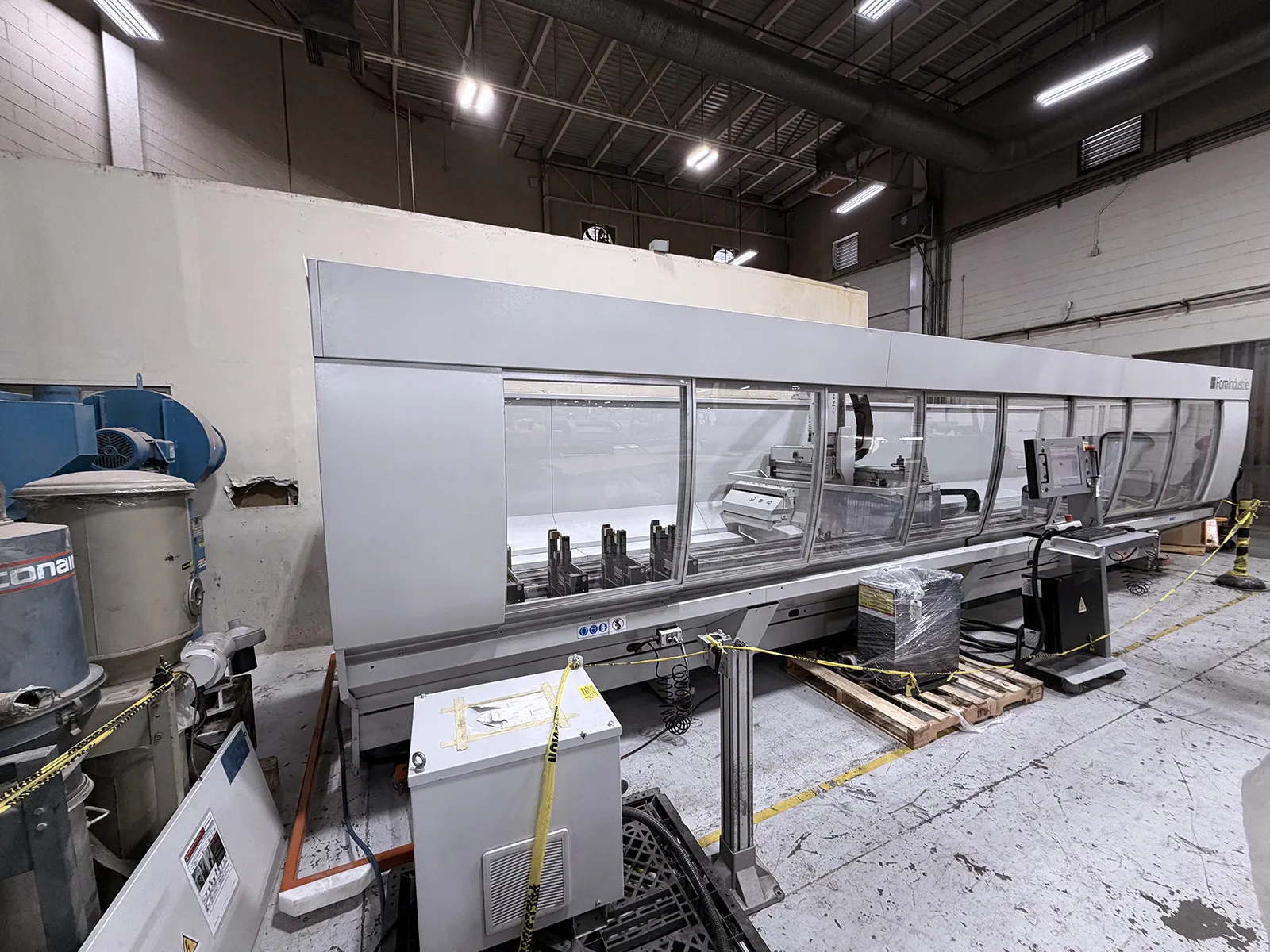

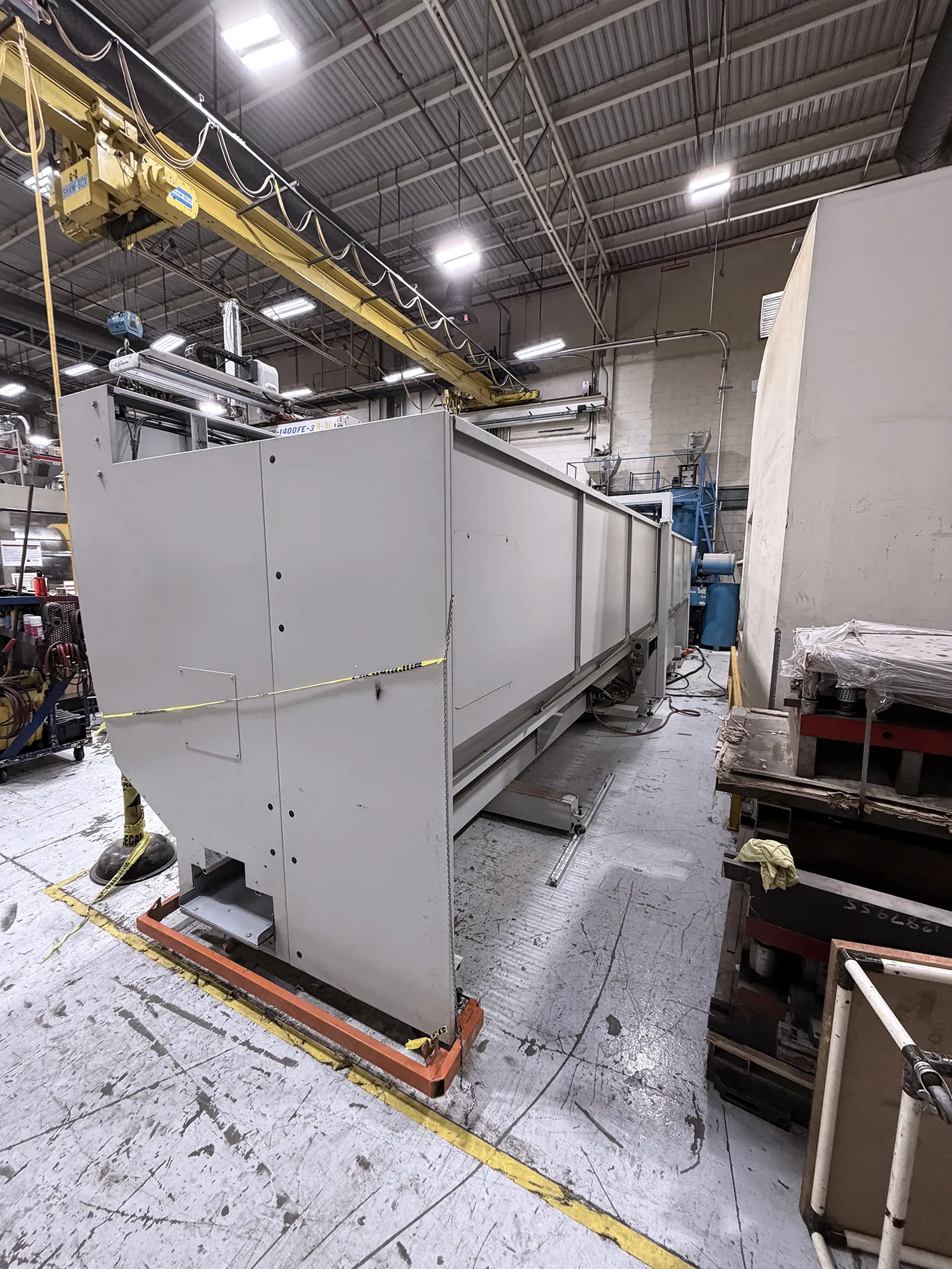

Used FomIndustrie Dali 70 Horizontal Boring Mill, (2020) with FOMCAM Control. Designed for high-speed milling, drilling, tapping and slotting of long aluminum, PVC, light alloy and thin-walled steel profiles. Ideal for architectural glazing, facades, automotive, rail, solar structures, frames, gates and industrial applications.
Related Tags

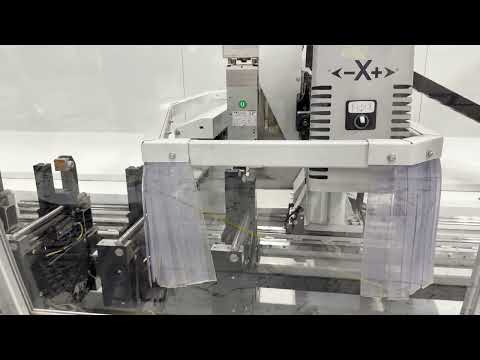

See the Machine in Action
