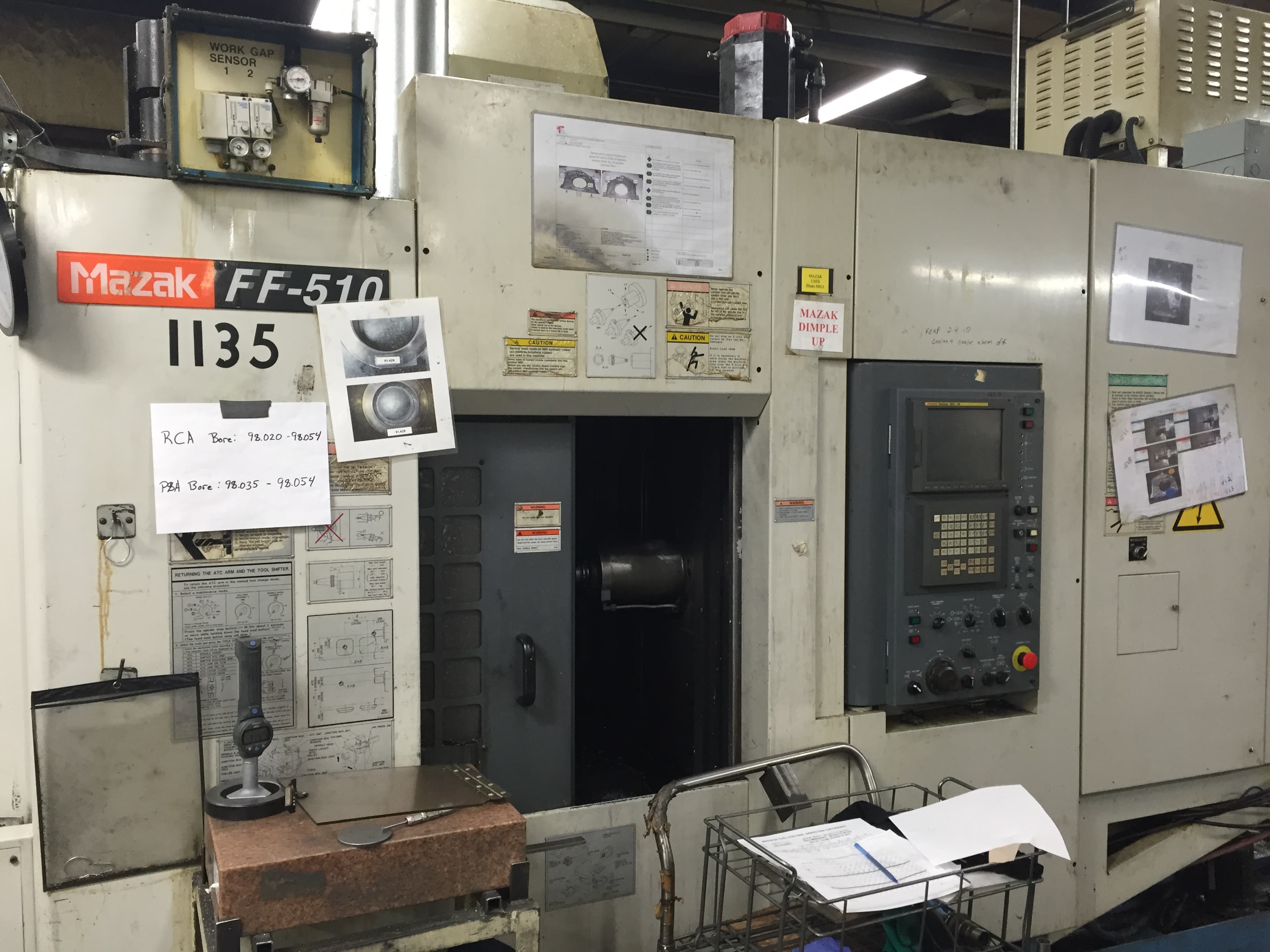

Mazak FF510 2001

90 Degree indexing Coolant thru 15,000 rpm Spindle Had X,Y,Z ball screws, and guides replaced in the last 14 months. Also new spindle at the same time. Seller confirmed the following specs: Pallet Size / Number of Pallets 15.74" x 15.74" Table Load Capacity 550 lbs Table Indexing 90 Degree Pallet Change Time 6.3 seconds Maximum Work Diameter / Height 22.04" / 24.8" X-Axis Travel 20.07" Y-Axis Travel 20.07" Z-Axis Travel 20.07" Spindle Nose CAT 40 Spindle Speed 15,000 RPM Spindle Motor 30 Min. / Cont. 20 HP / 15 HP Spindle Nose to Pallet Center 3.94" - 24.02" Tool Magazine Capacity 24 Station ATC Max. Tool Diameter/Length/Weigth 4.53" / 11.8" / 15.4 lbs. Tool Change Time-tool to tool .45 Seconds Rapid Traverse Rates 2,360 IPM Cutting Feedrates 1575 IPM Machine Dimensions LxWxH 160" x 63" x 112.6" Machine Weight 16,720 lbs Equiped with 2 Pallet Changer System 90 Degree Pallet Index Positioning Chip Conveyor Coolant Through the Spindle Optional 24 Station Tool Changer Synchronized Tapping Chip Auger RS 232 Port Inteface High Speed Serial Bus Input Tool Life Monitoring Table Shower & Base Coolant Helical Interpolation Transformer Integral Spindle Motor Design All Available Manuals
