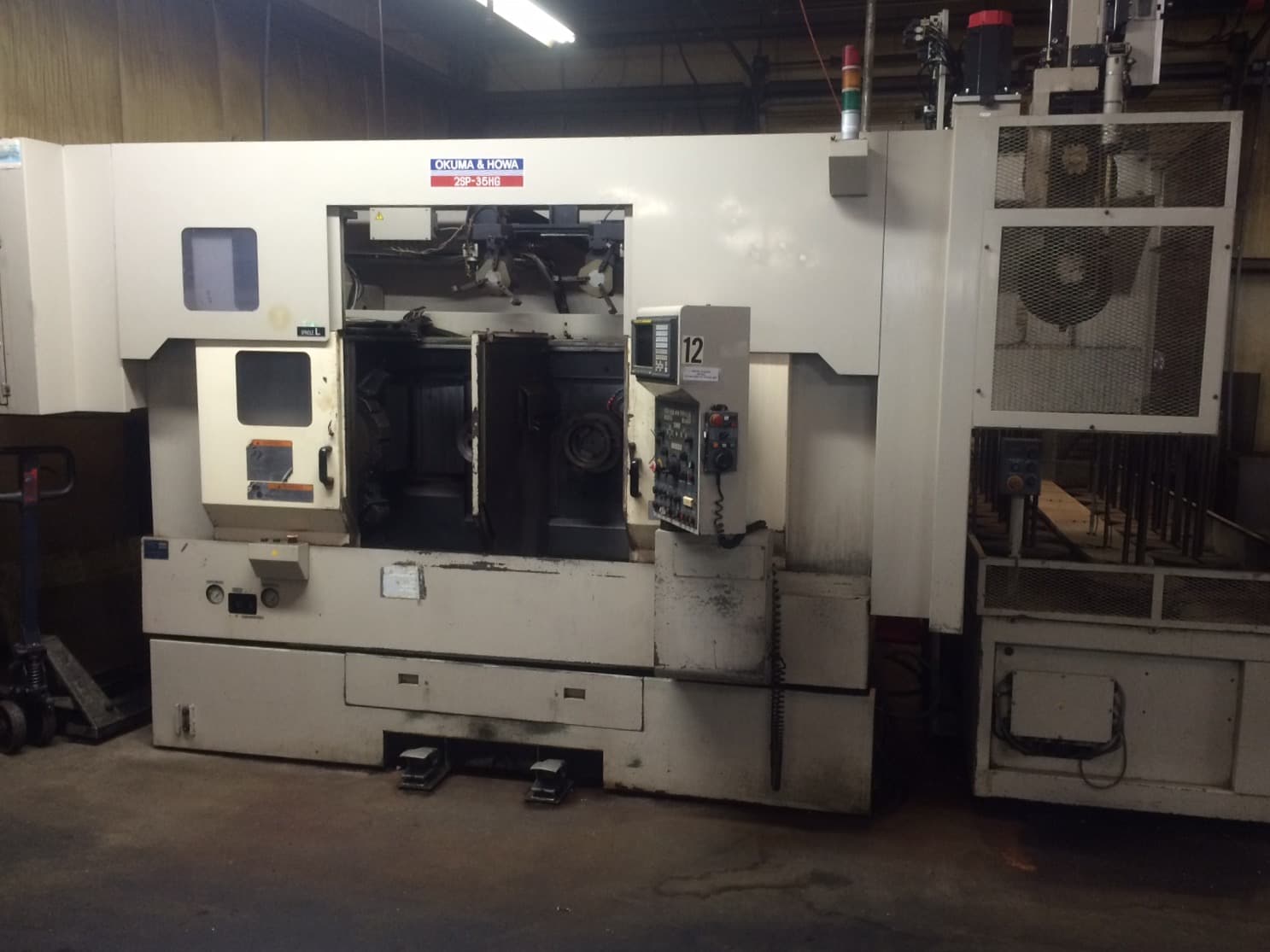

Okuma Howa 2SP-35HG 2001

2001 OKUMA HOWA 2SP-35HG CNC TWIN SPINDLE TURNING CENTER, WITH GANTRY LOADER AND 16 PALLET STOCKER SIDE INPUT FEEDER TABLE. AND ALL INSTALLED WORKHOLDING AND OPTIONS INCLUDED IN SPECIAL PRICING. SPECIFICATIONS BASE MACHINE CAPACITY: MAXIMUM CUTTING DIAMETER.................... 14.96" MAXIMUM CUTTING LENGTH.........................9.06" DISTACE BETWEEN SPINDLES......................17.72" SPINDLE CENTER HEIGHT FROM FLOOR.........47.44" SPINDLES: SPINDLE MOTORS (FANUC Allpha X 2...........30 HP SPINDLE SPEED RANGE....................45- 3,500 RPM STANDARD CHUCK DIAMETER.......10" 3-Jaw Chucks SPINDLE NOSE............................................A2-8 TURRETS: TURRET TYPE (FANUC ALPHA 6/2000 MOTOR) V12 + V12 CURVIC COUPLING DIAMETER.....................6.61" CLAMPING FORCE...............................6,173 LBS INDEXING TIME(STATION TO STATION)....0.3 SEC. STANDARD TOOL SIZE.........................1.0" X 1.0" MAXIMUM BORING BAR SIZE..................1.75" OD MACHINE SIZE & MASS: FLOOR SPACE REQ...................215" X 152" x 160" WEIGHT...........................................24,200 LBS CNC LOADER INFORMATION GANTRY MODEL 3-AXIS SINGLE ARM CNC GANTRY LOADER WITH TURN OVER STATION , (16) STATION RIGHT SIDE ROTARY STACKER UNIT, 3 JAW LOADER CHUCKS, OVERHEAD GANTRY LOADER SPEEDS / TIMES: LONGITUDINAL (LEFT/RIGHT) A AXIS..........4724 IPM A AXIS STROKE.........................................77.17" VERTICAL B-AXIS......................................3937 IPM B-AXIS STROKE.........................................33.46" HORIZONTAL (IN/OUT) C AXIS....................1575 IPM C AXIS STROKE.........................................11.02" LOADING TIME..........................................12 SECONDS MINIMUM CYCLE TIME...............................45 SECONDS LOADER AND TURNOVER CHUCKS: JAW STROKE.........................................1.57" ACTUATION METHOD...................FORCED AIR Workpiece Stocker Specifications Max. Diameter:.................................... 11.1" Max Load on Pallet ...............................70 Kg. Max Height:......................................... 19.7" Number of Pallets:.......................... 16 Pallets
