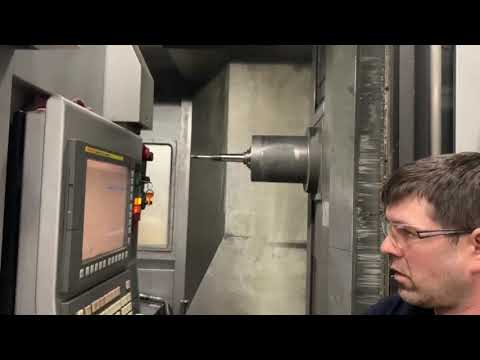

Watch how it performs
in real-world use
This Machine has been sold and is No longer Available... Find similar machines below
SOLD
Activate Search Agent
We'll help you find what you need
Equipped With
- Fanuc 31i Control
- NC 4th Axis 360000 Position Rotary Indexing Table
- 6000 RPM Super-Duty Geared Head Spindle
- High Pressure Coolant Thru Spindle (up to 1000 PSI)
- Renishaw OMP60 Optical Probing System with SMT Inspection Software
- Helical Interpolation
- Tool Offset Memory "C" (Geometry and Wear)
- AI Precision Control II (reduces block processing time to 2 ms increases buffer to 200 blocks)
- High Speed Processor (reduces block processing time to .0 ms increases buffer to 600 blocks)
- Workpiece Coordinate System - 48 Sets
- Extended CNC Program Memory
- Custom Macro w/Additional Common Variables
- Integrated Ethernet and Memory Card Input/ Output
- 225 Gallon Coolant Resevoir with (2) pumps for Flood Coolant and Chip Wash
- Direct Tapping
- Isolated Re-Circulating Supply Unit
- Overhead Coolant Shower
- Integrated MistBuster 2000 Mist and Smoke Collector
Specifications
- Y-Axis Stroke 1,400 mm / 55.11" (Spindle Head)
- Tool Changing Time (chip-chip) 7.9 s
- Tool Changing Time (tool-tool) 2.0 s
- Max Tool Dimensions 120 x 800 mm Ø
- Max Tool Weight 35 kg
- Tool Selection Absolute address
- Tool holding capacity Chain 60
- Table Positioning Accuracy ±2 WS
- Repeatability ±0.0015 mm
- Accuracy of positioning ±0.003 mm
- Ball Screw Diameter (X), 50 (Y), 63 (Z)
- Cutting Feedrate 1~ 24,000 mm/min / 1- 944"
- Rapid Traverse Rate 24 m/min
- Spindle Taper Big Plus 50
- X-Axis Stroke 1,600 mm / 62.9" (Table)
- Z-Axis Travel 1,150 mm / 45.27" (Column)
- DISTANCE SPINDLE NOSE TO TABLE CENTER 250 ~ 1,400 mm / 9.8" - 55.1"
- Workpiece Ø 1,850 x 1,550 mm / 72.8" x 61.02" (swing diameter x height)
- Pallet Dimension 1,050 x 1,050 mm / 41.3" x 41.3"
- Indexing Angle NC-table: 0.001°
- Indexing Time 0–90° 5.0 s
- Pallet Height from Floor 1,400 mm / 55.11"
- Pallet Change Time 43.0 s
- Max Load on Pallet 6,613.96 lbs.
- Front bearing Ø (mm) 110 mm / 4.3"
- Spindle nose to pallet surface 50 - 1,400 mm/ 1.6" - 55.1"
- Workpiece Dimensions 72.8" Swing Dia. x 61.02" Height
- Indexing Angle NC-Table 0.001 Deg.
- Spindle Speed 6,000 min-1
- Front bearing Ø (mm) Ø 110 mm / 4.3"
- Ballscrew diameter (Ø/mm) 50 (Y), 63 (Z)
- Max Tool Dimensions Ø 120 x 800

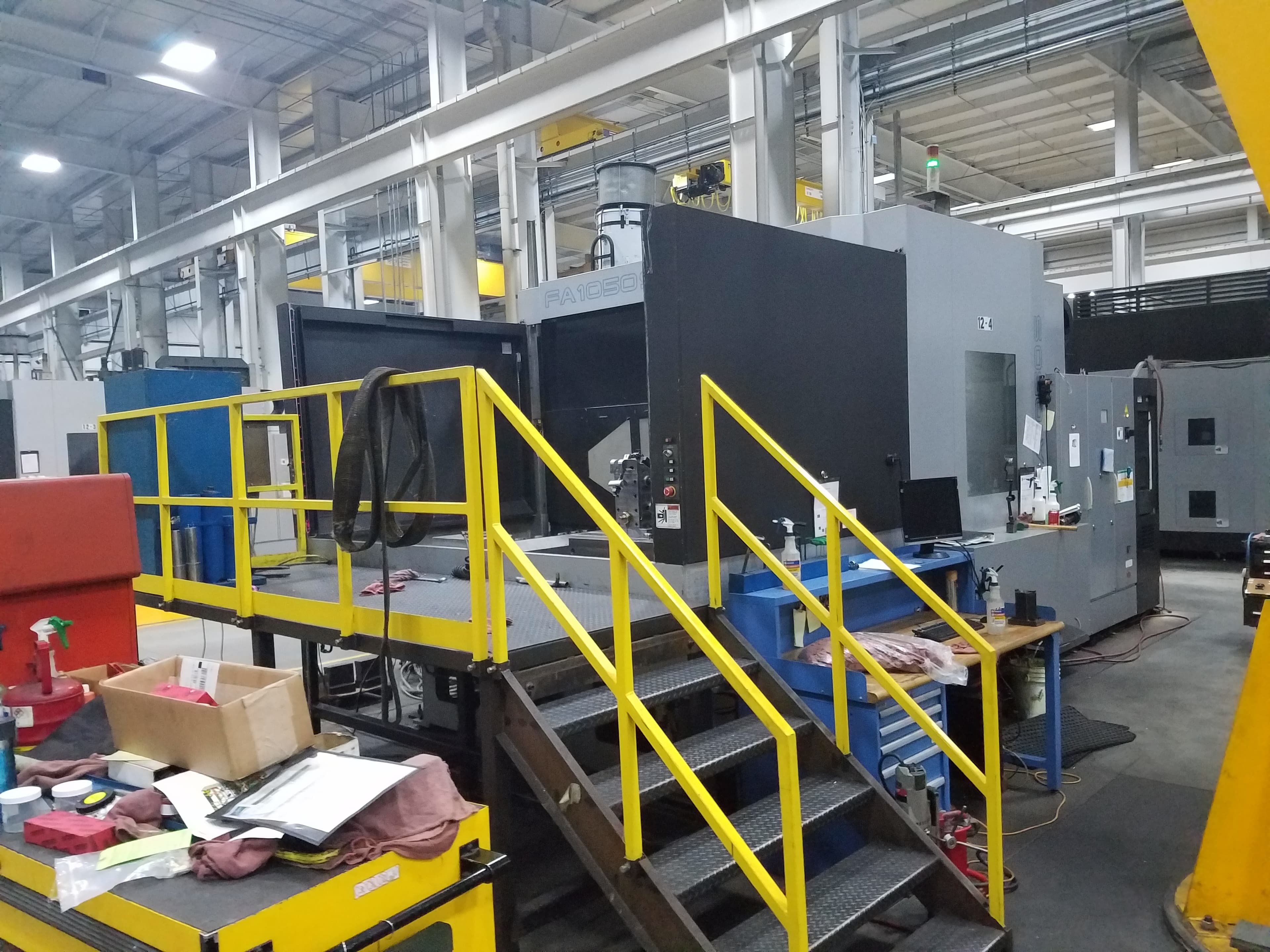

Machine Description
This large used horizontal mill has a full fourth axis, a 1050mm x 1050mm pallet size, a 60 ATC, 62.9"X x 55.11"Y x 45.27"Z travels, a 6K rpm Spindle Speed with 60HP, a 1000 psi thru spindle coolant and a 360 degree B axis travel. This HMC is equipped with a Renishaw OMP60 Optical Probing system with smt inspection software, Ai precision control II, a high speed processor, and direct tapping capabilities. The machine was built in 2009 and installed new in 2011, was kept in a very clean shop, and has been enrolled in a maintenance program since installation. For more information, please call 312.266.4160.
