Mitsubishi NX-F 3015 2014

This Machine has been sold and is No longer Available... Find similar machines below

SOLD

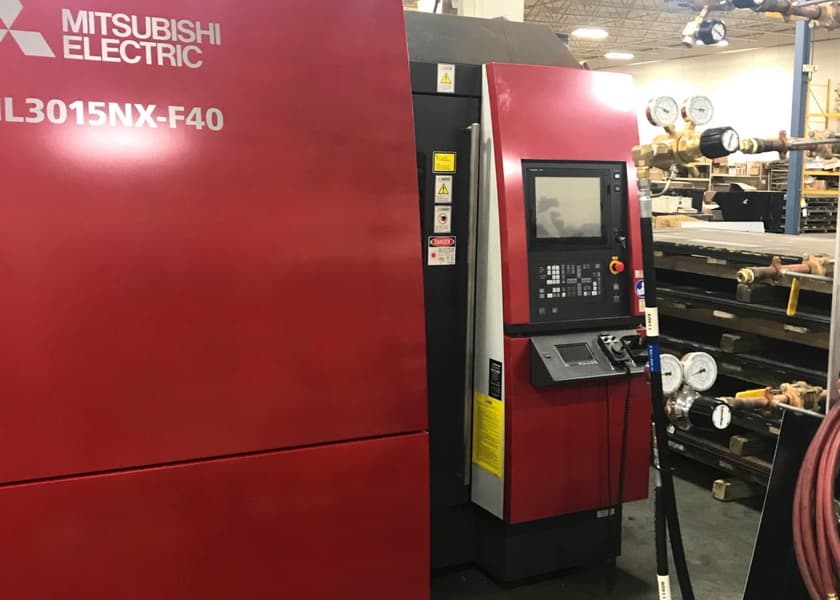

Mitsubishi NX-F 3015 2014 1

YouTube Thumbnail

Mitsubishi NX-F 3015 2014 1

Watch how it performs

in real-world use

MAKE

Mitsubishi

MODEL

NX-F 3015

YEAR

2014

CONTROL

N/A

REFERENCE

#2186188

TYPE

Laser Cutting Machine

Sell Similar Machine

Get a quote to sell your machine

Activate Search Agent

We'll help you find what you need

Sell Similar Machine

Specifications

Equipped With

Table Size - W 30"
Chuck Size (Inches) 8"
Resonator ( Type ) 55
Spindle Taper (CAT/BT) HSK-463
Spindle Speed 12,000 RPM
Max Swing (inches) 17.32"
Bar Stock Capacity 2.0"
Pallet Size (inches) 25"
Table Size - L 61"
Throat Depth 9.45"
Tool Changer Type 60 ATC
Turret Capacity 8 Positions
V-Axis Travel 5555
Vertical Travel of Ram 4444
Wire Diameter (inches) 3333
Wire Traveling Speed 22
Max Output 4000 Watt
X - Axis Travel (inches) 15.7" / 400mm
Y - Axis Travel (inches) 15.7" / 400mm
Z - Axis Travel (inches) 14.7" / 375mm
Motion Drive System Design Helical Rack & Pinion
Processing Lens Focal Distance in. 4.0/8.0
No. of control axes 3
Machine Structure X-Y Helical Rack & Pinion, Z Precision Linear Drive
Travel Drive Method X-Y-Z Simultaneous 3-axes (Z axis height control is also possible)
Table Pass Height: in (mm) 34.6 (880) 34.6
Table Pass Height 34.6"
Processing access Manual Door
Pallet Changer Provided
Rapid travel speed [X,Y]: in/min. (m/min.) 4724 (120) single axis, 6680 (170) simultaneous
Max. processing feedrate: in/min. (m/min.) 2360 (60)
Positioning Precision: in (mm) 0.0019/20 (0.05/500) X, Y axis, 0.0039/4 (0.01/100) Z-axis
Repeatable accuracy [X,Y]: in (mm) +/-0.00039 (+/-0.01)
Drive Motor Type Intelligent AC Servo
Max. workpiece weight: lb (kg) 2050 (930)
Type Self contained PC NC
CPU 64-bit
Display screen 15" TFT color LCD touch screen
Hard disk 20.0 GB
Generator output control Output Power, Frequency, Duty
Generator operation control Beam ON/OFF, laser gas change, etc.
Drive System X,Y,Z simultaneous control
Position detection system Encoder
Min. command unit: in (mm) 0.0001 (0.001)
Program input system USB, Computer Link, Eternet LAN

Machine Description

No description available
