Keyence IM-7010 2019

Image sensor | Field of view

Buy Now
Previous|Next

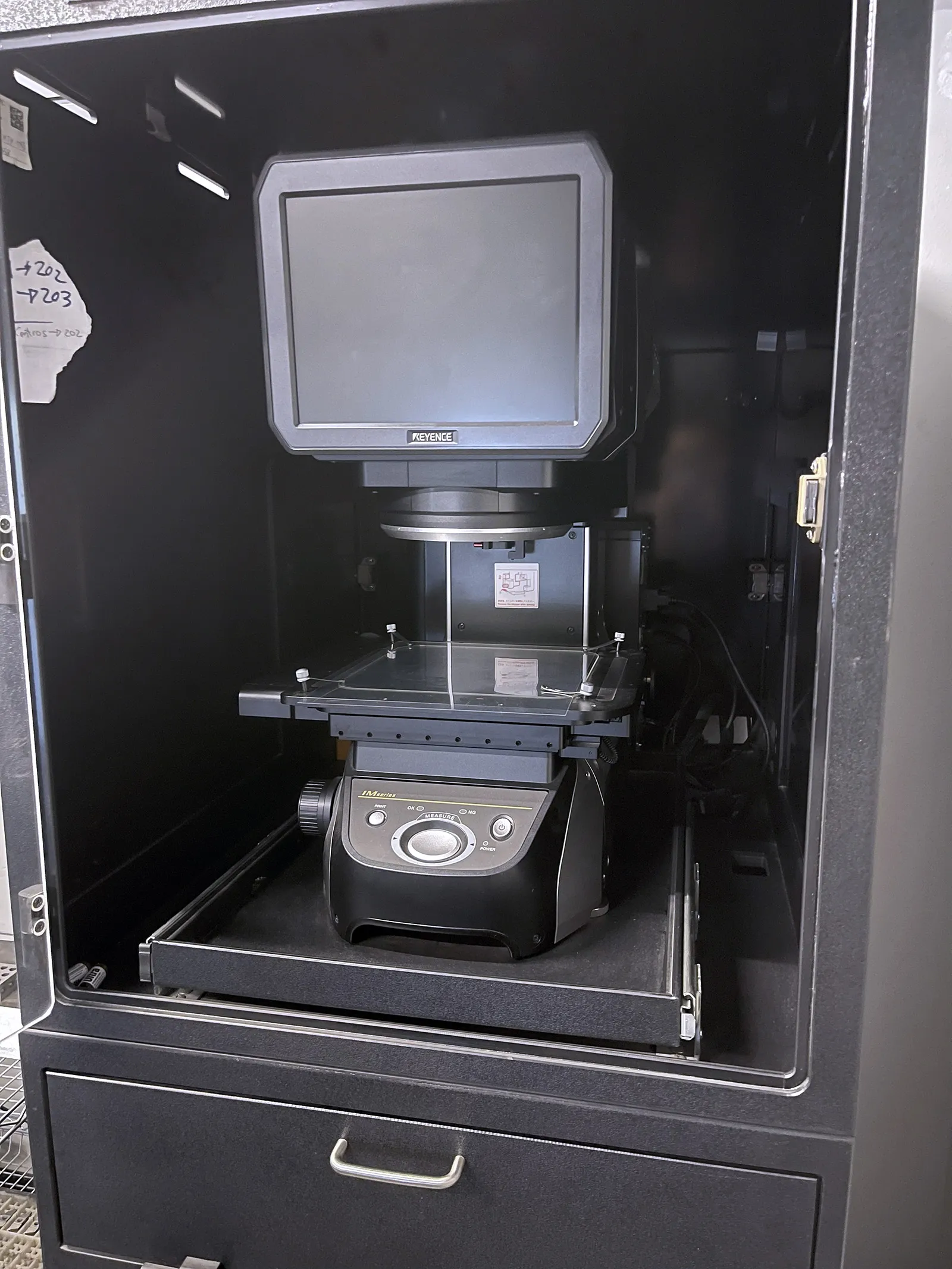

Keyence IM-7010_3754769

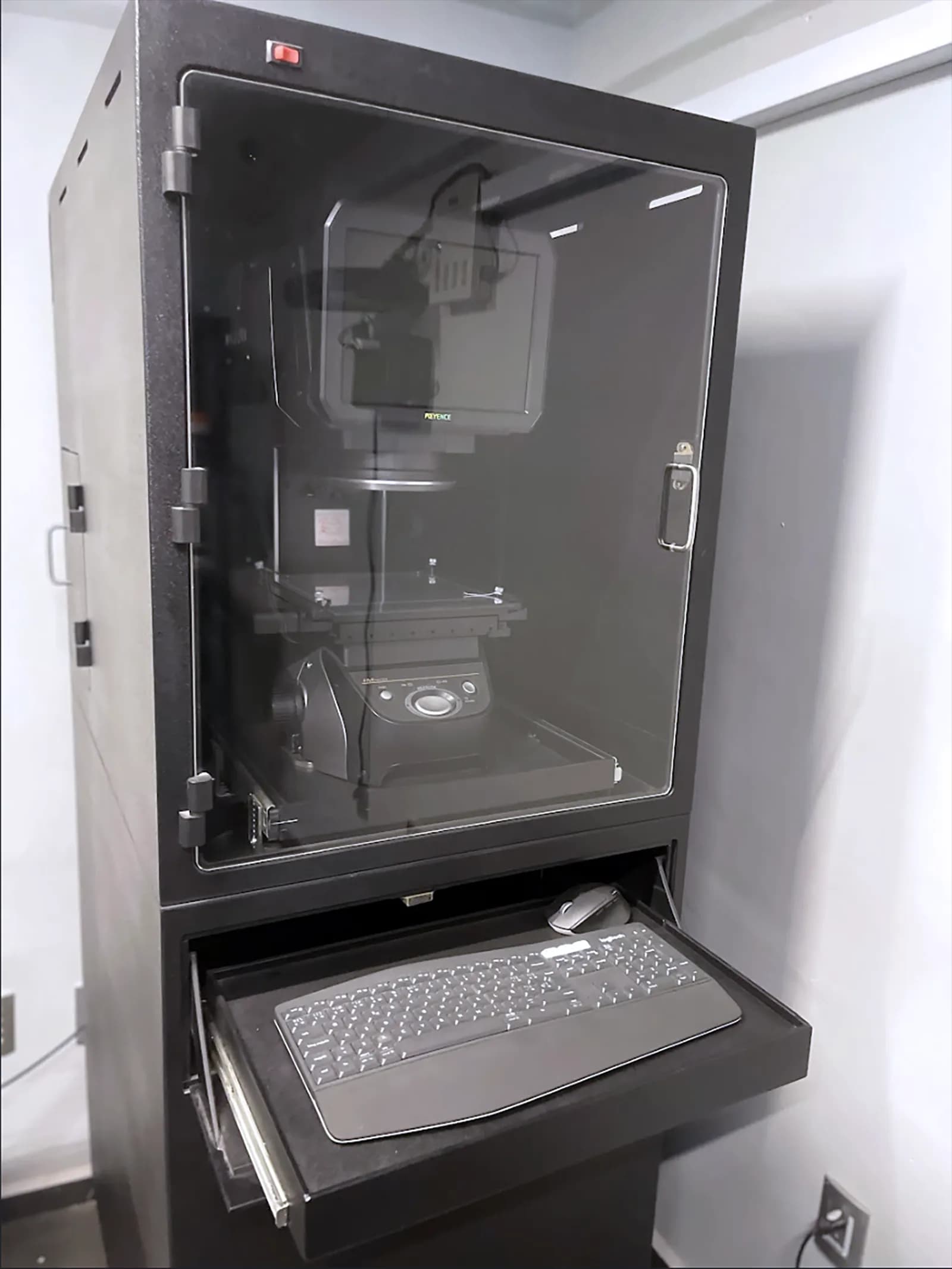

Keyence IM-7010_3754769
Keyence IM-7010_3754769
Keyence IM-7010_3754769
Keyence
IM-7010
2019
N/A
#3754769
Measuring Machine

Contact For Price

Request QuoteMake Offer
Sell your Keyence

Need more help? Chat now or Contact Us

Specifications

Equipped With

  • Type
  • Image Sensor 1” 6.6 mega pixel monochrome CMOS
  • Display 10. 4” LCD monitor (XGA: 1024 × 768)
  • Receiver Lens Double telecentric lens
  • Image measurement
  • Field of view
  • Field of view - Wide field measurement mode 200 mm x 200 mm 7.87 × 7.87" (4x R50)
  • Field of view - High precision measurement mode 125 × 125 mm 4.92 × 4.92"
  • Minimum Display Unit 0.1 µm
  • Repetition Accuracy
  • Repeatability-W/o stage movement
  • W/o stage movement-Wide field measurement mode ±1 µm
  • W/o stage movement-High precision measurement mode ±0.5 µm
  • With stage movement
  • With stage movement-Wide field measurement mode ±2 µm
  • With stage movement-High precision measurement mode ±1.5 µm
  • Measurement accuracy (±2σ)
  • W/o binding
  • W/o binding-Wide field measurement mode ±5 µm *1
  • W/o binding-High precision measurement mode ±2 µm*2
  • With binding
  • With bindin-Wide field measurement mode ± (7+0.02 L) µm*3
  • With bindin-High precision measurement mode ± (4+0.02L) µm*4
  • External remote input Non-voltage input (with and without contact)
  • External output OK/NG/FAIL/MEAS
  • PhotoMos output
  • Rated load 24 VDC 0.5 A
  • ON resistance 50 mΩ or lower
  • Interface
  • LAN
  • RJ-45 (10BASE-T/100BASE-TX/1000BASE-T)
  • USB 3.1
  • 4 ports (rear: 4)
  • USB 2.0 series A
  • 2 ports (front: 2)
  • Record - Hard disk drive 500 GB
  • Illumination system Transparent
  • Illumination System Transparent Telecentric Transparent Illumination
  • Telecentric transparent illumination
  • Ring
  • Four division ring illumination
  • XY stage - Moving Range 100 × 100 mm 3.94 × 3.94" (electric)
  • Withstand load 5 kg
  • Z stage - Moving range 75 mm 2.95" (electric)
  • Power Supply
  • Power voltage 100 to 240 VAC 50/60 Hz
  • Power Consumption 430 VA or lower
  • Environmental resistance
  • Pollution Degree 2
  • Overvoltage Category II
  • Ambient Temperature +10 to +35 °C 50 to 95 °F
  • Relative Humidity 20 to 80 % RH (No condensation)
  • Weight Approx. 30 kg

Machine Description

The Keyence IM-7010 Measuring Machine (2019) is a high-speed optical inspection system engineered for automated, precise dimensional measurement in modern manufacturing environments. Ideal for quality control applications, it quickly measures stamped parts, machined components, resin molds, springs, and gears with exceptional accuracy. Designed to replace traditional microscopes and calipers, the IM-7010 delivers fast, repeatable inspection of internal diameters, external diameters, and complex geometries, improving production efficiency and reducing operator error in industrial QC processes.
