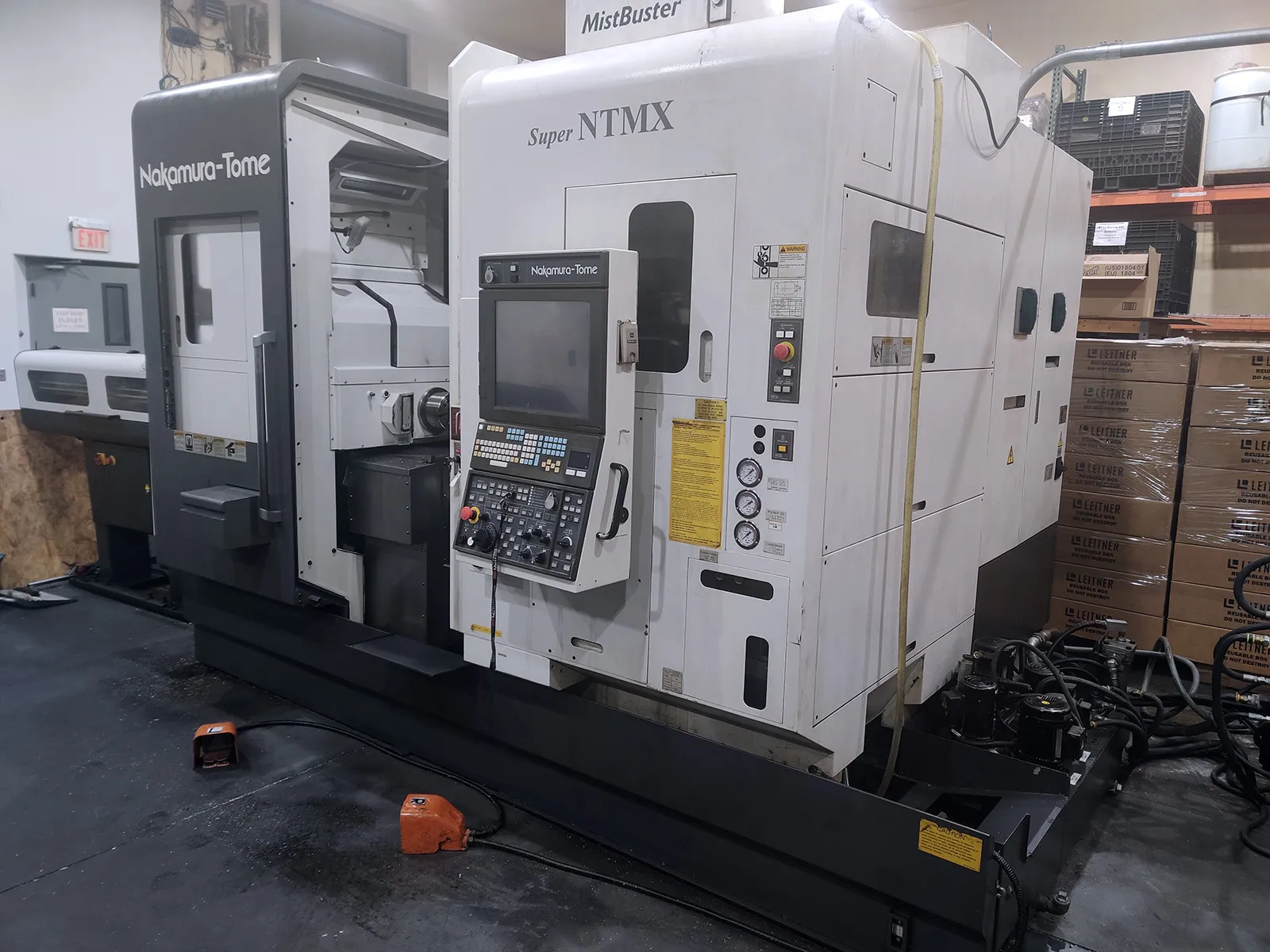

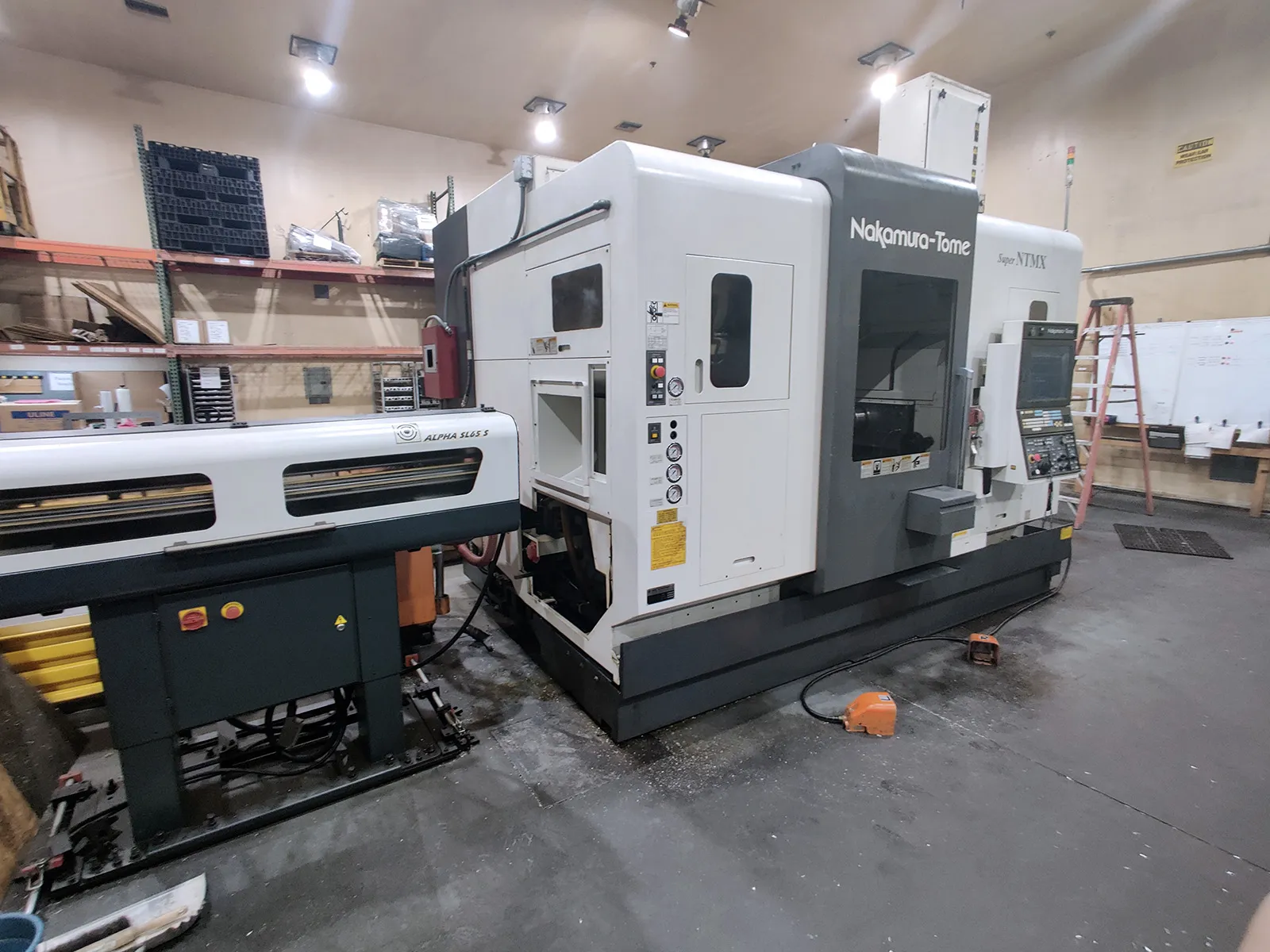

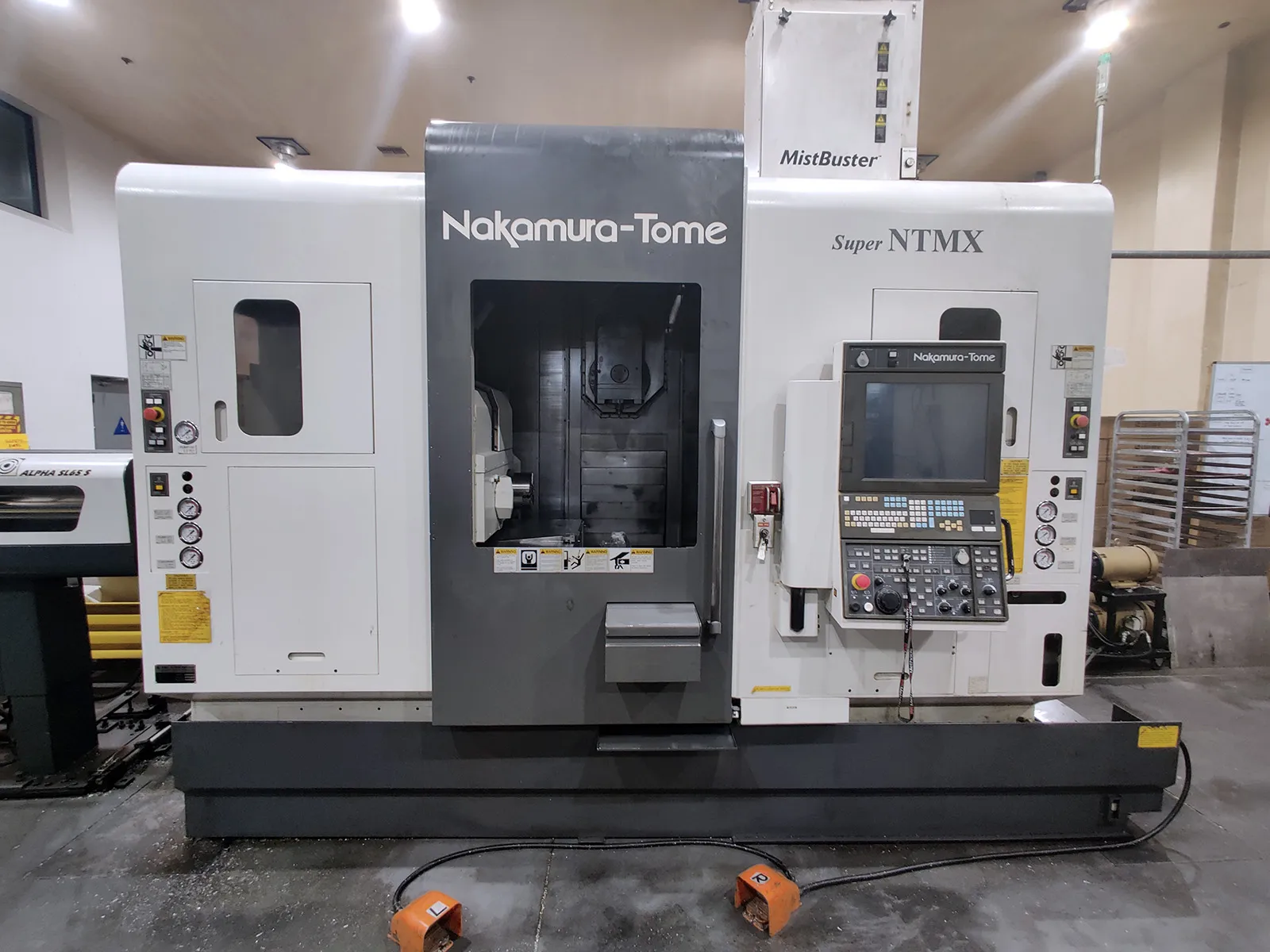

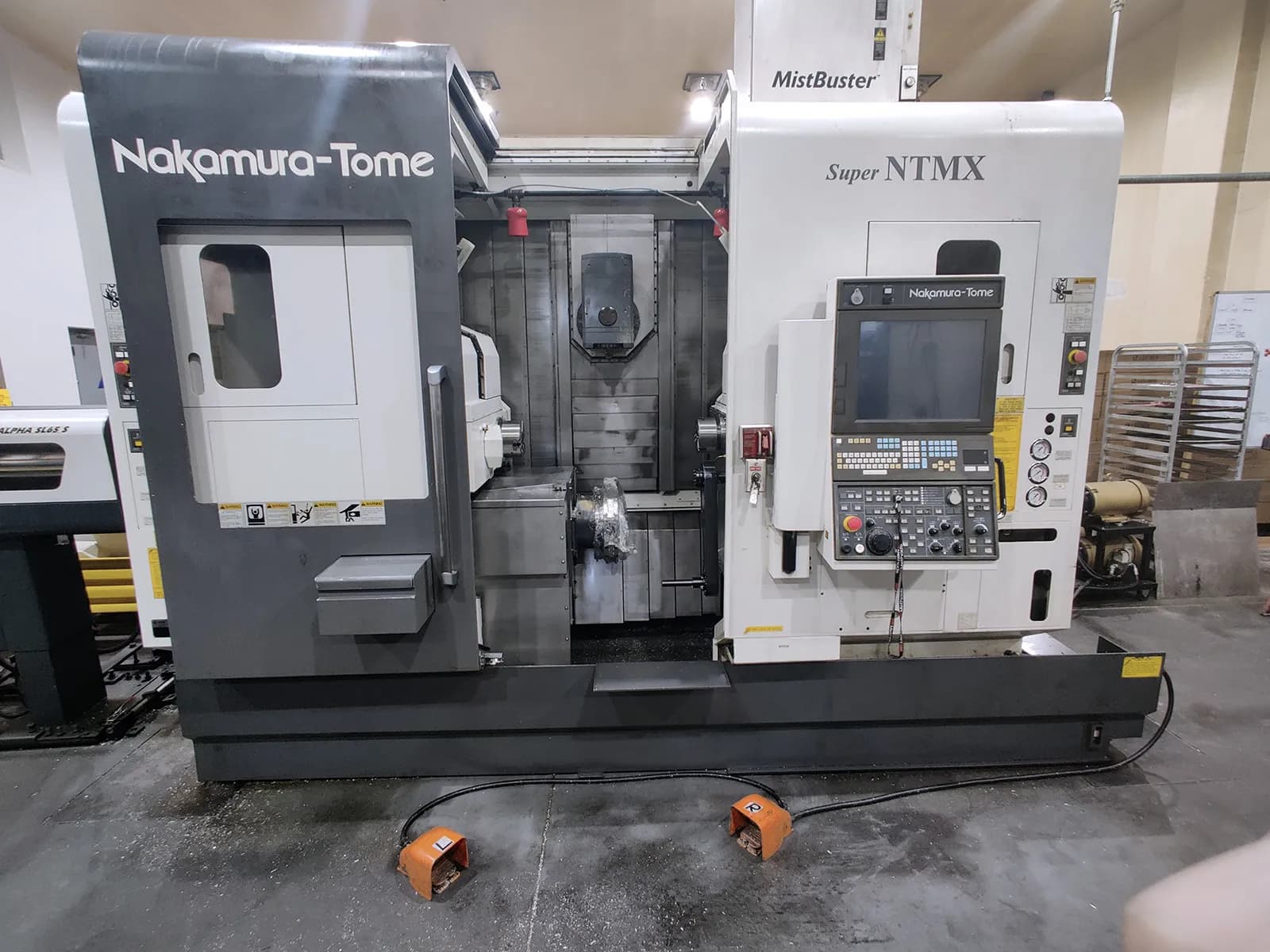

Nakamura Tome SUPER NTMX 2013
Tool Holders Included! Under Power! Readily Available!
Equipped With

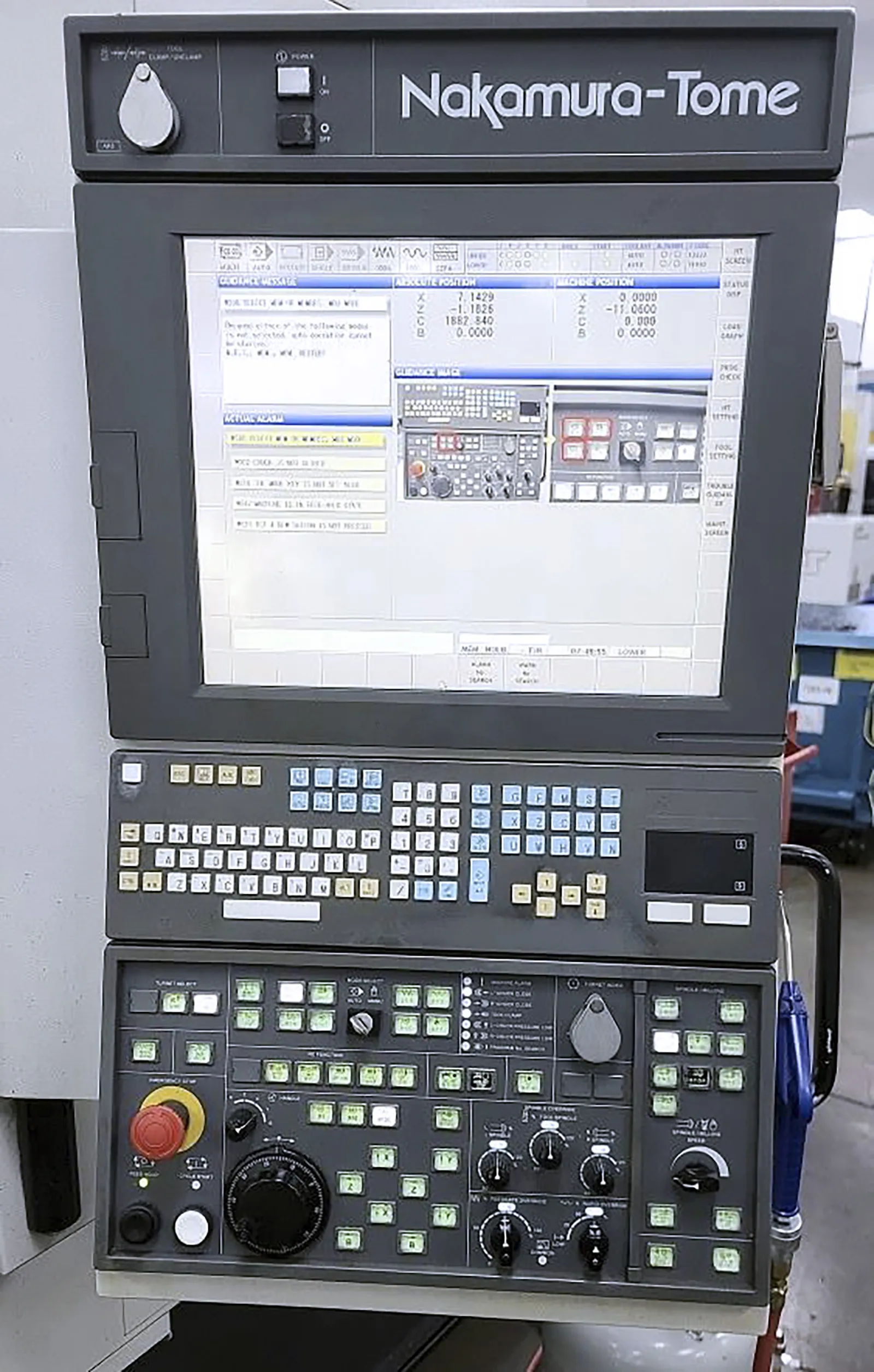

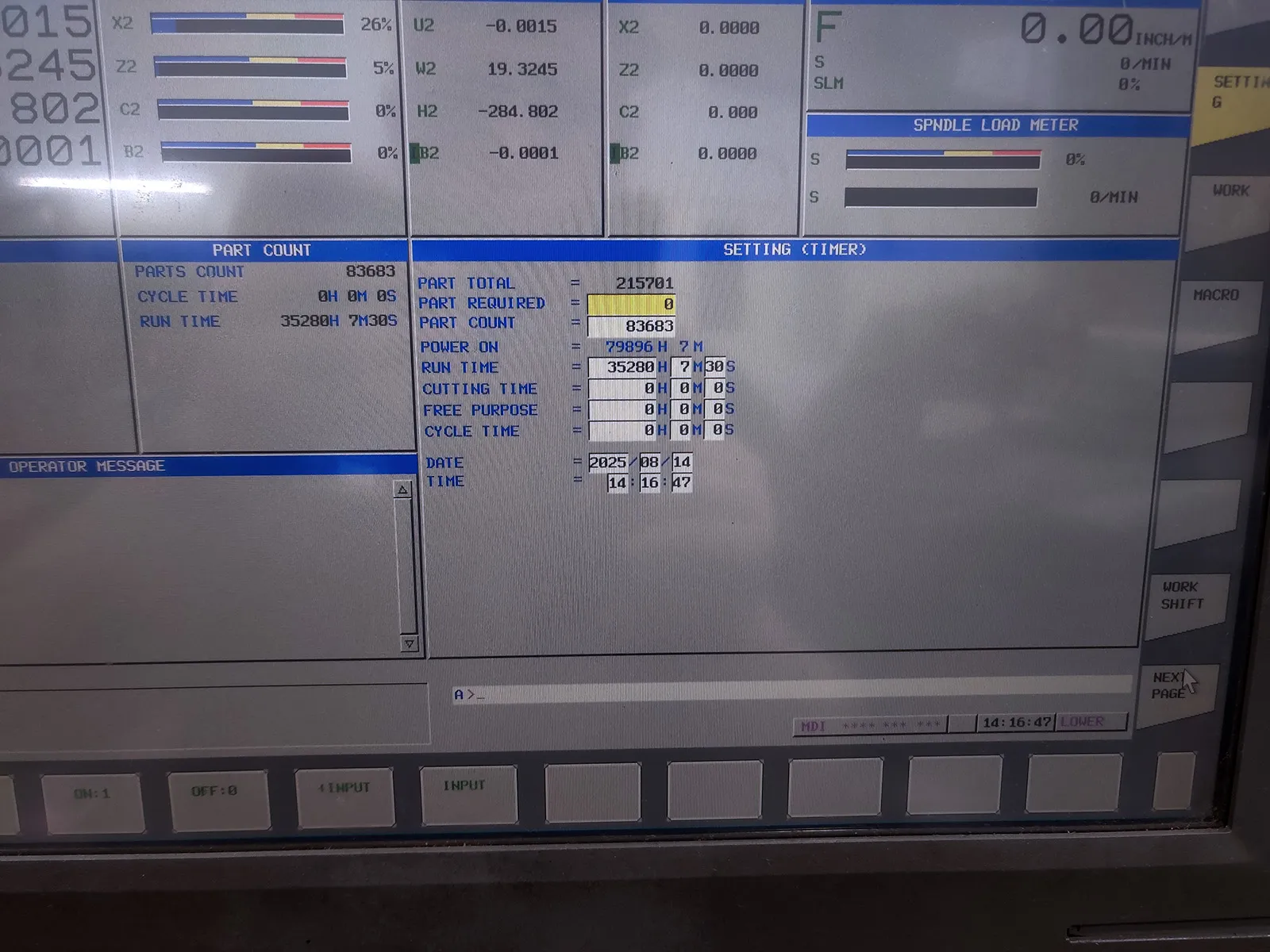

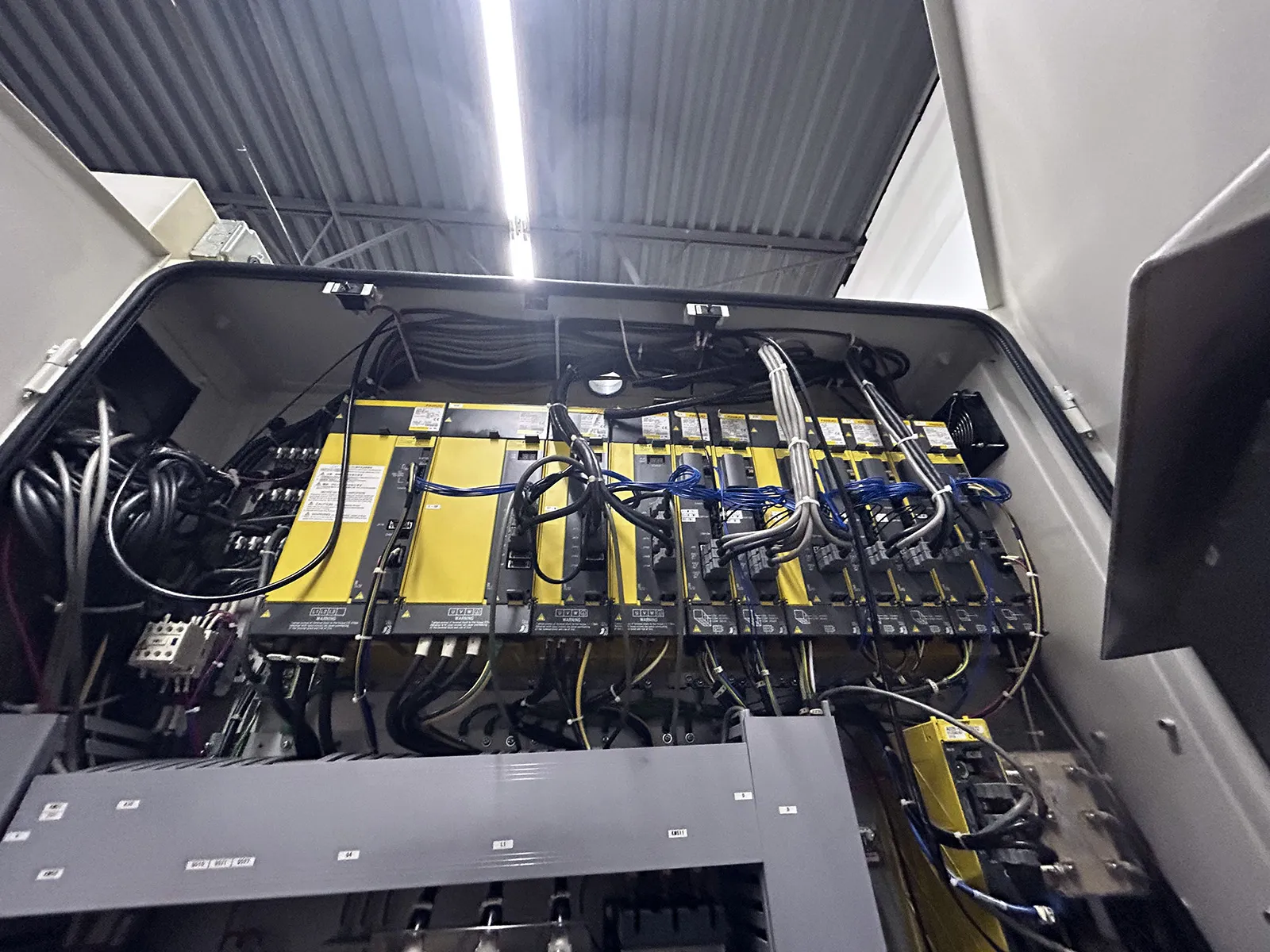

- FANUC 31i-A5 2PATH CNC CONTROL

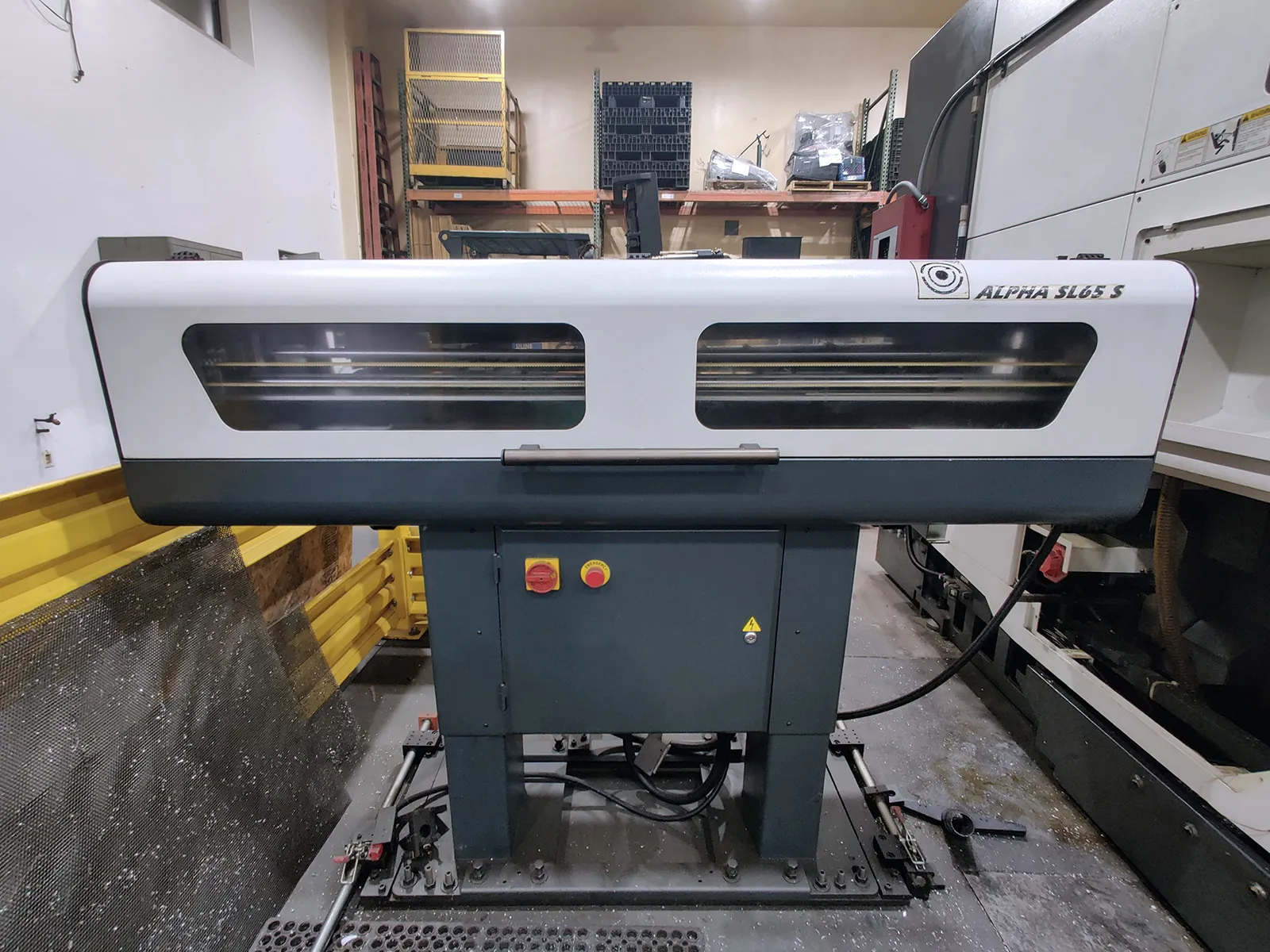

- LNS ALPHA SL65-S BAR FEEDER (2014)
- 9-CONTROLLED AXES
- 5-AXES SIMULTANEOUS MACHINING (UPPER X1 Z1 C1[C2] Y B1)
- 4-AXES (LOWER X2 Z2 C2[C1] B2)
- SIMULTANEOUS TURNING UPPER & LOWER TURRETS
- 48 ATC (24 ATC MAGAZINE UPPER/24 ATC MAGAZINE LOWER)
- THRU-SPINDLE COOLANT

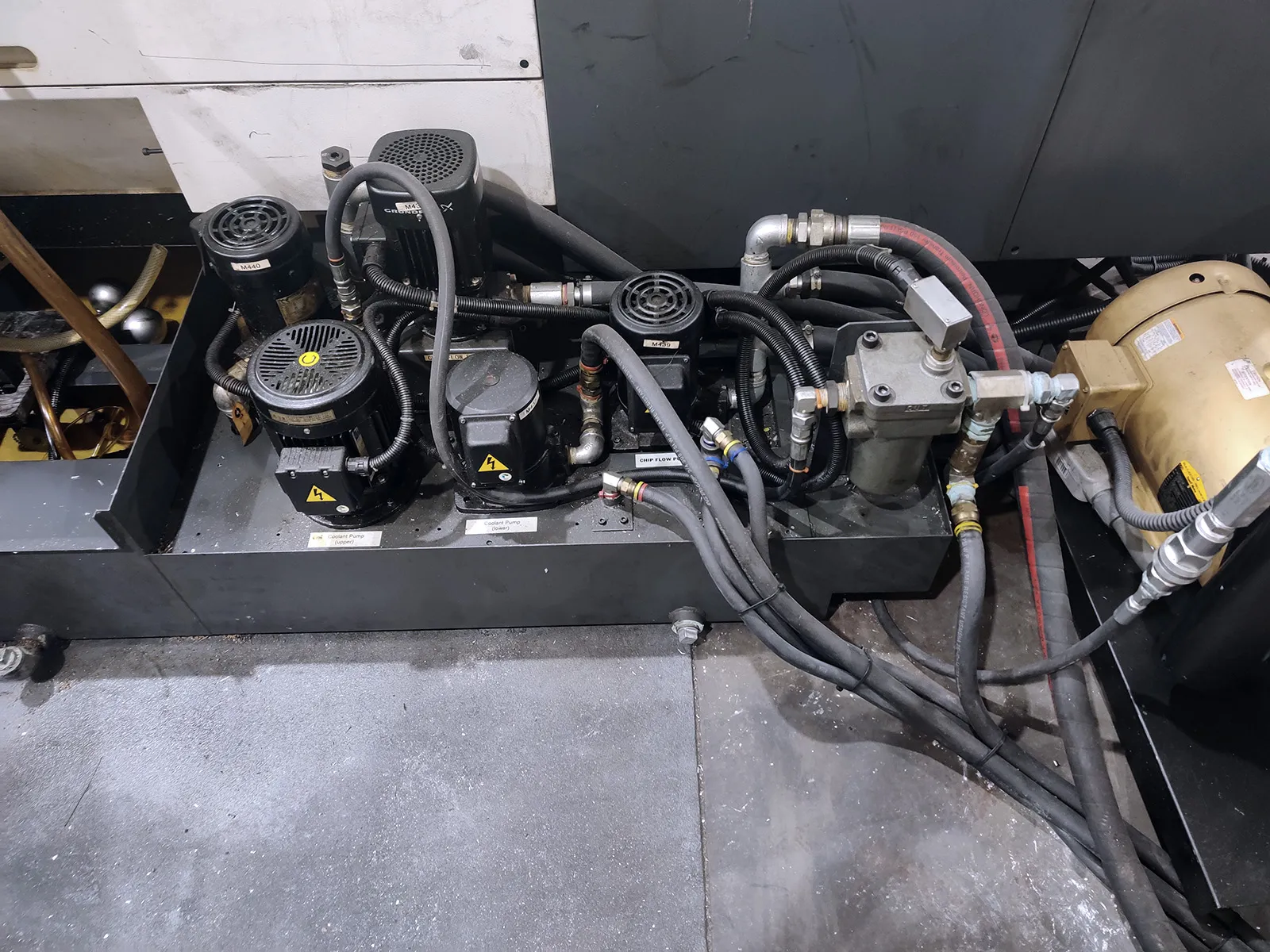

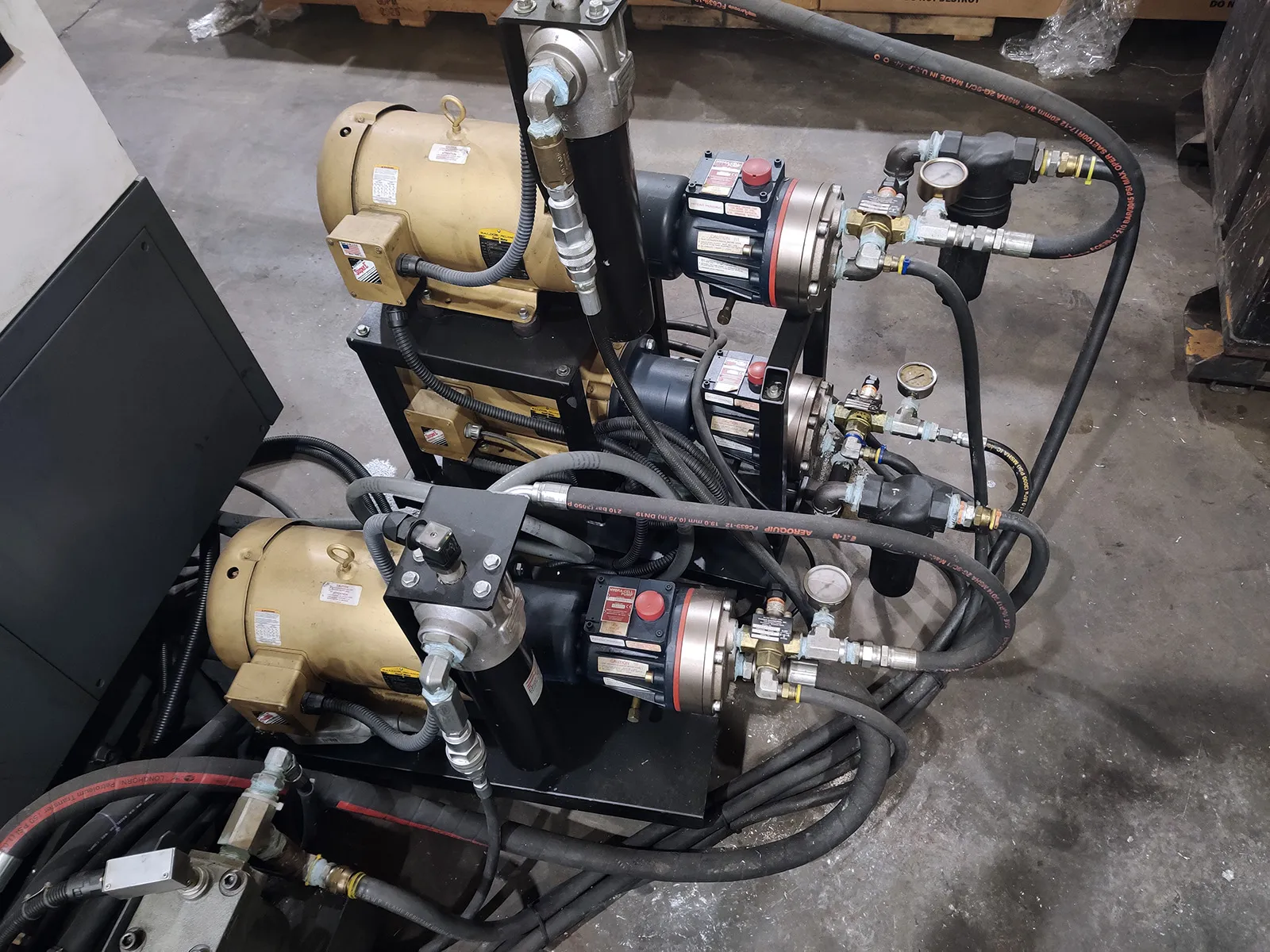

- HIGH PRESSURE COOLANT (1000 PSI)
- RENISHAW NC4 LASER TOOL SETTER (SETTING UPPER TOOLS)
- SRP3 TOOL PRESETTER (SETTING LOWER TOOLS)
- PART CONVEYOR
- PARTS CATCHER

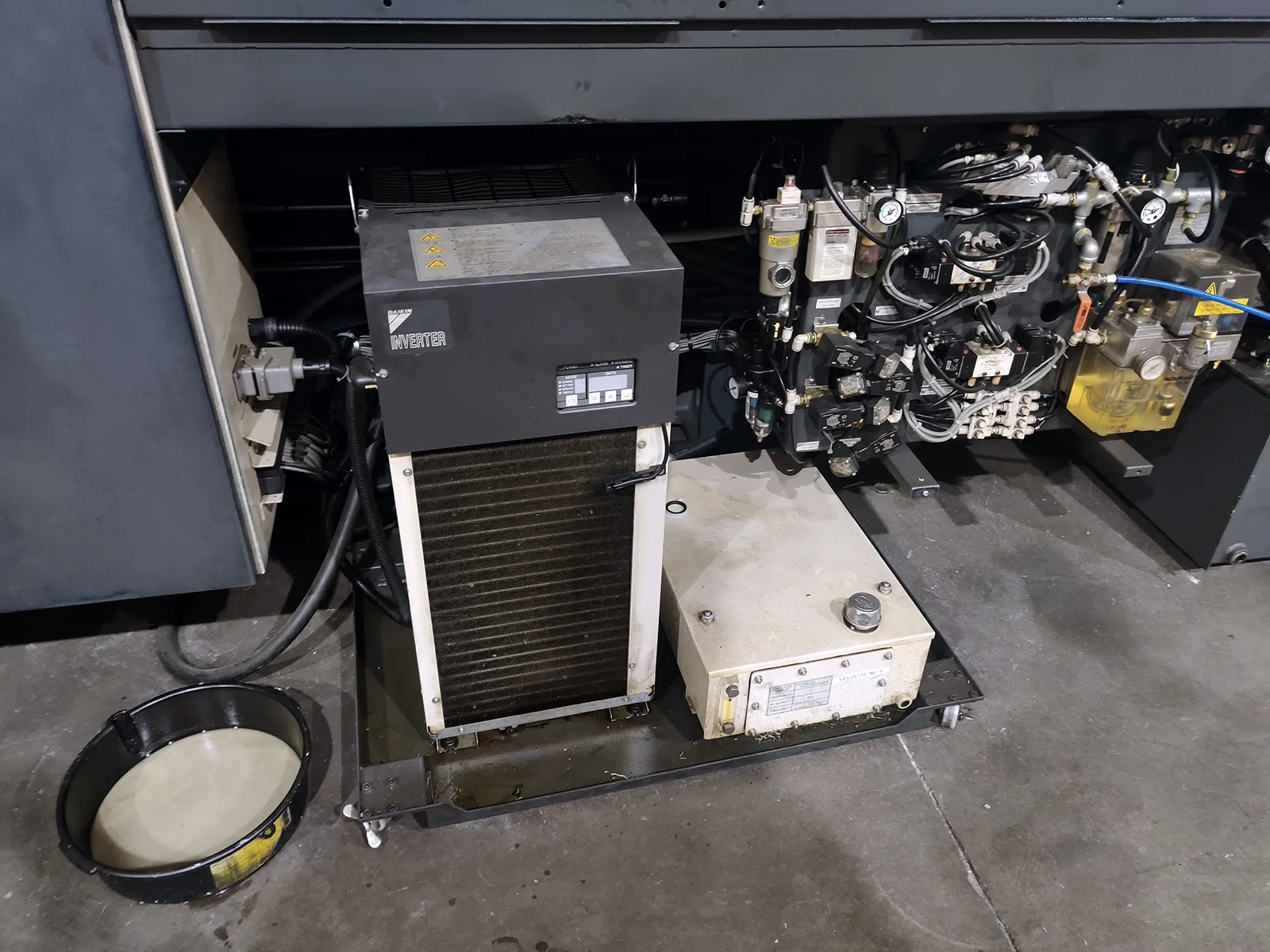

- SPINDLE CHILLER

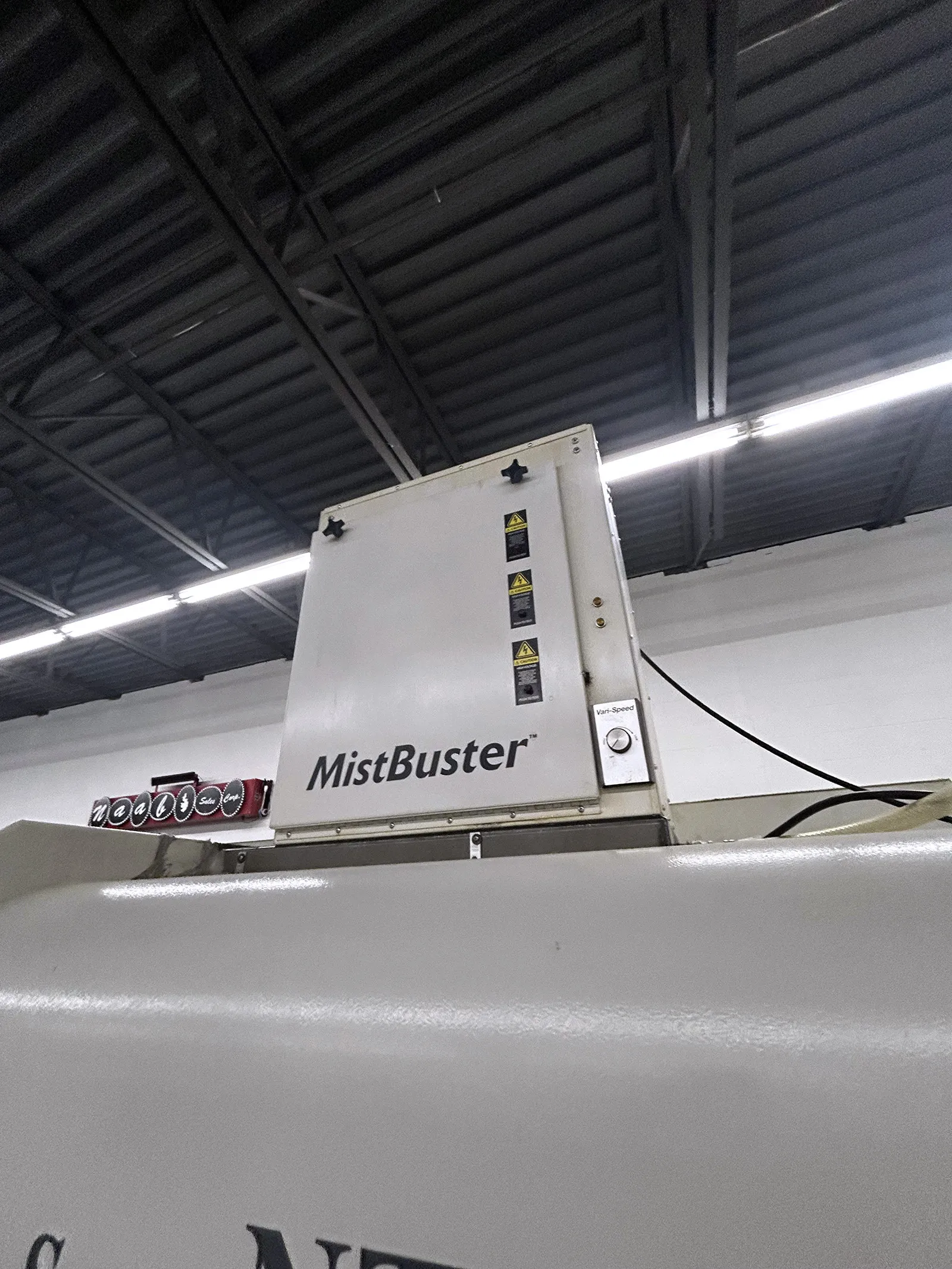

- MIST BUSTER MIST COLLECTOR
- FIRE SUPPRESSION SYSTEM

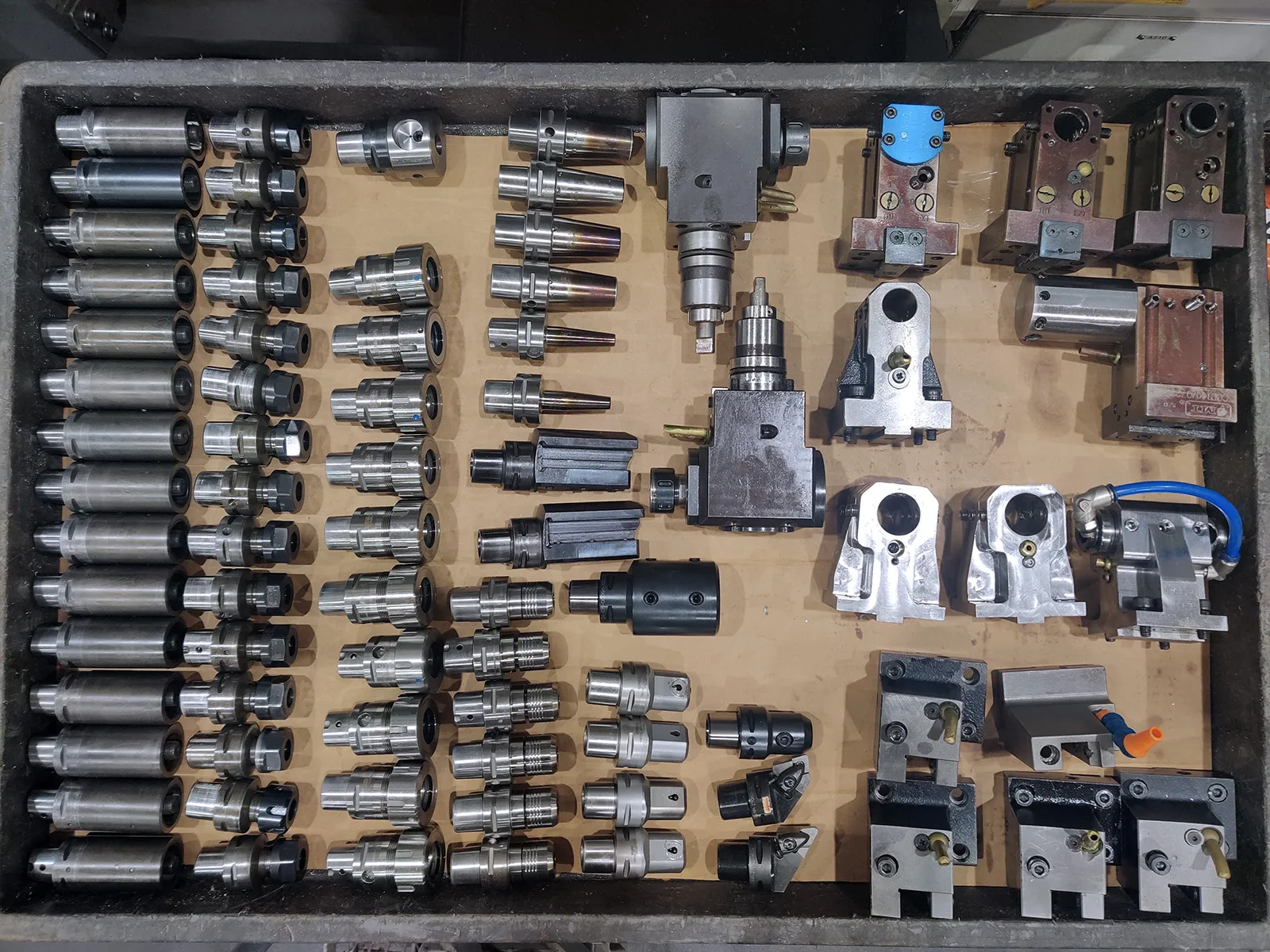

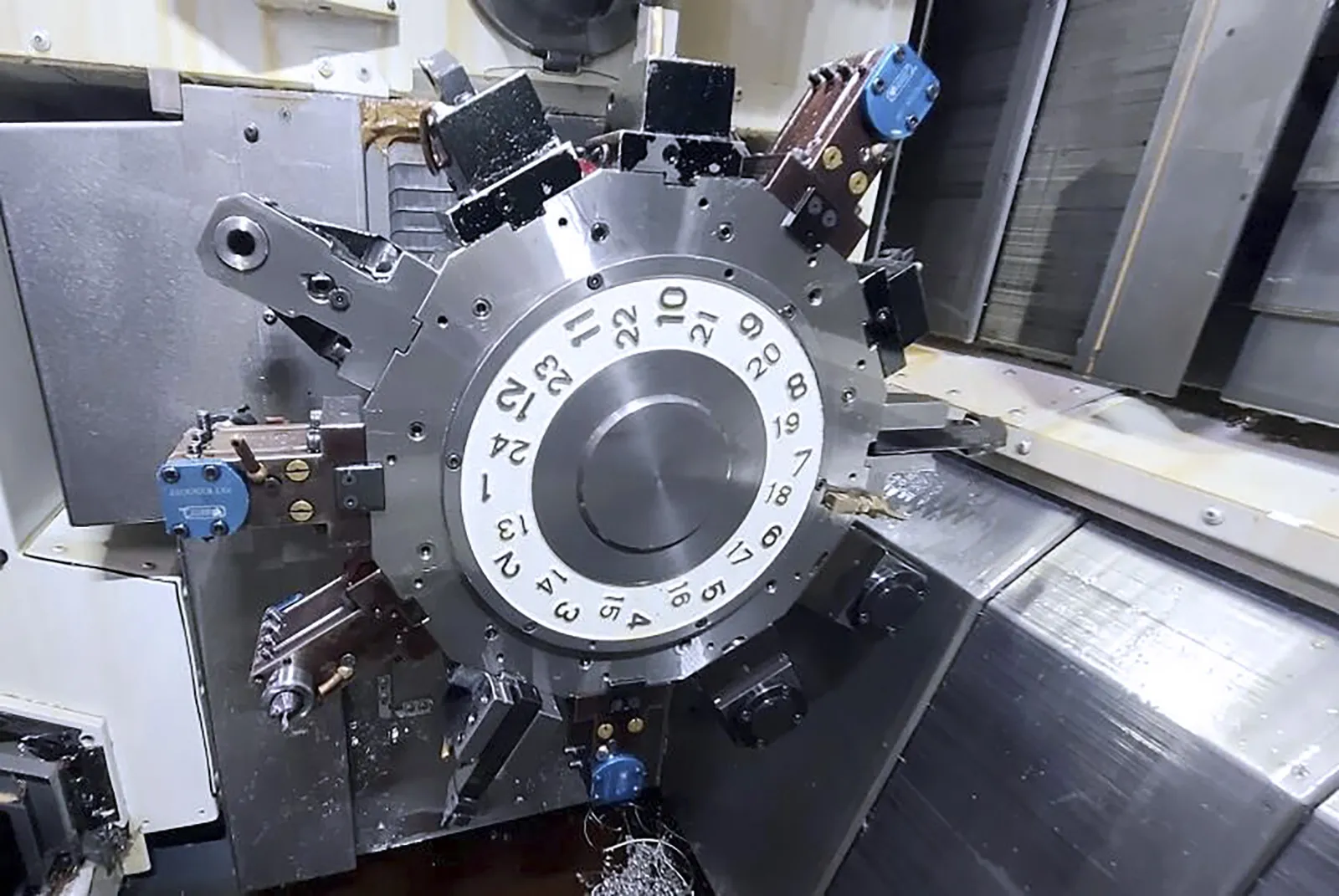

- LOWER TURRET (14 HOLDERS):
- (2) DRIVEN 90 DEGREE ER16 HOLDERS
- (5) BORING BAR HOLDERS 1” DIA
- (2) BORING BAR HOLDERS 1.25 DIA
- (5) STICK TOOLING BLOCK
- MILLING HEAD (63 HOLDERS):
- (15) C4 EXTENSIONS
- (6) ER16 HOLDERS (ULTRA-HIGH-PRECISION)
- (15) ER20 HOLDERS
- (10) ER32 HOLDERS (LYNDEX NIKKEN)
- (4) INTERNAL BORING TOOL HOLDERS (PH HORN)
- (1) PRECISION BORING HEAD
- (2) CUTOFF BLADE HOLDER
- (2) OD TURNING HOLDERS
- (1) SIDE-LOC HOLDER
- (1) BORING BAR HOLDER
- (6) SHRINK FIT HOLDERS
Specifications
- Swing over cross slide 8.07"
- Max Cutting Diameter 7.87"
- Max Cutting Length 30"
- DISTANCE BETWEEN CENTERS 38.58"
- X-Axis Travel 22.44"
- Y-Axis Yes
- Y-Axis Travel 7.87" (±3.93")
- Z-Axis Travel 51.1"
- Chuck Size 7"
- Bar Capacity 2"
- Spindle Nose A2-5
- Spindle Motor 15 hp
- Spindle Speed 5,000 RPM

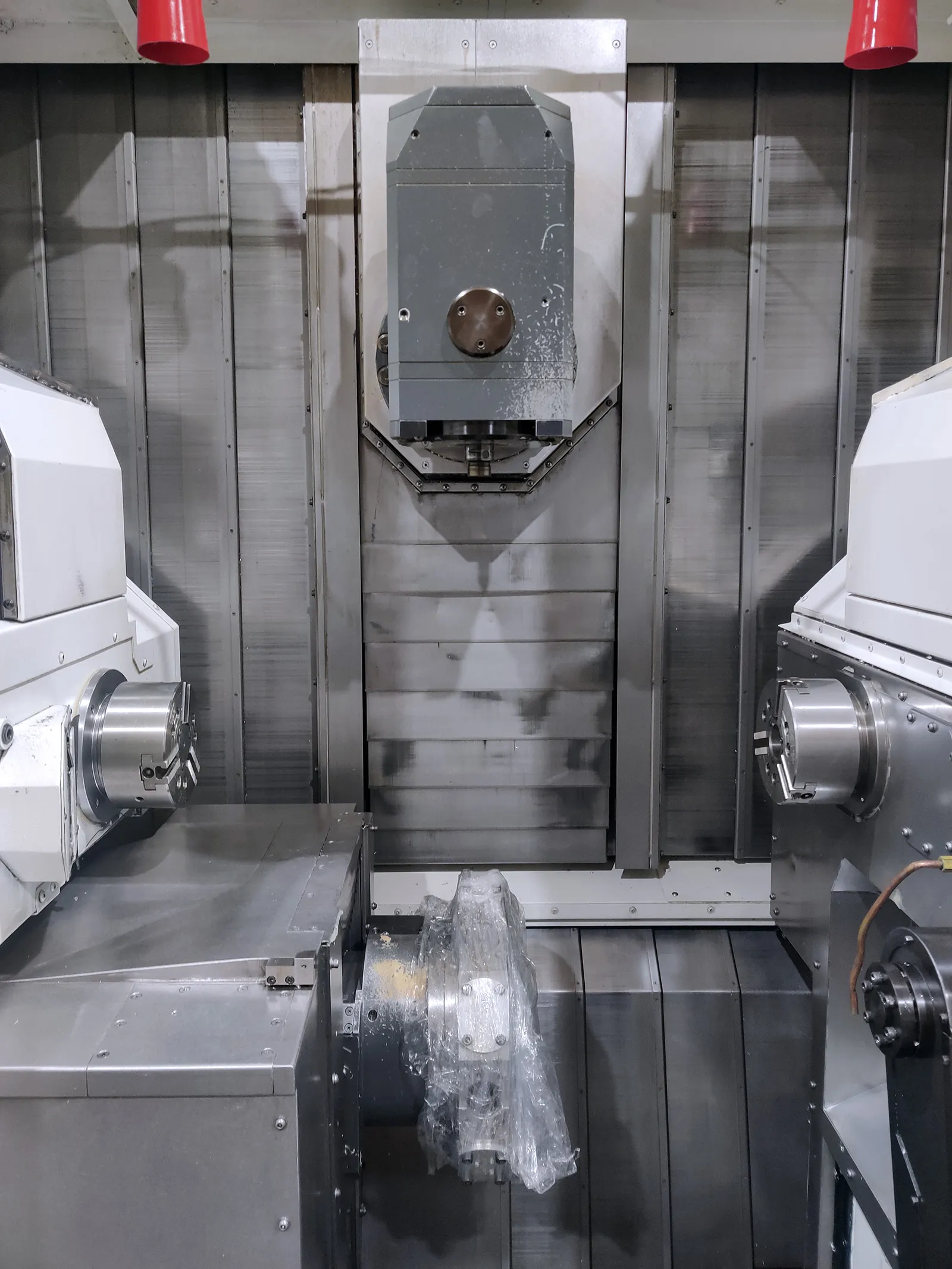

- Sub Spindle Yes
- Sub Spindle - Chuck Size 7"
- SUB SPINDLE - BAR CAPACITY 2"
- SUB SPINDLE - Spindle Nose A2-5
- SUB SPINDLE - SPINDLE MOTOR 15 hp
- Sub Spindle - Spindle Speed 5,000 RPM
- B-AXIS MILLING SPEED 12,000 RPM
- B-AXIS Rotation 190° (±95°)
- Turret Capacity 24
- Live Milling Speed 12,000 RPM
- TURRET 2 CAPACITY 24
- TURRET 2 - X-AXIS TRAVEL 5.13"
- TURRET 2 - Z-AXIS TRAVEL 25.9"
Machine Description
NAKAMURA TOME SUPER NTMX (2013) CNC Turn-Mill Center is engineered for complete machining of complex, high-precision components in a single setup. Designed for aerospace, medical, automotive, and energy applications, it delivers exceptional accuracy, reduced cycle times, and increased productivity for parts such as turbine components, implants, housings, valves, and drivetrain assemblies.
