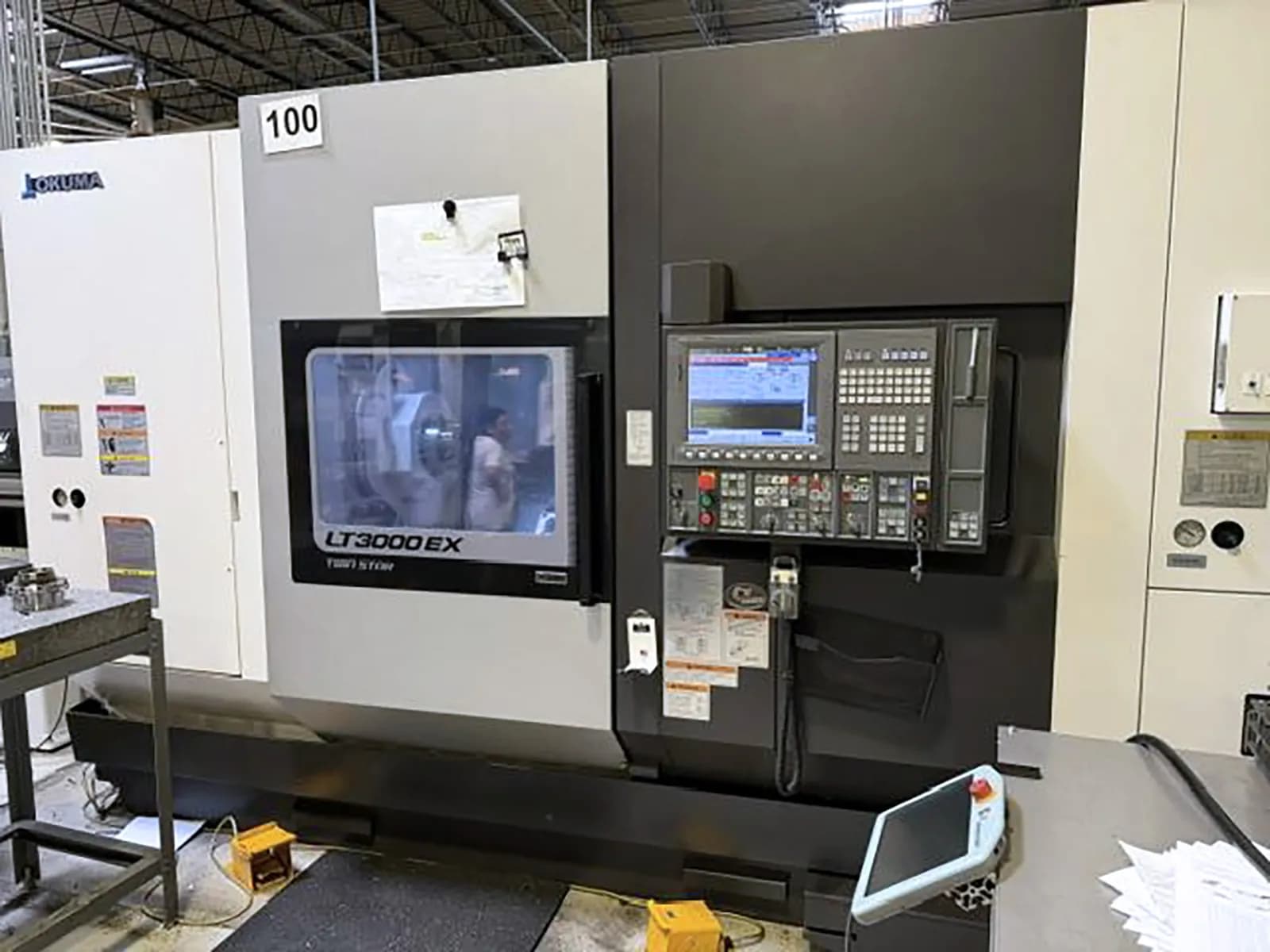

Okuma LT3000-EX-3T3MY 2021
Very Low Hours! Tool Holders Included! Under Power!
Equipped With

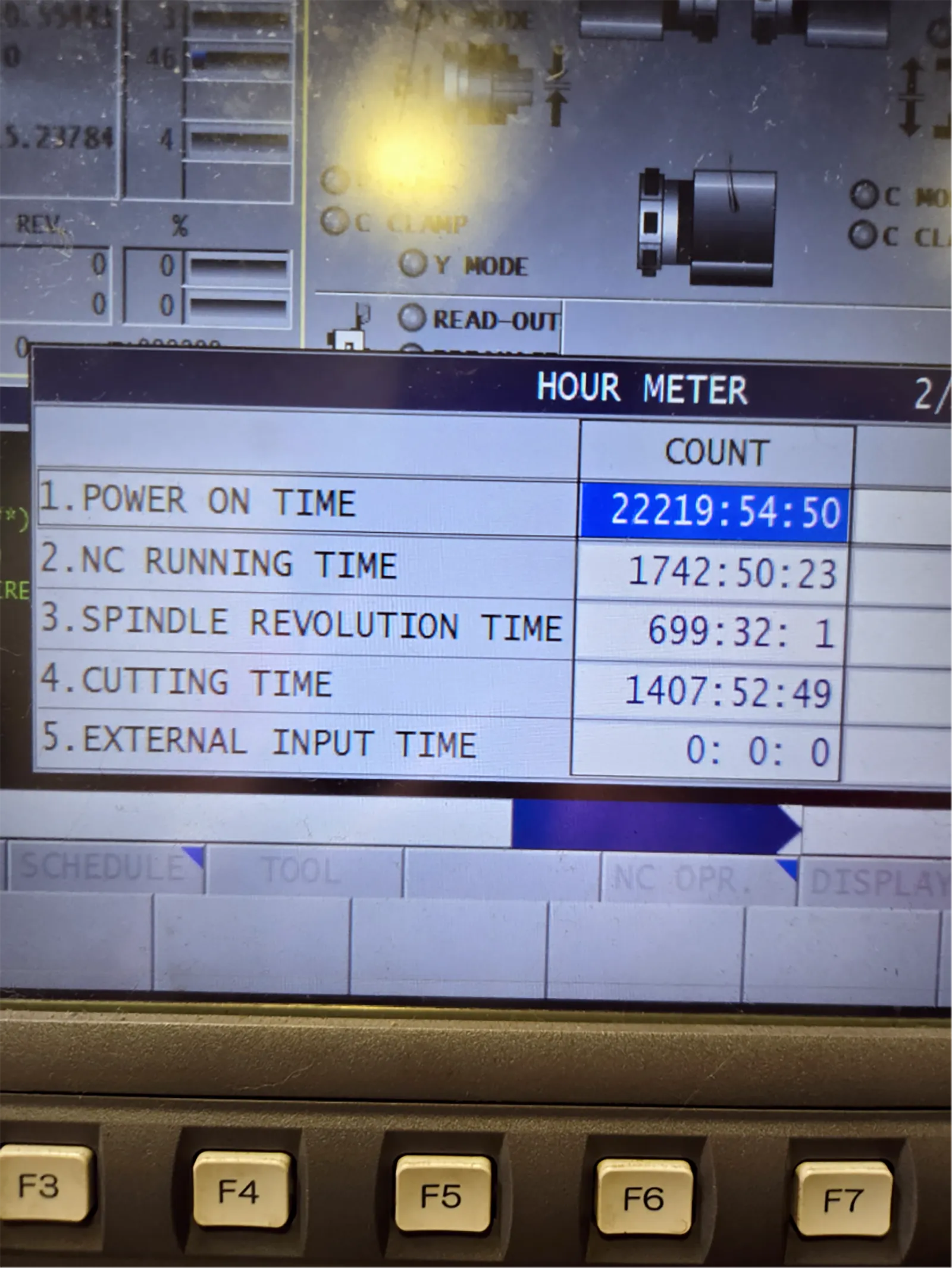

- Only 1407 Cutting Hours

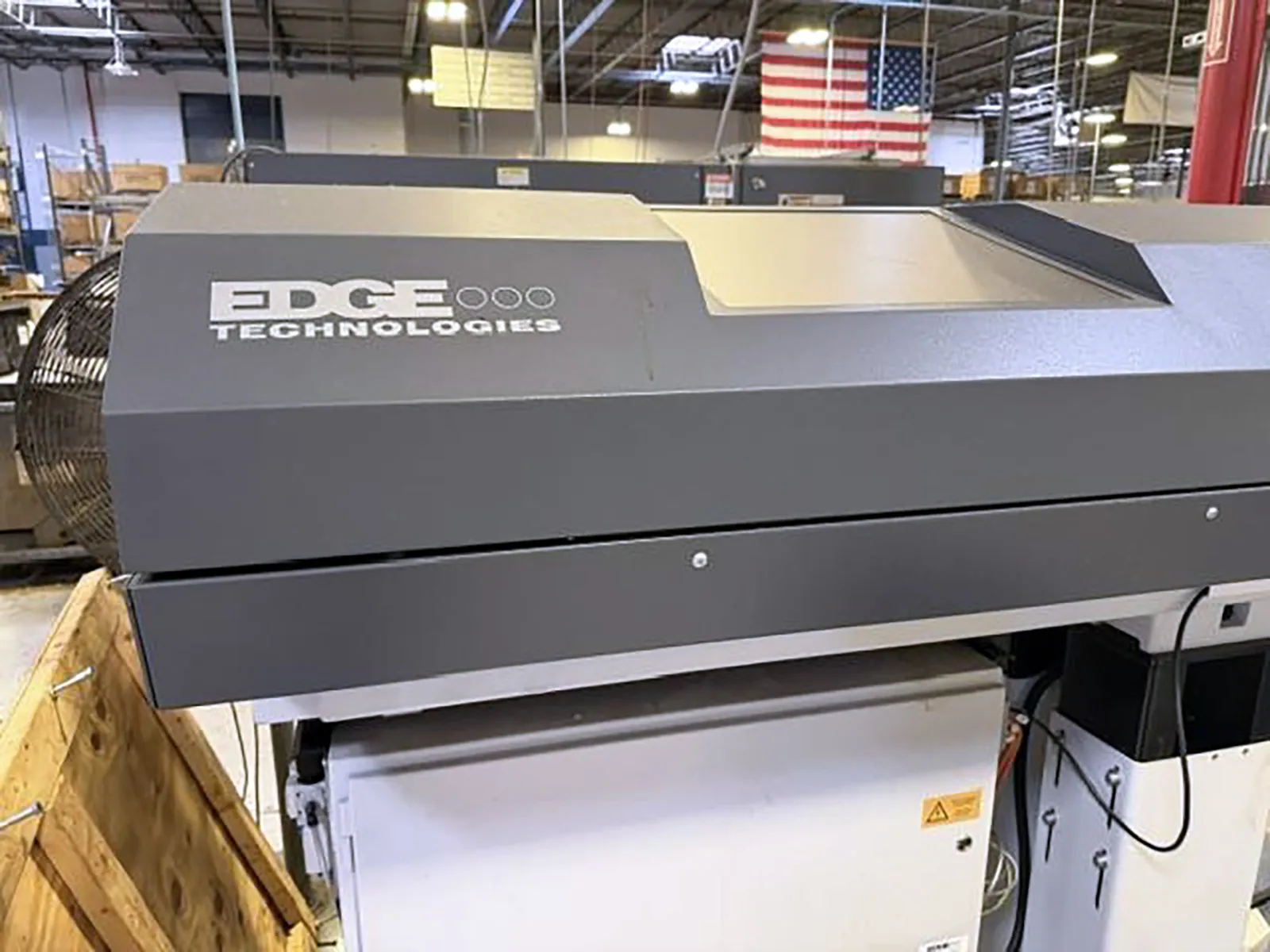

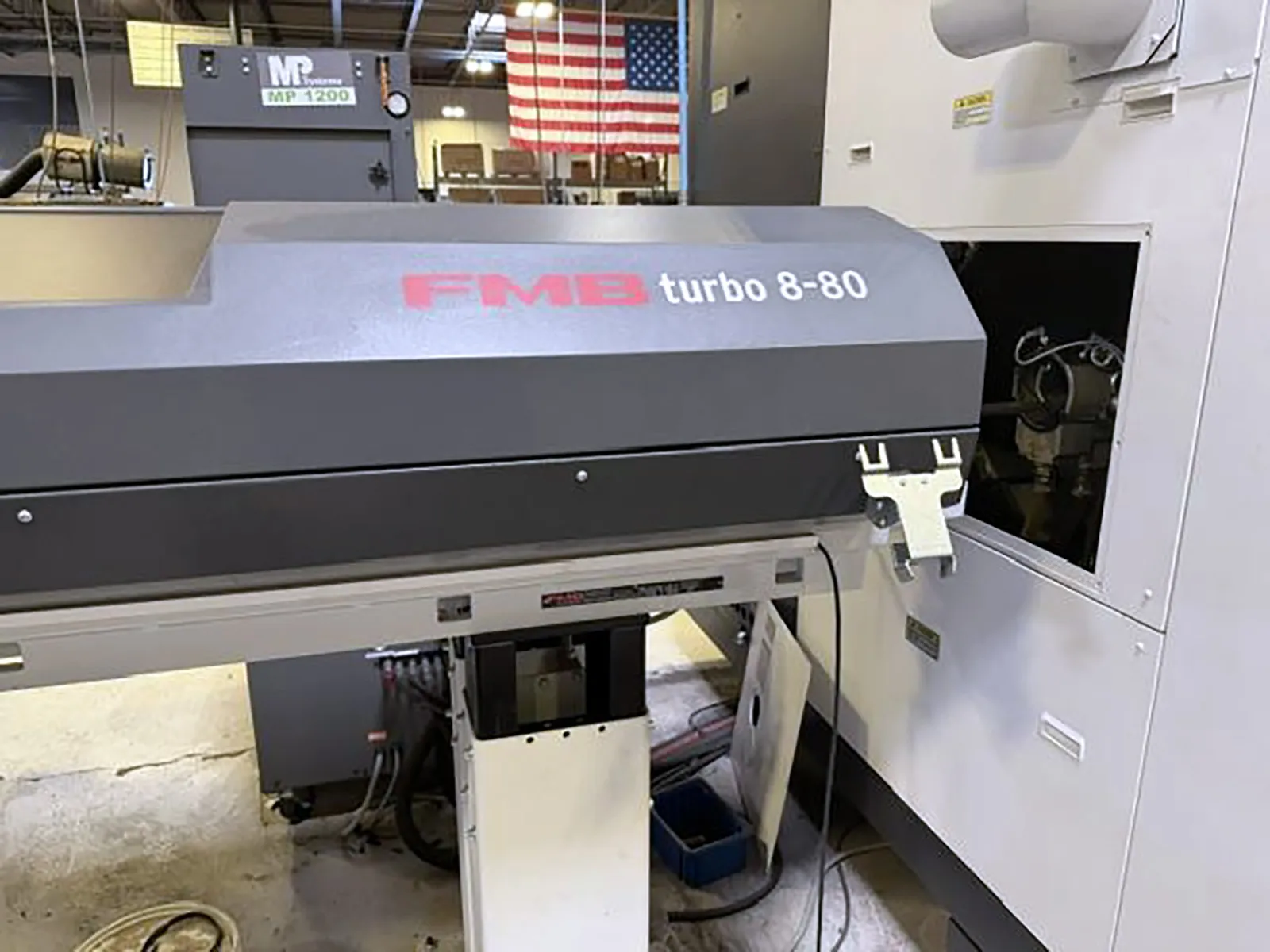

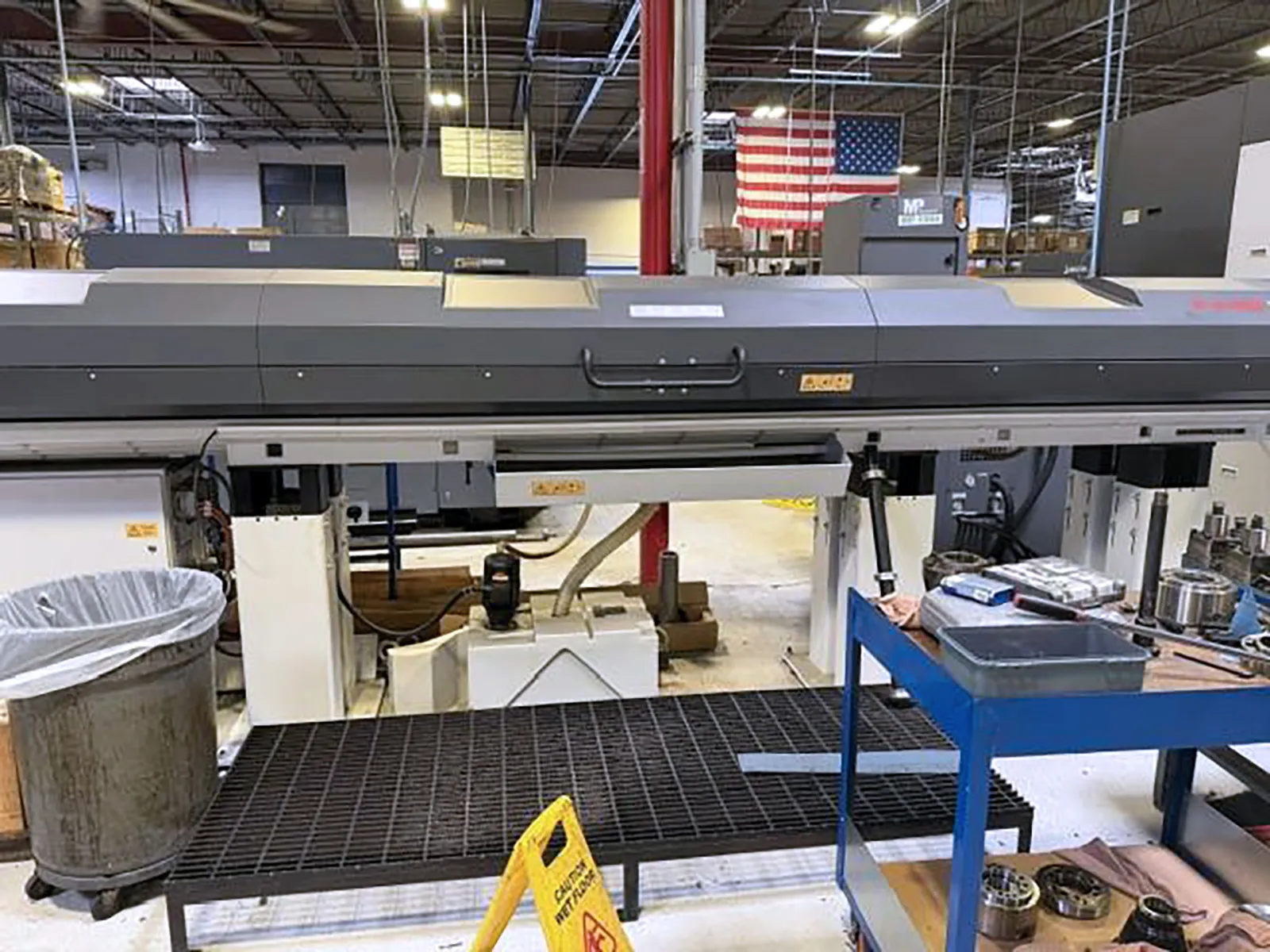

- Edge FMB Turbo 8-80/12’ Bar Feeder
- MP-1200 Mist Collection System (Mounted on MP Pump)
- MP Systems RTF 1000 PSI High Pressure Coolant System
- 15" Color Multi-Touch Color Display
- 2 GB RAM Memory
- Coordinate Conversion
- C-X Contouring
- Helical Cutting For X-C-Z
- Hi-Cut Pro
- Negative Tool Radius Compensation

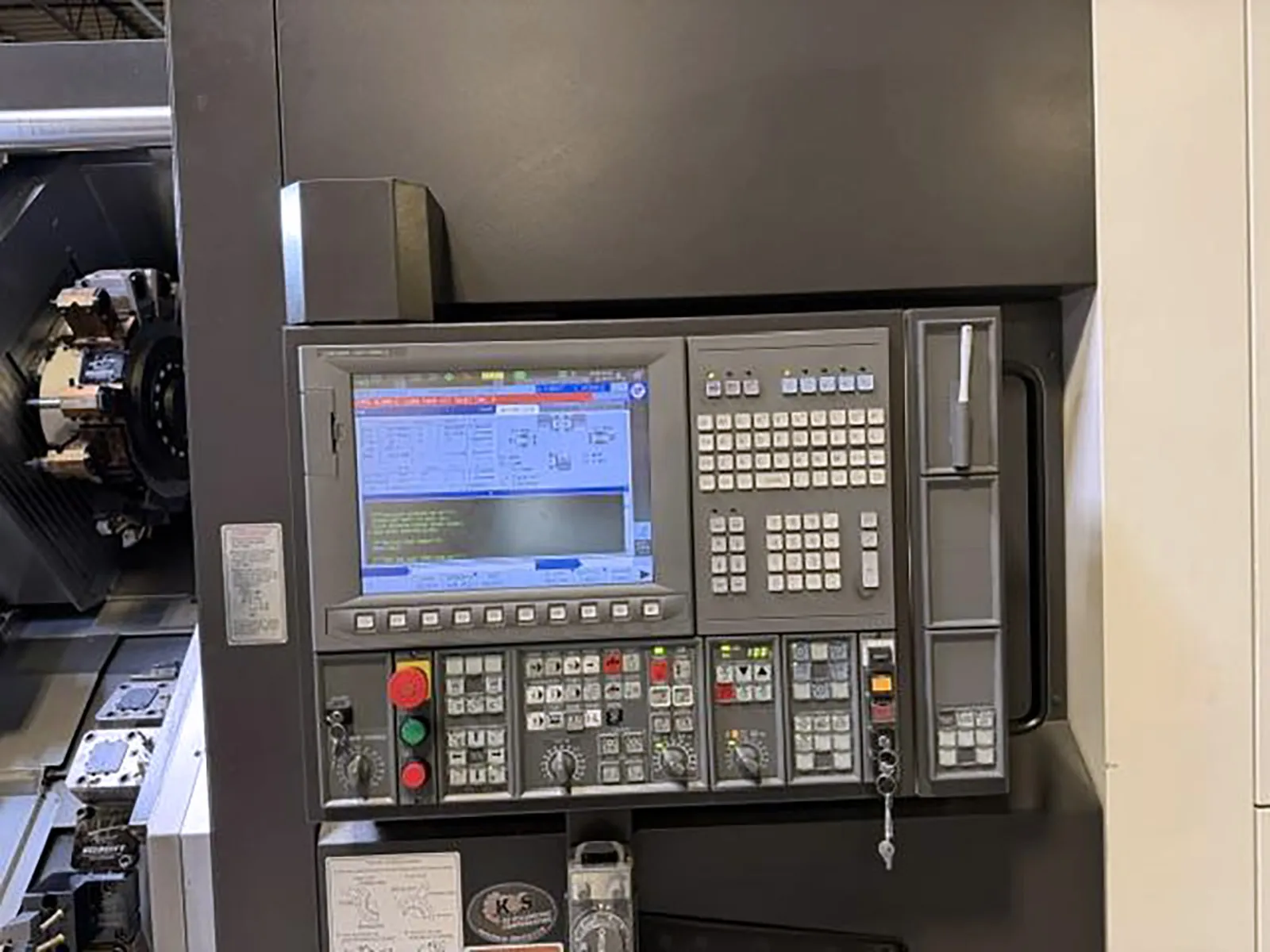

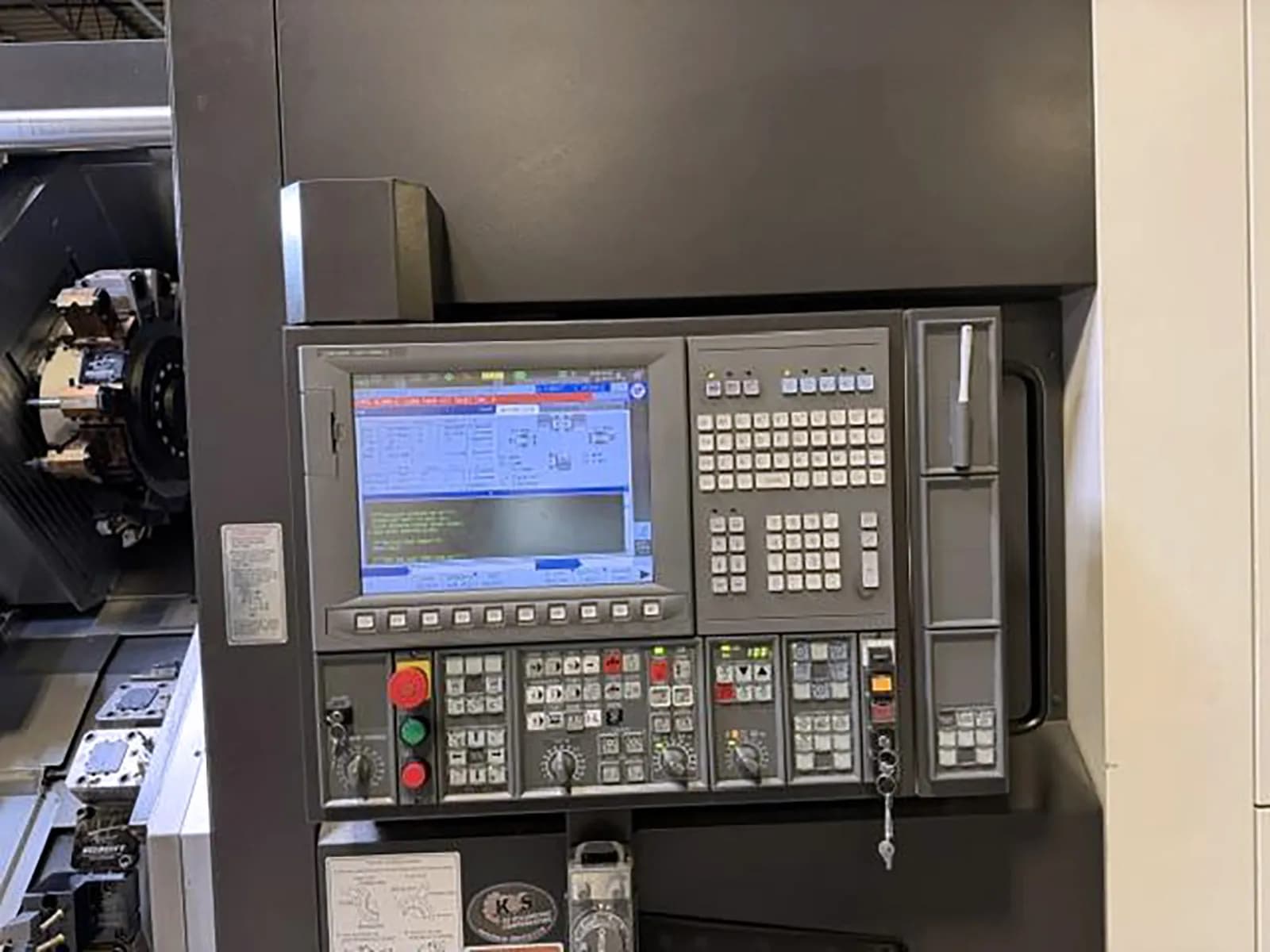

- OSP Suite Operation Panel Included
- Pitch Error Compensation
- Spindle Orientation
- Spindle Sync. Tapping (Live Tooling Spindle)
- Tool Offsets 96 Sets
- Tool Wear Compensation
- Windows Operating System
- Chuck Air Blow
- Liquid Cooled Headstock
- Work Ejector - Spring Type
- Synchronized tapping function
Specifications
- Swing over Bed 21.65"
- Swing Over Saddle 21.65"
- Distance between Spindle Noses 47.24"
- Max Recommended Turning Diameter 17.7"
- Max Recommended Turning Length with Std Chuck(s) 34.02"
- Travel X-Axes (All Turrets) 10.04"
- Travel Y-Axes (when Equipped) 4.92" (+2.755" / -2.165")
- Travel ZA-Axis (Upper Turret- 2 Turret Model- Upper Left Turret- 3 Turret Model) 18.9"
- Travel ZB-Axis (Lower Turret) 36.61"
- Travel ZC-Axis (Upper Right Turret 3 Turret Model) 18.9"
- Travel W-Axis (Right-Spindle) 37.01"
- Rapid Travel IPM X-Axis 1181
- Rapid Travel IPM Y-Axis 788
- Rapid Travel IPM Z-Axis 1574
- Rapid Travel IPM W-Axis 1574
- Big Bore Configuration with Motor Upgrade & Actuator / Drawtube 14,690
- Spindle Motor Power 30 / 20 Hp
- Spindle Max Torque (30 Min / Cont.) 315 / 207 Ft-Lbs
- Spindle Nose A2-8
- Speed Range 50 - 4200 Rpm
- Spndle Bore Diameter 3.58” Spindle Bore
- Spindle bearing inner diameter 5.51” ID
- Turret clamping Hydraulic clamping (non-lift)
- Turret Indexing Time 1 sec / Station ( 1.4 sec. / 180 degree index )
- M-spindle motor power (2 min. / cont.) PREX 9.5/5.5 HP 7.1/4.1 kW
- M-Spindle Speed Range 50 ~ 6000 rpm
- Max. collet grip diameter Æ0.75 in
- Coolant Tank Capacity (Gals) 88.8
- Power Requirement 208 Volts kVA without Optional Equipment Std-Bore Spindles Both 59.4
- Power Requirement 208 Volts kVA without Optional Equipment Big-Bore Spindles Both 77.4
- Floor Space Required W x D x H (without Chip Conveyor) 157" x 108" x 105"
- Weight (lbs.) 29260
Machine Description

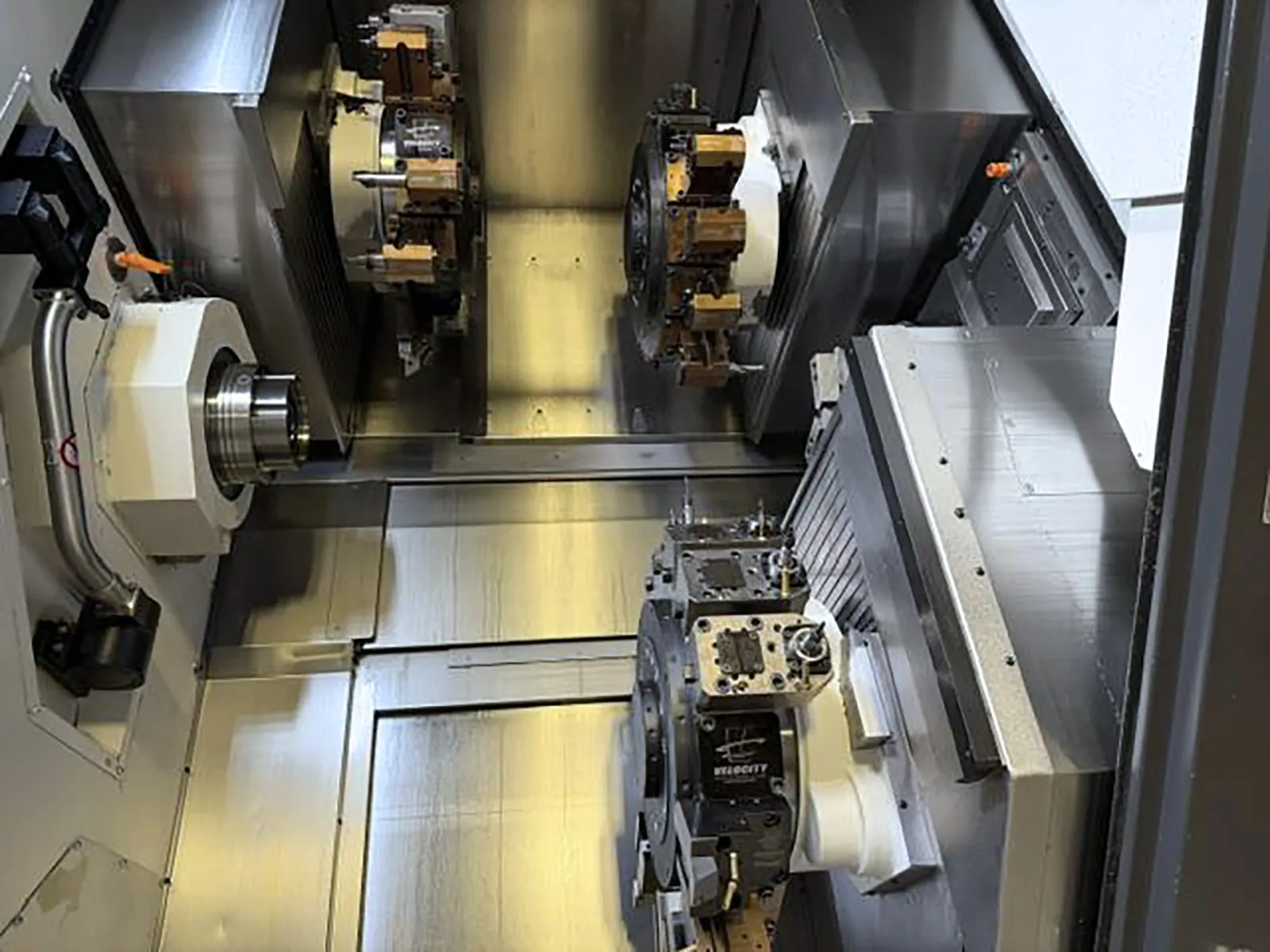

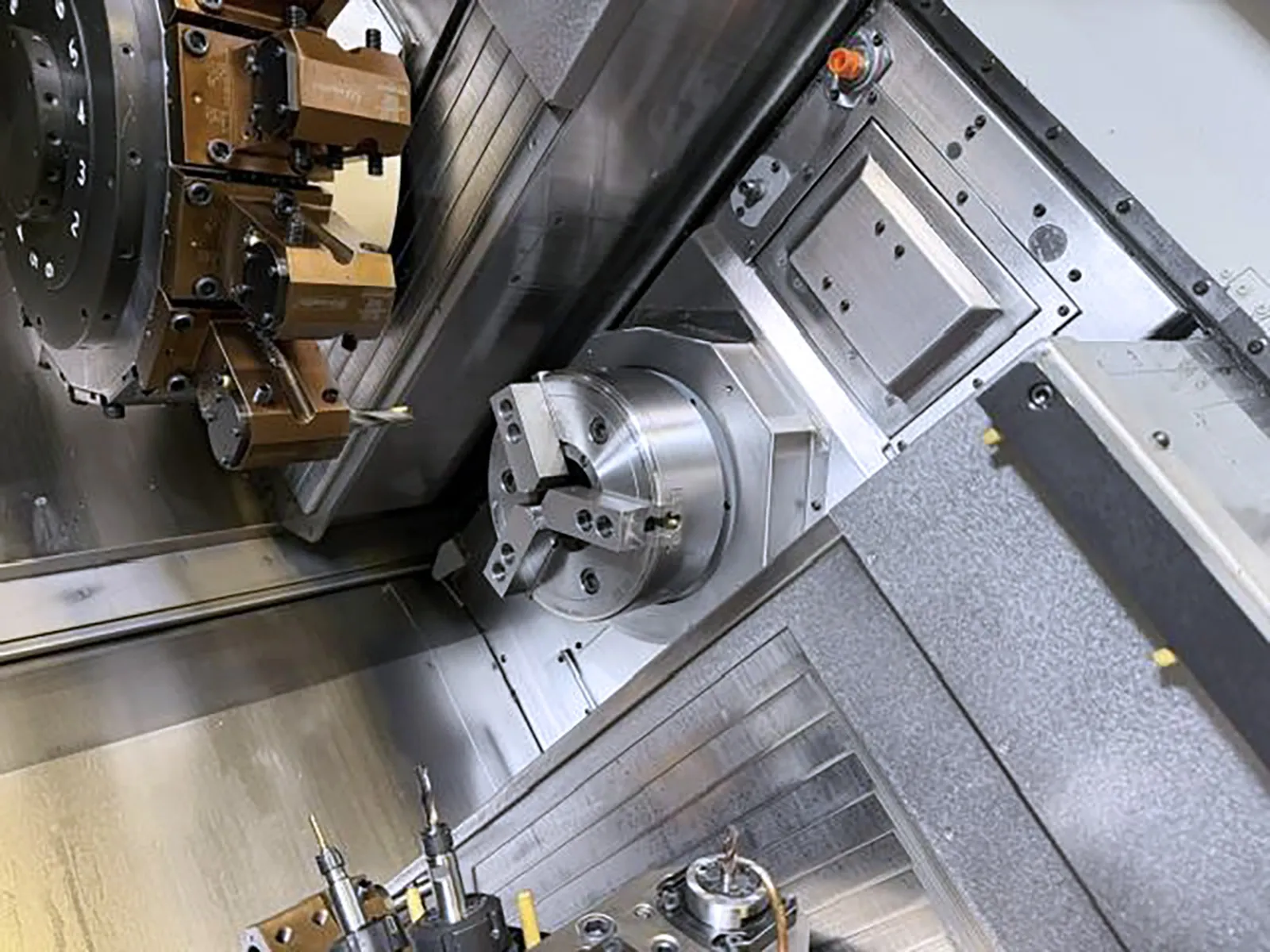

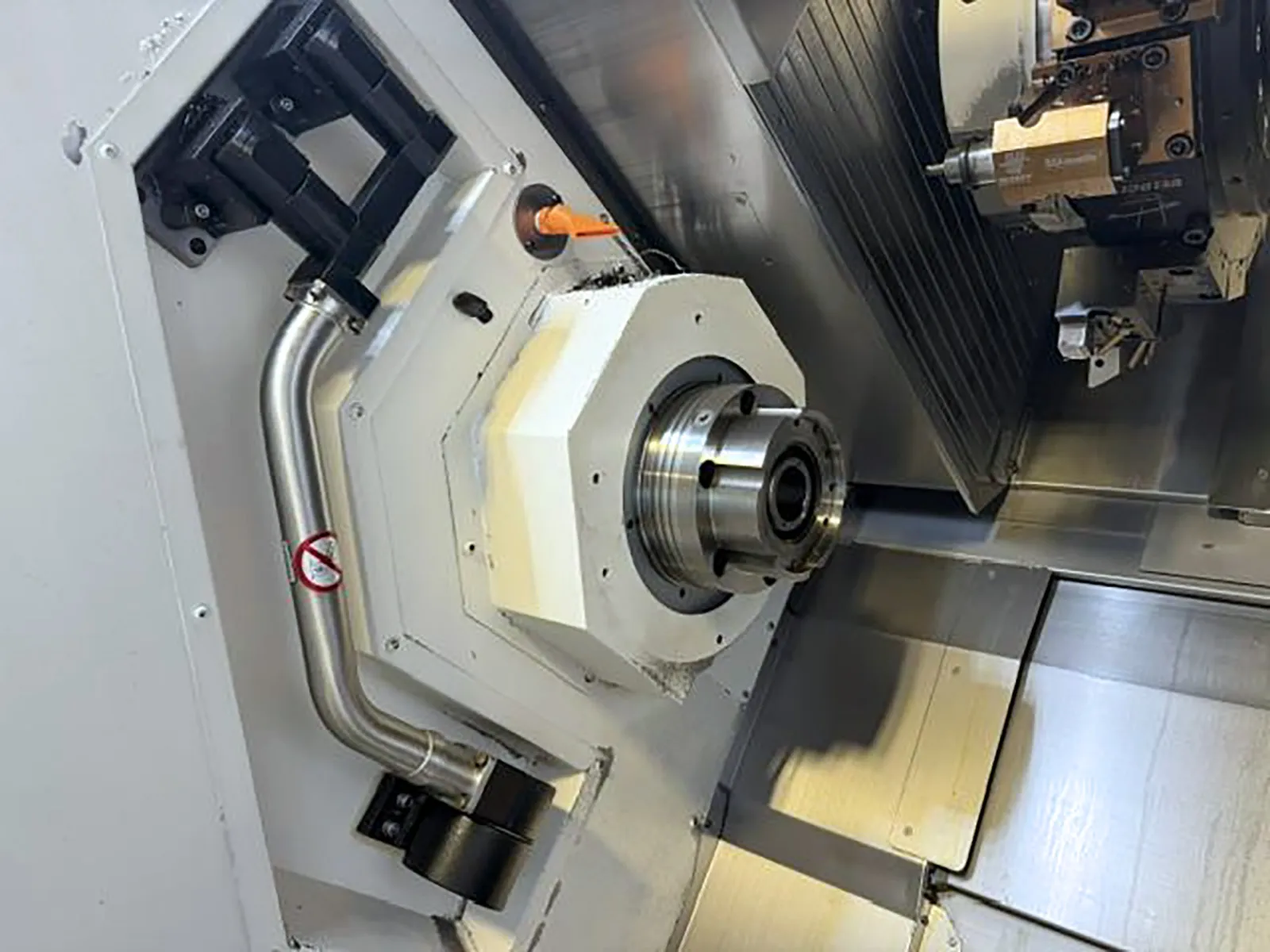

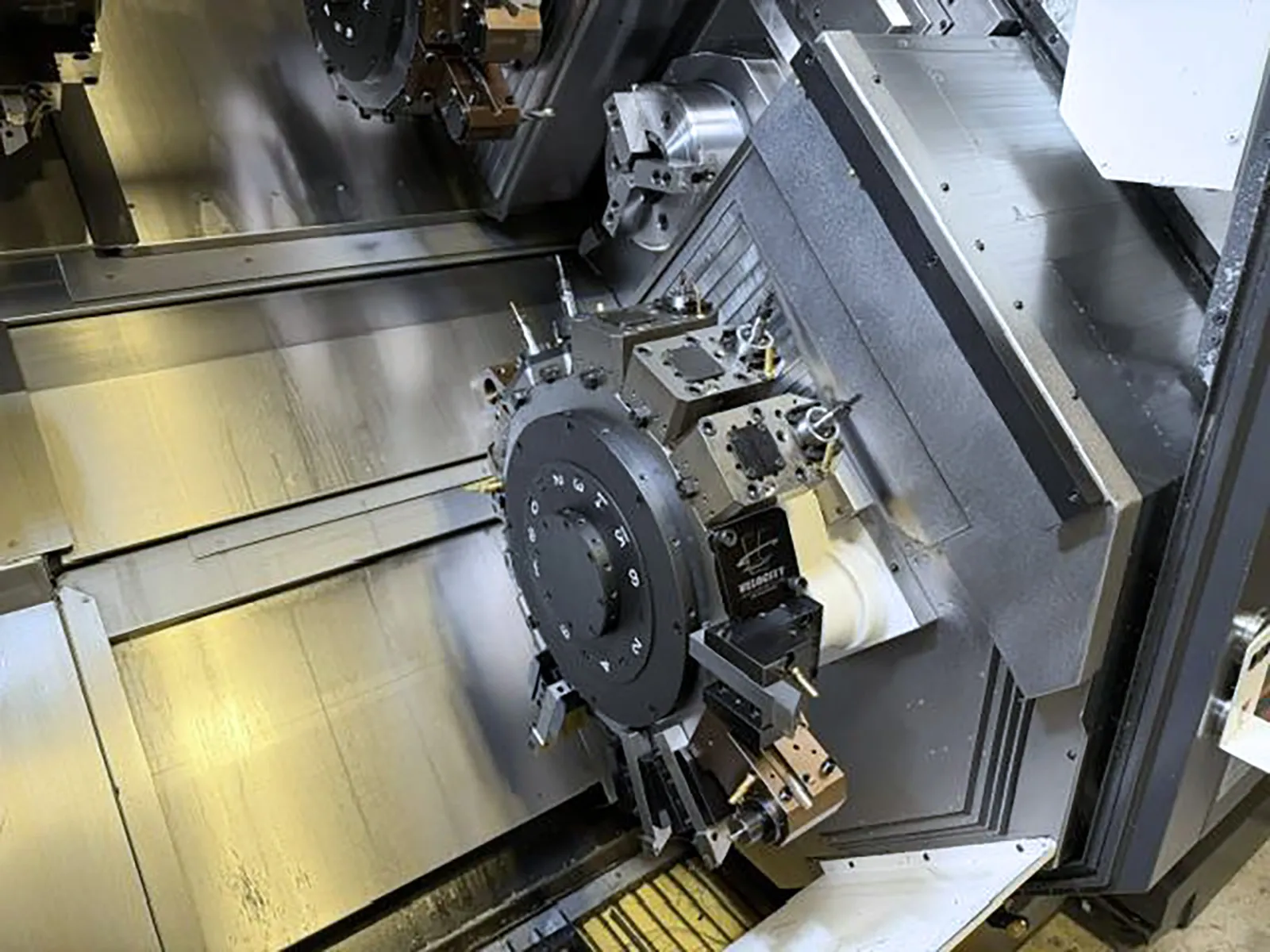

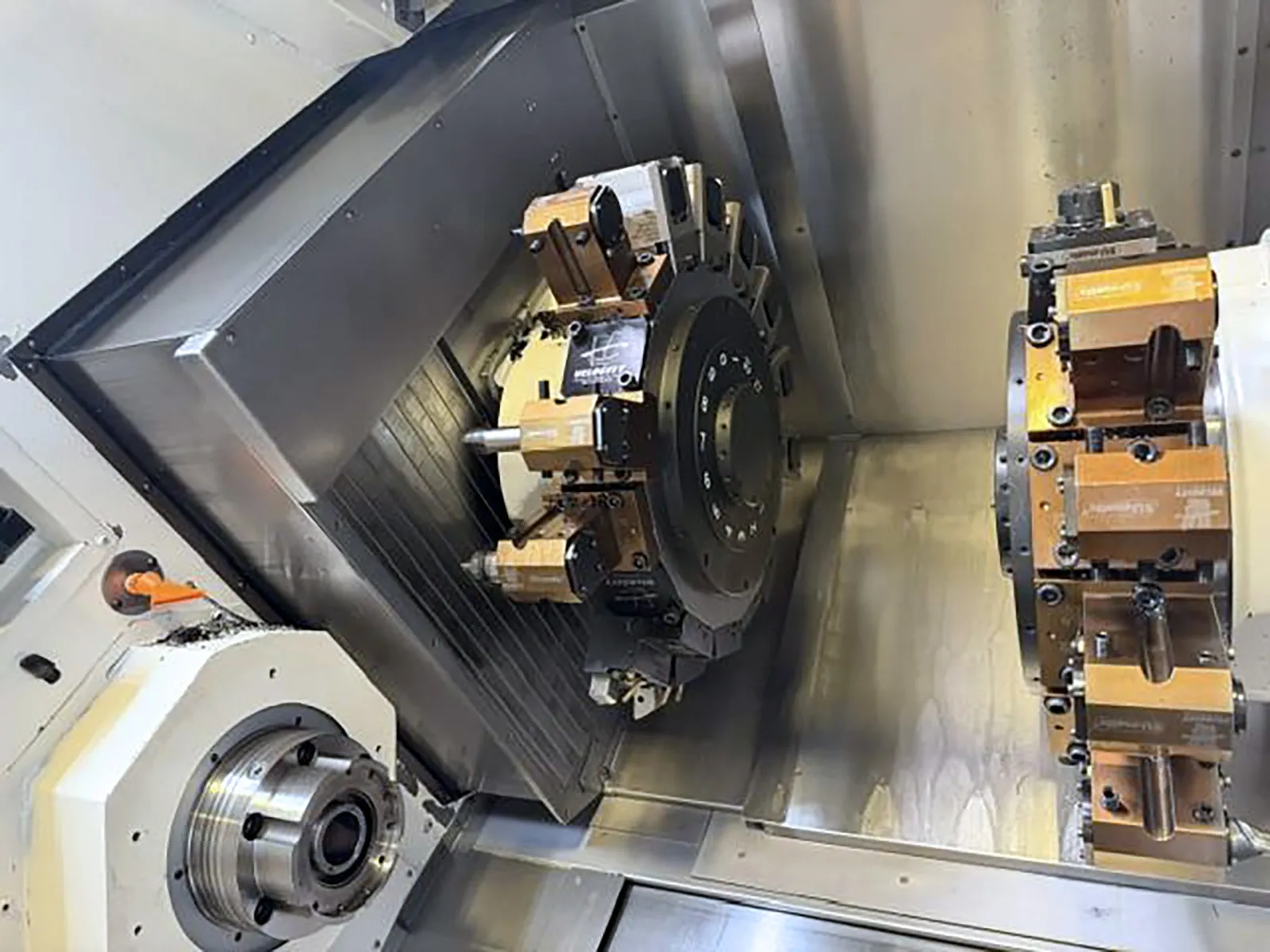

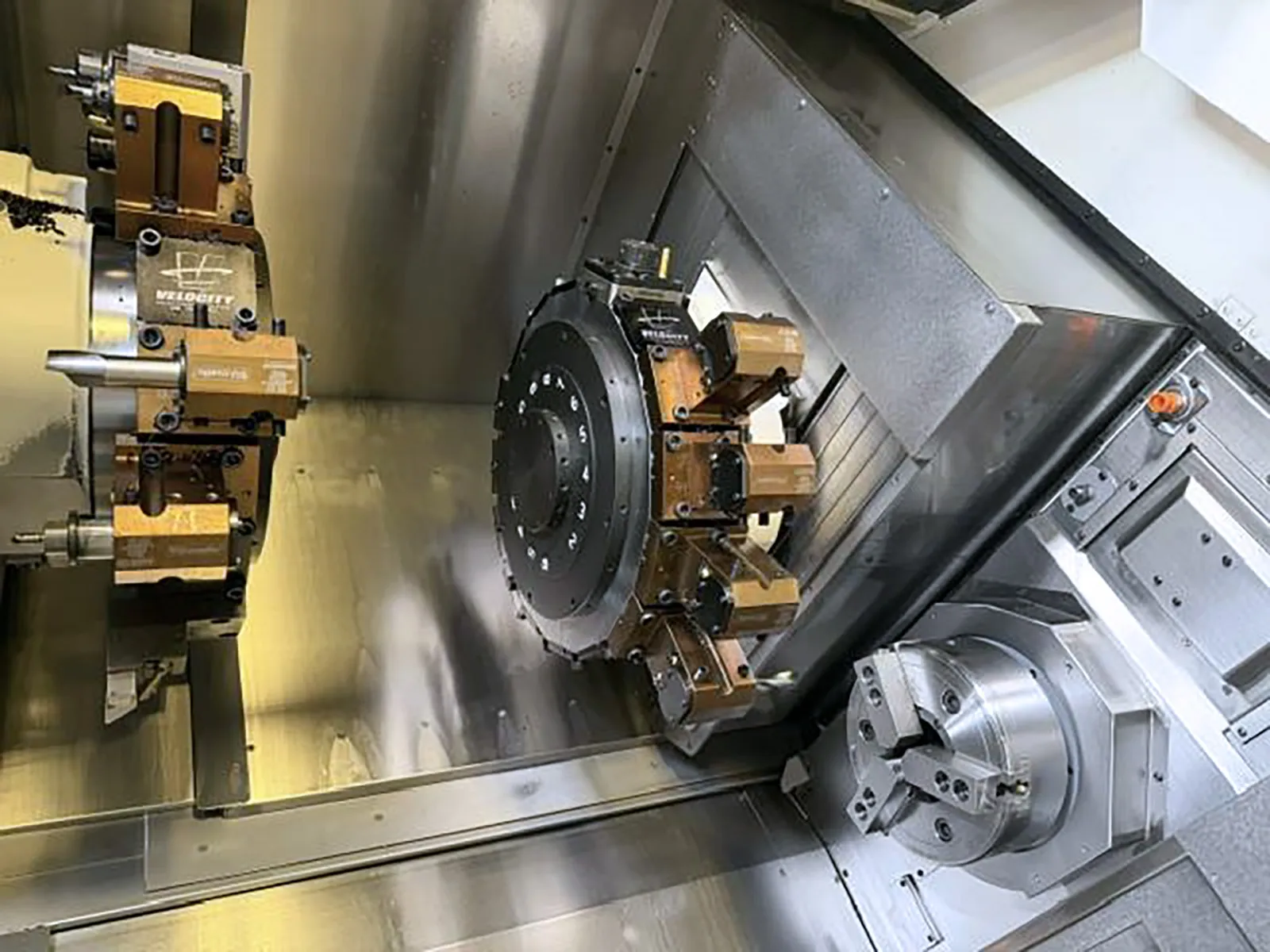

The Okuma LT3000-EX-3T3MY multi-spindle CNC lathe (2021) with OSP P300LA control delivers advanced done-in-one machining. Twin-spindle design enables simultaneous roughing, finishing, and back work in one setup. Ideal for complex valve components, automotive and aerospace parts, and medical devices requiring high precision, reduced cycle times, and efficient front-to-back machining in a single continuous operation.
