Esab Shadow 2 2006

This Machine has been sold and is No longer Available... Find similar machines below

SOLD
Esab Shadow 2 2006 1
Esab Shadow 2 2006 1
Esab
2006
N/A
#594760
icon

Activate Search Agent

We'll help you find what you need

Sell Similar Machine

Specifications

Equipped With

  • Max Swing (inches) 17.32"
  • Spindle Taper (CAT/BT) HSK-463
  • Spindle Speed 12,000 RPM
  • Bar Stock Capacity 2.0"
  • Throat Depth 9.45"
  • Tool Changer Type 60 ATC
  • Turret Capacity 8 Positions
  • V-Axis Travel 5555
  • Vertical Travel of Ram 4444
  • Wire Diameter (inches) 3333
  • Resonator ( Type ) 55
  • Chuck Size (Inches) 8"
  • X - Axis Travel (inches) 15.7" / 400mm
  • Y - Axis Travel (inches) 15.7" / 400mm
  • Z - Axis Travel (inches) 14.7" / 375mm
  • Pallet Size (inches) 25"
  • Max Cutting Speed (IPM) 750
  • Table Size - W 30"
  • Table Size - L 61"
  • Wire Traveling Speed 22
  • Internal Clearance 119"
  • Cutting Width 112"
  • Rail Gauge 129"
  • Positioning Accuracy /+/- 0.025"
  • Repeatability /+/- 0.015"
  • Speed Range 2 - 750 ipm
  • Maximum Plasma 1
  • Maximum Stations 4
  • Power Requirement 230 VAC, 50/60 Hz, Single Phase, 30 Amp

Machine Description

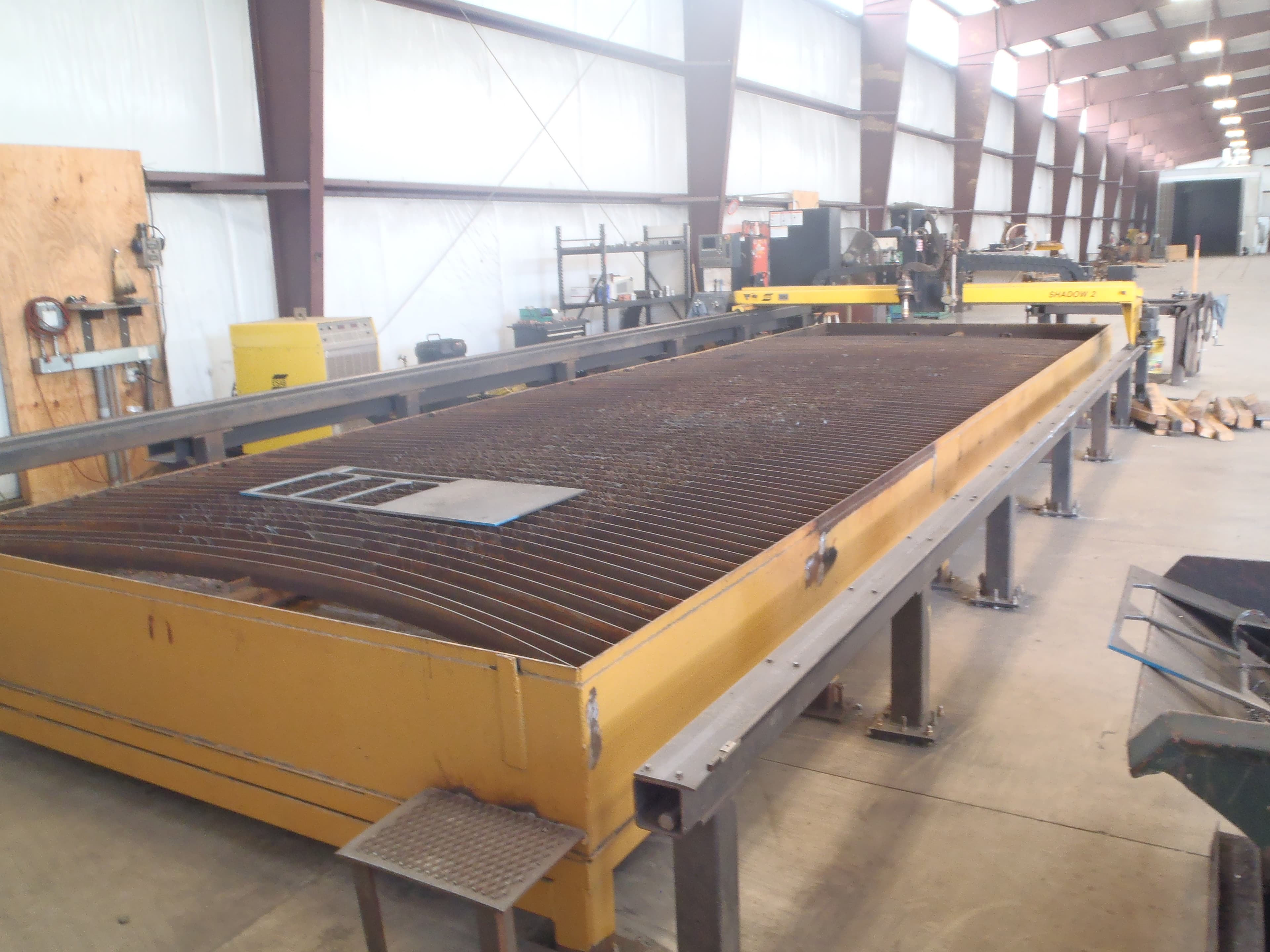

Cutting Table 9' x 30' Water Table Internal Clearance 119" Cutting Width 112" Rail Gauge 129" Plasma Cutting System EPP-200 power supply Positioning Accuracy ± 0.025? Repeatability ± 0.015" Speed Range 2 - 750 ipm Maximum Plasma 1 Maximum Stations 4 Parking Area 36" Machine Height 65" Machine Width 155" Power Requirement 230 VAC, 50/60 Hz, Single Phase, 30 Amp Equipped With PT-600 Torch One Oxyfuel head Vision LE-CFX Columbus Software Link to specs: http://www.practicad.com/docs/ESABShadow2PDS.pdf Has not been under power for two years now, can be put under power if he has a serious offer The cutting table is a 9'X30' water table Plasma Cutting System - Plasma- EPP-200 power supply Torch - PT - 600 One Oxyfuel head Columbus Software Cut primarily carbon steel from 1/4" to 1" with the plasma , and 1 1/2 " and 2" carbon steel with the torch. Cut a small amount of aluminum and SS. No idea on the hours but it was used every week from when it was purchased until Jan or Feb of 2014 when it was shut down. But it was probably used an average of 12-15 hours per week for the life of the time we used it .
