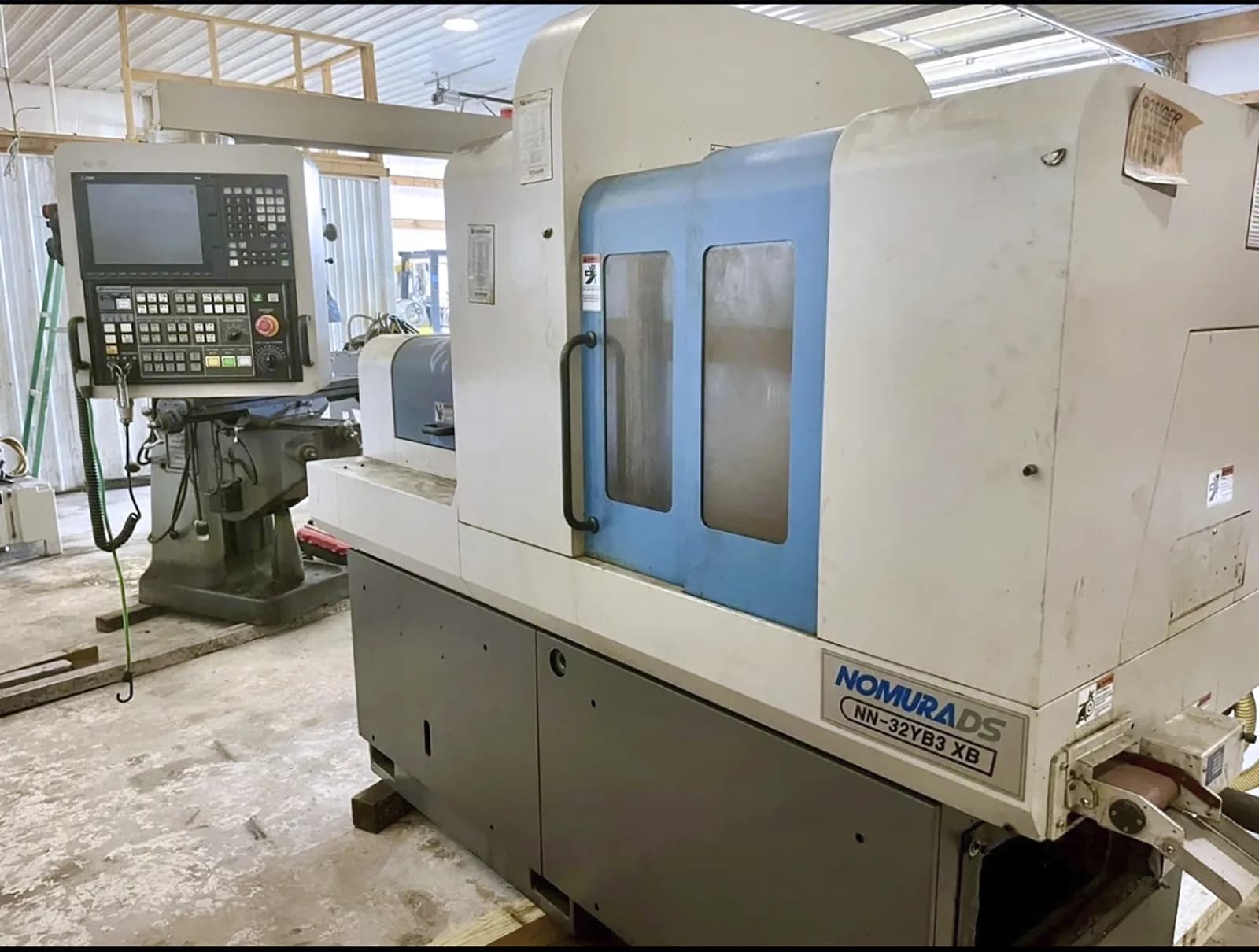

Nomura NN-32YB3 2019
highly-flexible sub-spindle machine with 5 OD tools | 4 static front/back end working tools and 6 live cross drill/mill tools for the main spindle
Equipped With

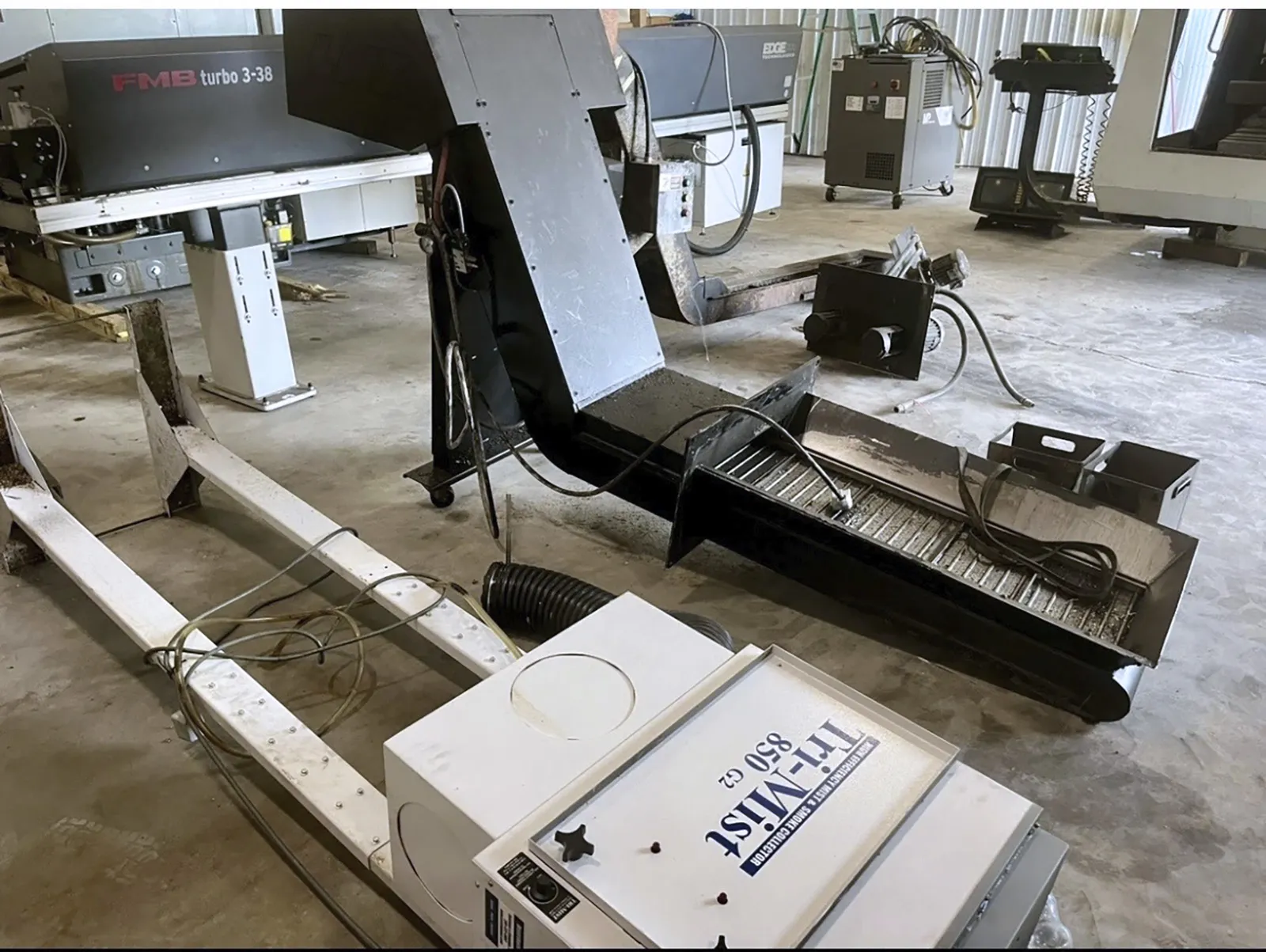

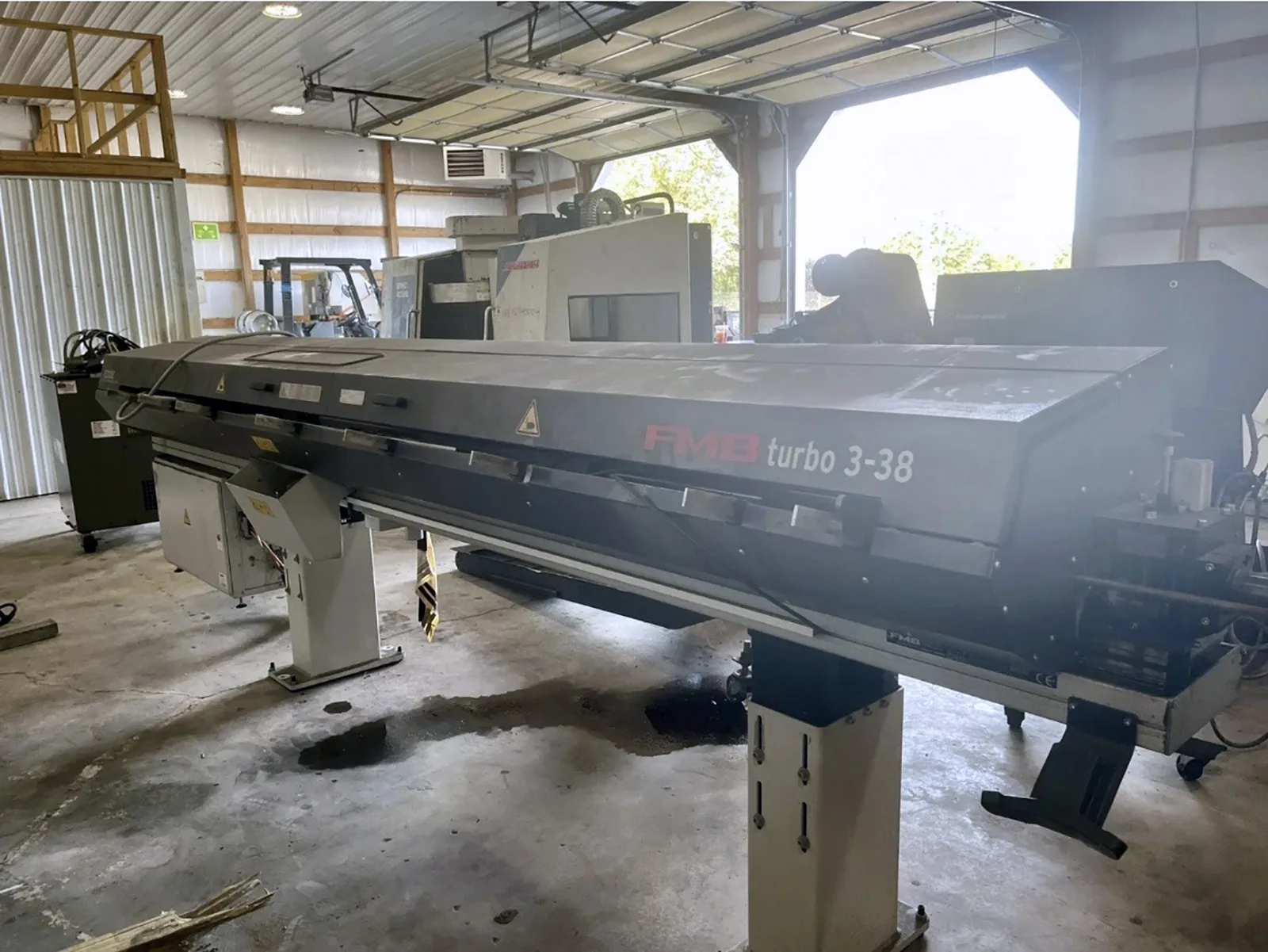

- FMB Turbo Barfeed
- Mist Collector
- Sub : Chuck sleeve /Spring/Spindle cap(1set)
- Automatic power turn-off device
- Automatic oiling device (level detector attached)
- Cutting oil device (Main/Sub)
- Coolant failure detector(Main/Sub)
- Automatic fire extinguisher
- Rear ejection unit (Ф24mm or less)
- Spindle tube liner for small part
- Large-sized lubricant pump 1.8ℓ
- Chip conveyor & Chip box
- Medium / High pressure coolant
- Long drill holder
- Fixed guide bush
- Tap breakage detector (Main
- Sub)
- Tool presetter
- Tool air blow
Specifications
- Max. Machining Diameter 32mm
- Max. Machining Length 190mm /1chuck
- Max. Parts unloading length 93mm
- Main Spindle Through-Hole Diameter Ф37mm
- Spindle rpm (Main/Sub) Max. 8,000rpm
- Sub Spindle Chucking Diameter 3200
- Max. Number Of Tools 39
- Max. machining drill Ф13mm
- Max. machining tap M 10
- O.D. tool 6 (□16X150mm max)
- I.D. tool (6(ER16x5+OP5tools) + (ER20x1+OP1tools)
- Cross drill (B axis)
- Cross drill rpm 6000
- Rapid feed rate X1 20/min X2 : 25m/min Z1,Z2,Y1,Y2 : 28m/min
- Min. command unit: in (mm) 0.0001mm
- C axis Min. command unit (Main, Sub) 0.0001°
- Main Spindle Motor 5.5/3.7kW
- Cross drill motor 1.5
- Sub Spindle Motor 3.7/1.5kW
- X1.Y1,Z1,X2.Y2.Z2 axis feed motor
- Coolant pump (Main, Sub) 1.0kW
Machine Description
No description available
