Nomura NN20J3XB 2023
Live Tooling | Sub Spindle | FMB Barloader
Equipped With

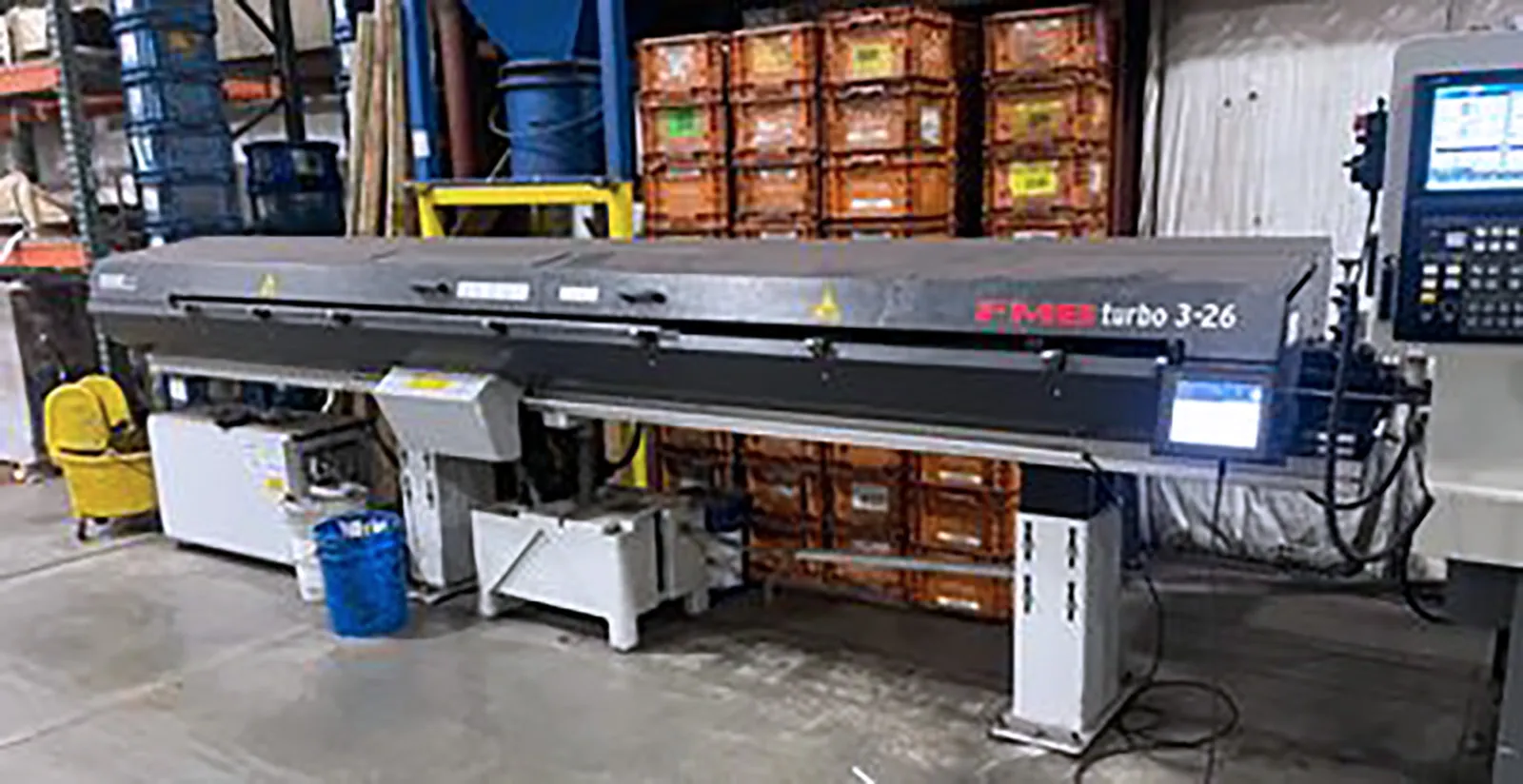

- FMB Turbo 3-26 barloader
- Tool Presetter
- Tri Mist 850
- JBS Magic Guide Bushing
- Long Part Extraction package
- Fire Trace system
Specifications
- MACHINING CAPACITY
- Max Machining Diameter Ø20mm
- Max Machining Length 200mm / 1 Chuck
- Max Parts Unloading Length 93mm
- Spindle
- Main Spindle Through-Hole Diameter Ø23mm
- Spindle rpm (Main/Sub) 10,000 RPM
- Sub Spindle Chucking Diameter Ø20mm

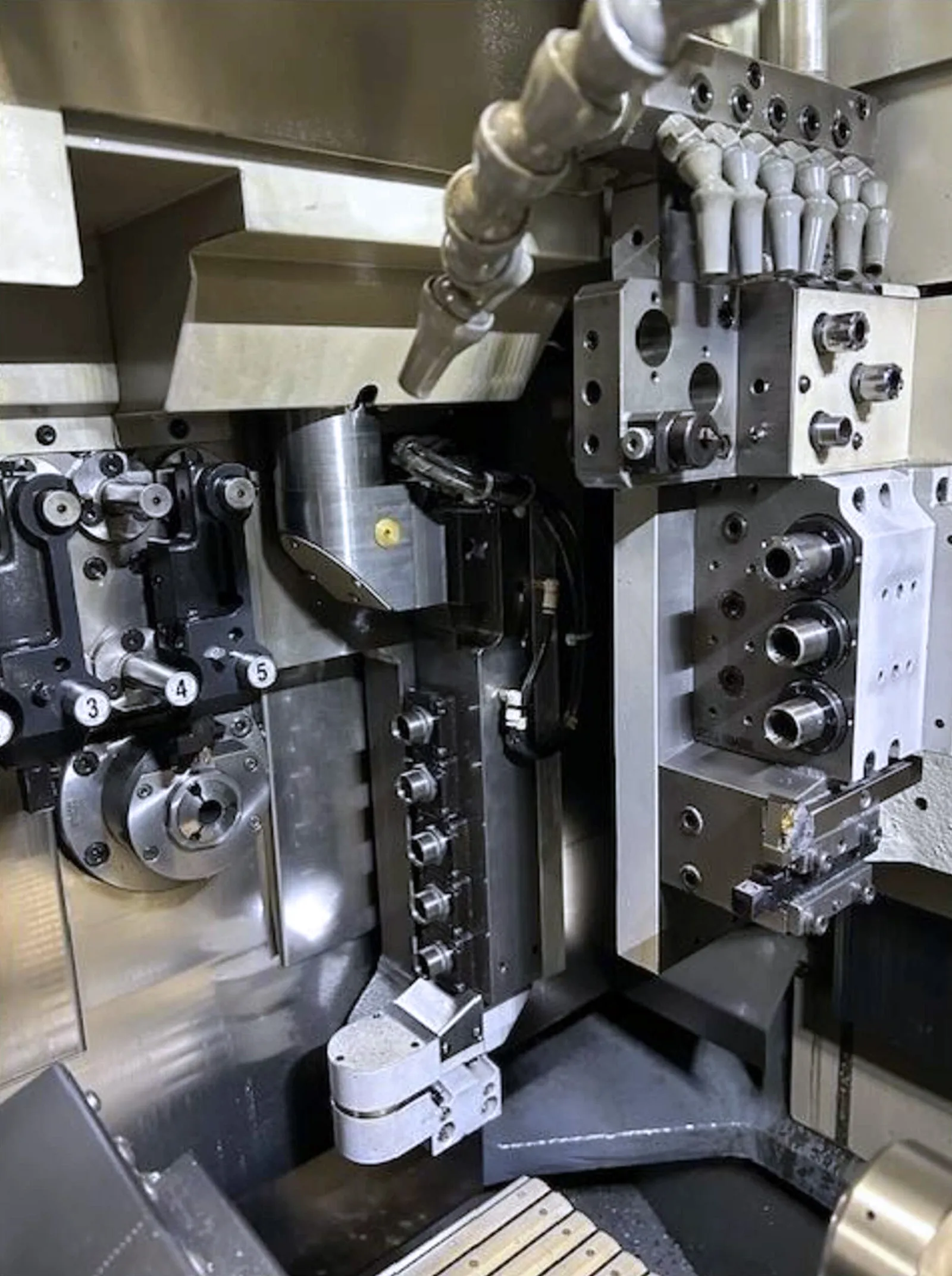

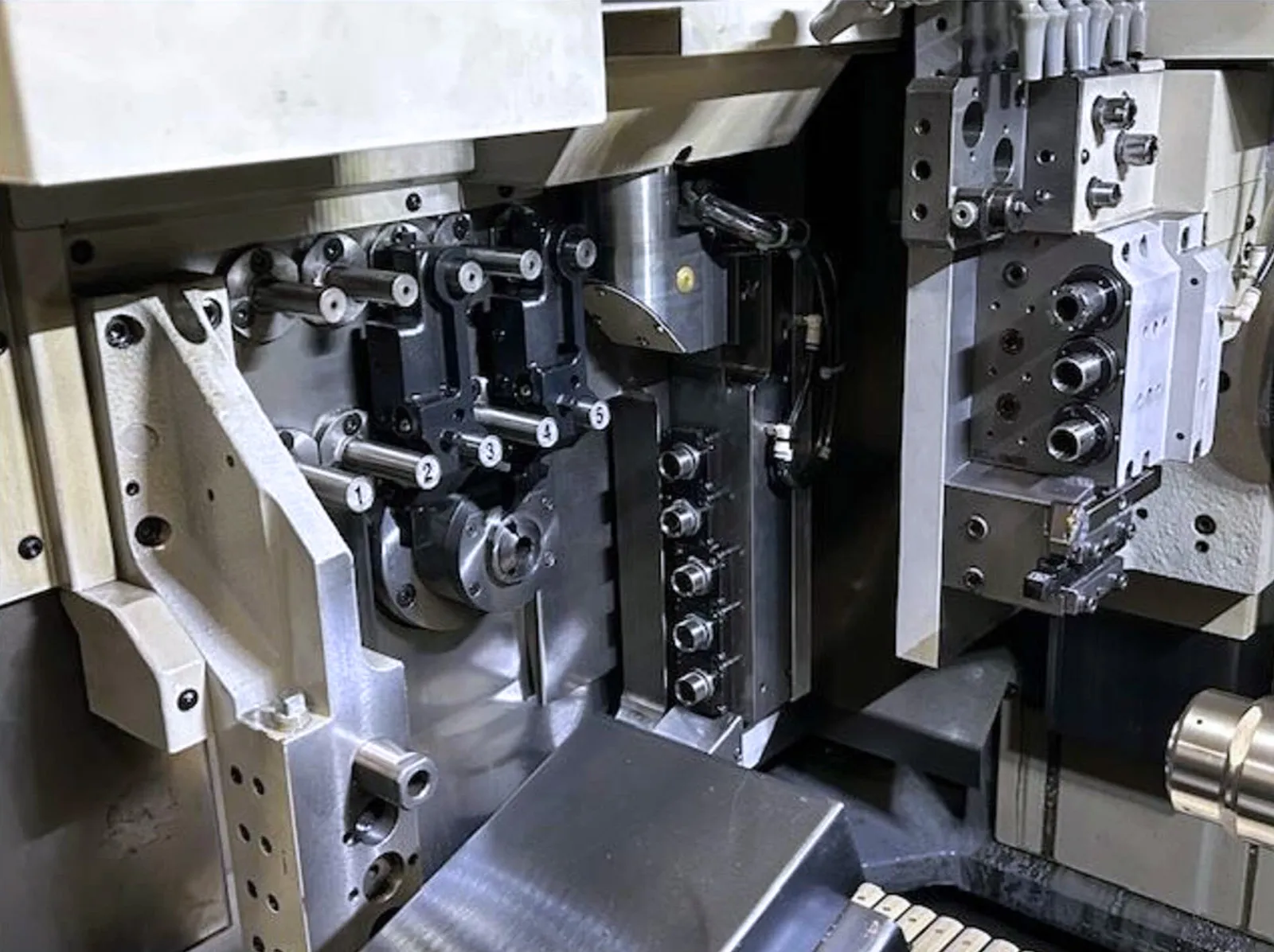

- TOOL
- Max Number of Tools 28
- Max Machining Drill Ø10mm
- Max Machining Tap M8
- * MAIN
- O.D. tool 6 (12.7x150 mm)
- I.D. tool 4 (ER16) (OP: Rear 4)
- Cross Drill 5 (ER16)
- Cross Drill RPM 6,000 RPM
- * SUB
- * SUB - O.D. Tool 2 (12.7x150 mm Max)
- * SUB - I.D. Fixed Tool 3 (ER16)
- * SUB - Cross Drill 4 (ER16)(B2 Axis)
- * SUB - Cross Drill RPM 6,000 RPM
- Feed
- Rapid Feed Rate X1, Y1, X2, Y2: 28mm/min
- Z1, Z2 30mm/min
- Min Command Unit 0.00001 mm
- C-Axis Min Command Unit (Main/Sub) 0.00001°
- Motor
- Main Spindle Motor 3.7/1.5 kW
- Cross drill motor 1.5/0.55 kW (Mitsubishi)
- Sub Spindle Motor 3.7/1.5 kW
- Sub Rotary Motor 1.5/0.55 kW (Mitsubishi)
- Coolant Pump (Main/Sub) 0.25 kW x 2
- Lubricant pump 0.015 kW
- DIMENSIONS, ETC
- Main spindle center height 1,010 mm
- Input power capacity 17 kVA
- Air Pressure/Flow Rate 0.6 MPa.35L/min
- Coolant Tank 160 L
- W x D x H 2,411 x 1,478 x 2,005 mm
- Weight (Standard Accessories Included) 2,800 kg
Machine Description

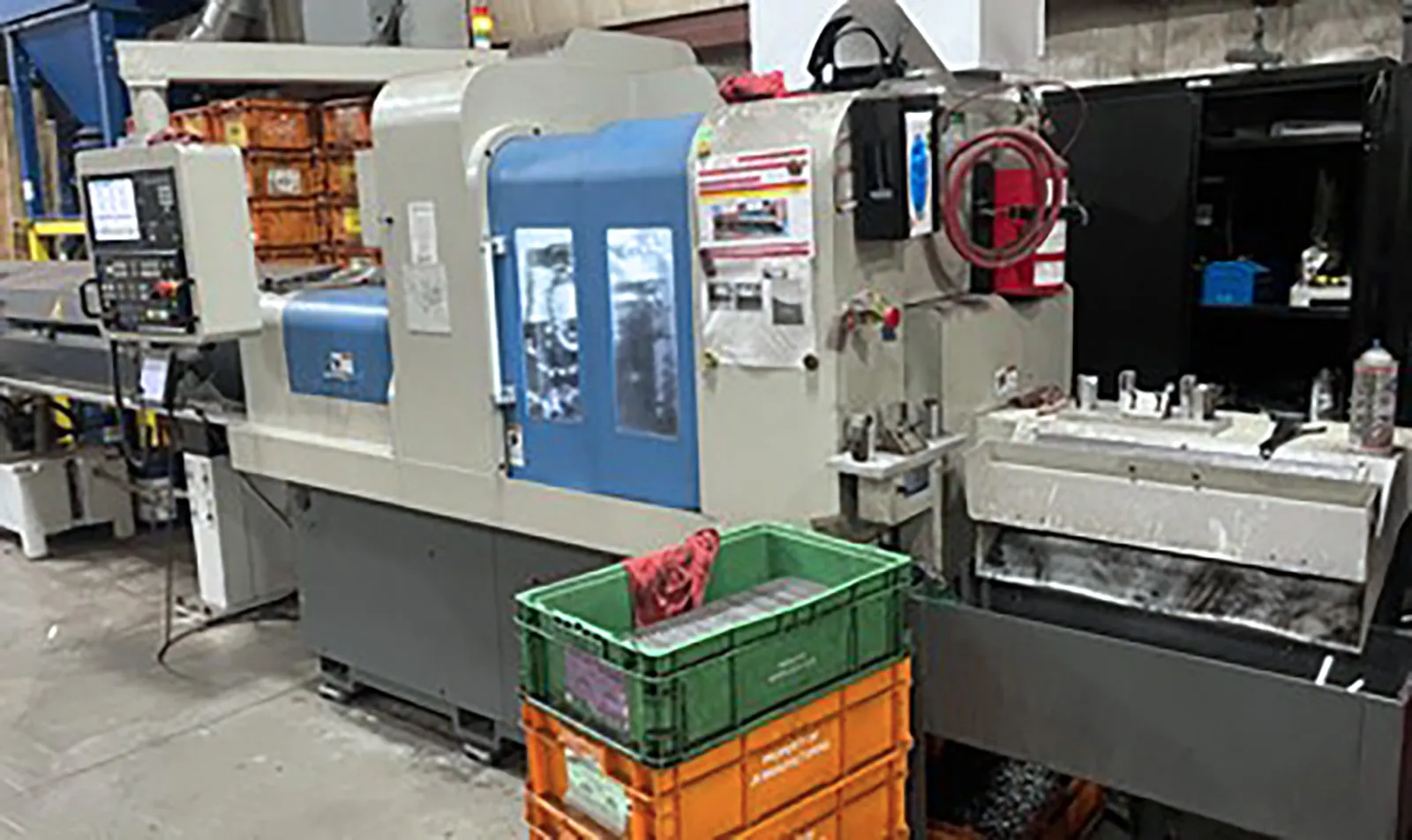

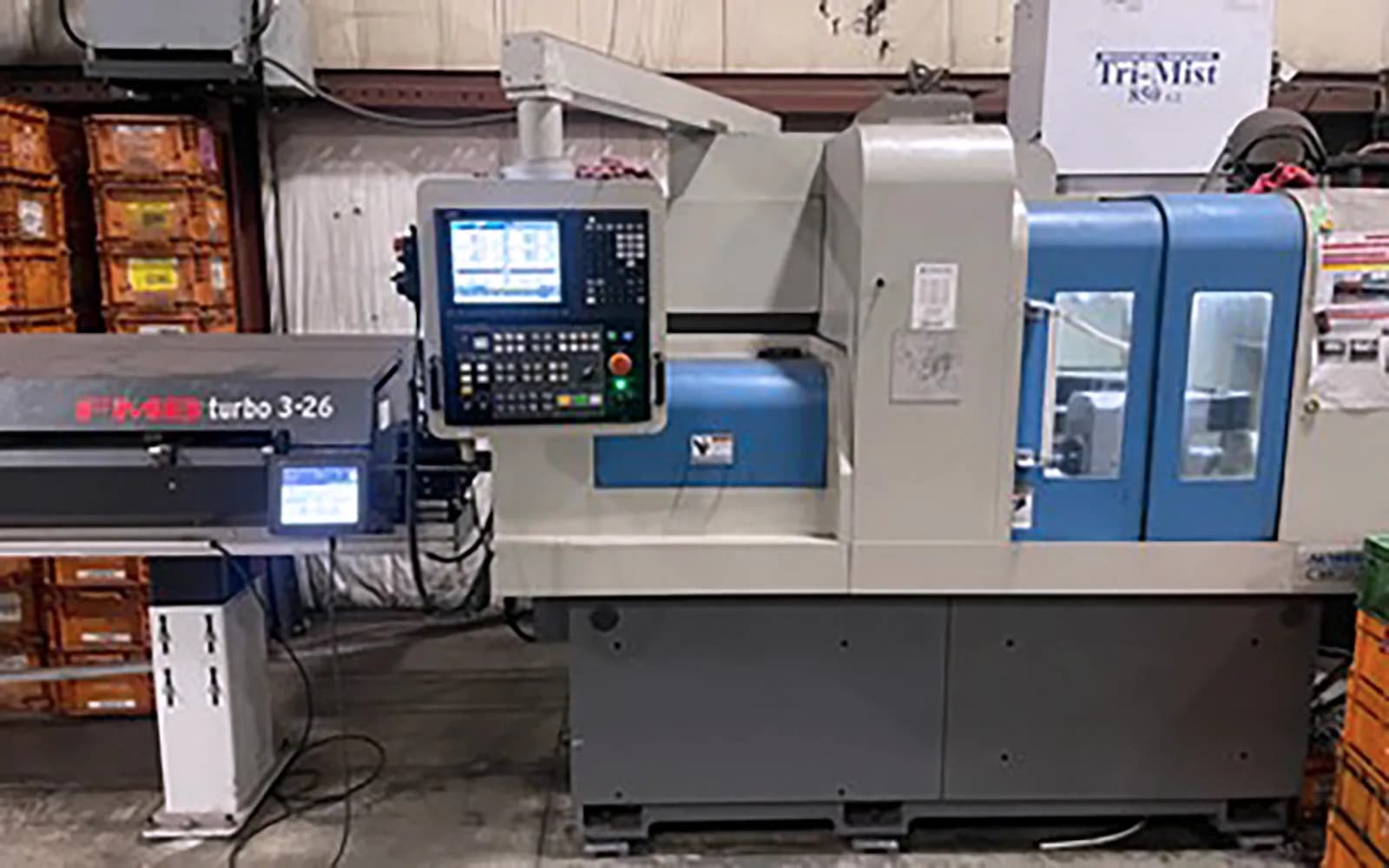

The Nomura NN20J3XB CNC Swiss Screw (2023) Machine is a high-precision Swiss-type automatic lathe engineered for the efficient production of small, intricate, tight-tolerance components. Ideal for medical, aerospace, automotive, electronics, optics, and precision instrument industries, it delivers exceptional accuracy, repeatability, and productivity for machining complex parts from bar stock in high-volume manufacturing environments.
