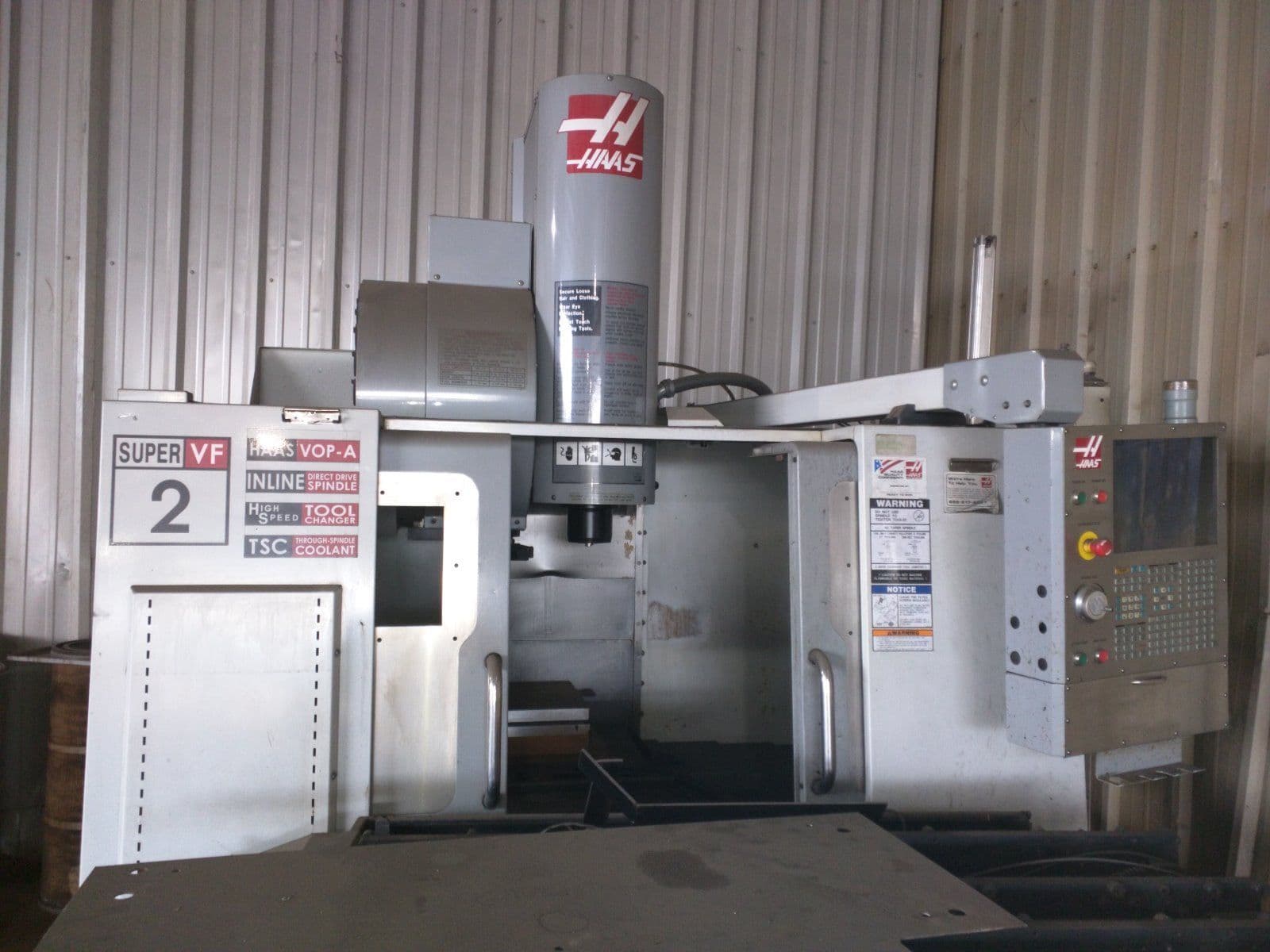

Haas VF-2 SS 2006

Travels X Axis 30"Y Axis 16"Z Axis 20"Spindle Nose to Table (~ max) 24"Spindle Nose to Table (~ min) 4"Table Length 36"Width 14"T-Slot Width 5/8"T-Slot Center Distance 4.92"Number of Std T-Slots 3Max Weight on Table (evenly distributed) 1500 lbsSpindle Max Rating 30 hpMax Speed 12000 rpmMax Torque 90 ft-lb @ 2000 rpmDrive System Inline Direct-DriveTaper CT 40Bearing Lubrication Air/Oil InjectionCooling Liquid CooledFeedrates Rapids on X 1400 in/minRapids on Y 1400 in/minRapids on Z 1400 in/minMax Cutting 833 in/minAxis Motors Max Thrust X 1995 lbsMax Thrust Y 1995 lbsMax Thrust Z 3085 lbsTool Changer Type CarouselCapacity 24+1Max Tool Diameter (adjacent empty) 5"Max Tool Diameter (full) 3"Max Tool Length (from gage line) 11"Max Tool Weight 12 lbsTool-to-Tool (avg) 1.6 secChip-to-Chip (avg) 2.2 secGeneral Air Required 4 scfm, 100 psi / 113 L/min, 6.9 barCoolant Capacity 55 gal OPTIONS: -Super Speed BL/VD -Large Capacity 80 Gallon Coolant Tank -Cable Assembly for MCODE/MFIN Capability w/ CNC Control -Thru Spindle Coolant 1MB/CC/FD3/PCOOL-O/SOM/VQC-V -Decal Haas VOP-A 9" -Complete CC -Complete PCiik-VF1-VF11 40T -Complete FD3 -Quick Code -Spindle Orientation
