This Machine has been sold and is No longer Available... Find similar machines below
SOLD
Estimated amount
$4,901.01/month
for over 72 months at 6.75% APR *
Equipped With
- C-Axis and Live Tools Option
- 20HP live tool spindle motor in place of 15HP live tool spindle motor
- Drive System 2 speed ZF gearbox
- Spindle RPM 2-2400
- Tool shank type BT-50
- C axis (contouring) .001 degree
- Heidenhain linear scales in X and Z Axis
- Renishaw MP-10 part set-up and inspection probe
- 16 station ATC in place of 12 station ATC
- Chip Conveyor
- Cabinet of 20 Tool holders
Specifications
- Standard Turning Diameter 47.2"
- Max Swing 63"
- Max Turning Diameter 55.1"
- Max Cross Travel 3.94" ; + 34.5" (X-Axis)
- Max Longitudinal Travel 35.4" (Z-Axis)
- Maximum Cross Rail Travel (Manual Control) 31.5”
- Max Cutting Height 50”
- Manual Chuck 49” 4-Jaw Independent
- Ram Distance to Table (Max / Min) 60” / 0”
- Spindle Motor 60 HP
- Spindle RPM 2-350
- Spindle Load 11,000 lbs
- Spindle Bearing Diameter 24” O.D. / 18” I.D.
- Spindle Torque 9,220 ft./lbs.
- Tool Positions 16
- ATC Type Umbrella / Electric
- Tool Mounting #50 taper
- Tool Changer Time 30 Seconds
- O.D. tool shank size 1.25”
- Rapid Traverse Rate 24 m/min
- I.D. Tool Shank Size 2.5"
- Cutting Feedrate 1- 24,000 mm/min / 1- 944"
- Maximum Single Tool Weight 110 lbs.
- Positioning Accuracy ±2 WS (Table)
- Maximum magazine capacity 800 lbs.
- Repeatability ±0.0015 mm
Machine Description

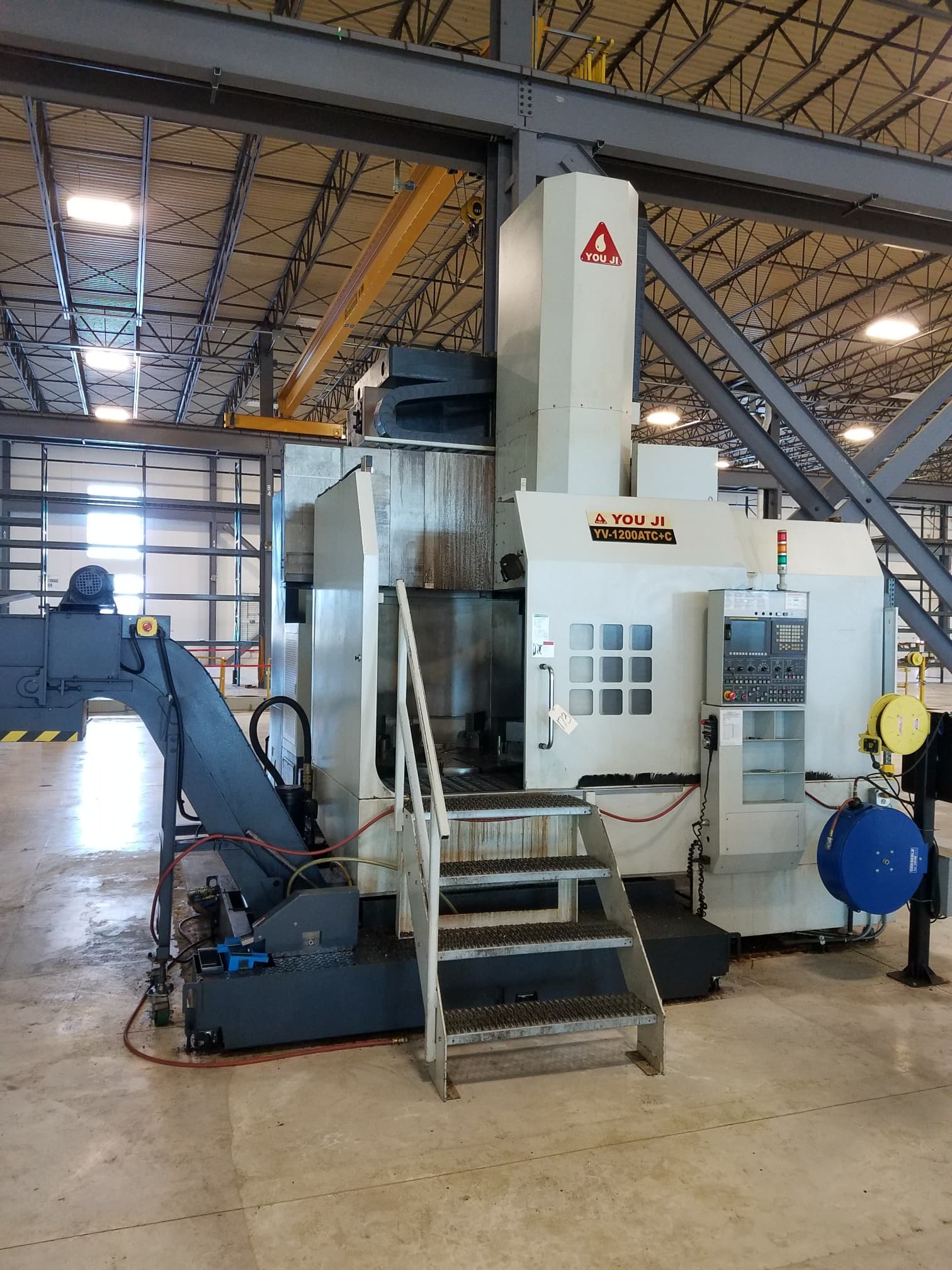

This You Ji CNC Lathe features a 2 Speed Drive System Gearbox, Spindle RPM 2 2400, Max swing is 63", Tool Shank BT-50 Type, 16 Station ATC, and Spindle Speed of RPM 2400. This CNC Lathe was new in 2012. For more information please call us at 312.226.4150.
