This Machine has been sold and is No longer Available... Find similar machines below
Equipped With
- Hyper I CNC Control
- Dielectric Filter System
- Fine Hole Automatic Wire Threading Unit (AWT)
- Auto Restart After Power Out
- Pro Tech (Anti-Rust Function)
- Taper Machining Unit 15 Deg
- Portable Operation Panel
Specifications
- X-Axis Travel 25.59"
- Y-Axis Travel 17.71"
- Z-Axis Travel 16.53"
- U/V Axis Travels ±2.95”
- Wire Electrode Size Range 0.004” ~ 0.012" Ø
- Rapid Traverse (X, Y & Z ) 78.74 in/min
- Work Table Height 39.37"
- Work Table Size 35.8" x 28.0" (3 Sided U-Shape Table)
- Work Tank Size 42.13" x 34.65" x 17.91" (Inside dimensions)
- Max Load on Table 3,306 lbs.
- Taper Capability with AWT ±15°/3.94” thick
- Servo System Direct Drive PWM Digital AC Servo
- Servo Feedrate 0.00039~1.97”/min
- Simultaneous Controlled Axes 5 Axes Total / 4 Axis Simultaneous
- Least Programmable Increment 0.00001”
- X/Y Ball Screw Size (Class C5) 1.26” Ø
- U/V/Z Ball Screw Size (Class C5) 0.98” Ø
- Rotary Encoder Feedback (X/Y/U/V/Z) 0.000004”
- Glass Scale Feedback (X/Y) 0.000002”
- X/Y-Axes (Full Stroke) ± 0.000059"
- X/Y-Axes (Full Stroke) ± 0.000039"
- Dynamic Shape Precision ±0.00019”
- Roundness TIR (20mmØ x 40mm thick) 0.00019”
- Best Finish in Tool Steel (Standard) 10 ?in Ra
- Best Finish in Carbide (Standard) 6 ?in Ra
- Best 3 Pass Finish in Steel (HyperCut) 16 ?in Ra
- Best Finish (Crystal Circuit Option) 3~4 ?in Ra
Machine Description

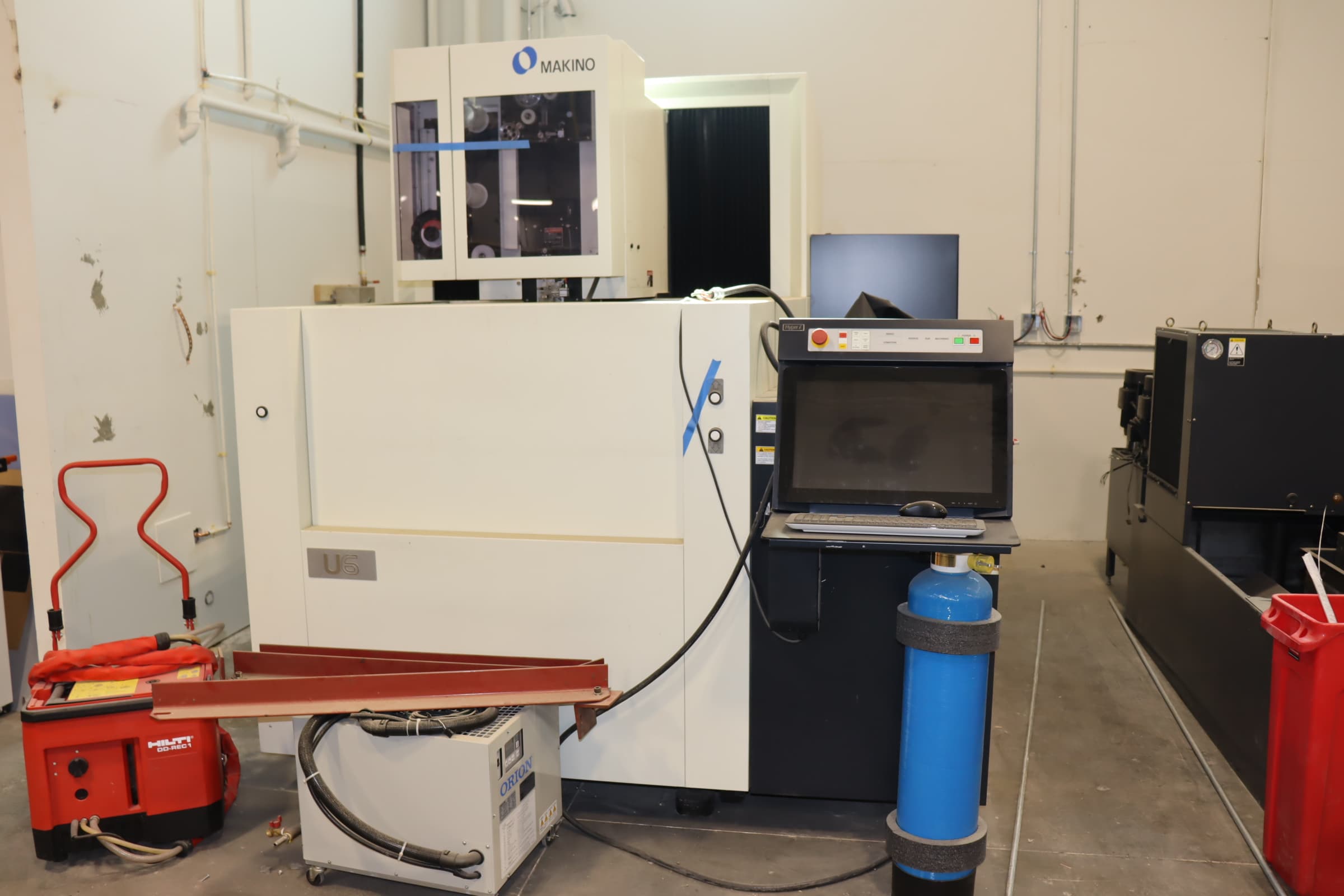

Used 2019 Makino U6 for sale. This pre-owned Makino Wire EDM is located in the USA. This Wire EDM is available for a limited time, call us today for a quote. If you have any questions about our Makino U6 listing, contact us and we will be happy to help.
