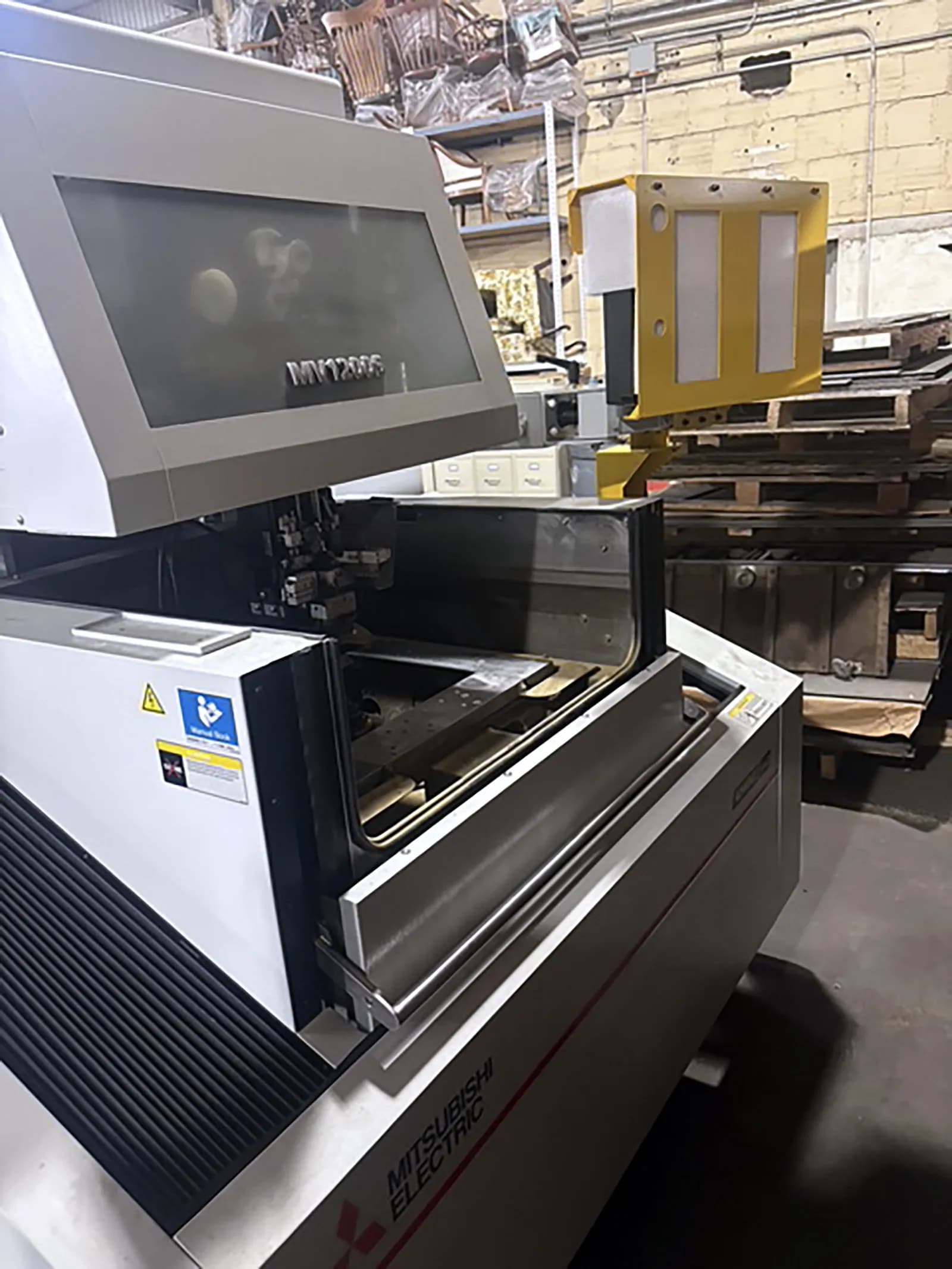

Mitsubishi MV-1200-S 2022
1700 Cutting Hours | Large Tooling Package Included | Fine Finish Option
Equipped With
- Mitsubishi M800 Series Control
- 19" Touch Panel Operator Control
- 3-Sided Hardened Stainless Steel Work Table
- Fine Finish Option (PF Circuit 6.04 Micron Ra Possible)

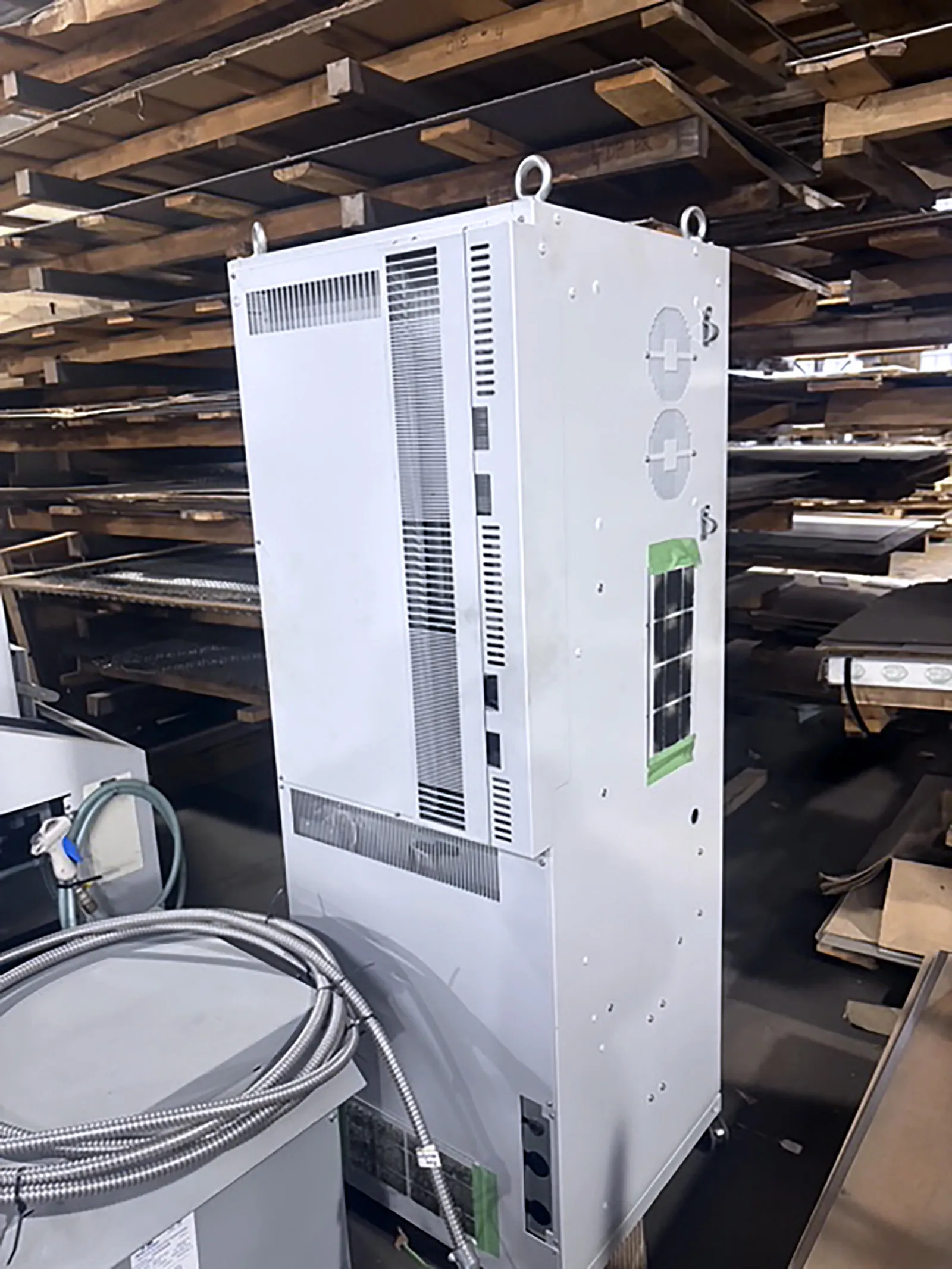

- Powergy Line Filter (Incoming Power Conditioner)

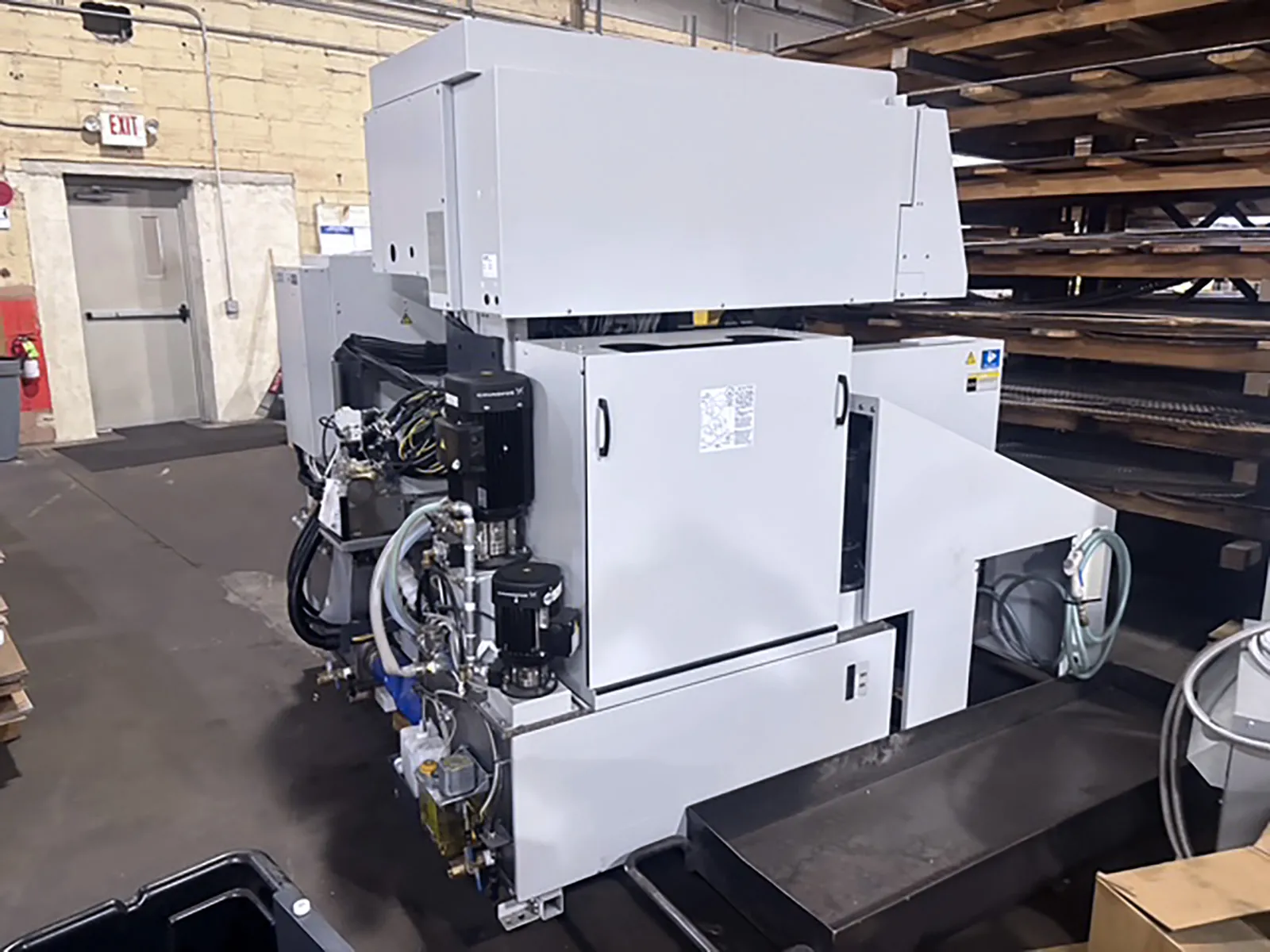

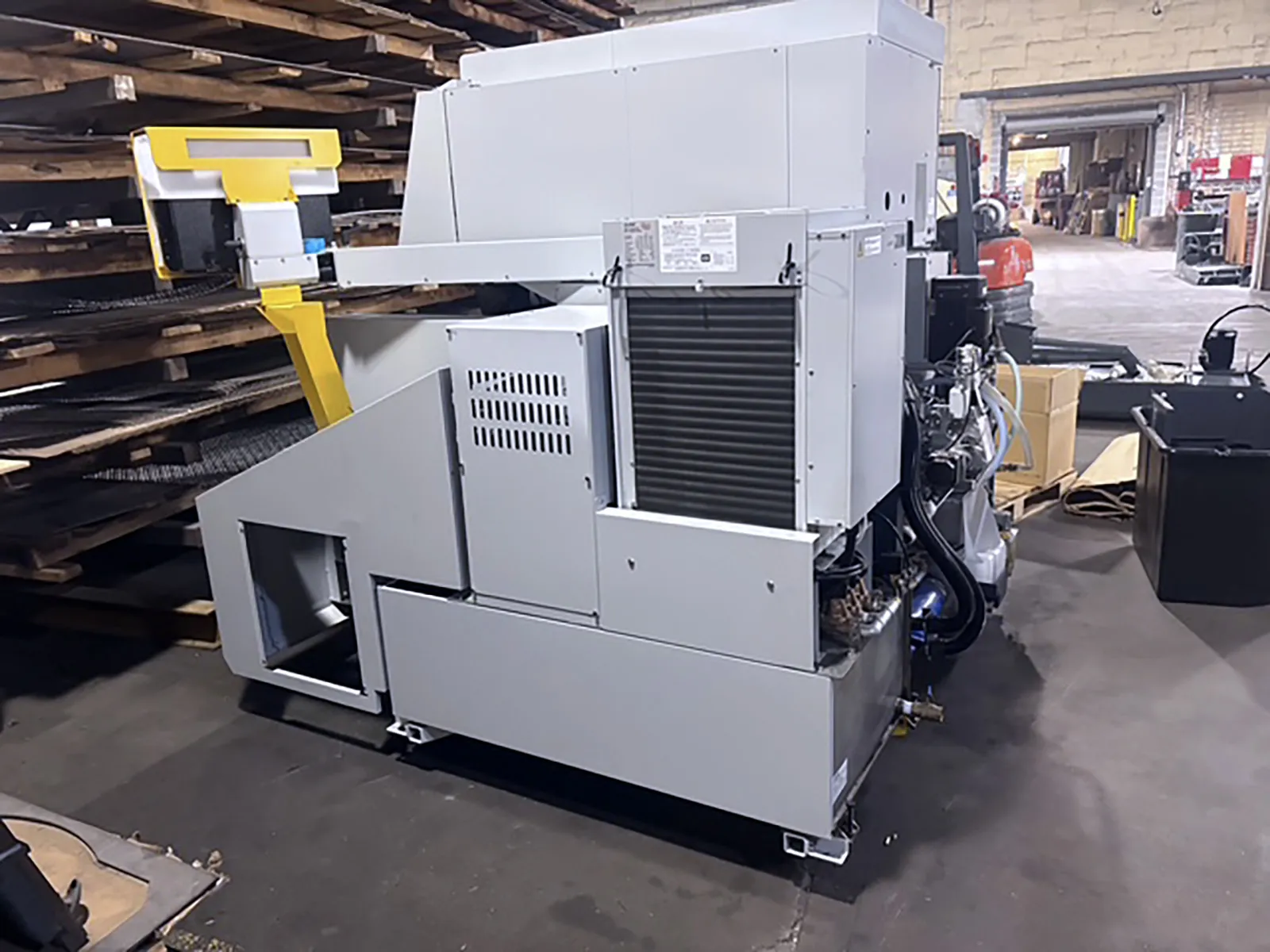

- Integrated D/I Water Coolant System
- Integrated Two Cartridge Filtration System

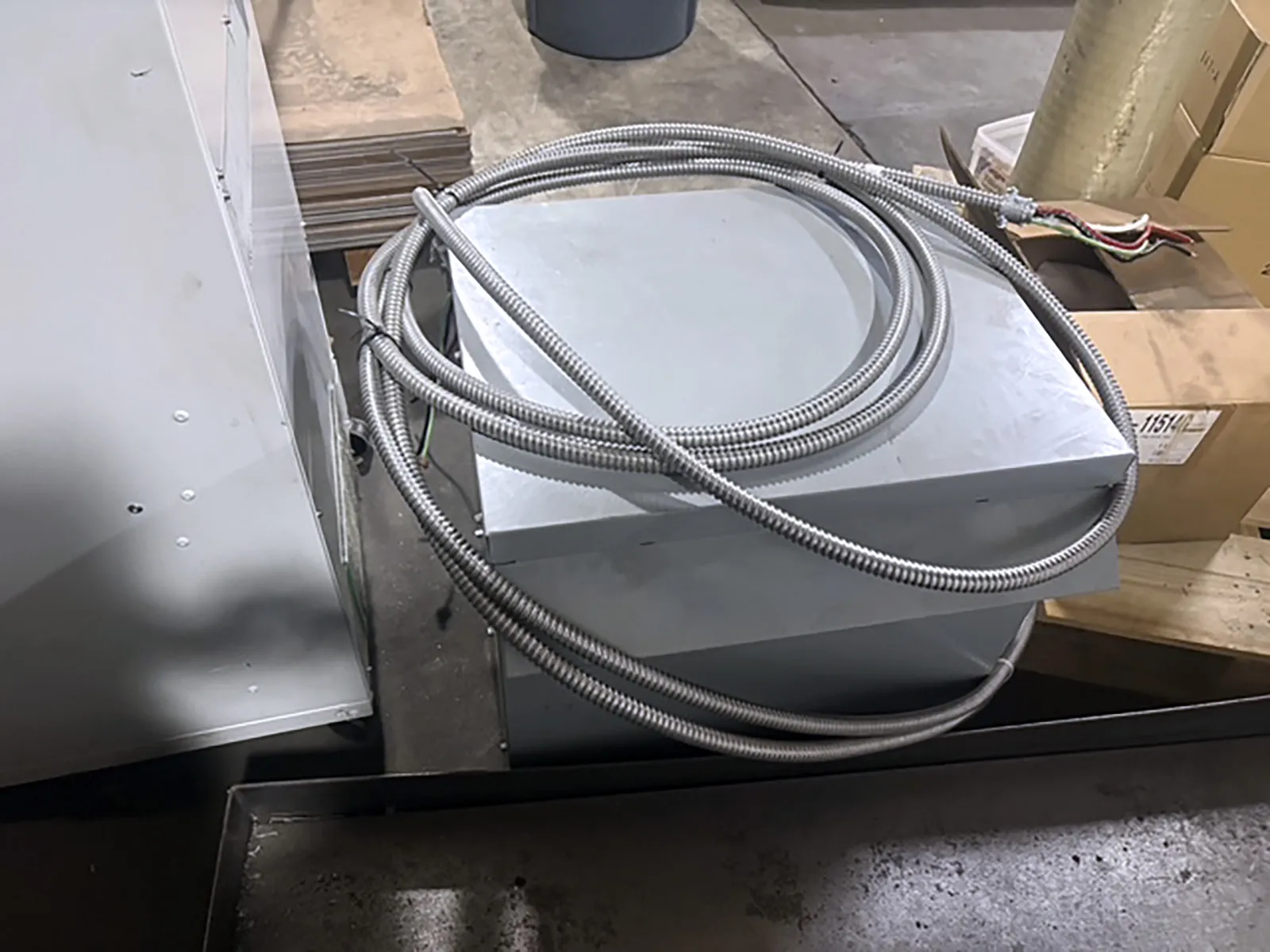

- 15kVA Low Voltage Distribution Transformer - Three Phase - 240Δ - 208Y/120V

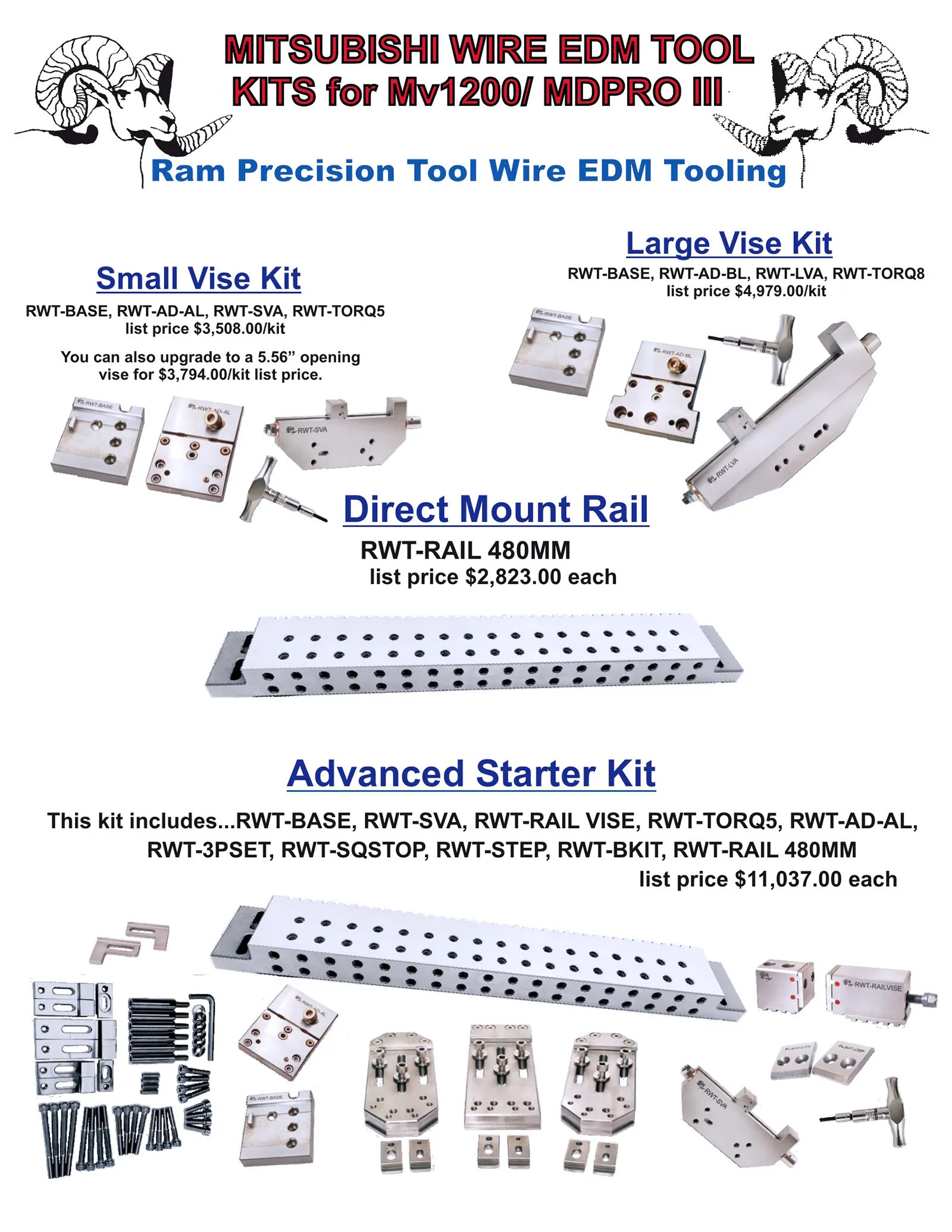

- Included Tooling Mitsubishi Advanced Starter Kit - Includes RWT-BASE / RWT-SVA / RWT-RAIL VISE / RWT-TORQ5 / RWT-AD-AL / RWT-3PSET / RWT-SQSTOP / RWT-STEP / RWT-BKIT / RWT-RAIL 480MM
- Mitsubishi Large Vise Kit - Includes RWT-BASE / RWT-AD-BL / RWT-LVA / RWT-TORQ8
Specifications

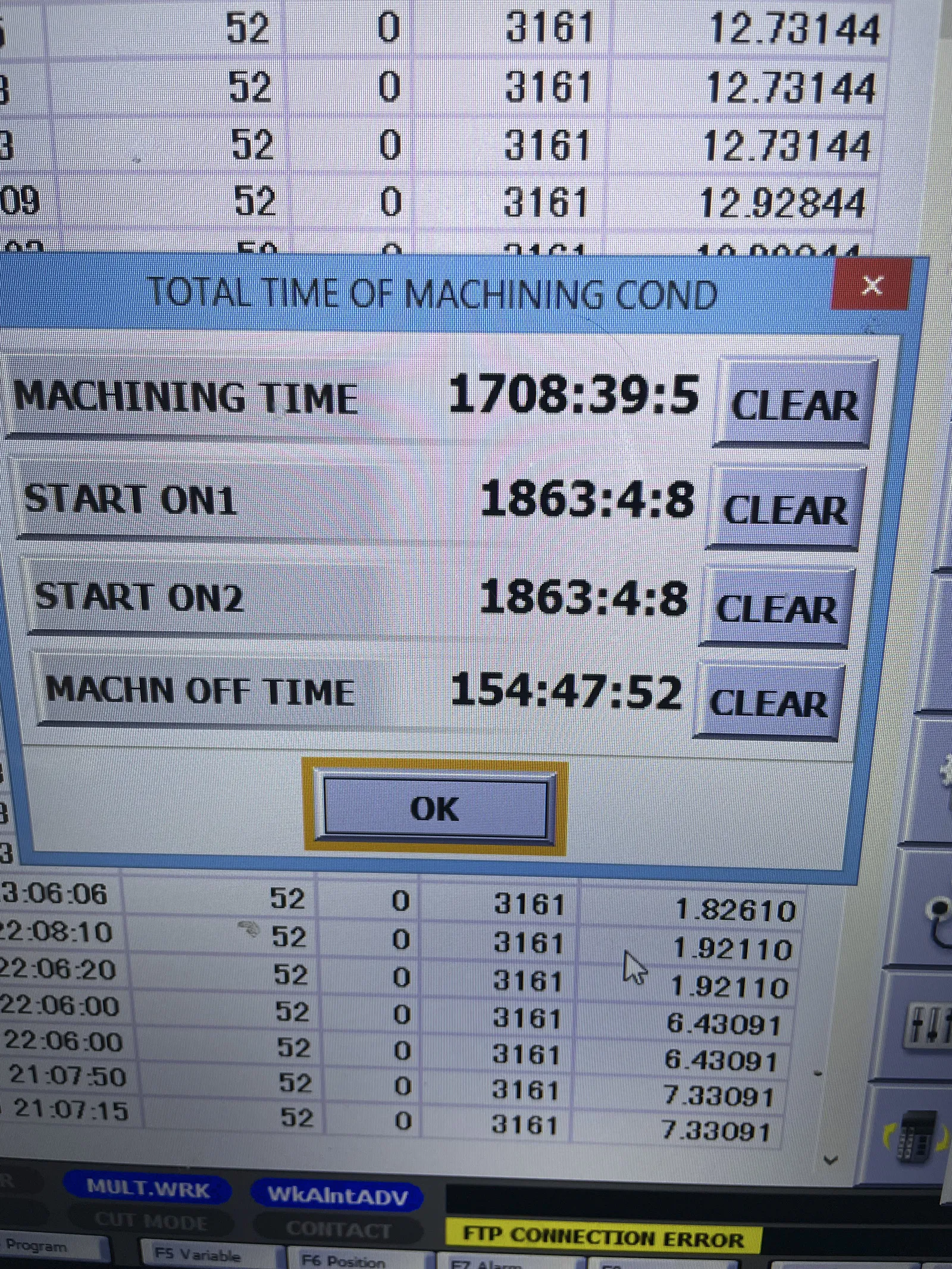

- Total Cutting Hours 1708
- Max. workpiece dimensions 31.9 x 27.6 x 8.5 (in)
- Workpiece Weight 1,100 (lbs)
- Table Dimensions 25.2 x 17.7 (in) (3-sided)
- Machining Range 15.7 x 11.8 x 8.7 (in)
- U/V Travel ±2.4 x ±2.4 (in)
- Resolution (in) (Absolute Scales) .00002 (2 Millionths)
- Taper Angle 15° @ 8.0"
- Table Rapid Feed 51.2 (in/min)
- Wire Diameter .004-.012 (.010 Std.) (in)
- Minimum Wire Thread Start Hole .020 (in)
- Maximum Workpiece AT Height 8.7 (in)
- Wire Tension 50 ~ 2500 (g)
- WIRE SPOOLING SPEED 0 ~ 11.8 (in/sec)
- Filter System Paper cartridge (2x)
- Filter Precision 5 micron
- Ion-Exchange Resin 1 ft³ (6.4 gal. dry)
- FILTER TANK CAPACITY 145 (gallons)
- Overall Machine Unit Dimensions 79.7 x 106.4 x 79.3 (in)
Machine Description

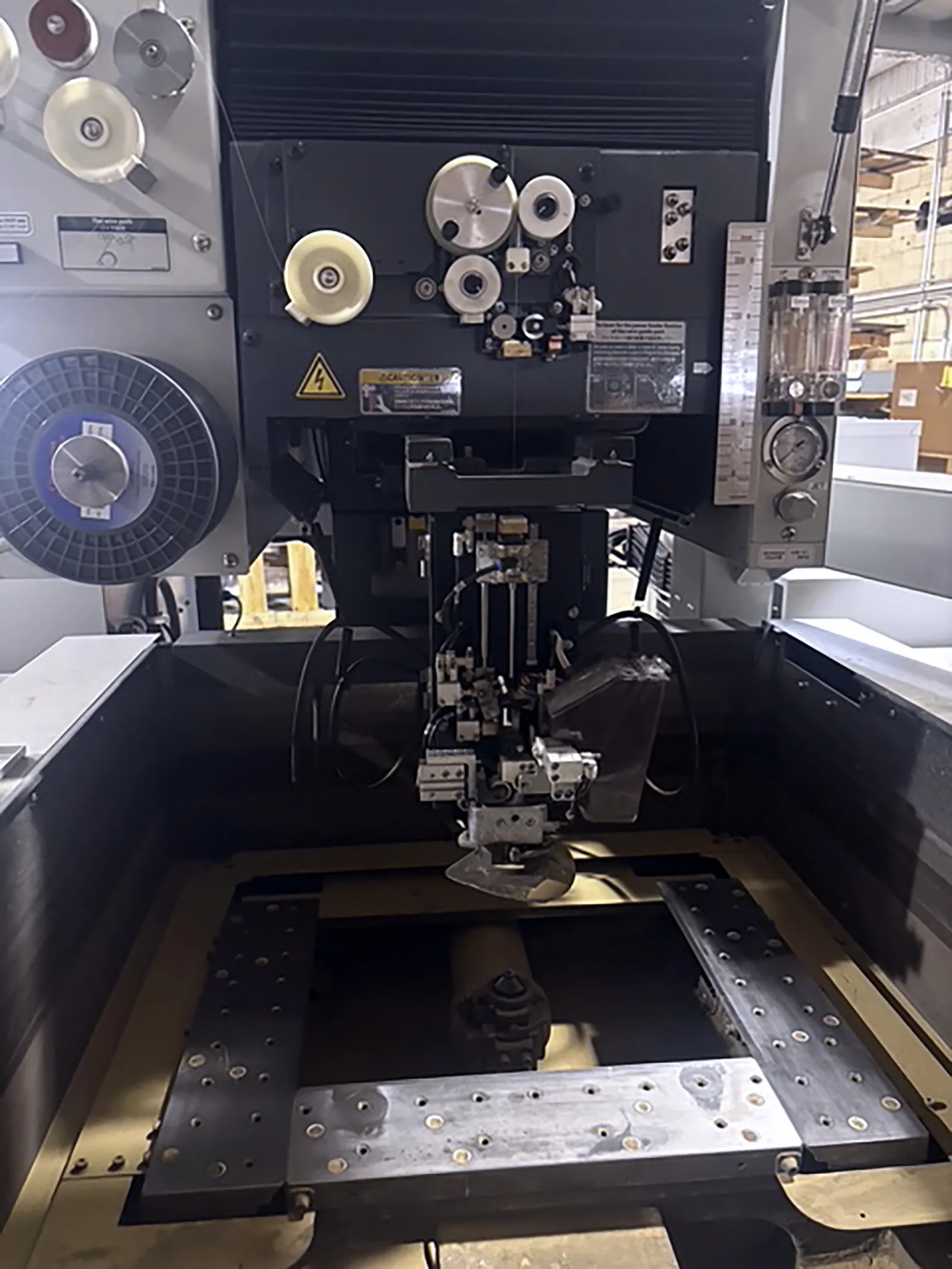

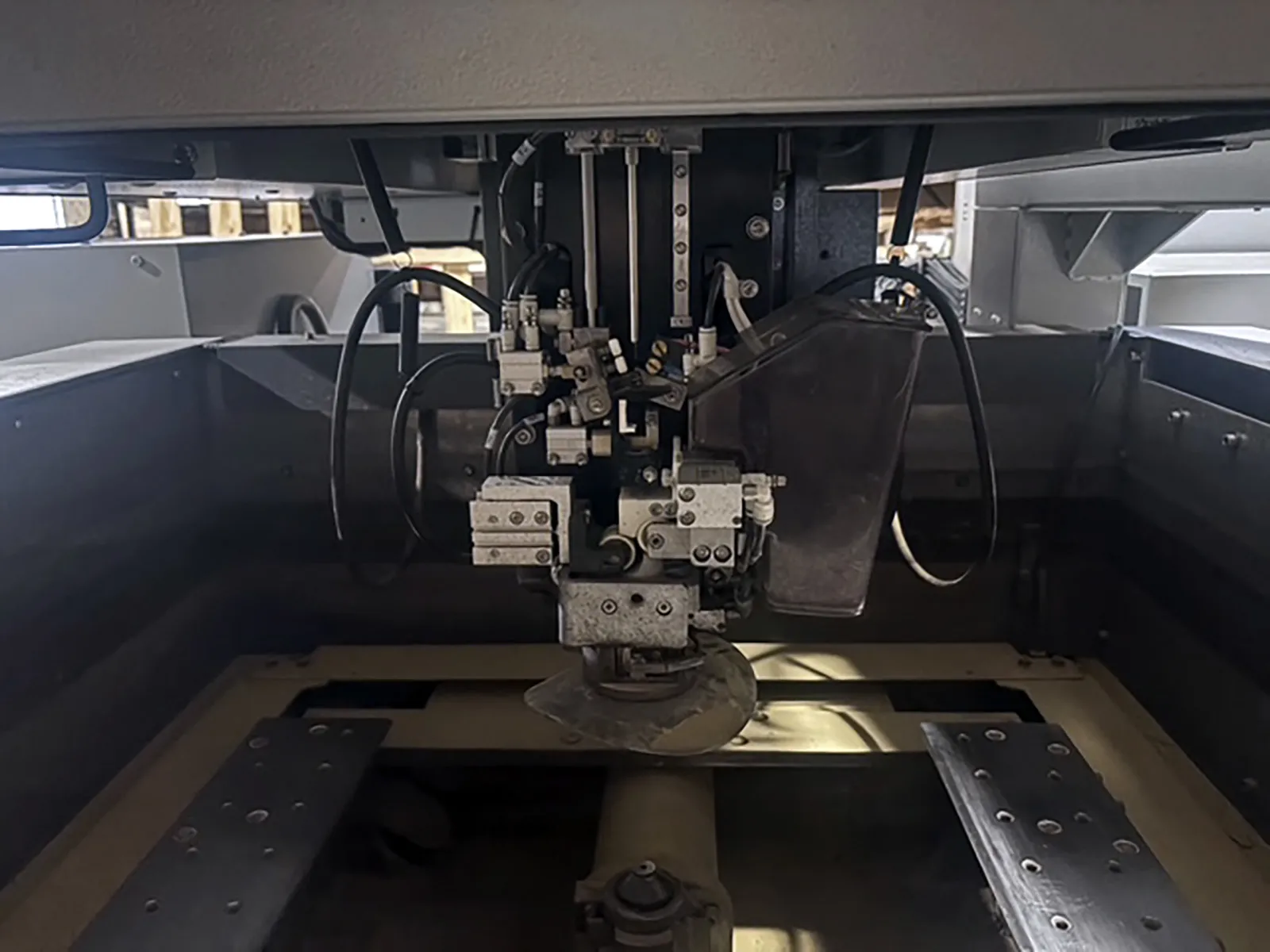

The Mitsubishi MV1200-S Wire EDM (2022) with Mitsubishi M800 Control is a high-precision CNC wire cutting machine engineered for intricate, burr-free machining of hardened tool steel, titanium, carbide, and other conductive materials. Ideal for tool & die, aerospace, medical, electronics, and automotive industries, it delivers exceptional accuracy, deep-profile cutting, and stress-free machining for complex, tight-tolerance components.
