Sodick OPM250L 2016

One-Process Efficiency: Combines printing and finishing in a single workspace. Eliminating the need for post-process EDM or separate CNC setups

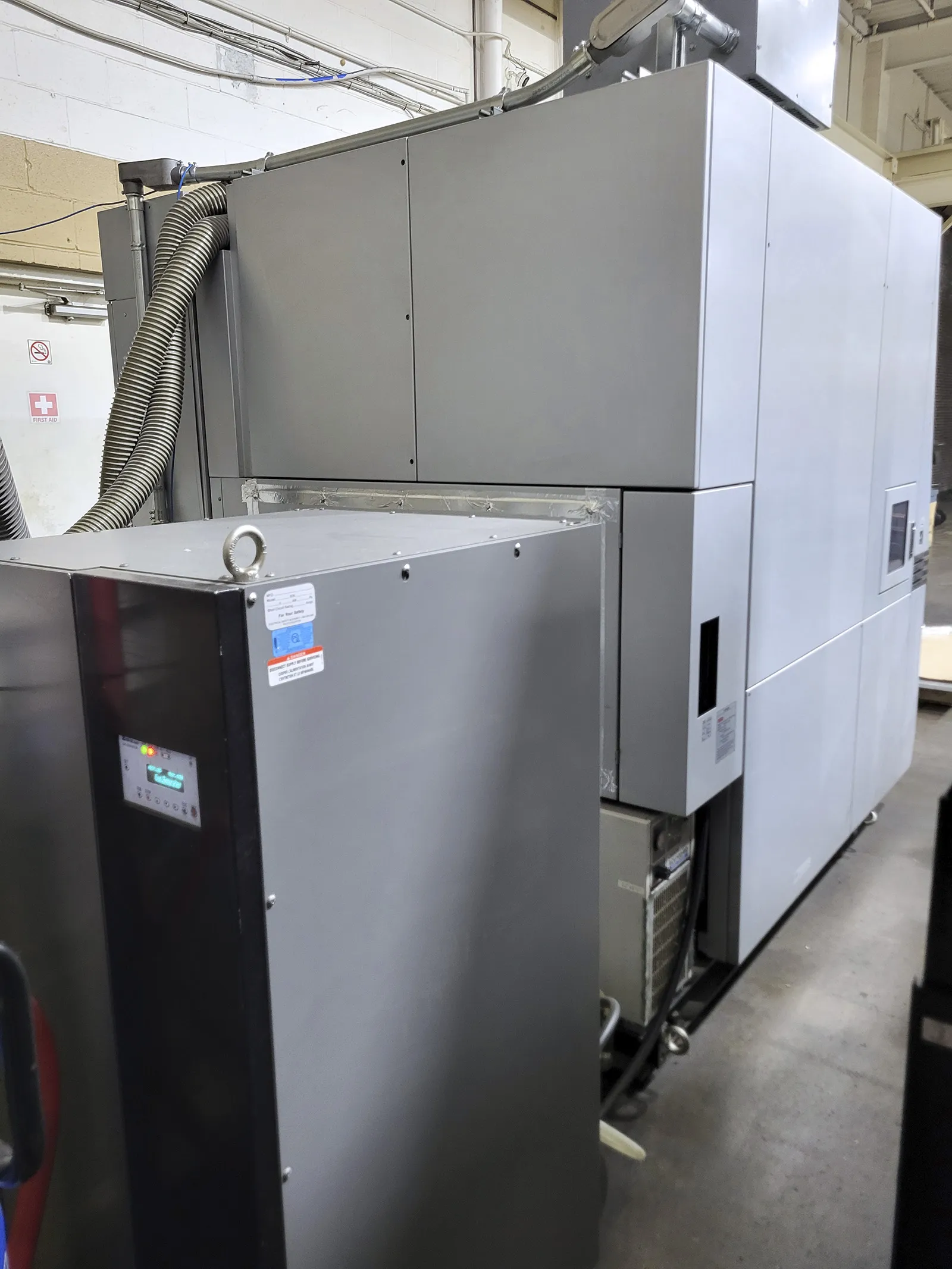

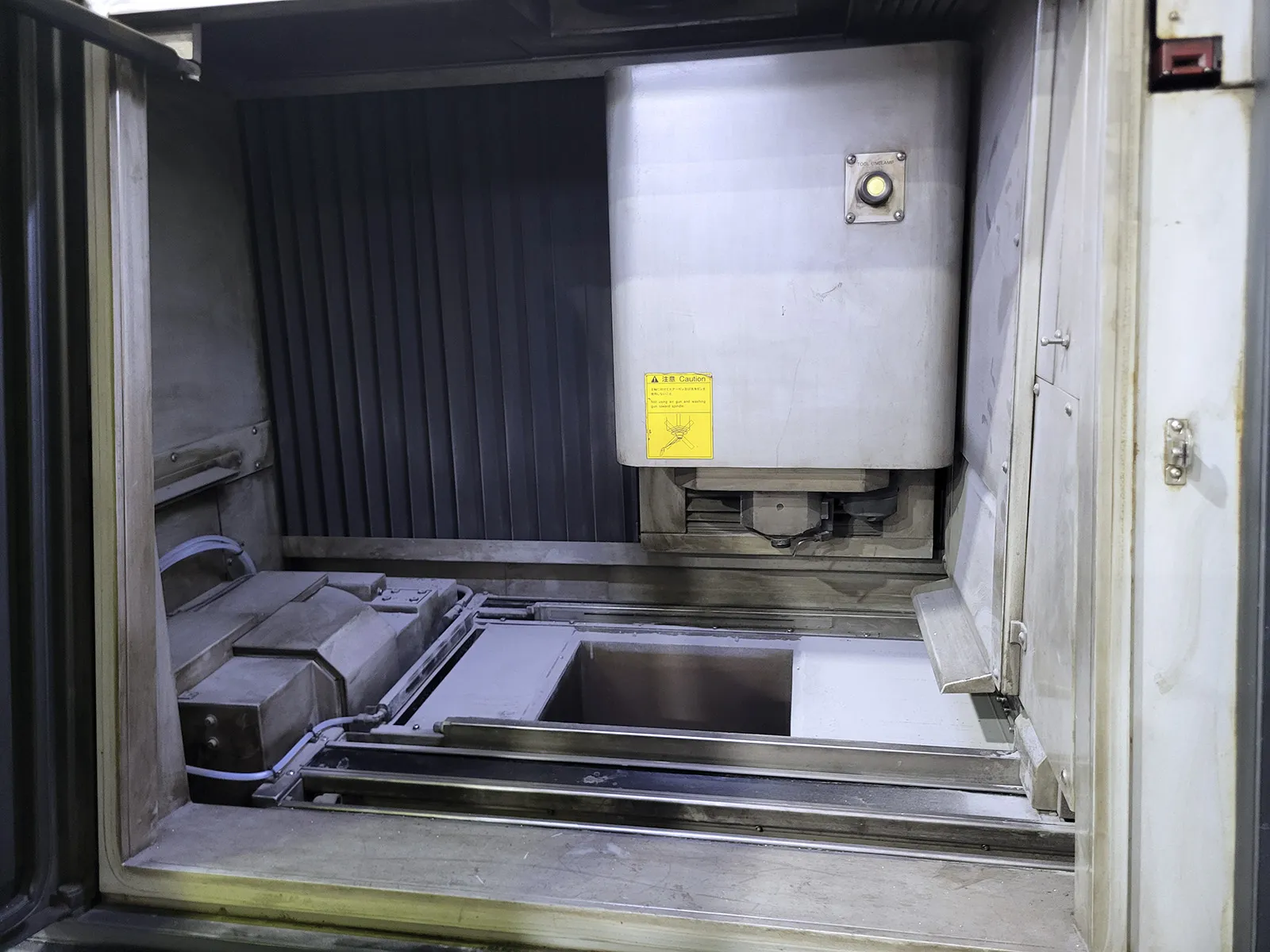

Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
YouTube Thumbnail
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill_3740198
Watch how it performs

in real-world use

Sodick
OPM250L
2016
N/A
#3740198

Specifications

Equipped With

  • Max Spindle Speed 45,000 RPM
  • X-Axis Travel 10.24" (260 mm)
  • Y-Axis Travel 10.24" (260 mm)
  • Z-Axis Travel 10.24" (260 mm)
  • Spindle Z-Axis Stroke 3.94" (100 mm)
  • Tool Holder Type HSK-E25 (Dual face contact)
  • Max Workpiece / Build Size 9.84" x 9.84" x 9.84"(250mm x 250mm x 250 mm)

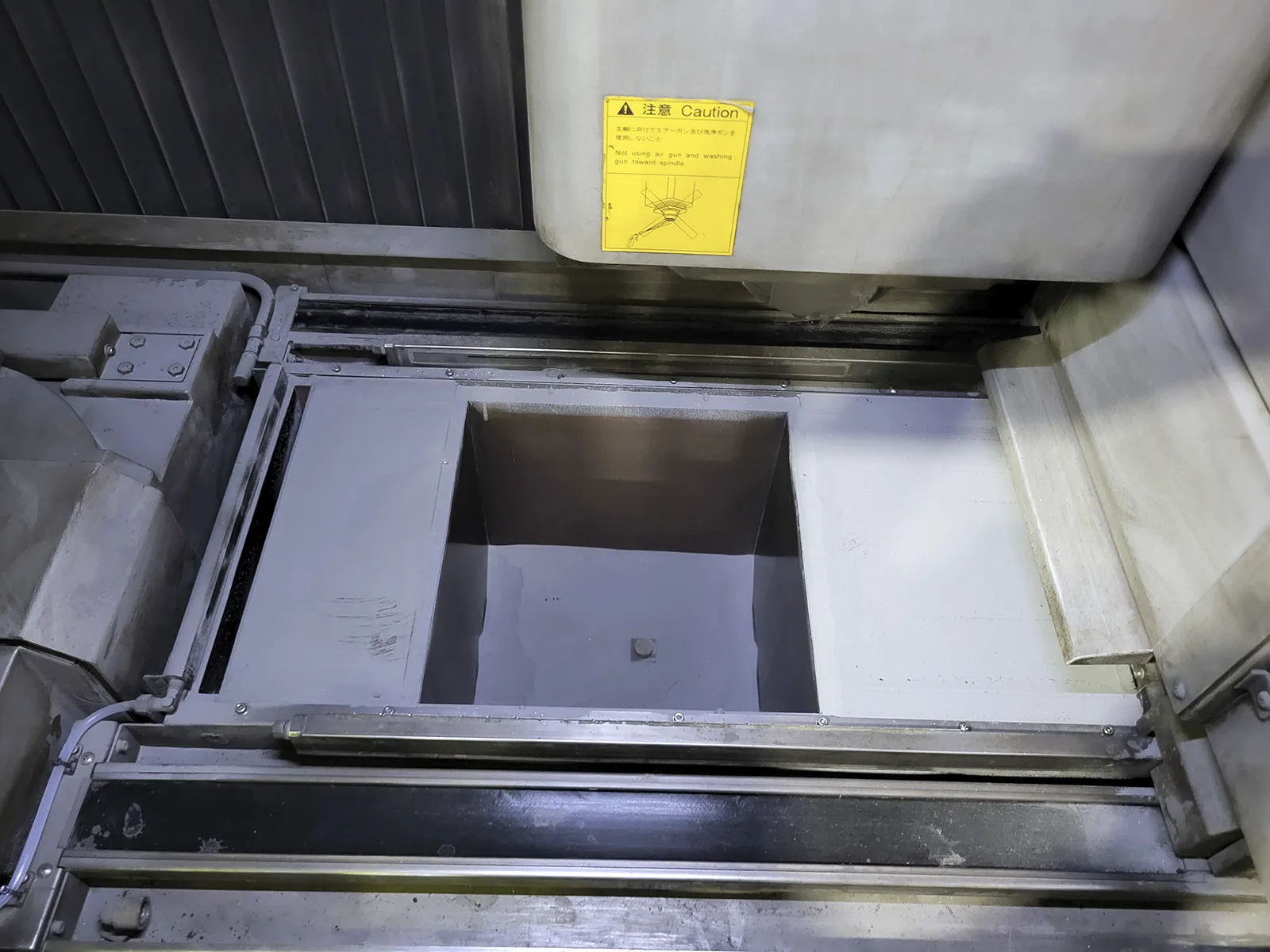

  • Molding Tank Inner Dimensions: 11.42" x 11.42"(290mm x 290 mm)
  • Max Workpiece Weight 220 lbs (100 kg)
  • Laser Type Yb (Ytterbium) Fiber Laser
  • Max Laser Output 500 W
  • Laser Wavelength 1070 nm
  • Laser Scanning Method Galvano Method

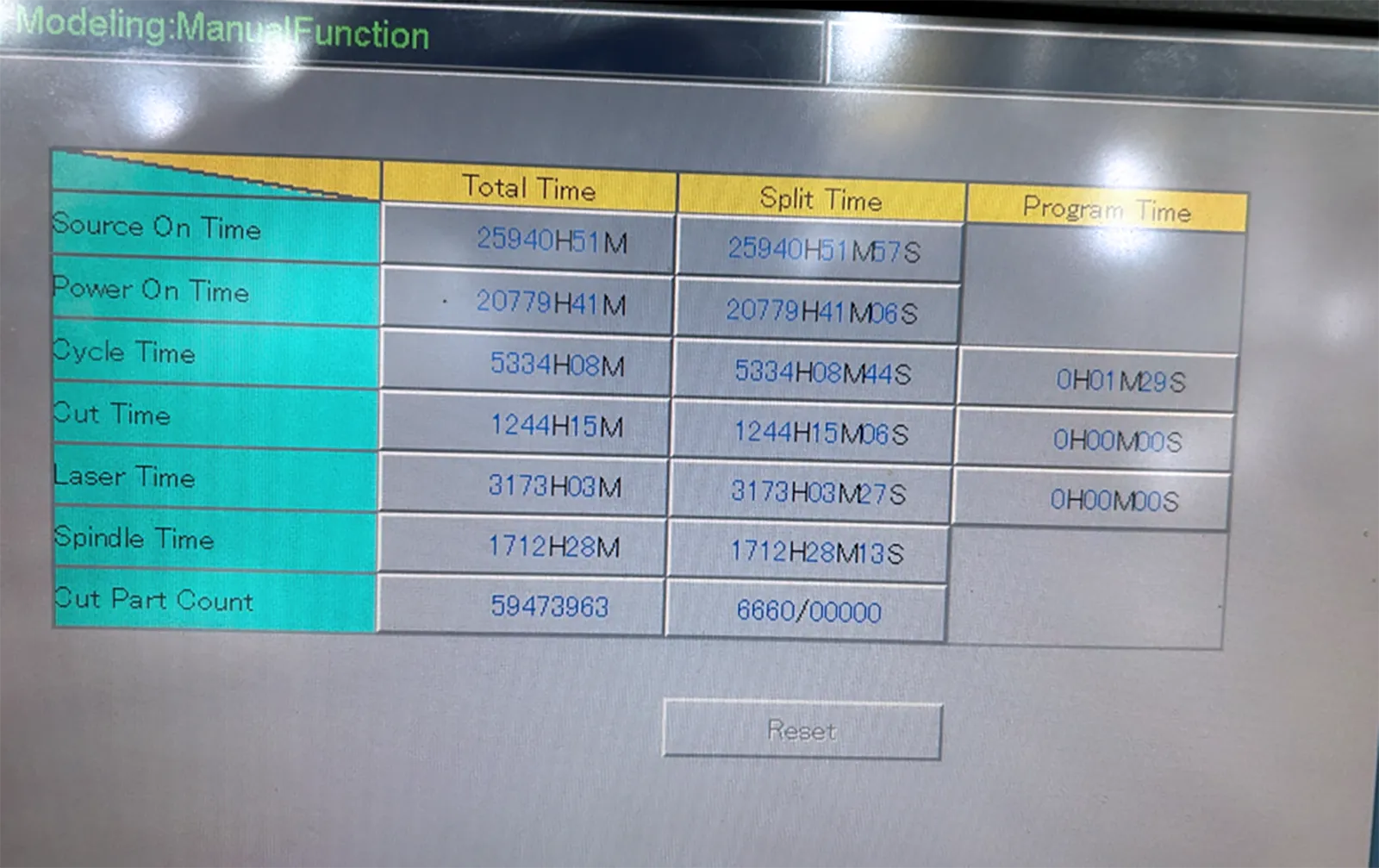

  • Power On Time 20779 Hrs
  • Cut Time 1244 Hrs
  • Laser Time 3173 Hrs
  • Spindle Time 1712 Hrs
  • Overall Machine Dimensions 73.62" x 87.80" x 80.91" (1,870mm x 2,230mm x 2,055 mm)
  • Machine Weight 9,920 lbs (4,500 kg)

Machine Description

The Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill combines metal additive manufacturing with precision CNC milling to produce complex, high-hardness steel molds in a single setup. Ideal for creating conformal cooling channels that reduce injection molding cycle times by up to 60%, it is widely used for precision tooling, mold & die production, and advanced components in aerospace and medical industries.
Watch how it performs

in real-world use

Sodick
OPM250L
2016
N/A
#3740198

See the Machine in Action

Watch how it performs in real-world use
