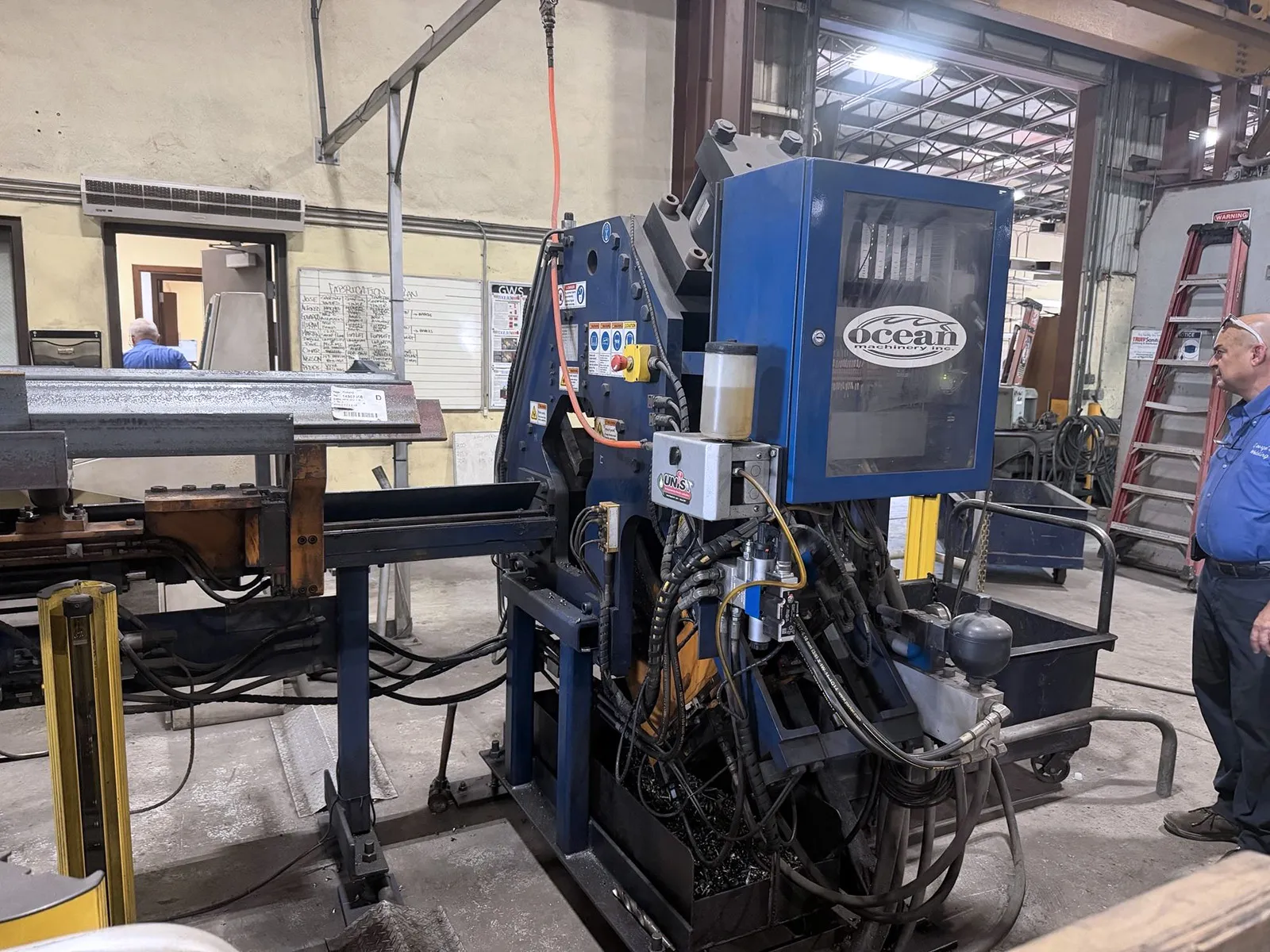

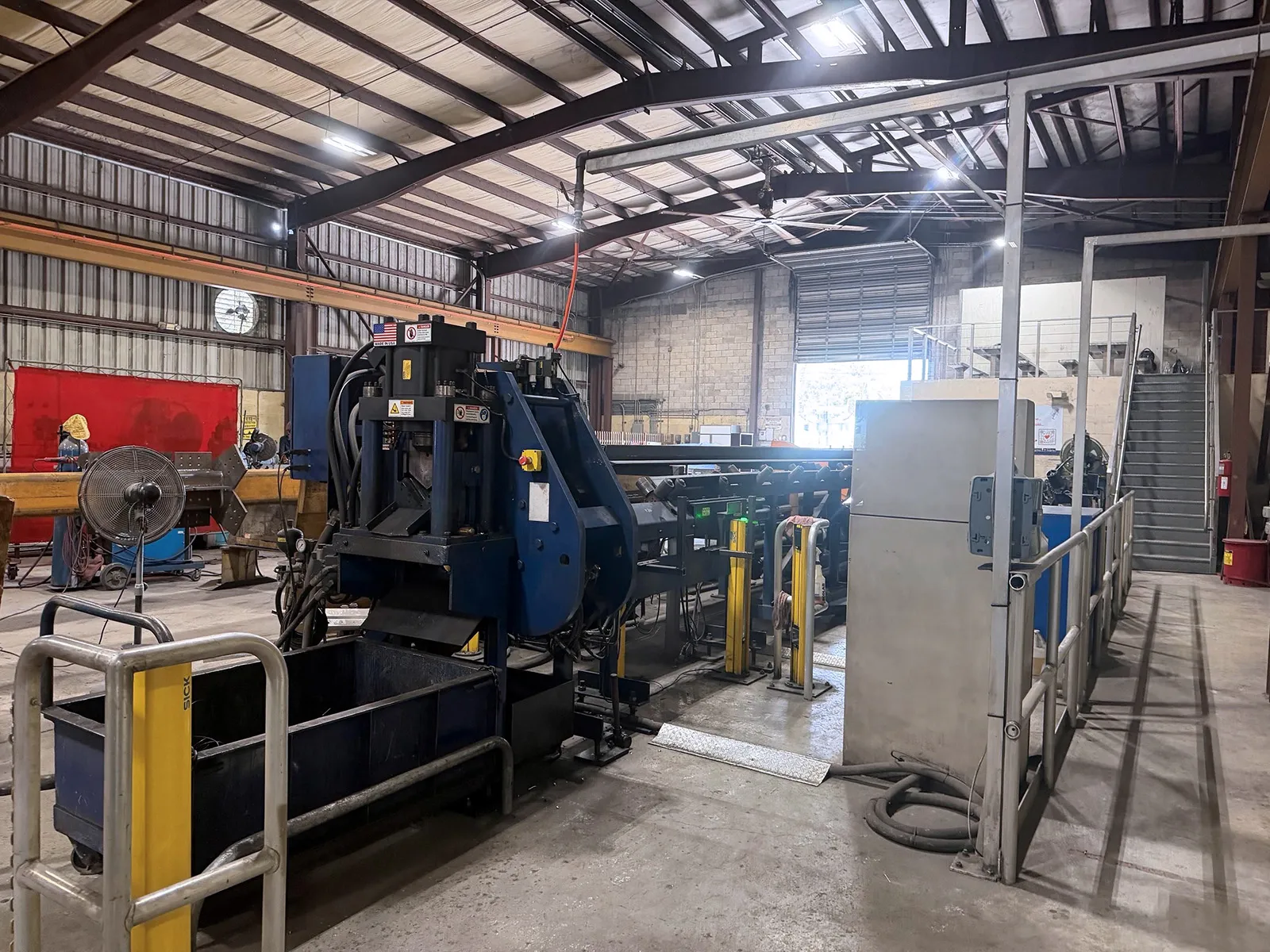

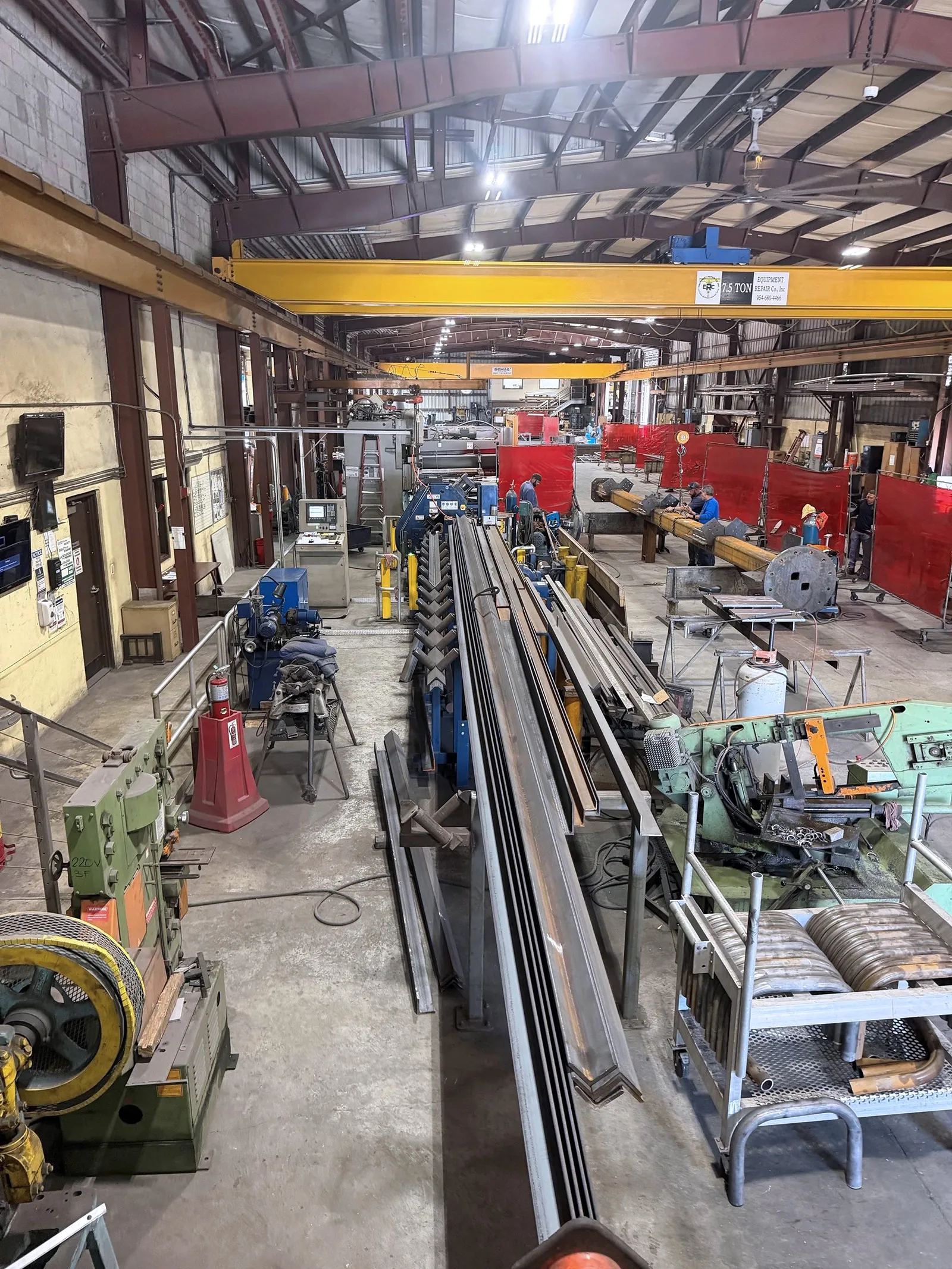

Peddinghaus Ocean Clipper Angle Line 2015

6×6×5/8 angle capacity | 75 ton punch | 100 ton shear

Buy Now
Previous|Next

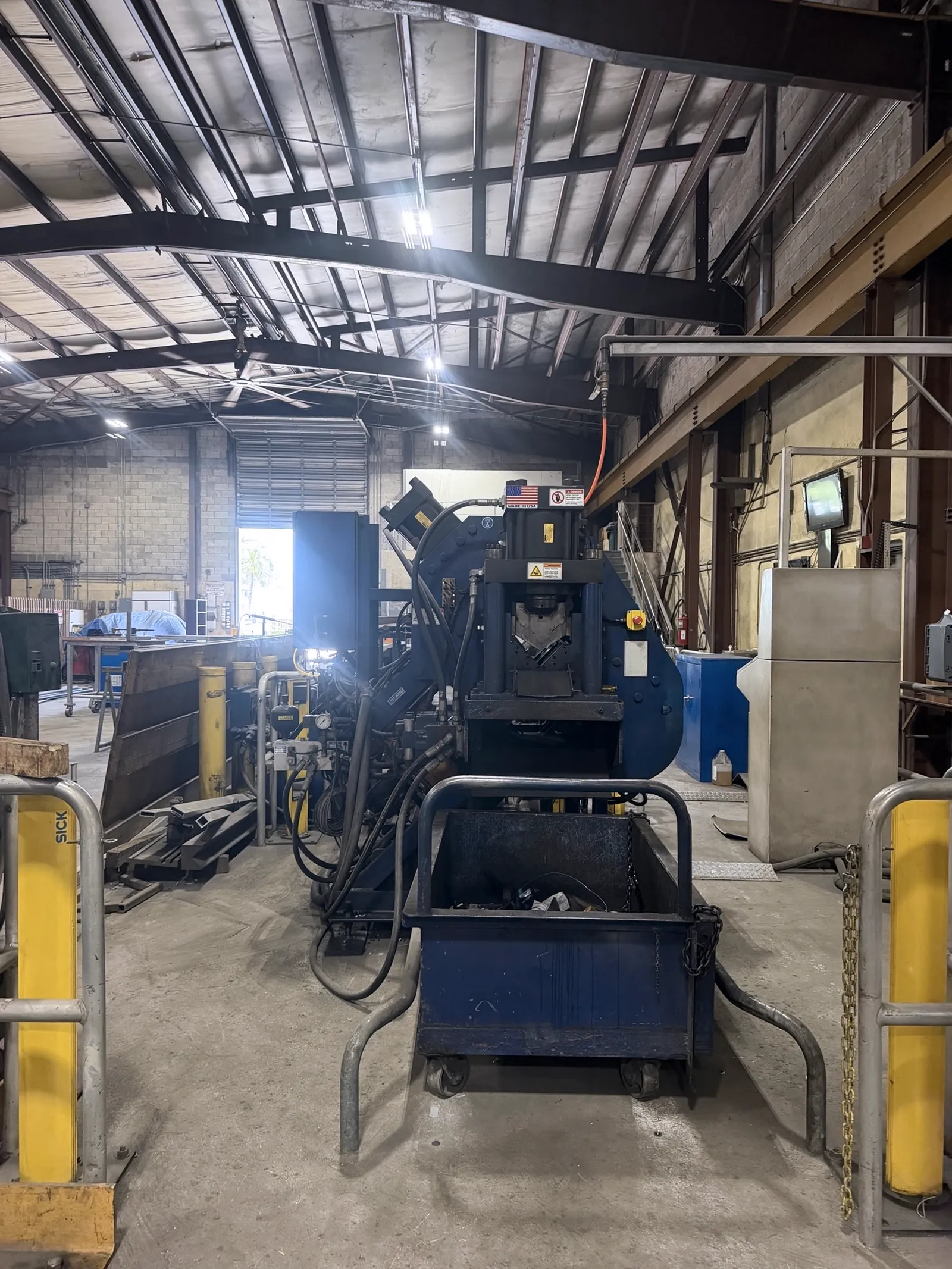

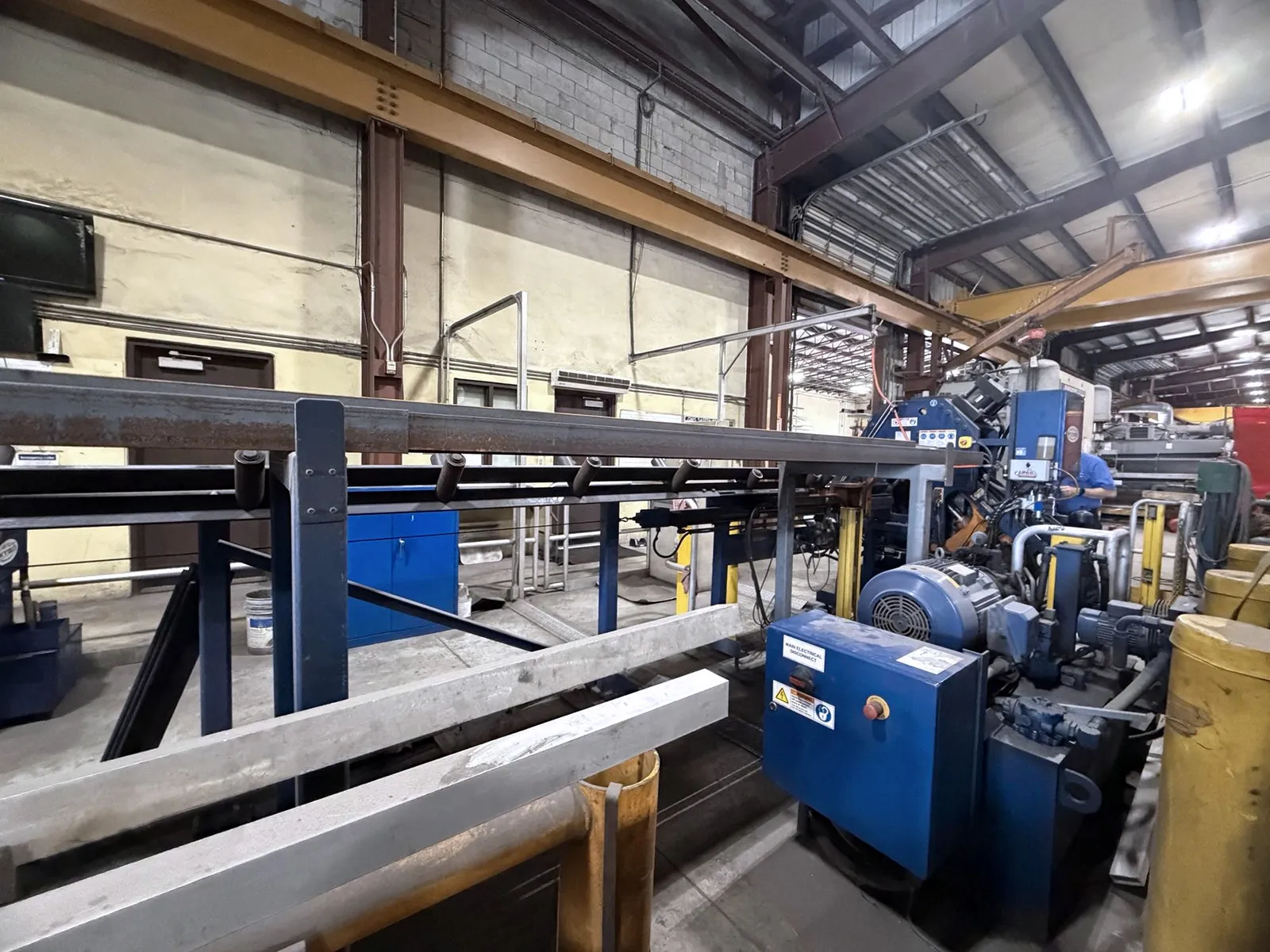

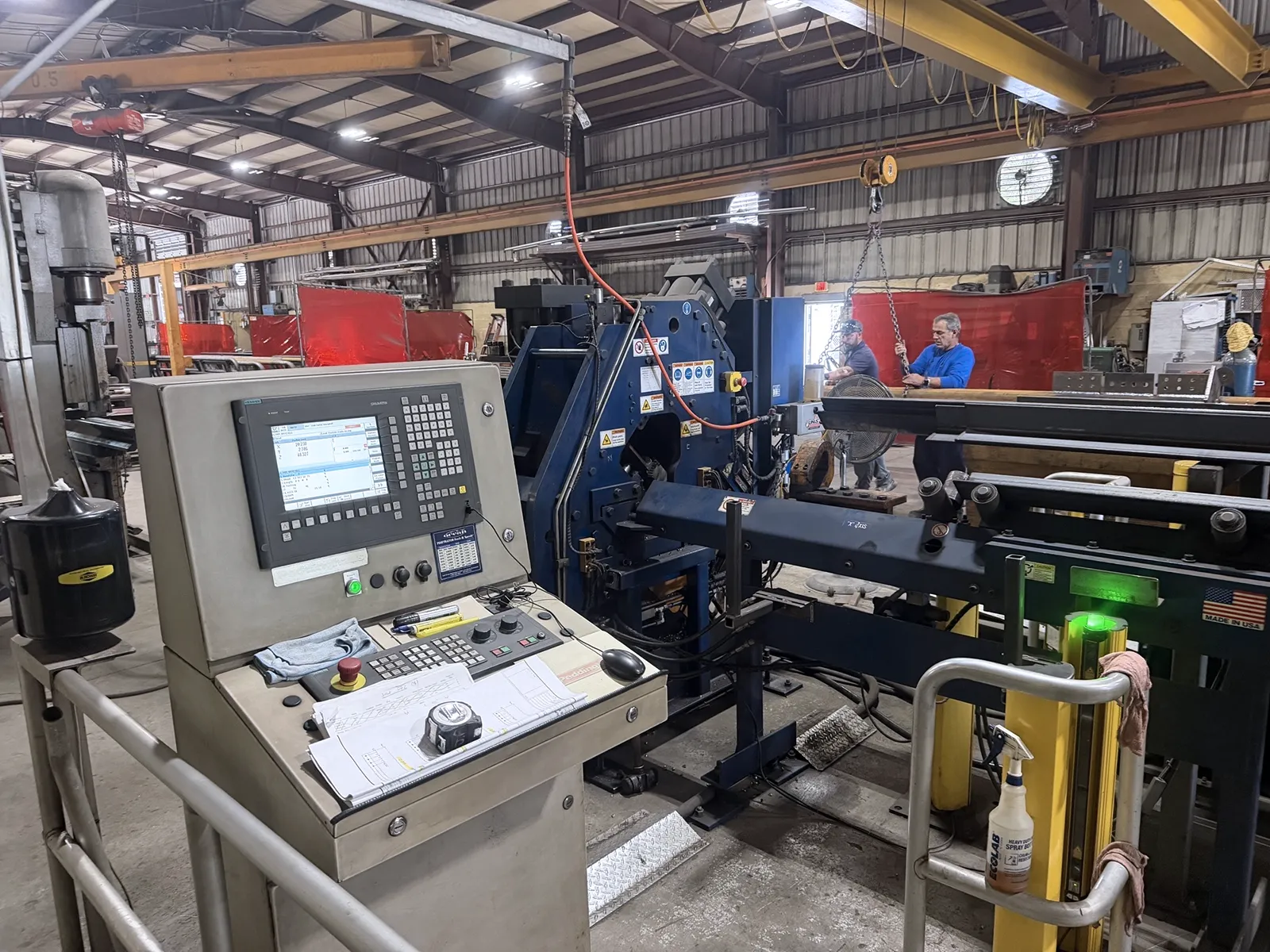

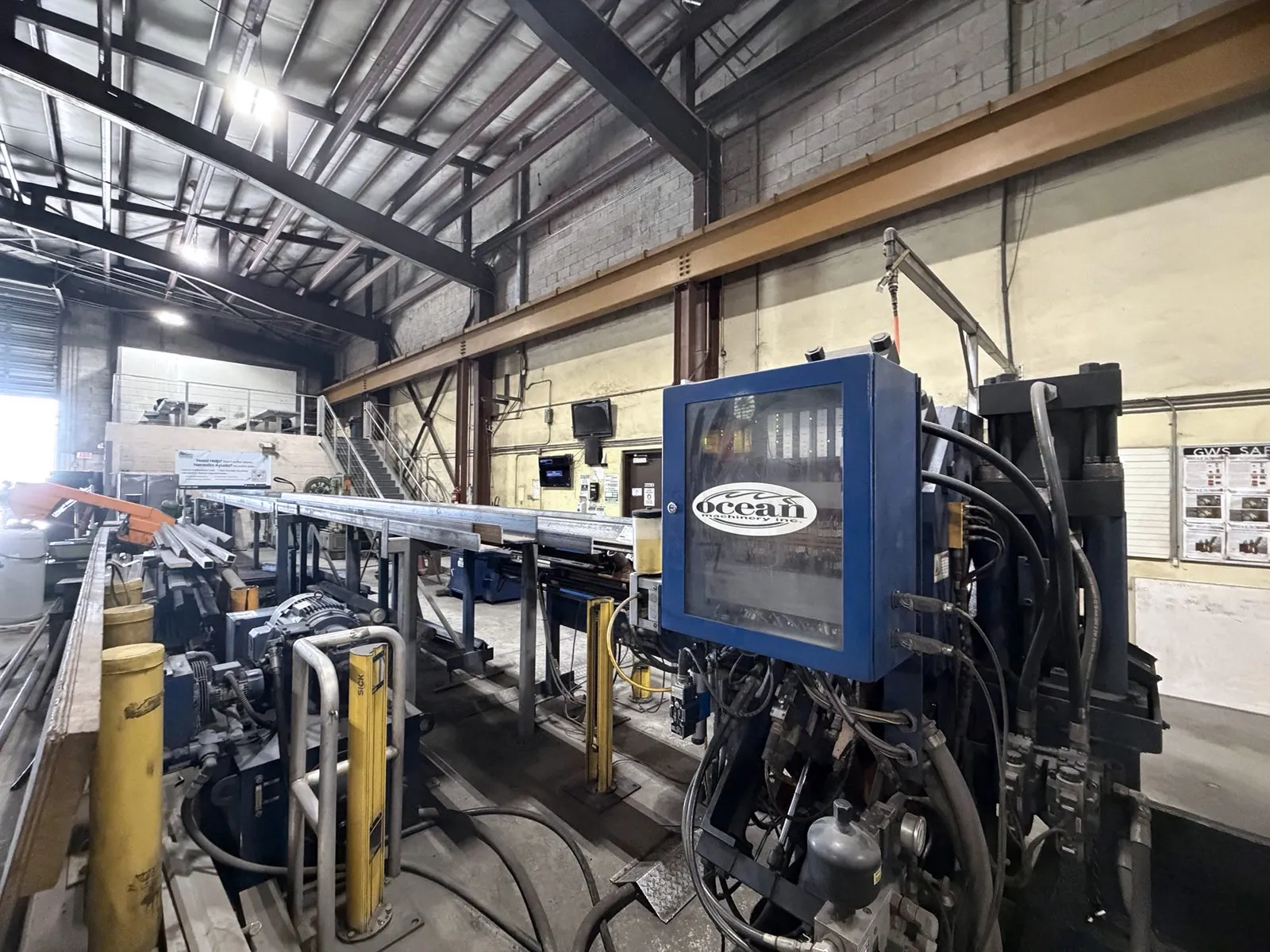

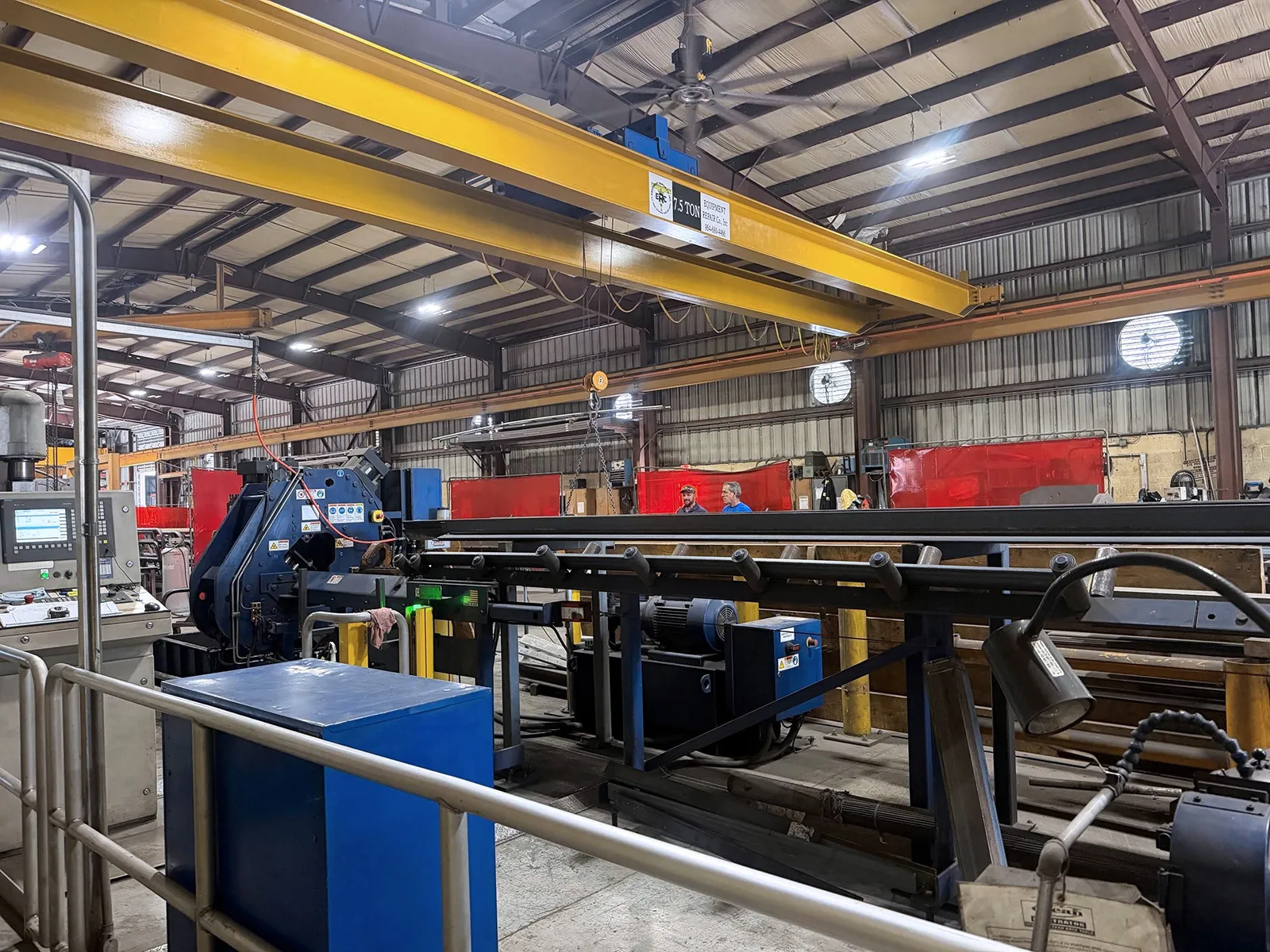

Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Ocean Clipper Angle Line_3765357
Peddinghaus
Ocean Clipper Angle Line
2015

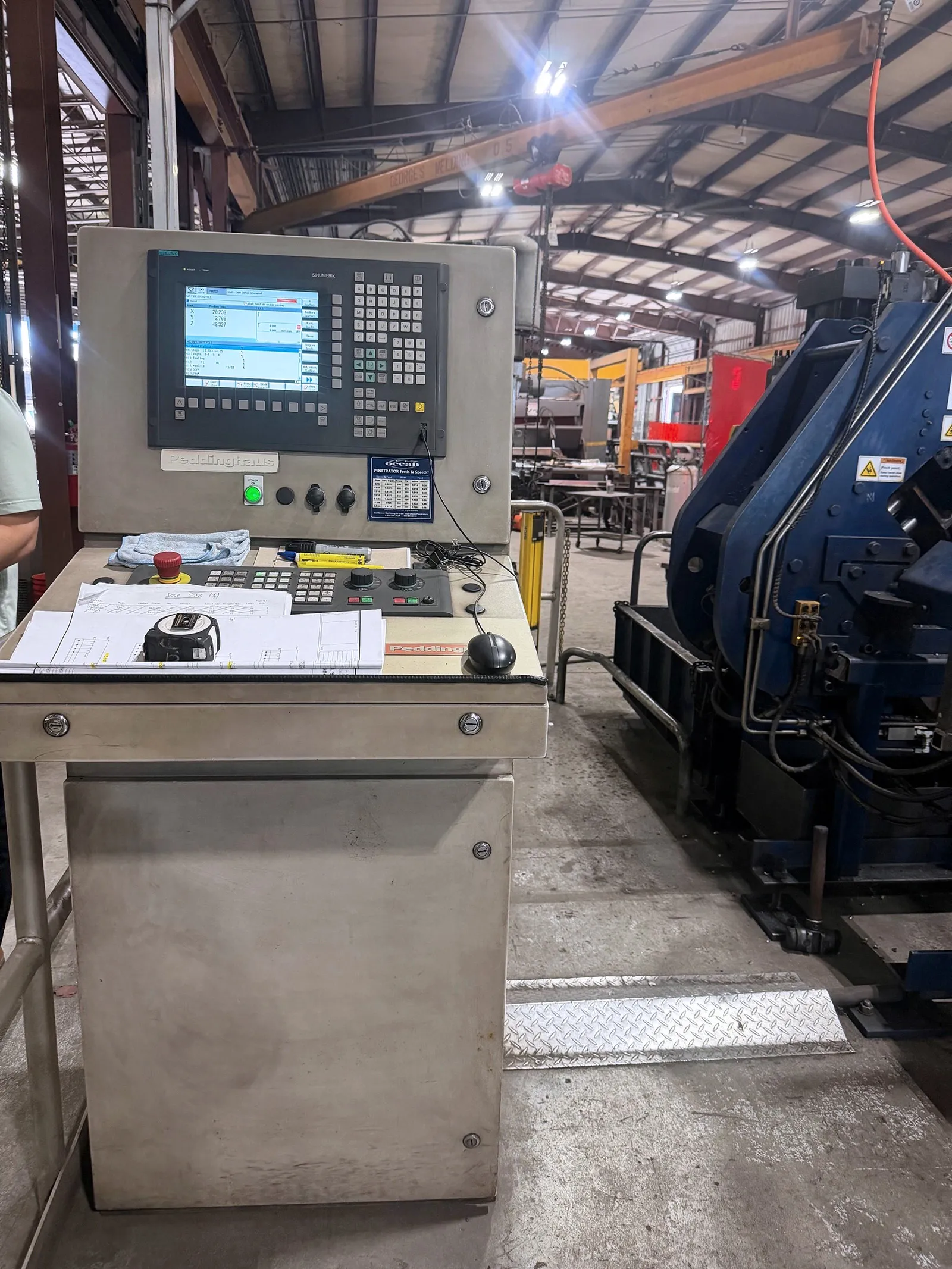

Siemens 840Di
#3765357
Angle Line

Contact For Price

Request QuoteMake Offer
Sell your Peddinghaus

Need more help? Chat now or Contact Us

Specifications

Equipped With

  • Angle Sizes
  • Max angle size 6 x 6 x 5/8" (150 x 150 x 15 mm)
  • Minimum angle size 1-1/2 x 1-1/2 x 1/8" (40 x 40 x 4 mm)
  • Drill One Leg - Round Hole Only
  • Minimum Hole Diameter 5/16" (8 mm)
  • Maximum Hole Diameter 1-9/16" (40 mm)
  • Minimum Drill Gauge 0.5" (12 mm)
  • Maximum Drill Gauge 5.5" (140 mm)
  • Drill Feed Rate 2-10 inch/min (50-250 mm/min)
  • Punch One Leg - Slots, holes, shapes etc
  • Punching Tonnage 75 Tons US (68 Metric Tons)
  • Maximum Punch Size 1-1/4" (32 mm) diameter
  • Punch Cycle Time 2 seconds
  • Shear - Cut to Length
  • Shear Tonnage 100 Tons US (91 Metric Tons)
  • Minimum Drop 8.125" (206 mm)
  • Shear Cycle Time 5 seconds
  • Slug Size 1/2" (12 mm)
  • Measurements & General
  • In-feed Speed (X-Axis) 61 FPM (18.5 meters/min), max
  • Maximum X Direction Stroke 50" (1270 mm)
  • Y Axis Travel 12" (300 mm)
  • Z Axis Travel 5" (127 mm)
  • Machine Pass Line 45" (1143 mm)
  • In Feed Conveyor 26'
  • Power Requirements 460V, 3 Phase

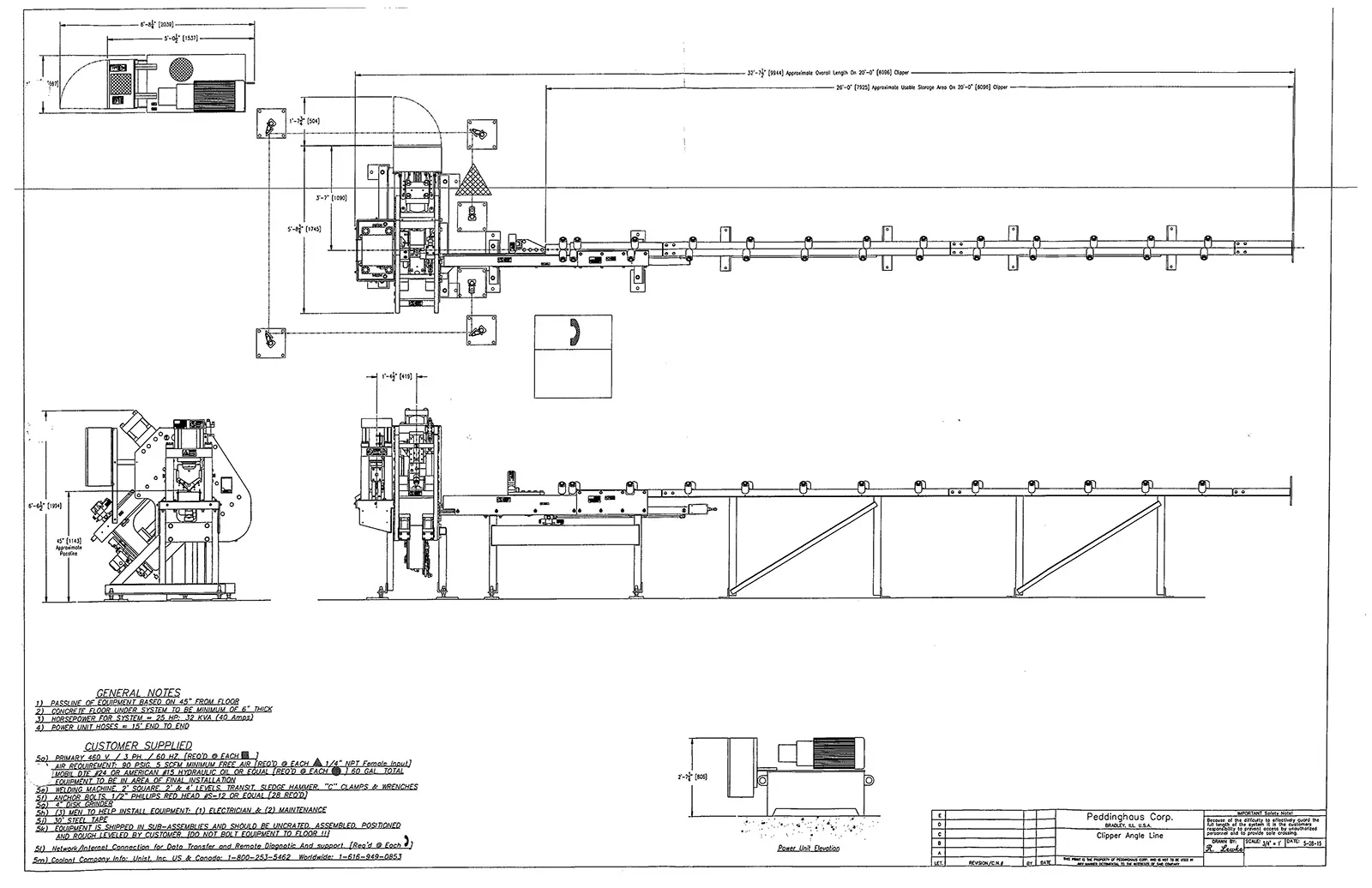

  • Overall Dimensions 34' x 8' x 7'
  • Overall Weight 9,000 lbs

Machine Description

Ocean Clipper Angle Line (2015) is a compact automated CNC steel processing system for structural fabrication shops. It rapidly punches, shears, and processes clip angles, bracing angles, flat bars, gusset plates, and ledger angles, delivering high-speed accuracy and efficiency for modern steel construction workflows. Ideal for heavy-duty industrial production.
